EXPERTEC TSB (88-T-202)

Publication date: 1988-08-09
Reference number: 88-T-202

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 88-T-202, Date of Issue: 08/09/88

08/09/1988

GMC 88-T-202

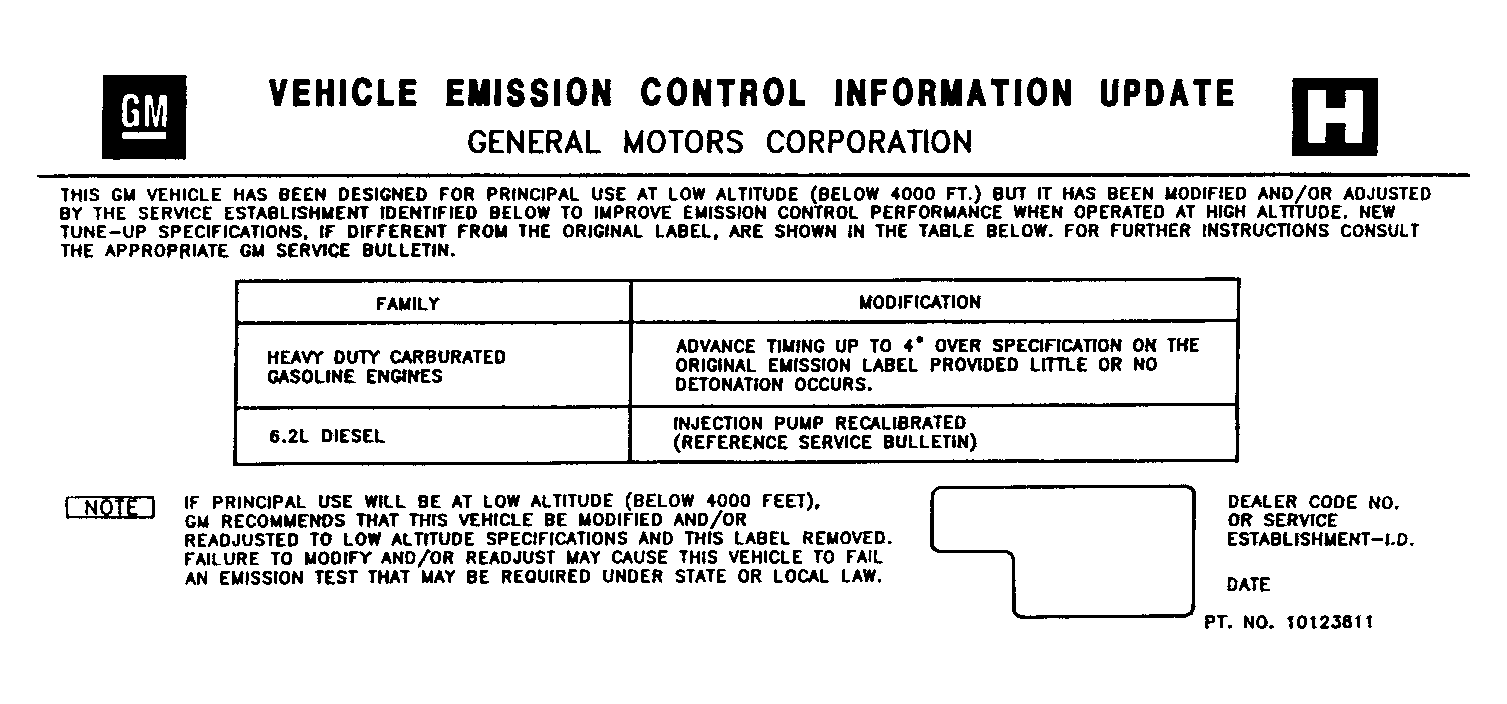

Fig 1: Graphic

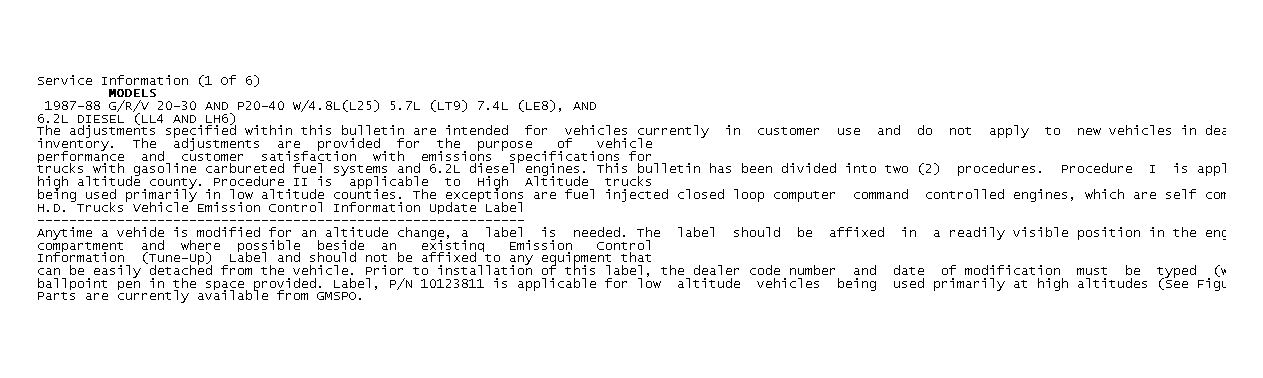

Fig 2: Service Information (1 Of 6)

Fig 3: Service Information (2 Of 6)

Fig 4: Service Information (3 Of 6)

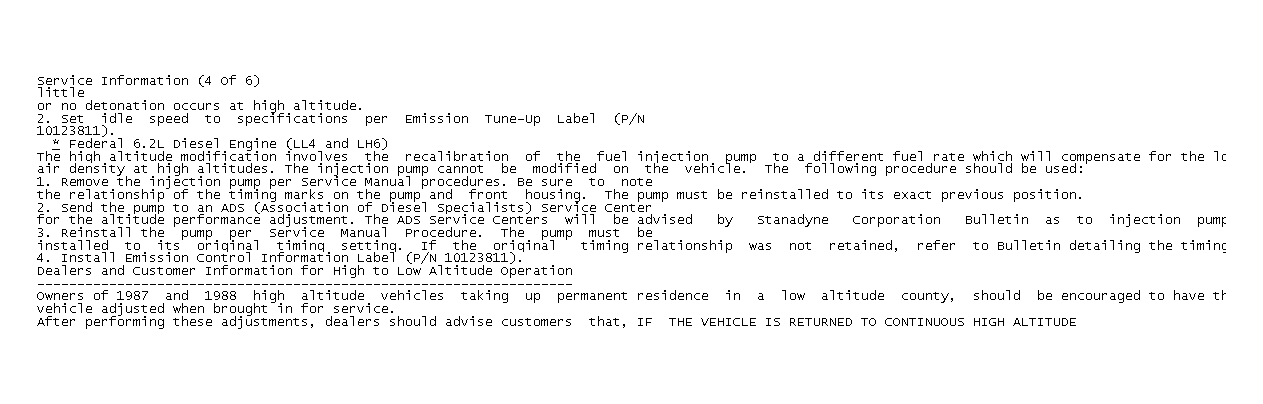

Fig 5: Service Information (4 Of 6)

Fig 6: Service Information (5 Of 6)

Fig 7: Service Information (6 Of 6)
