Window Regulator & Motor

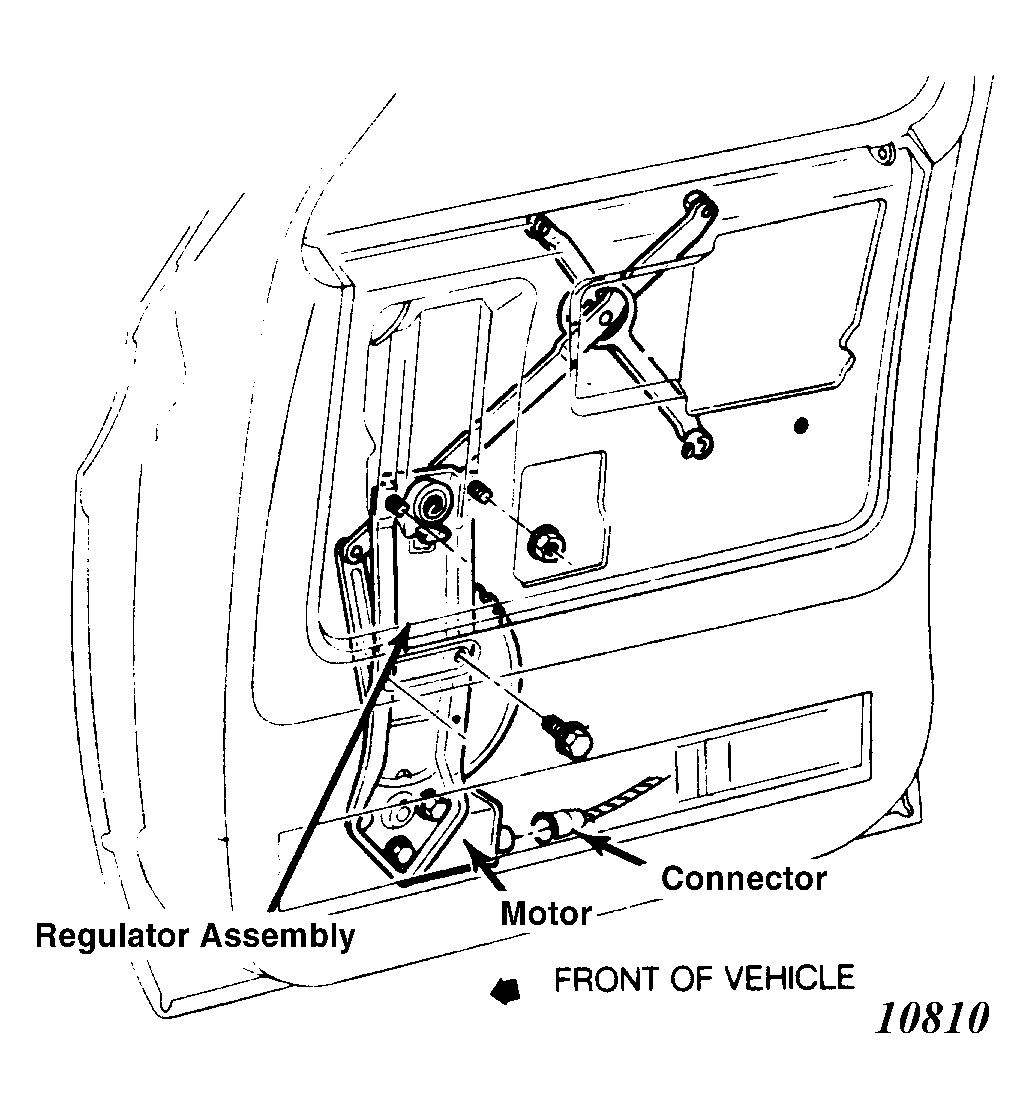

Fig 1: Power Window Regulator Assembly

Courtesy of GENERAL MOTORS CORP.

WARNING: Window regulator lift arm is under tension from counterbalance spring. Sector gear must be locked to avoid personal injury.
