PCV Valve
The wrong PCV valve may cause incorrect idle speed.

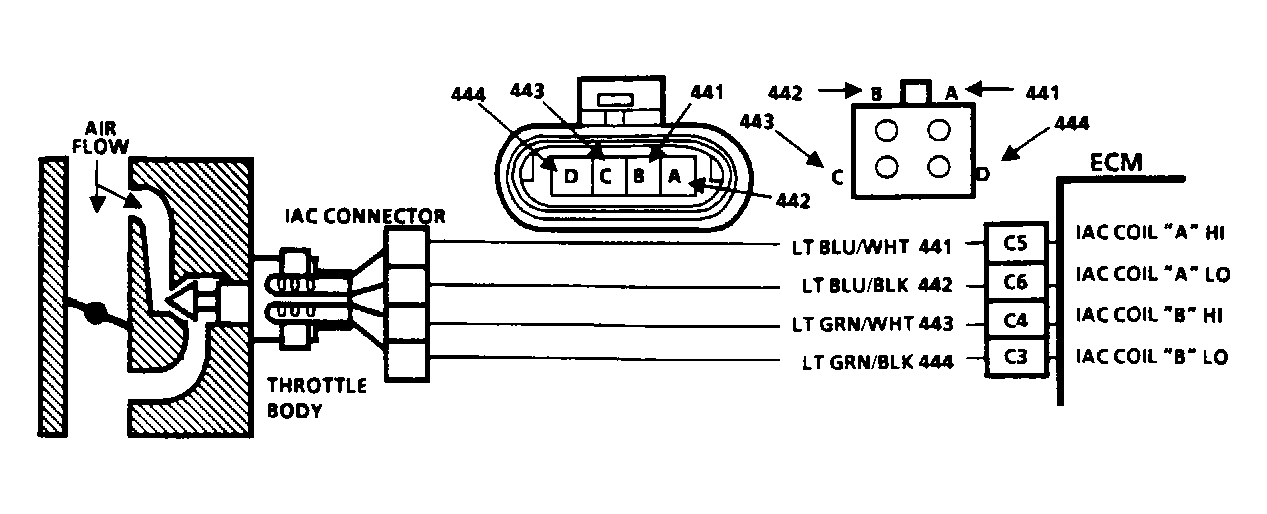

Fig 1: Code 35: Idle Speed Error (2.5L) Circuit Diagram

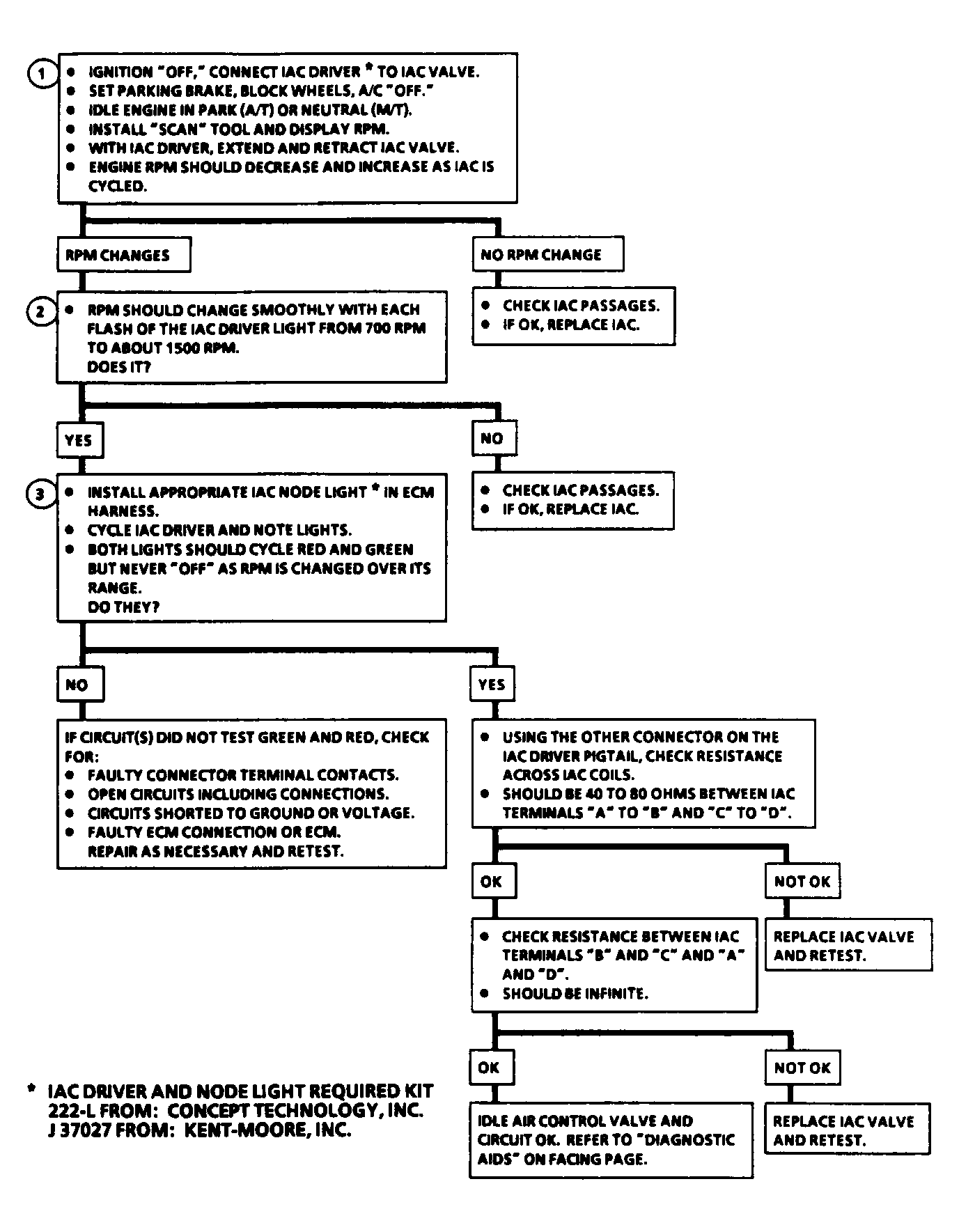

Fig 2: Code 35: Idle Speed Error (2.5L) Flow Chart
