Oil Pressure Sensor: Locations

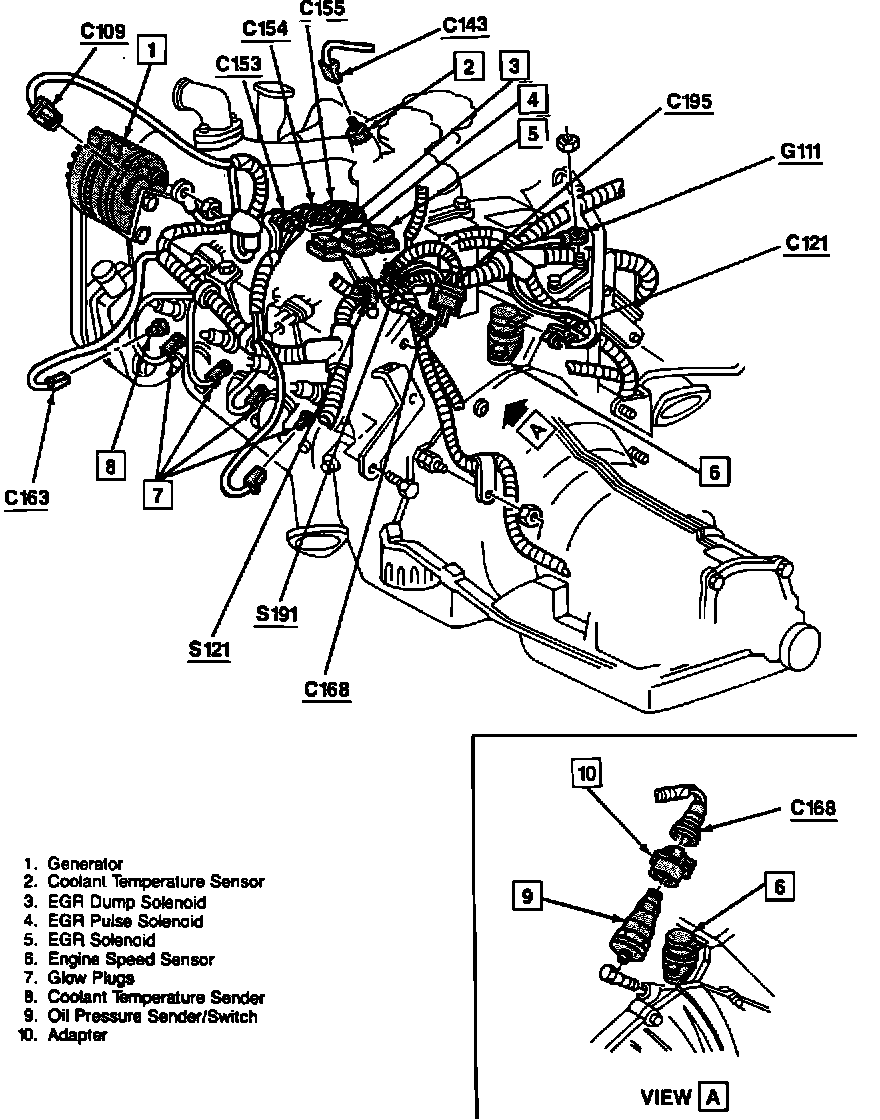

LH Side Of Engine:




LH Rear Top Of Engine

Applicable to: 1992 6.2L/V8-378 Diesel Engine

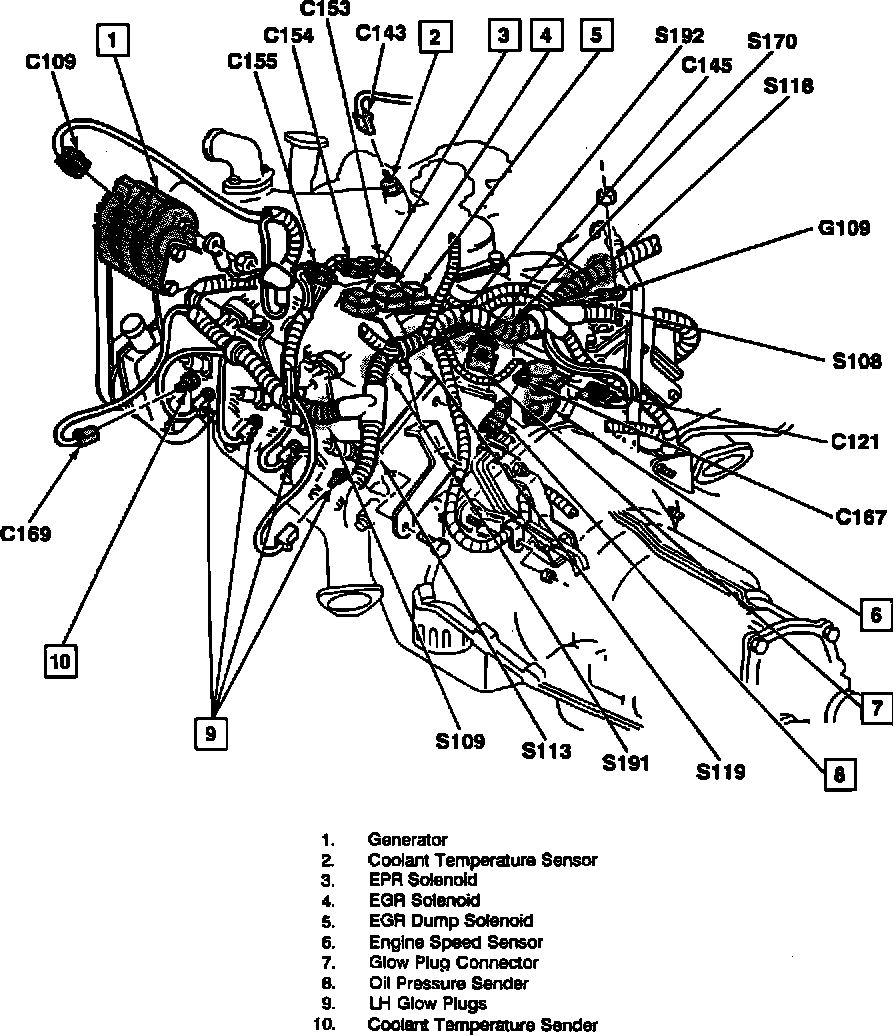

LH Side Of Engine:




LH Rear Top Of Engine

Applicable to: 1991 6.2L/V8-378 Diesel Engine
