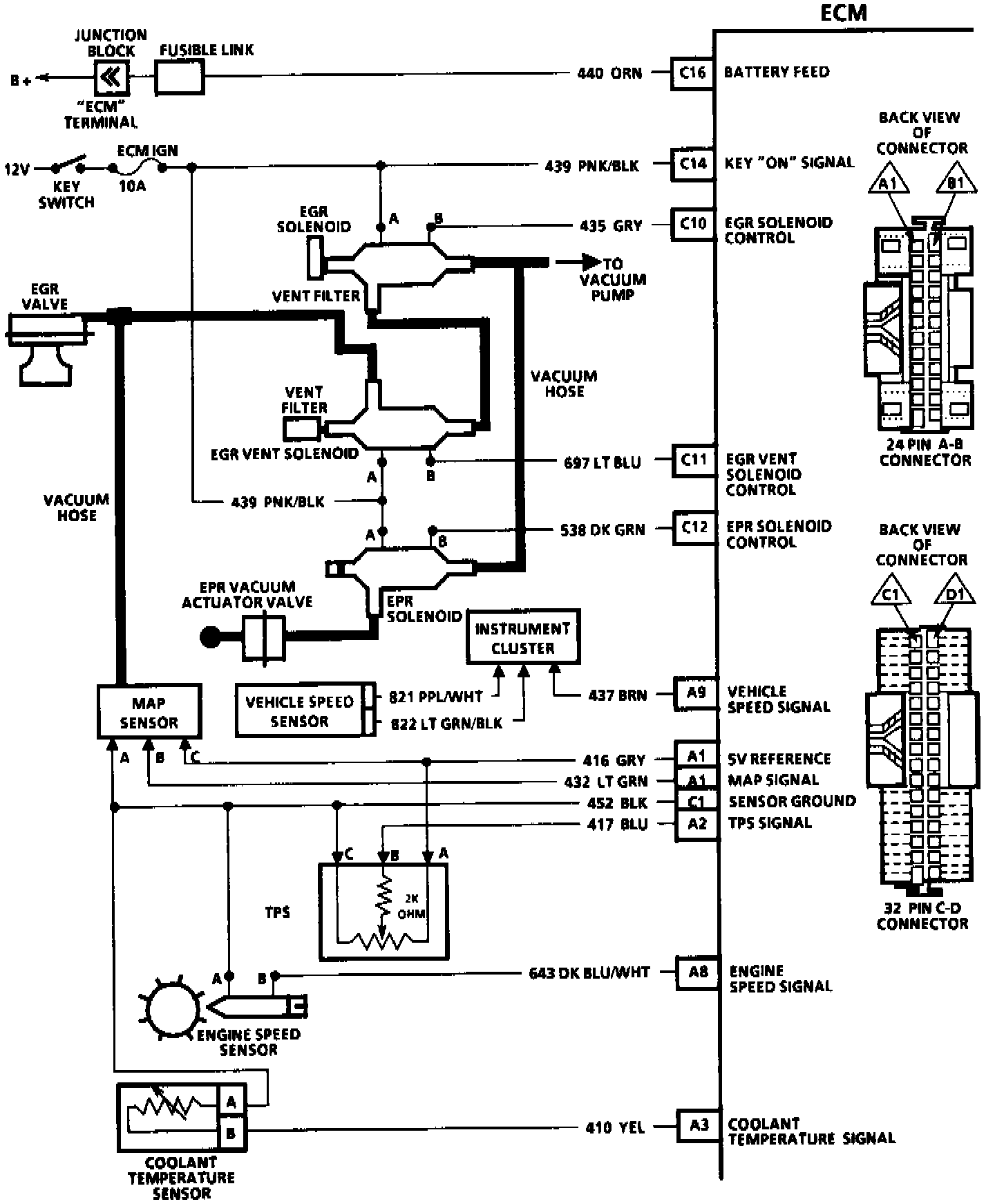

Electronic/Powertrain Control Module (ECM/PCM)

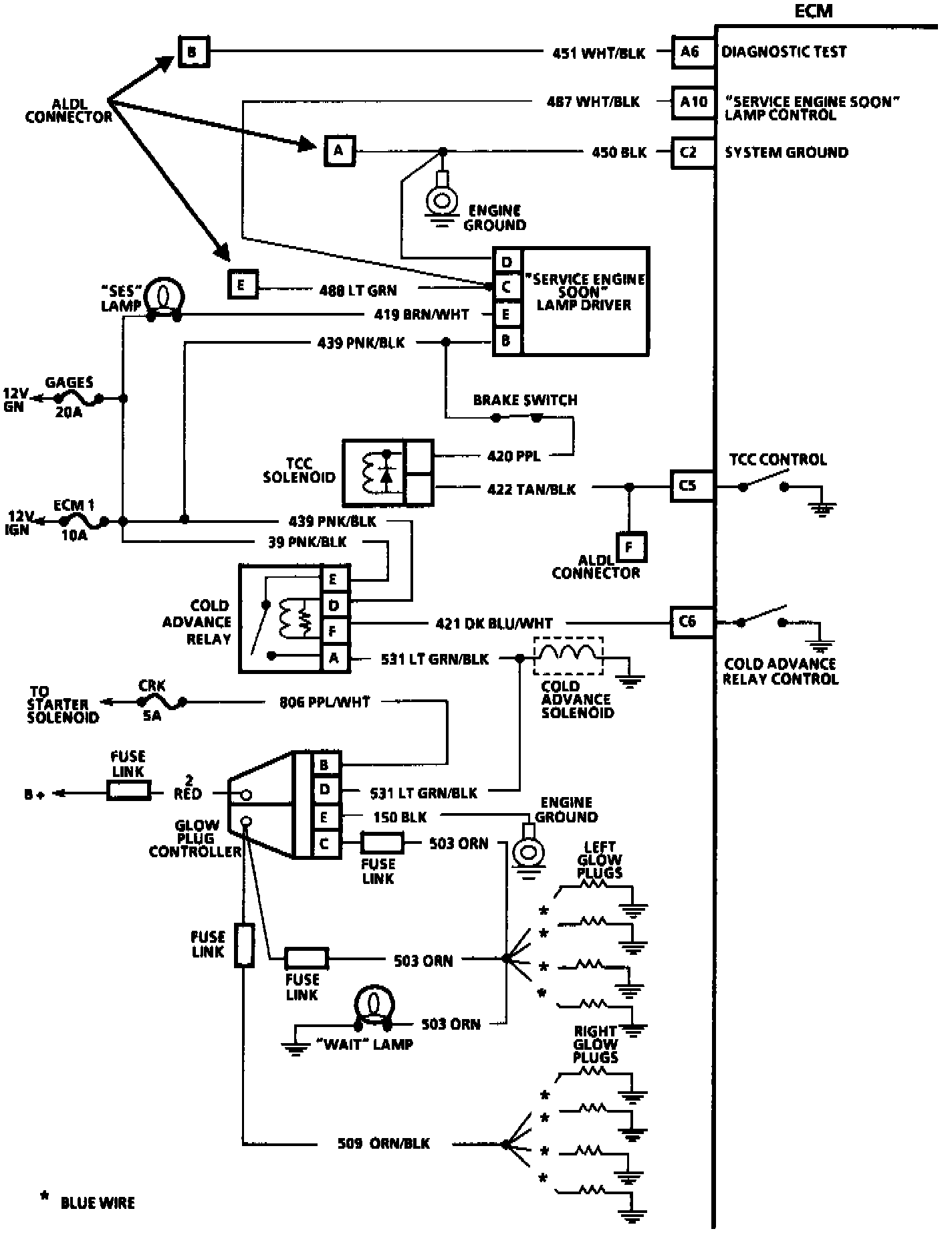

With 4L60 Automatic Transmission:
With 4L60 Automatic Transmission:
