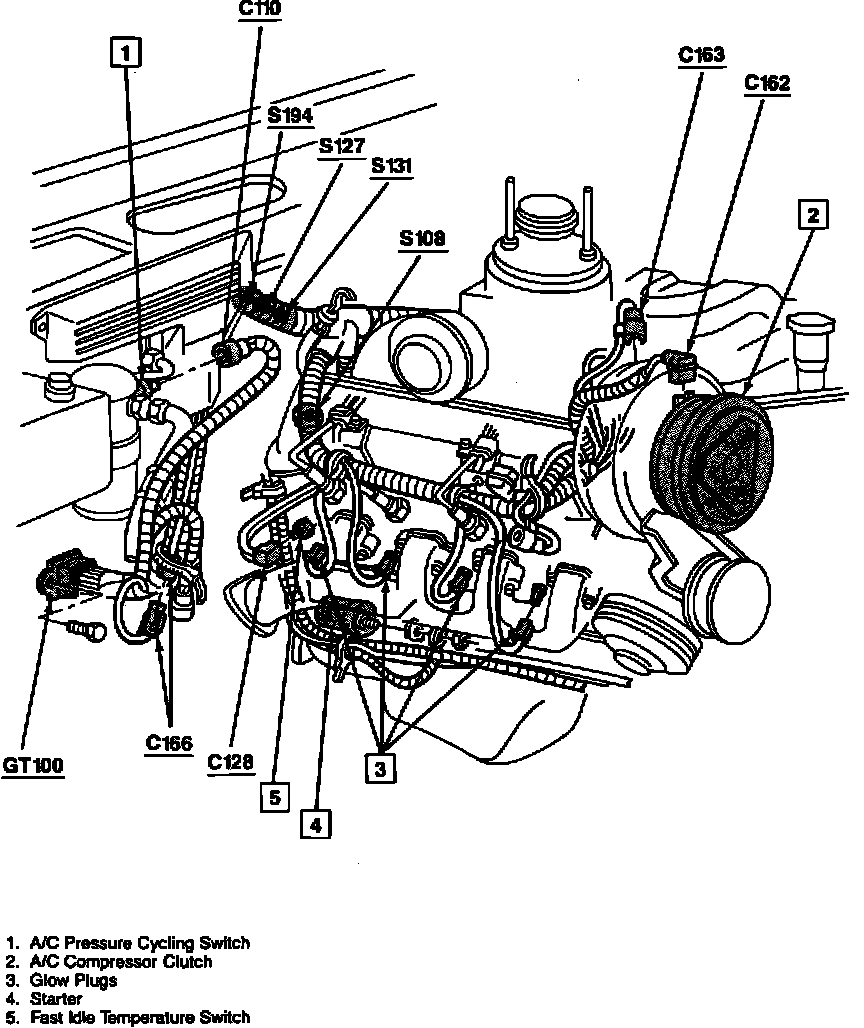

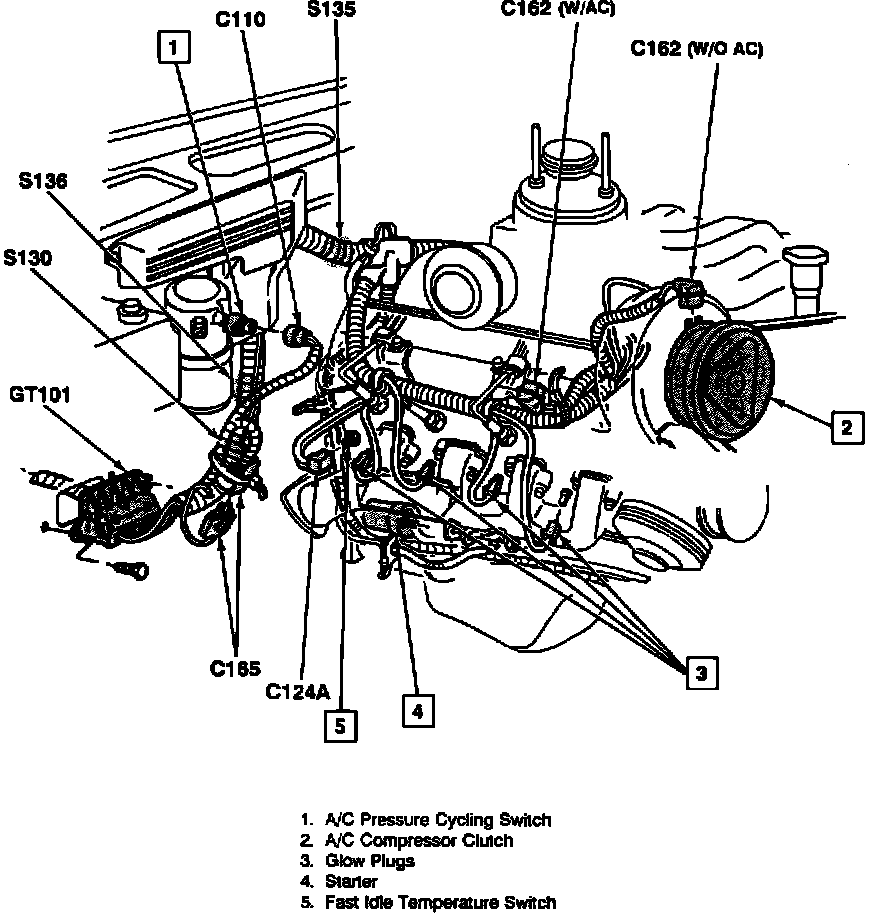

Glow Plug: Locations

LH Side Of Engine:

RH Side Of Engine:

Above Exhaust Manifold, At Each Cylinder

Applicable to: 1991 6.2L/V8-378 Diesel Engine

LH Side Of Engine:

RH Side Of Engine:

Above Exhaust Manifold, At Each Cylinder

Applicable to: 1992 6.2L/V8-378 Diesel Engine
