4L60 (700-R4) Automatic Transmission
>>
Internal Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Internal Components

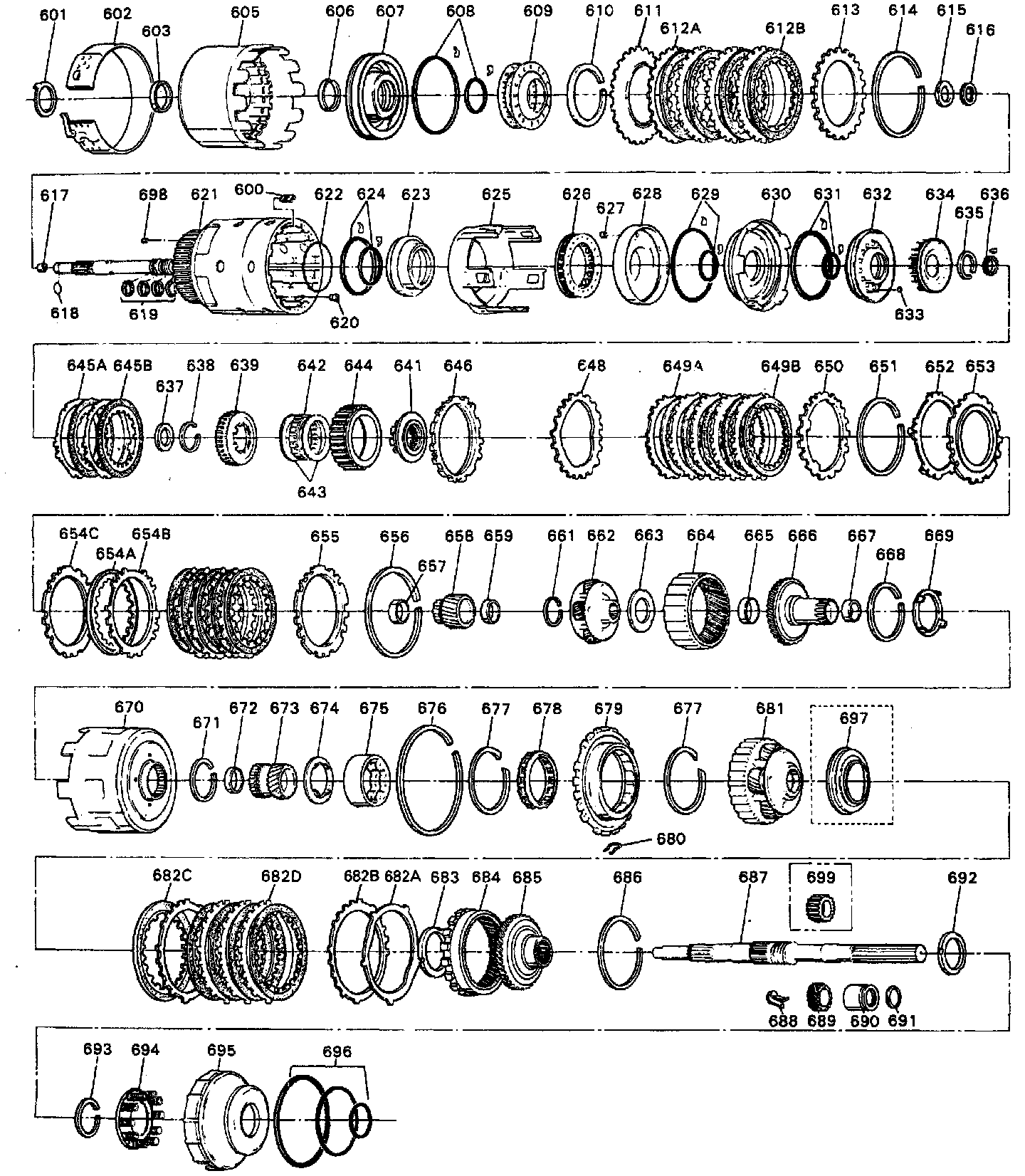

Internal Components ( Part 1 Of 2 ):

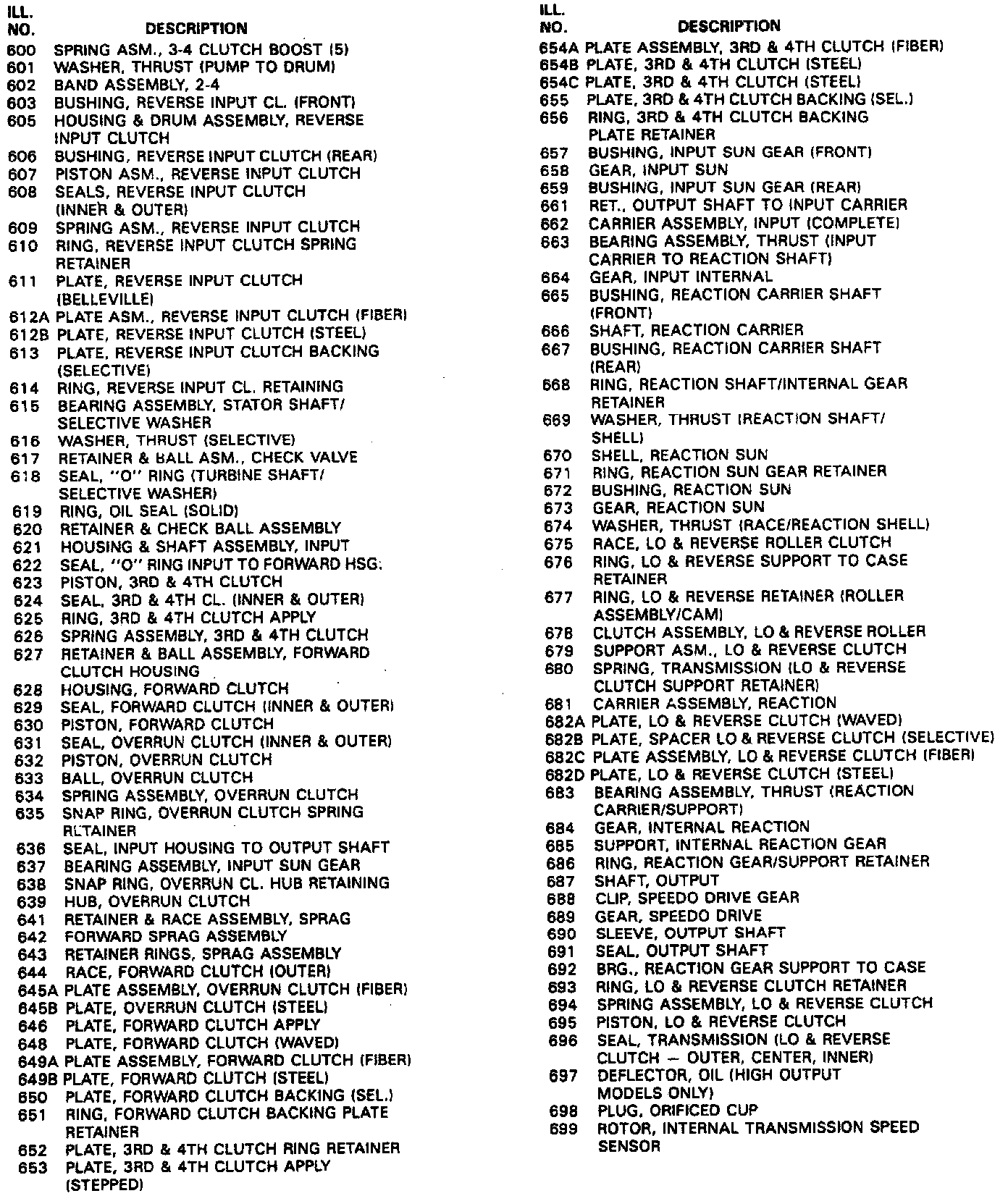

Internal Components ( Part 2 Of 2 ):
