Syclone V6-262 4.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Compressor HVAC
>>
With HR-6 HE Compressor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
With HR-6 HE Compressor

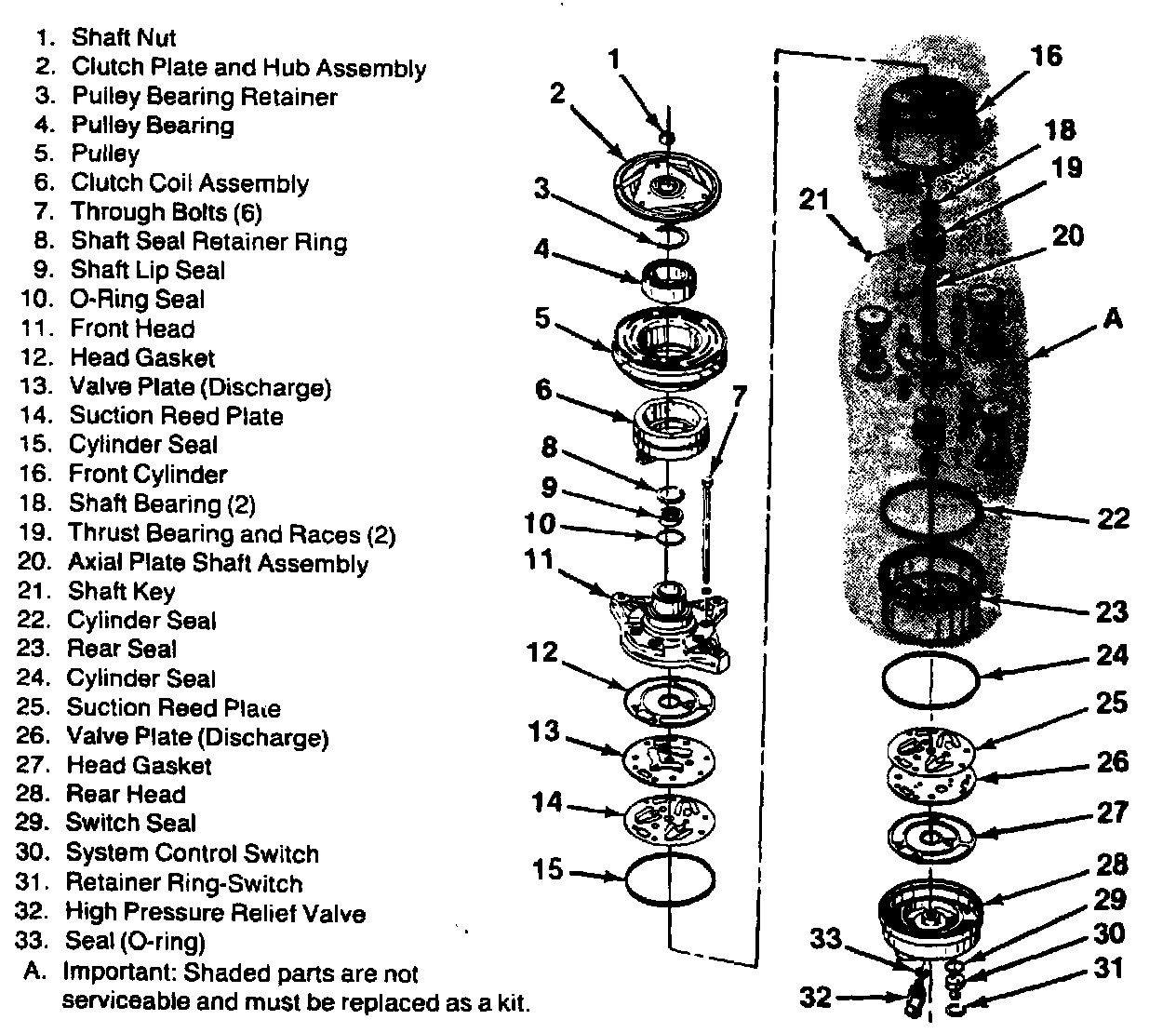

Component View:
