Transfer Case

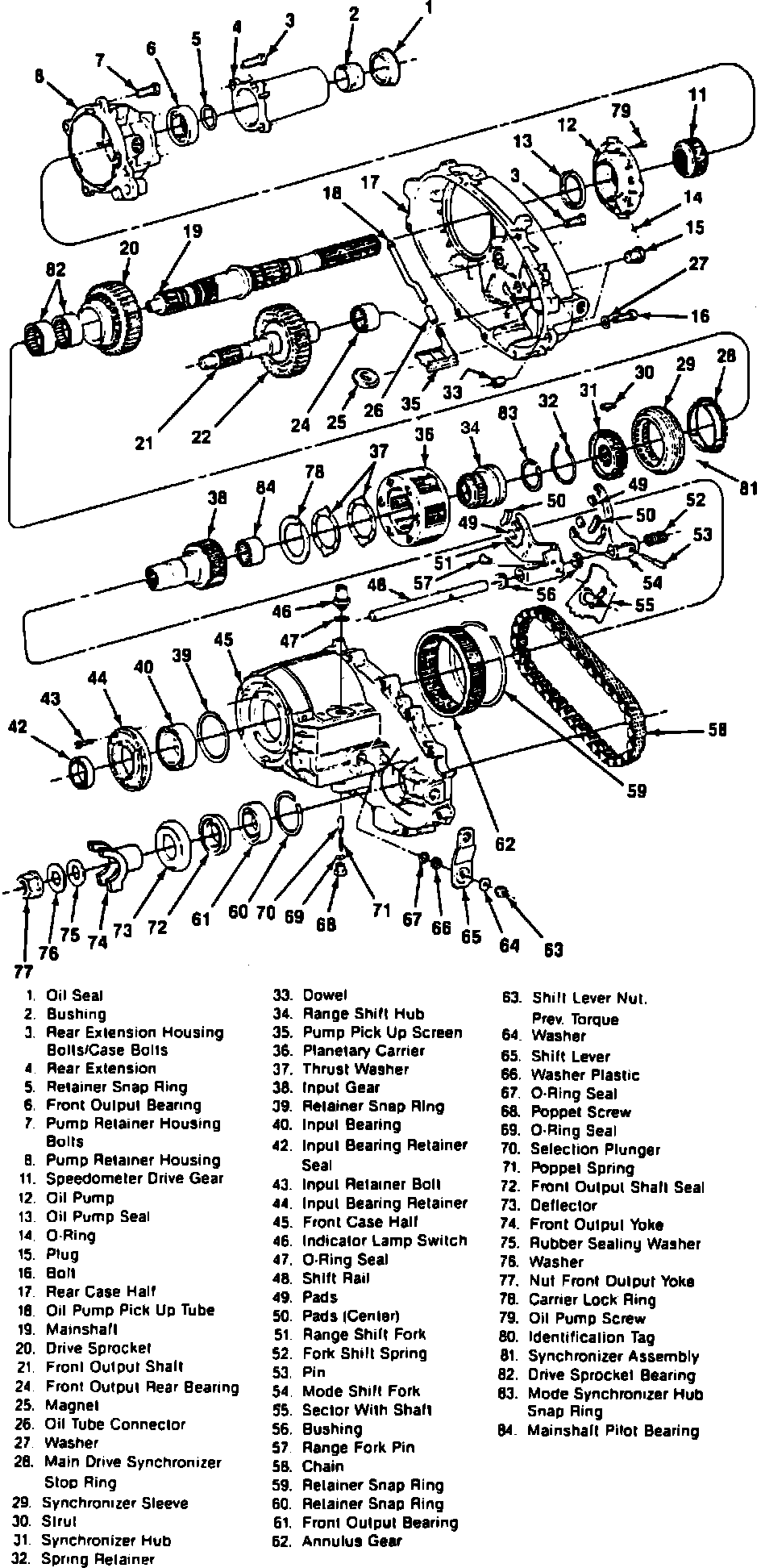

Fig. 19 Transfer Case Exploded View. New Process Models 231, 233 & 241 Transfer Cases:
