Trim Panel: Removal

  1. Remove door handle using Spring Clip Remover J9886-01. See Fig 1 and Fig 2 .
  2. Remove door handle bezel (209). See Fig 3 .
  3. Remove assist strap (218), if equipped. See Fig 4 .
  4. Remove arm rest, if equipped. See Fig 5 .
  5. Remove door trim outer panel screws (217), if equipped. See Fig 4 .
  6. Remove door trim outer panel, if equipped. Pull the retainers away from the door. See Fig 4 .
  7. Remove door trim inner panel screws (208). See Fig 3 .
  8. Remove door trim inner panel (206). See Fig 3 .

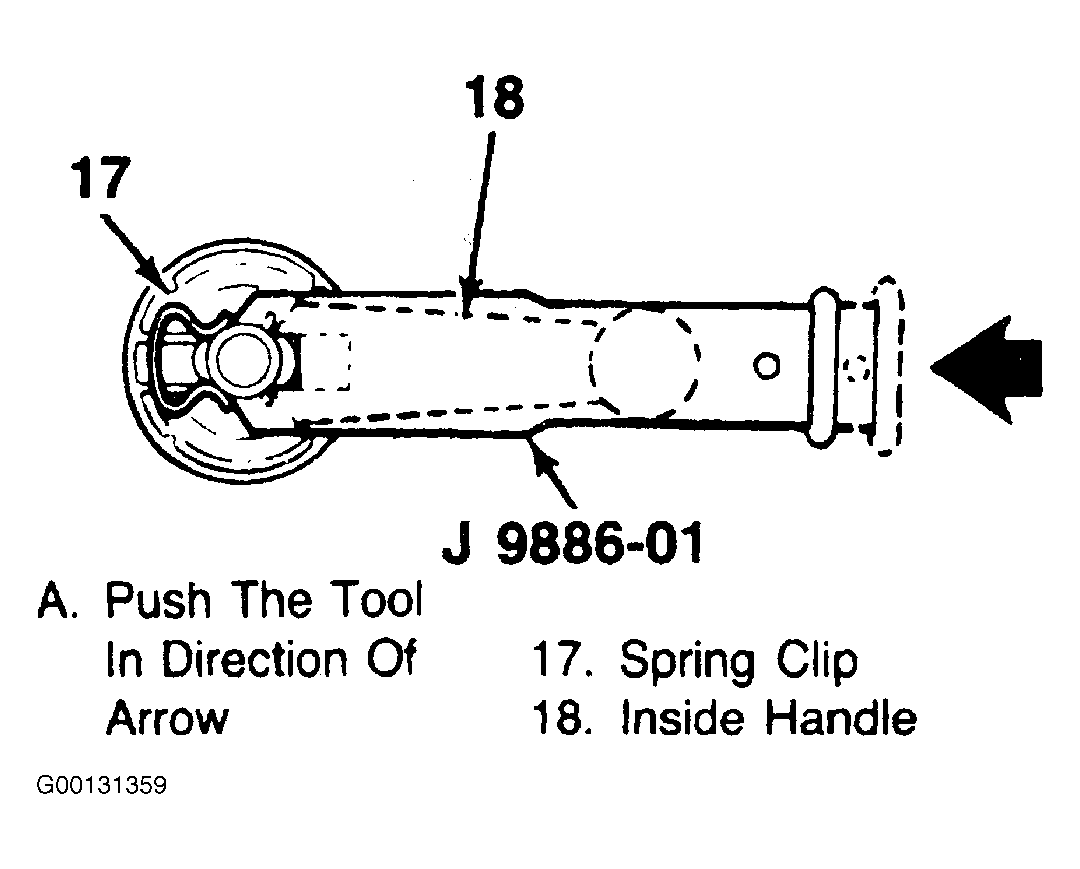

Fig 1: Removing Handle Clip (Rear View)
G00131359Courtesy of GENERAL MOTORS CORP.

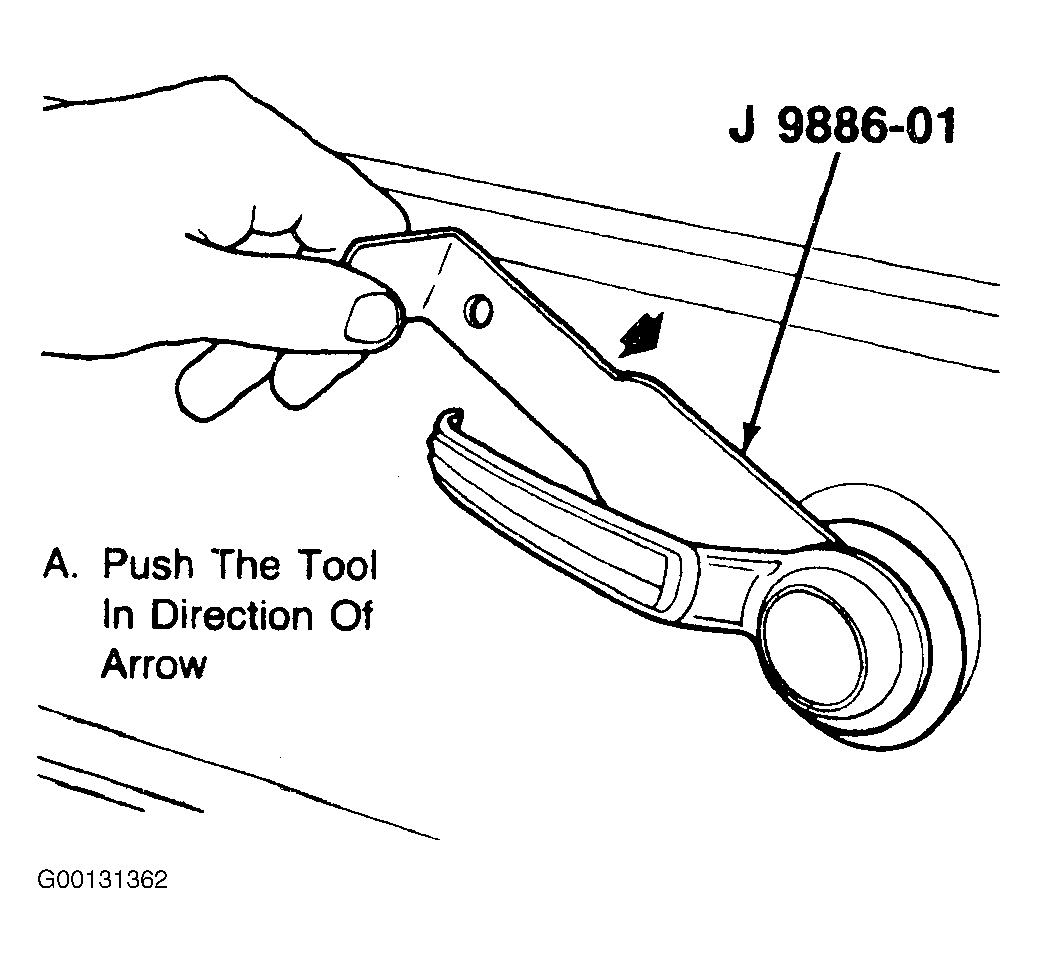

Fig 2: Removing Door Handle Using Special Tool
G00131362Courtesy of GENERAL MOTORS CORP.
Fig 3: Removing Door Trim Panel
G00131360Courtesy of GENERAL MOTORS CORP.
Fig 4: Removing Outer Door Trim Panel
G00131361Courtesy of GENERAL MOTORS CORP.
Fig 5: Removing Arm Rest
G00131363Courtesy of GENERAL MOTORS CORP.
