System Schematics

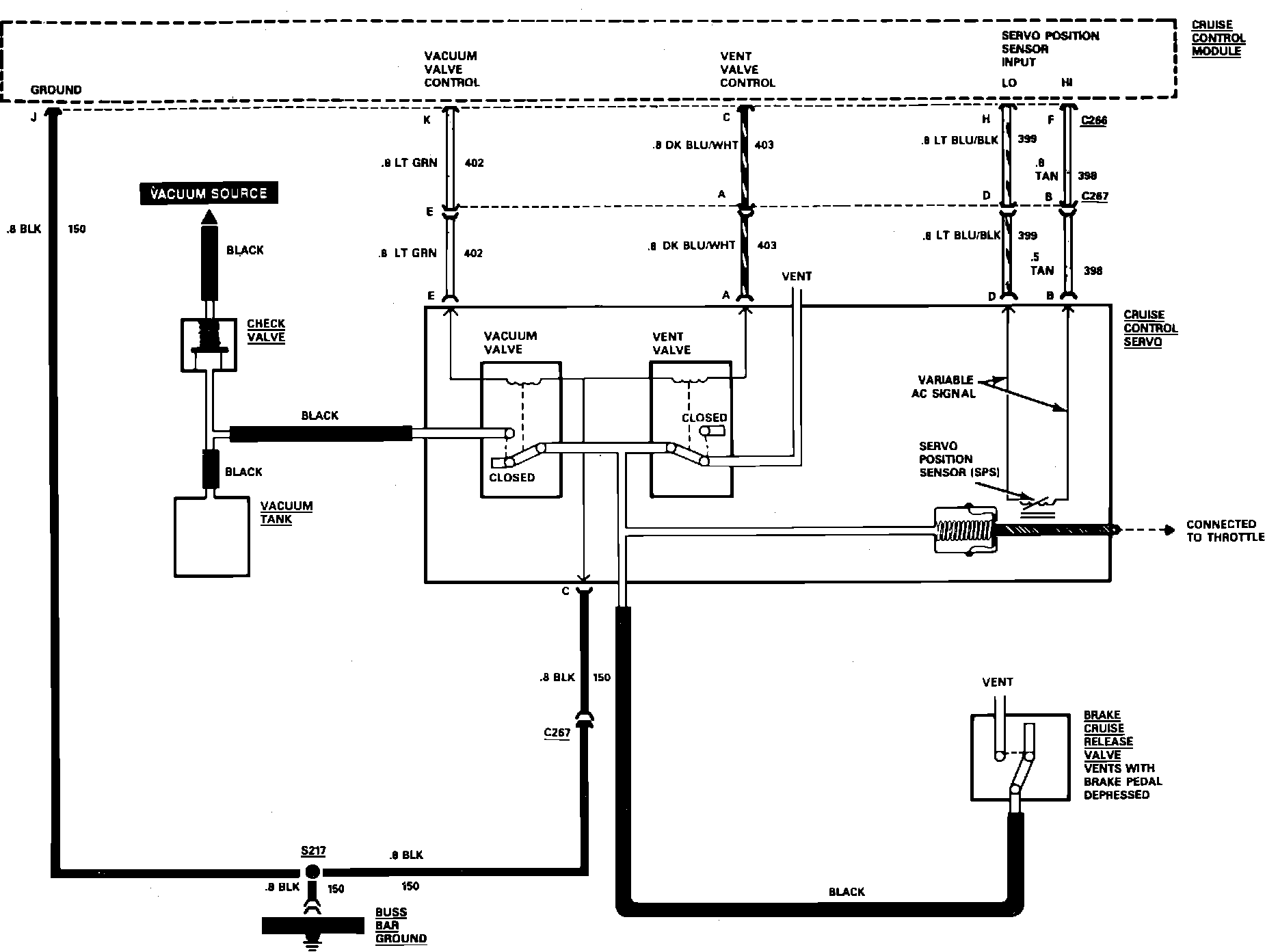

Cruise Control Wiring Diagram (Part 1 of 2):

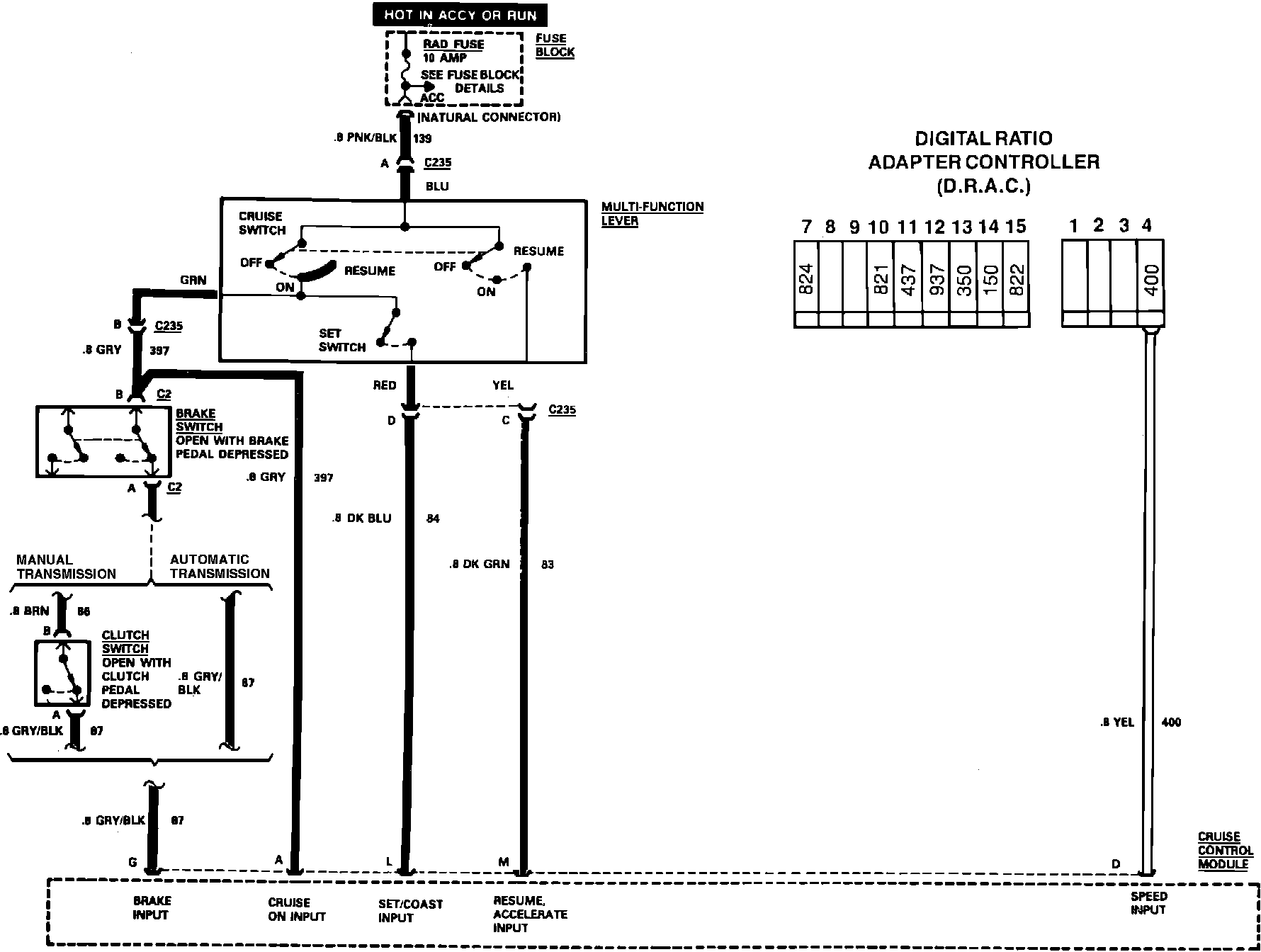

Cruise Control Wiring Diagram (Part 2 of 2):
