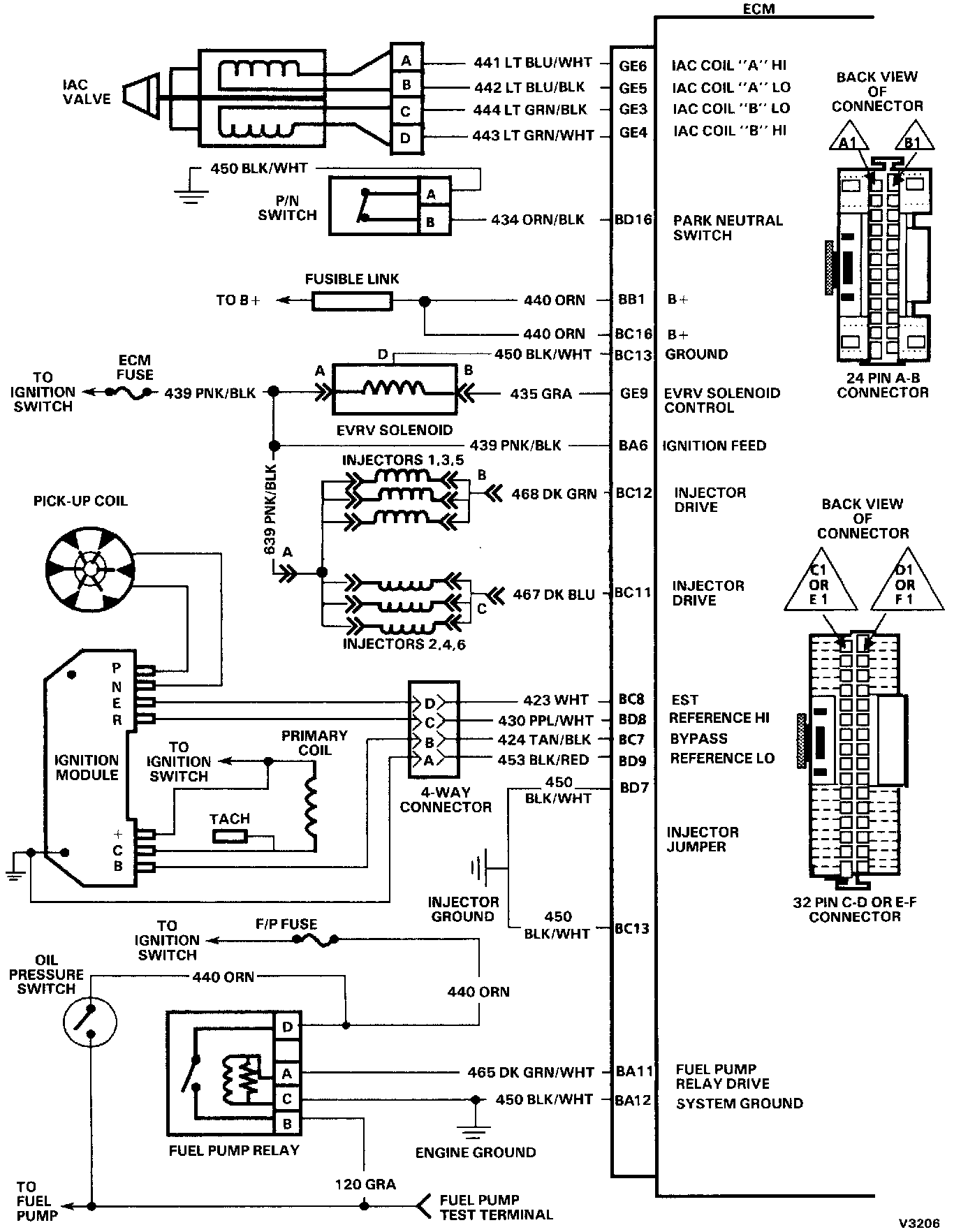

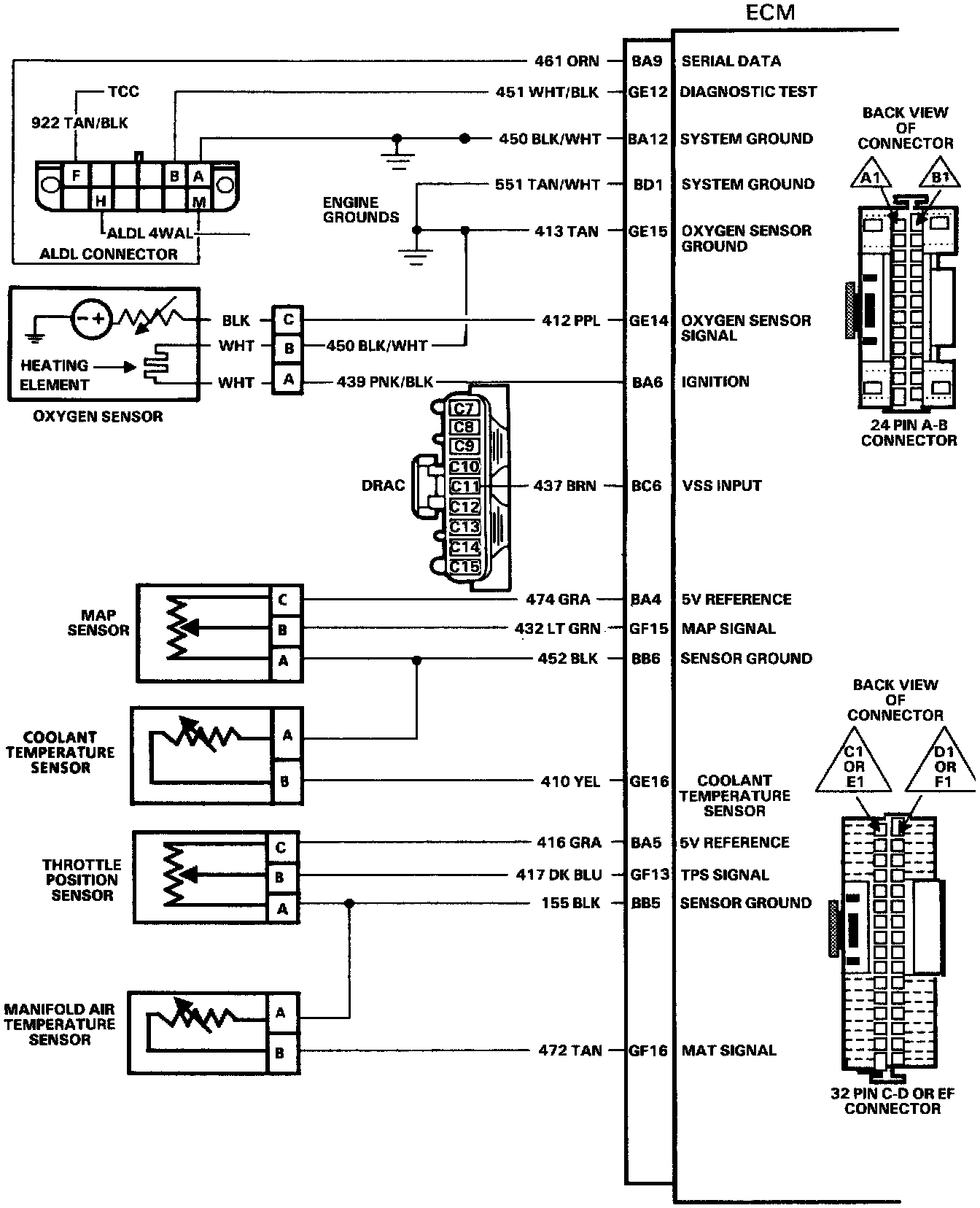

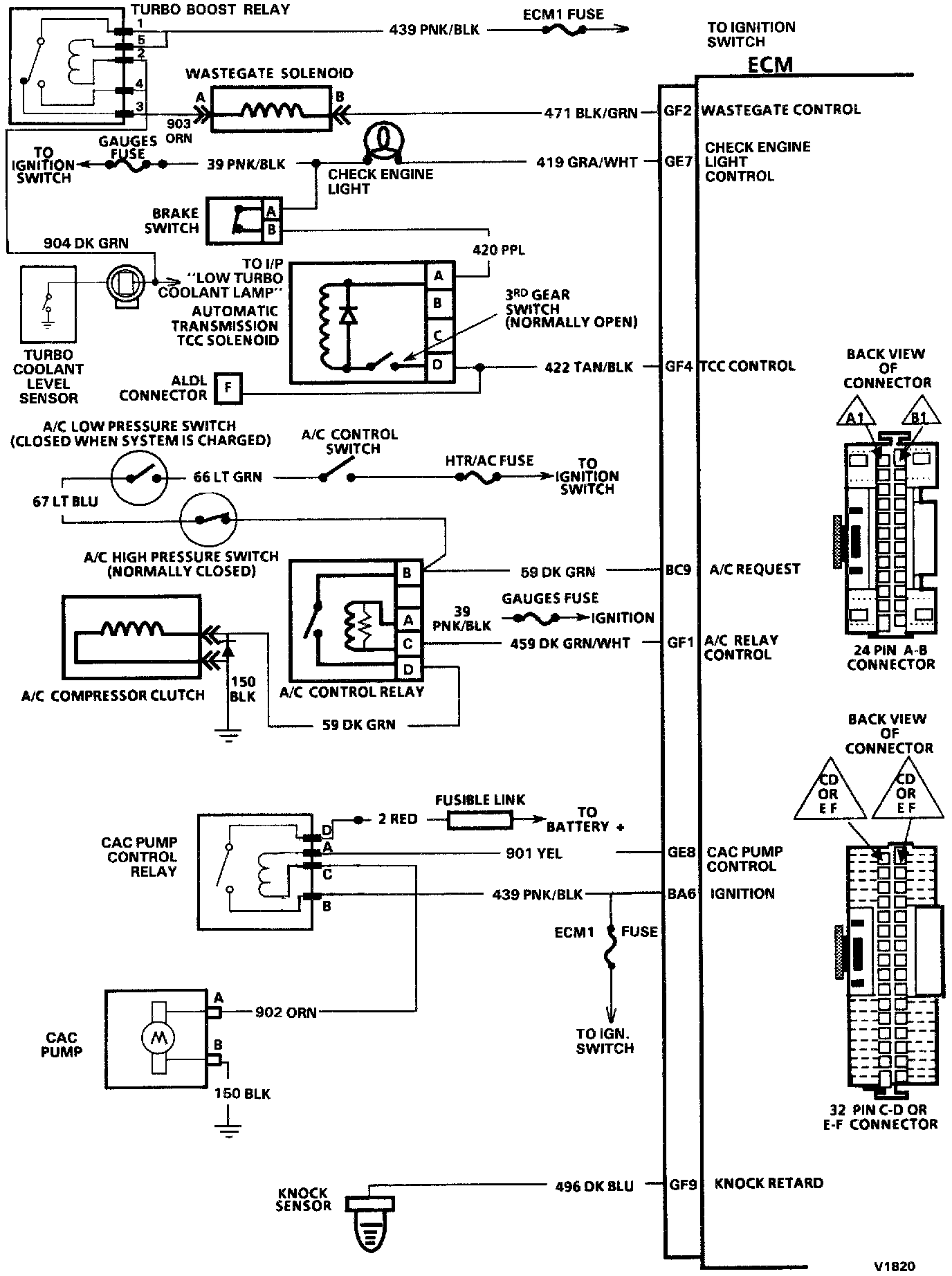

Engine Controls

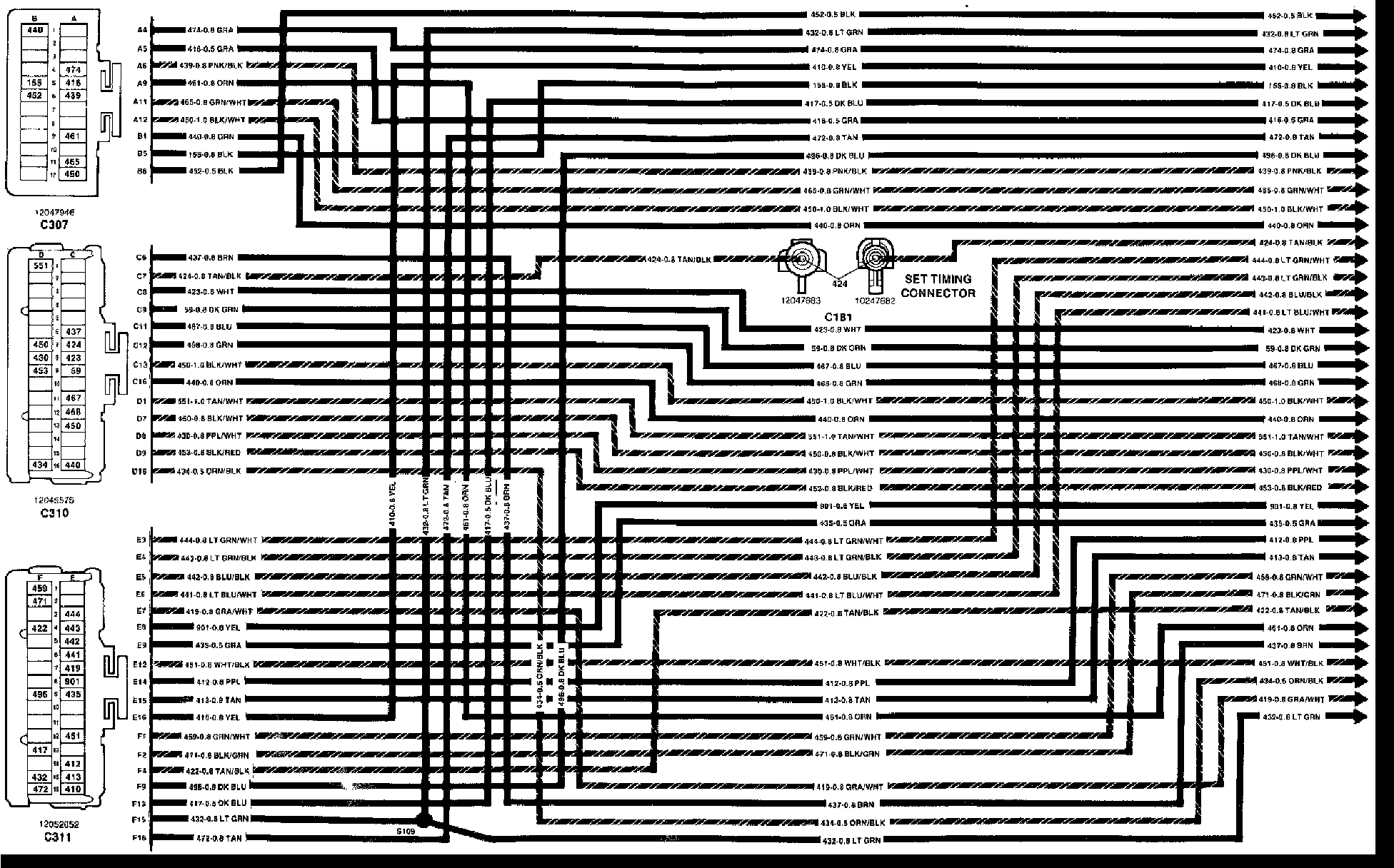

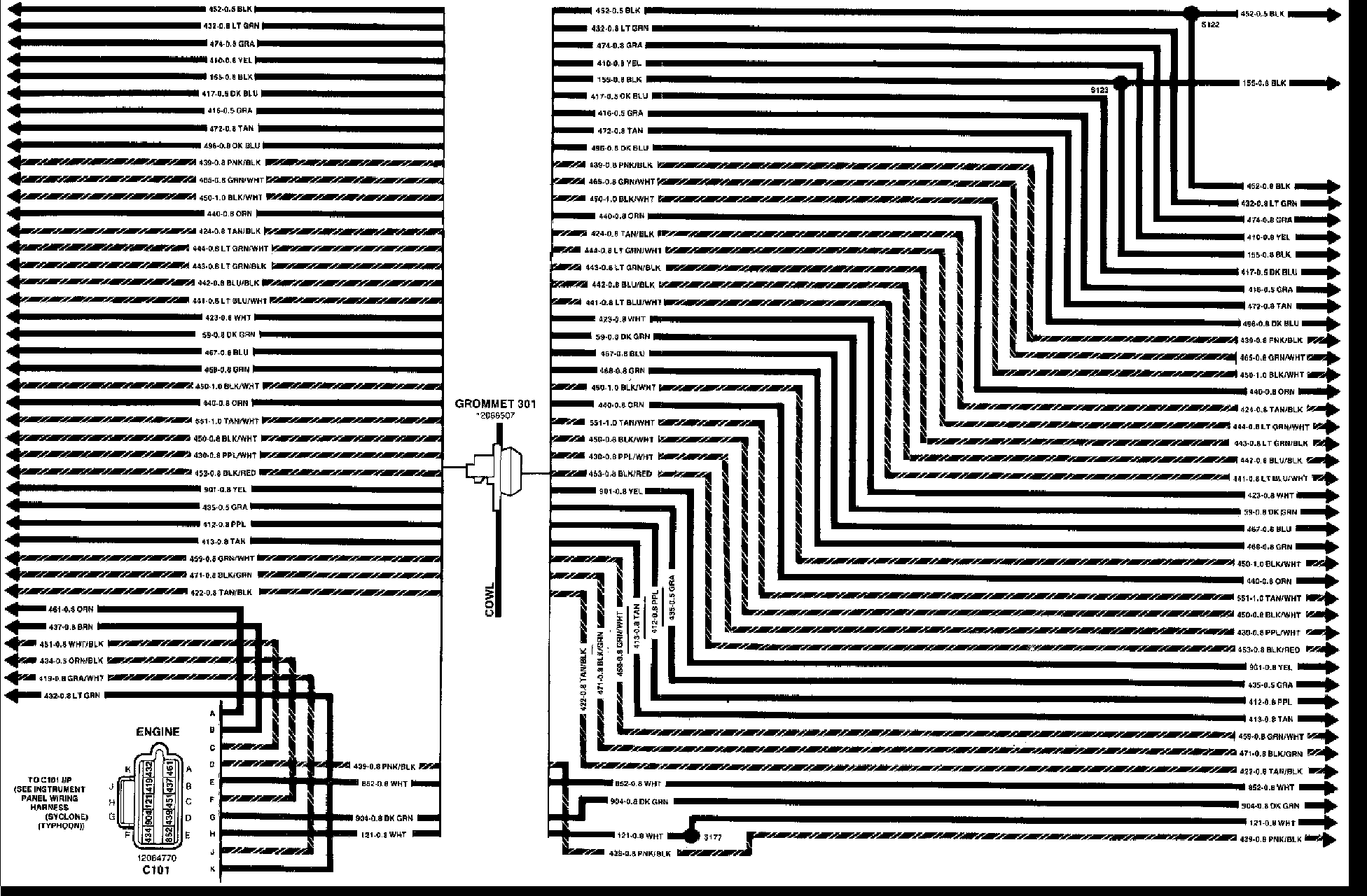

Engine Wiring Harness:

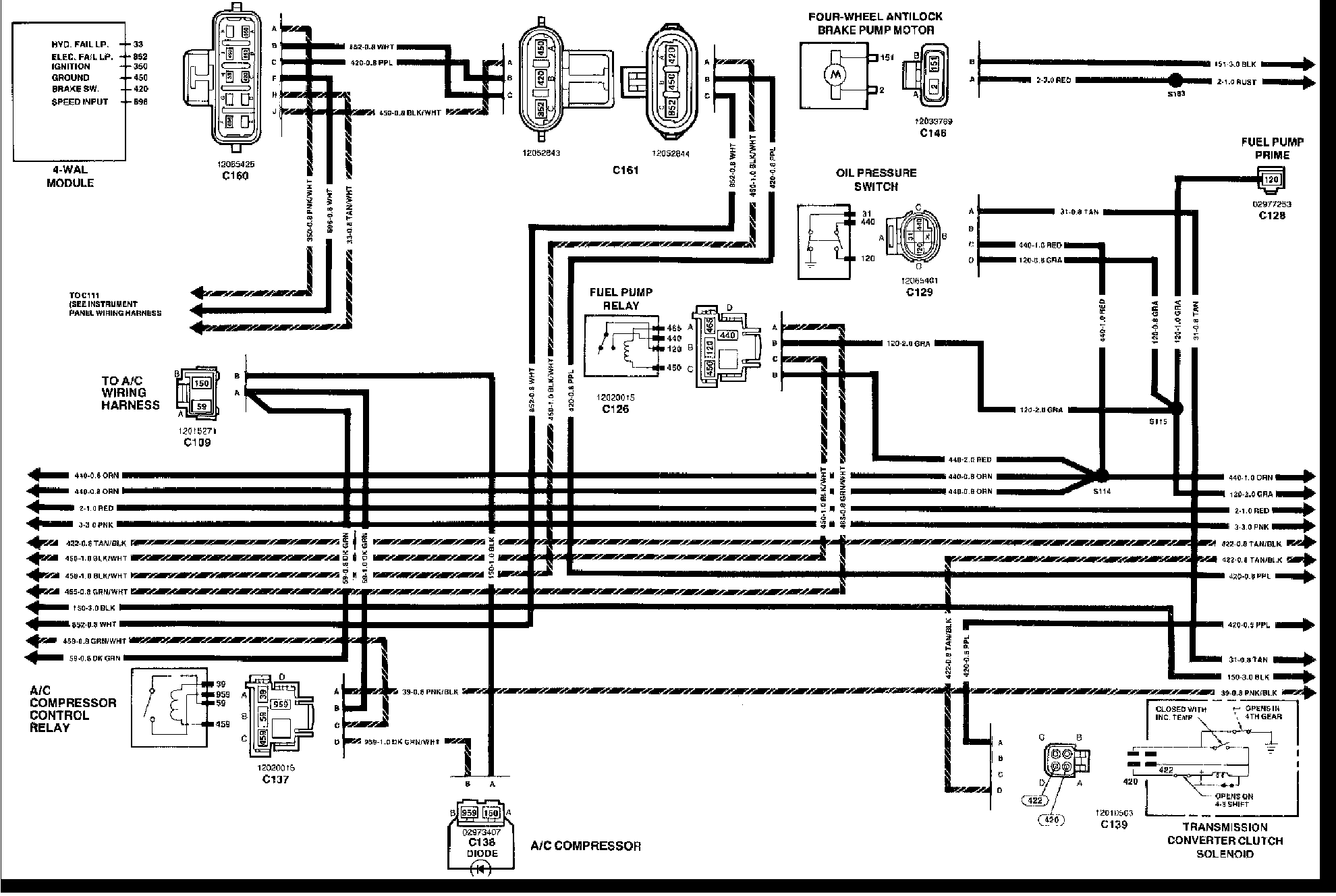

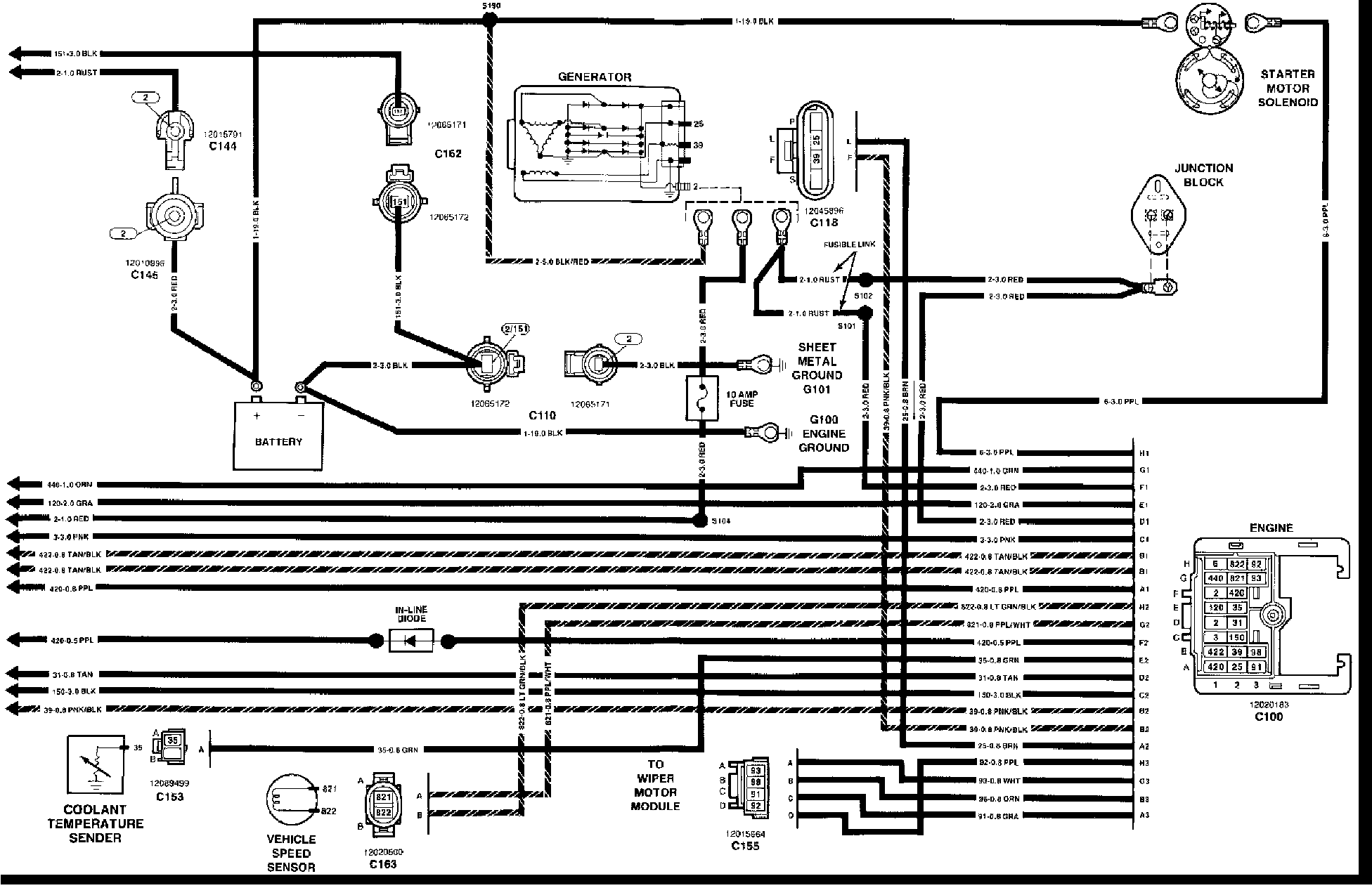

Engine Wiring Harness:

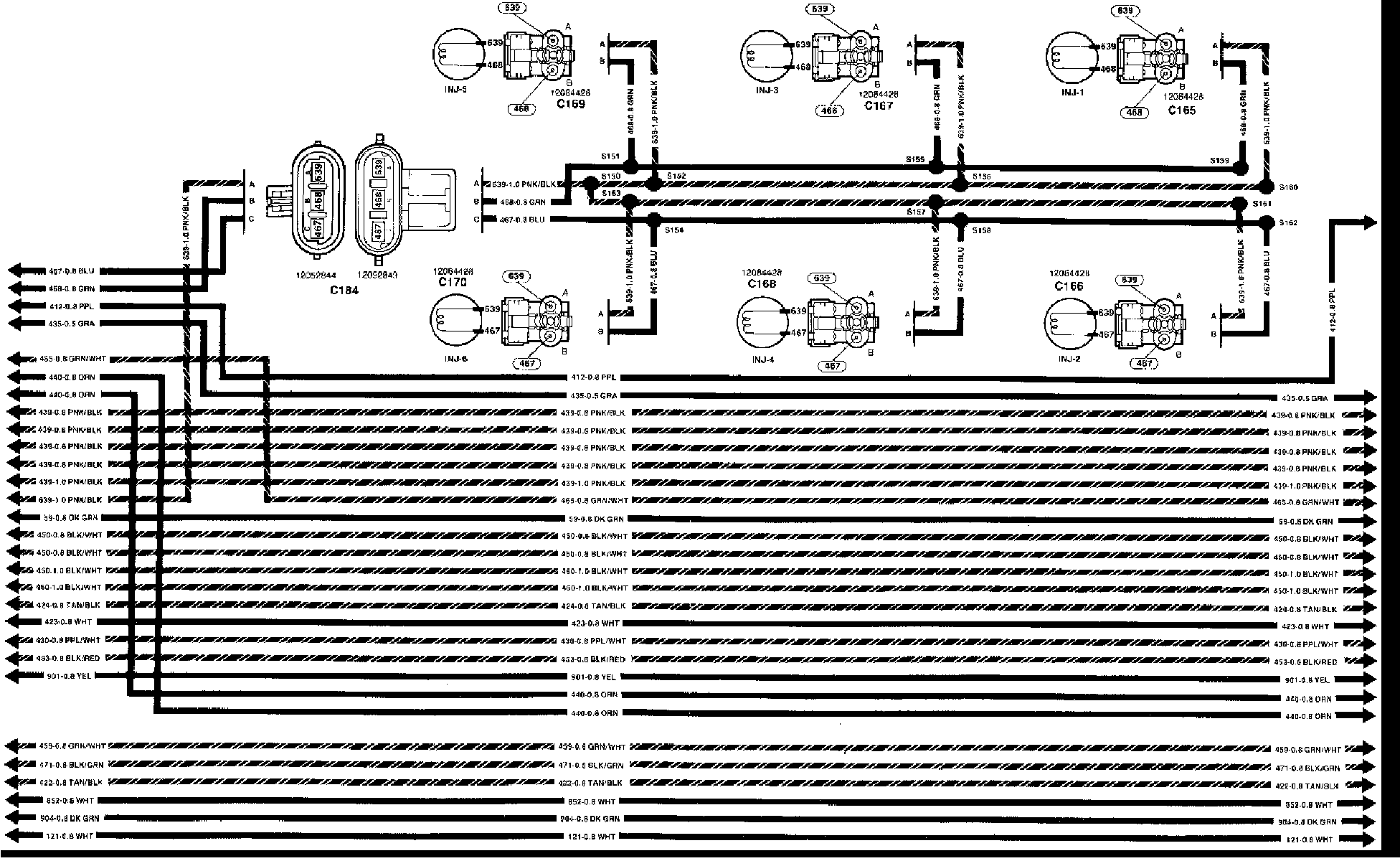

Engine Wiring Harness:

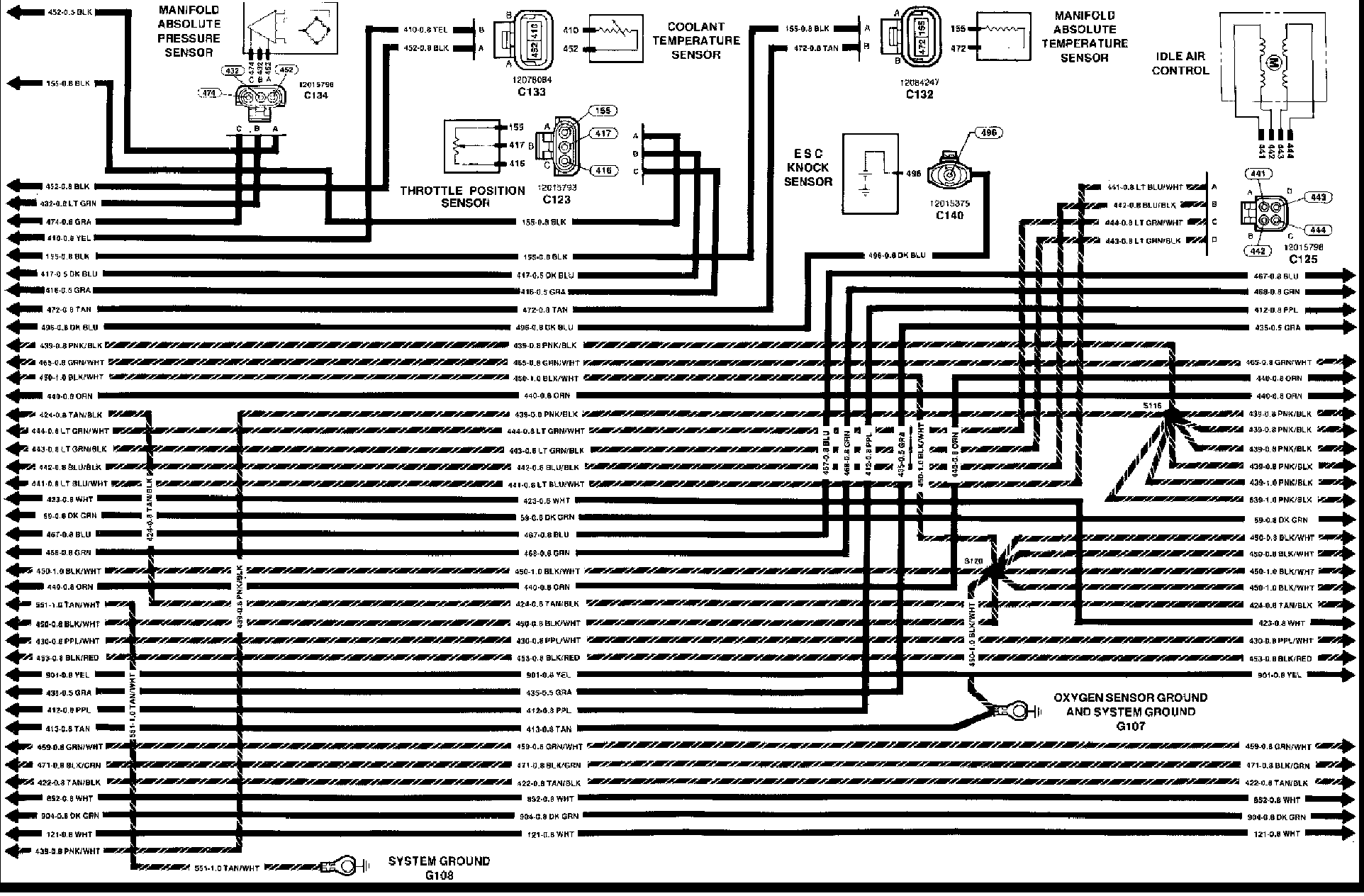

Engine Wiring Harness:

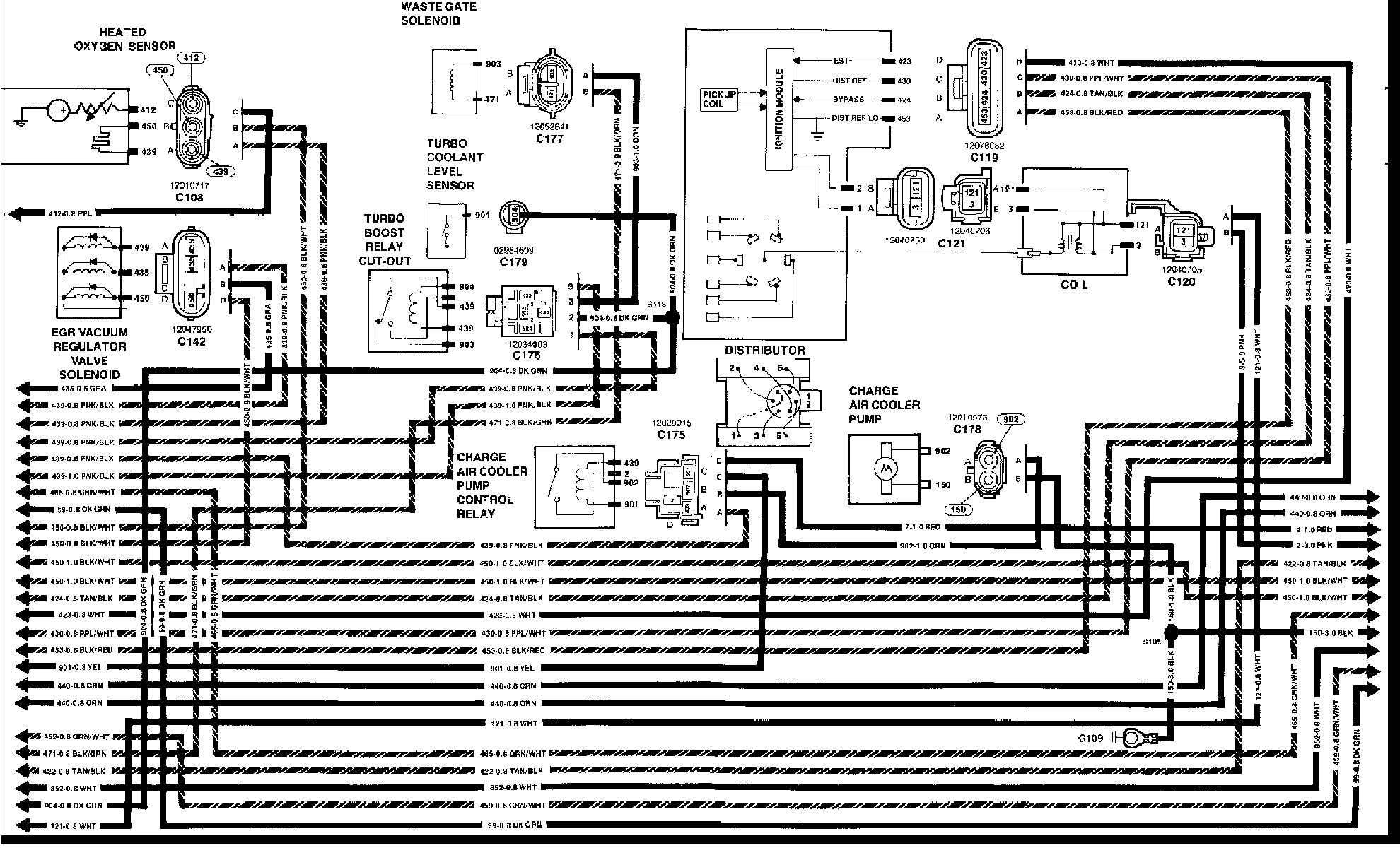

Engine Wiring Harness:



Engine Wiring Harness:



Engine Wiring Harness:
