Battery Junction Block

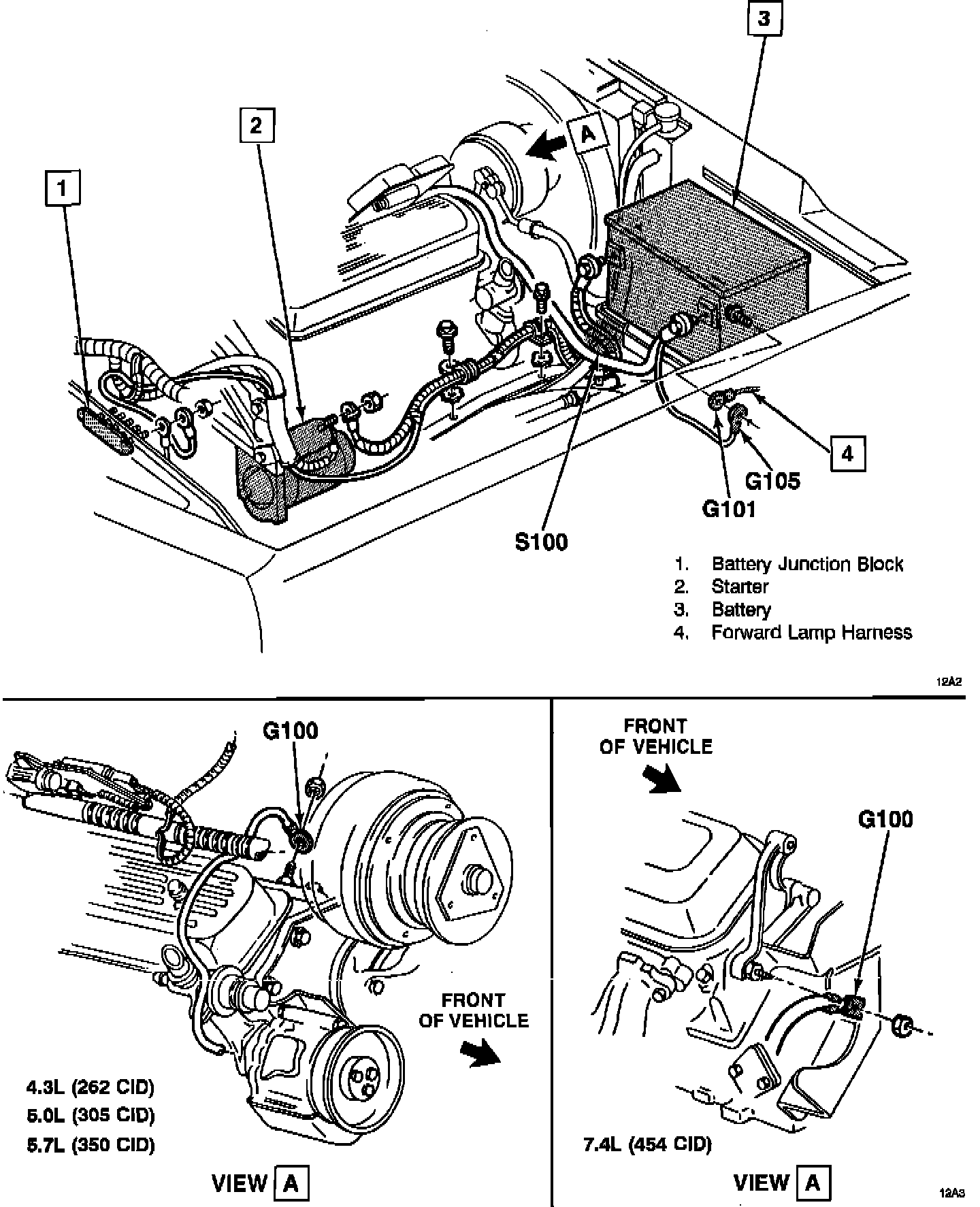

Battery Wiring:




Underhood Lamp Wiring:




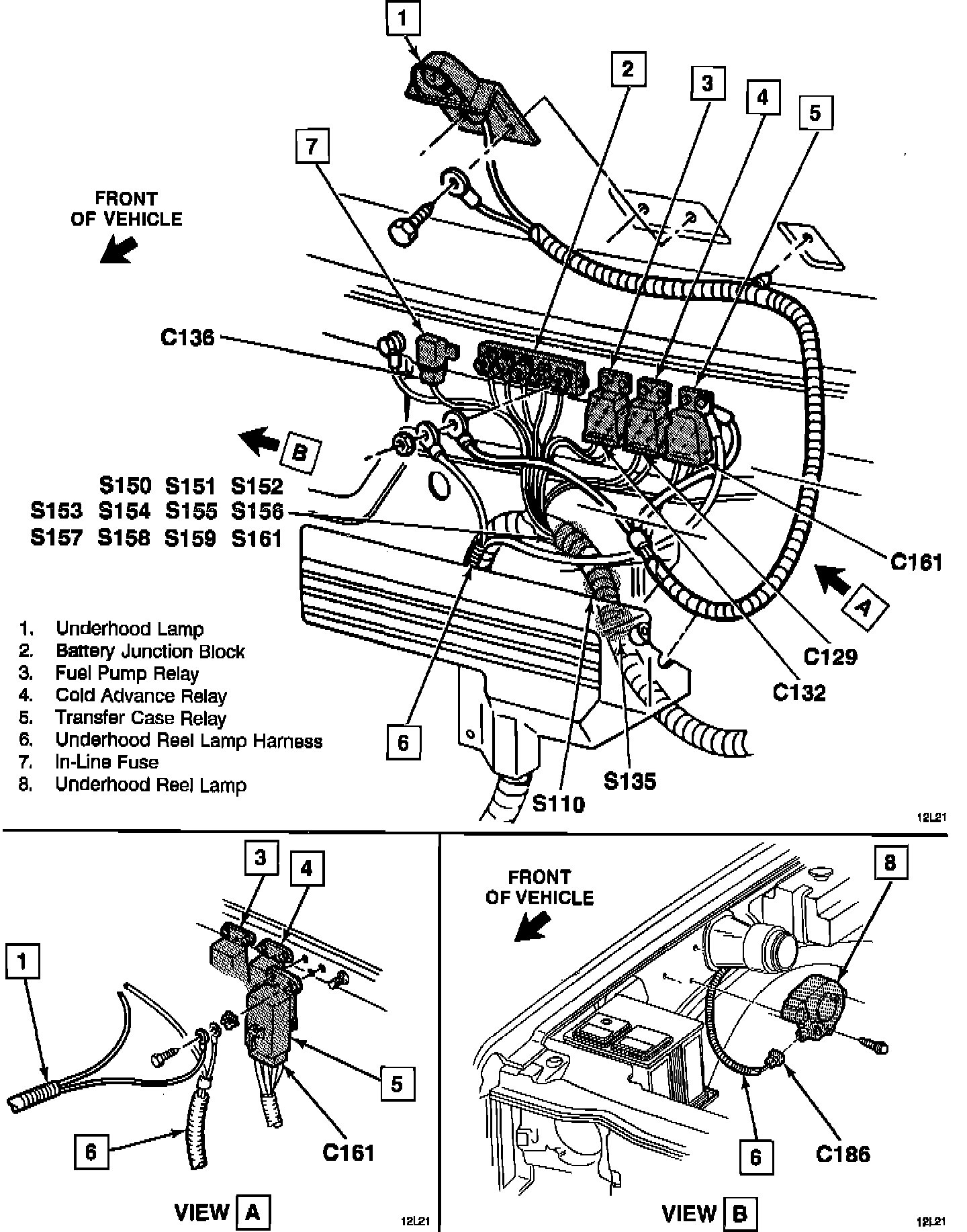

Battery Junction Block And Relay Wiring:

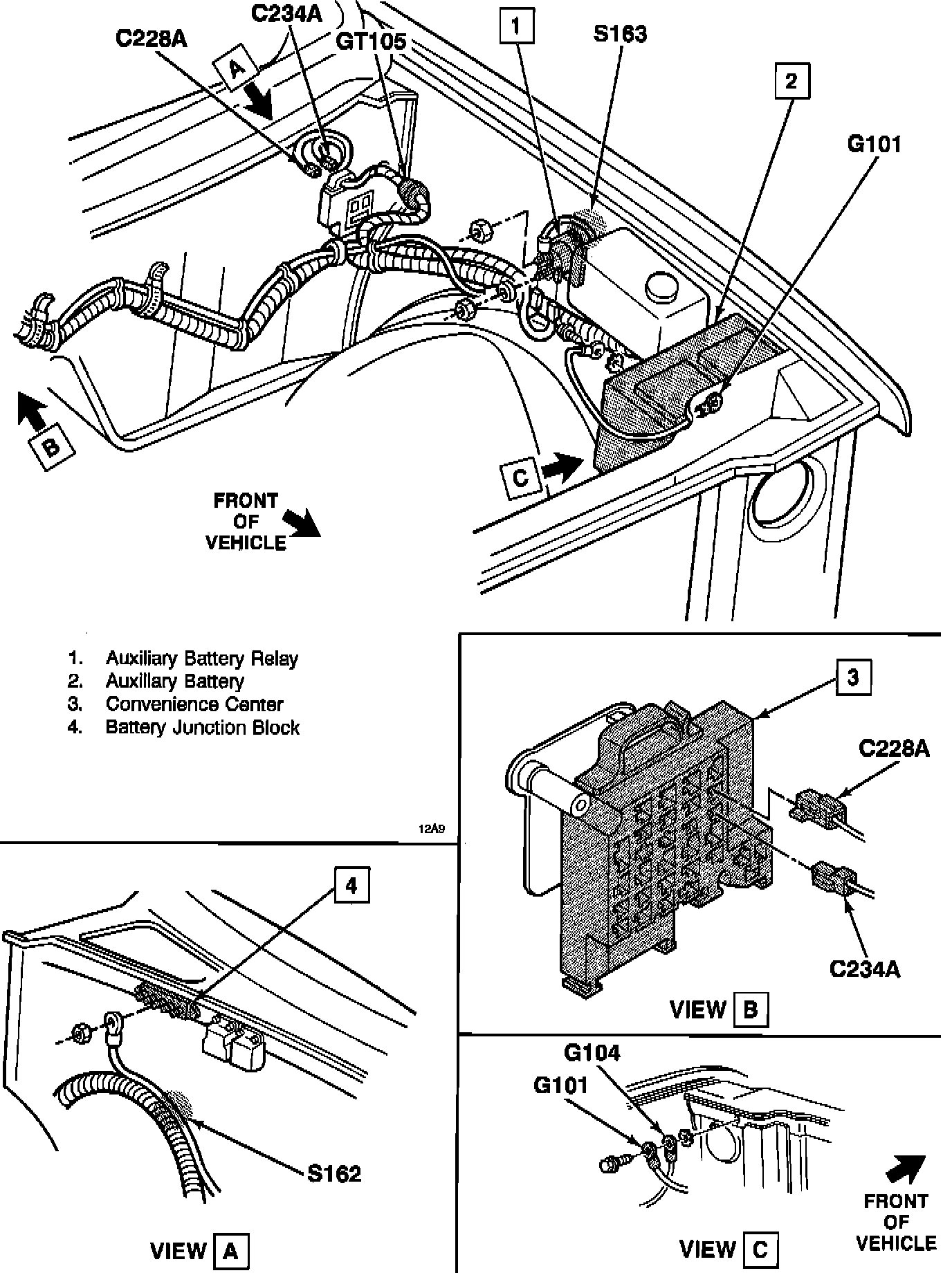

Auxiliary Battery Wiring:





RH rear engine compartment, at cowl
