Manual Transmission

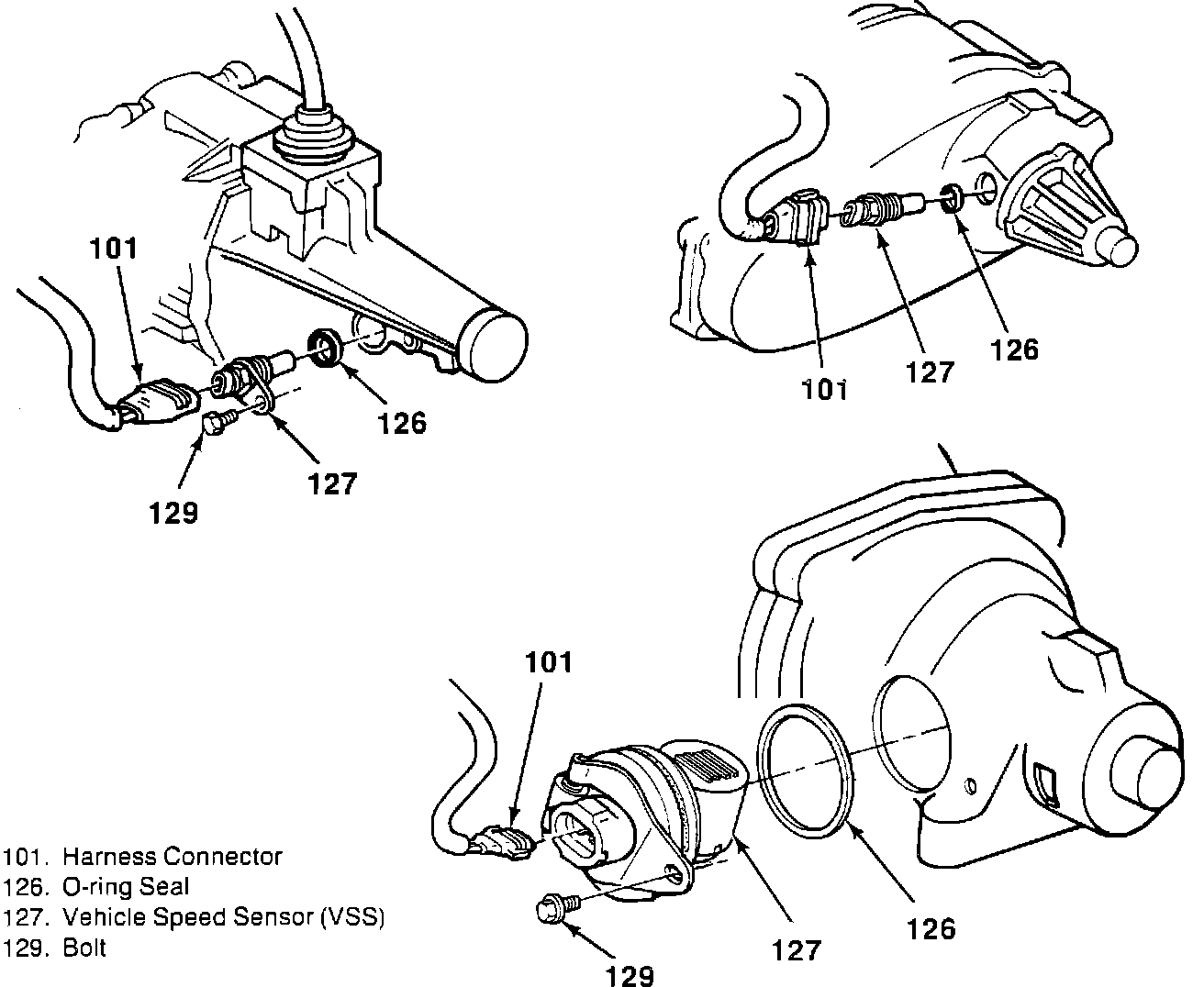

Vehicle Speed Sensor Locations:

REMOVAL
1. Raise the vehicle and support it with suitable safety stands.
2. Remove connector.
3. Remove bolt or screw.
4. Remove speed sensor.
- Have a suitable container to catch fluid.
5. Remove O-ring seal.

INSTALLATION
1. Install new speed sensor and O-ring seal.
- Coat the seal with a thin film of transmission fluid.
2. Install bolt or screw.
- Torque bolt to 12 Nm (9 lbs ft).
- Torque Speed Sensor to 43 Nm (32 lbs ft).
3. Install harness connector.
