Oxygen Sensor: Locations

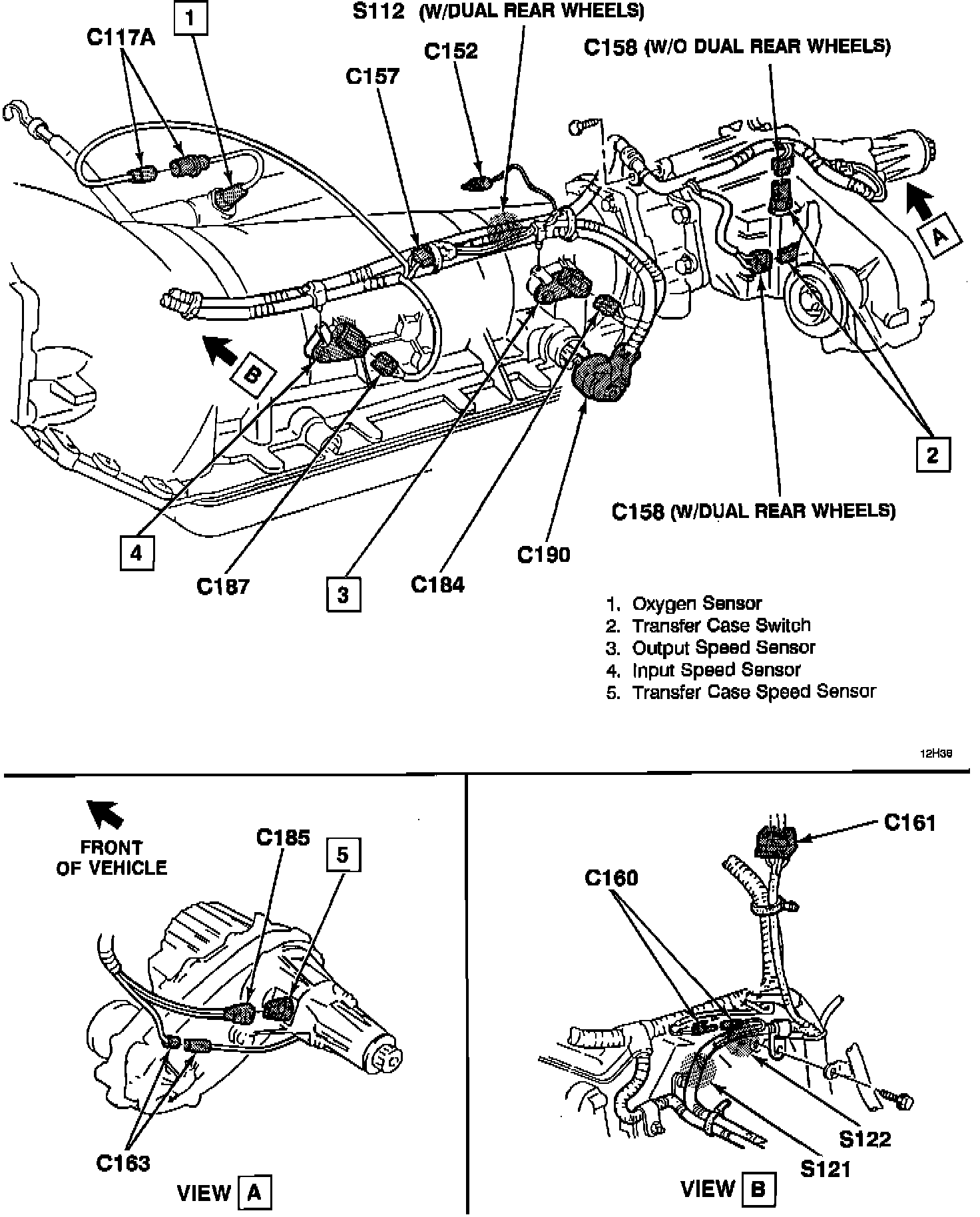

Transmission Wiring, 5-Speed, With Overdrive:

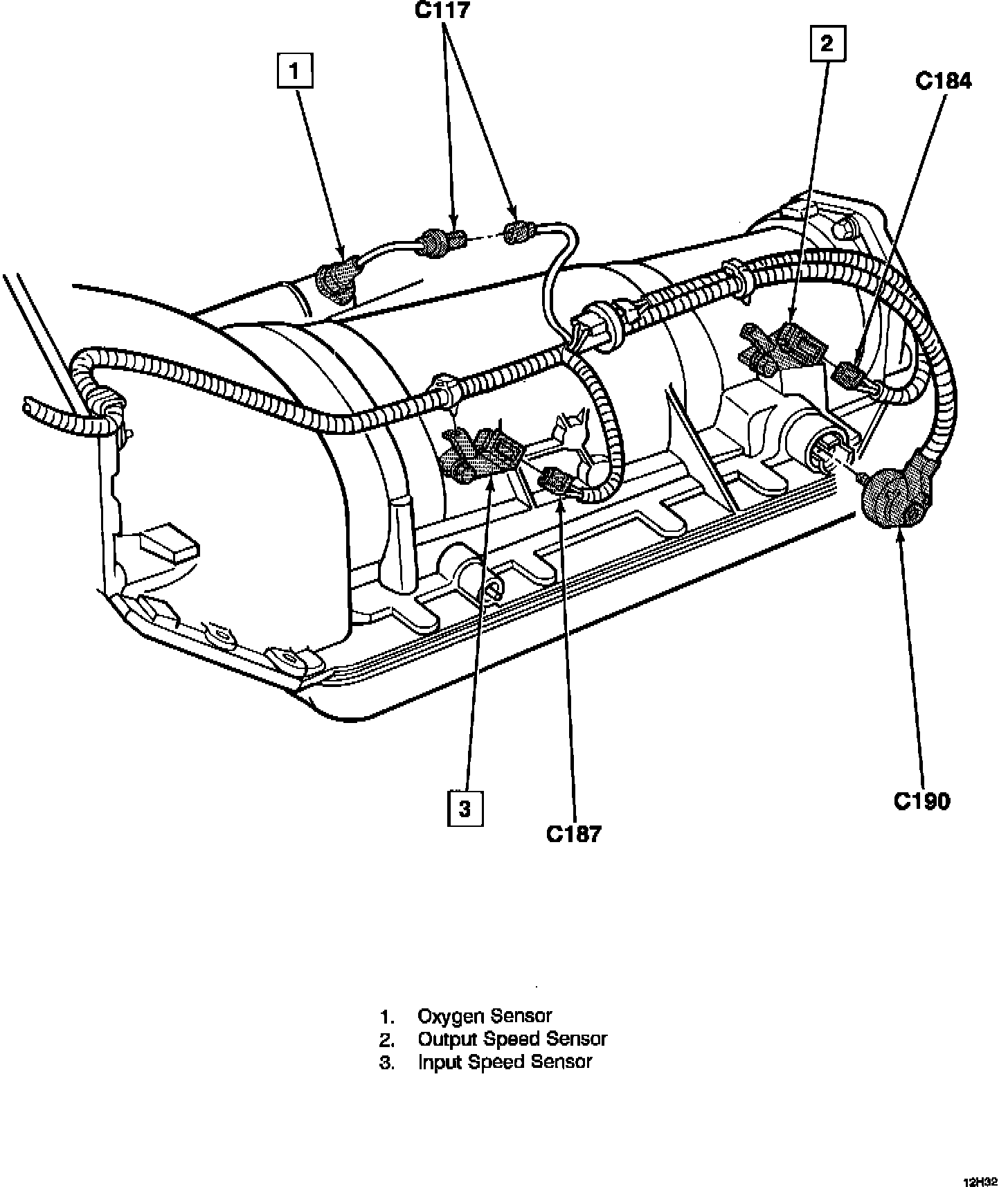

Transmission Wiring - 4-Speed, With Overdrive Auto. Trans.:

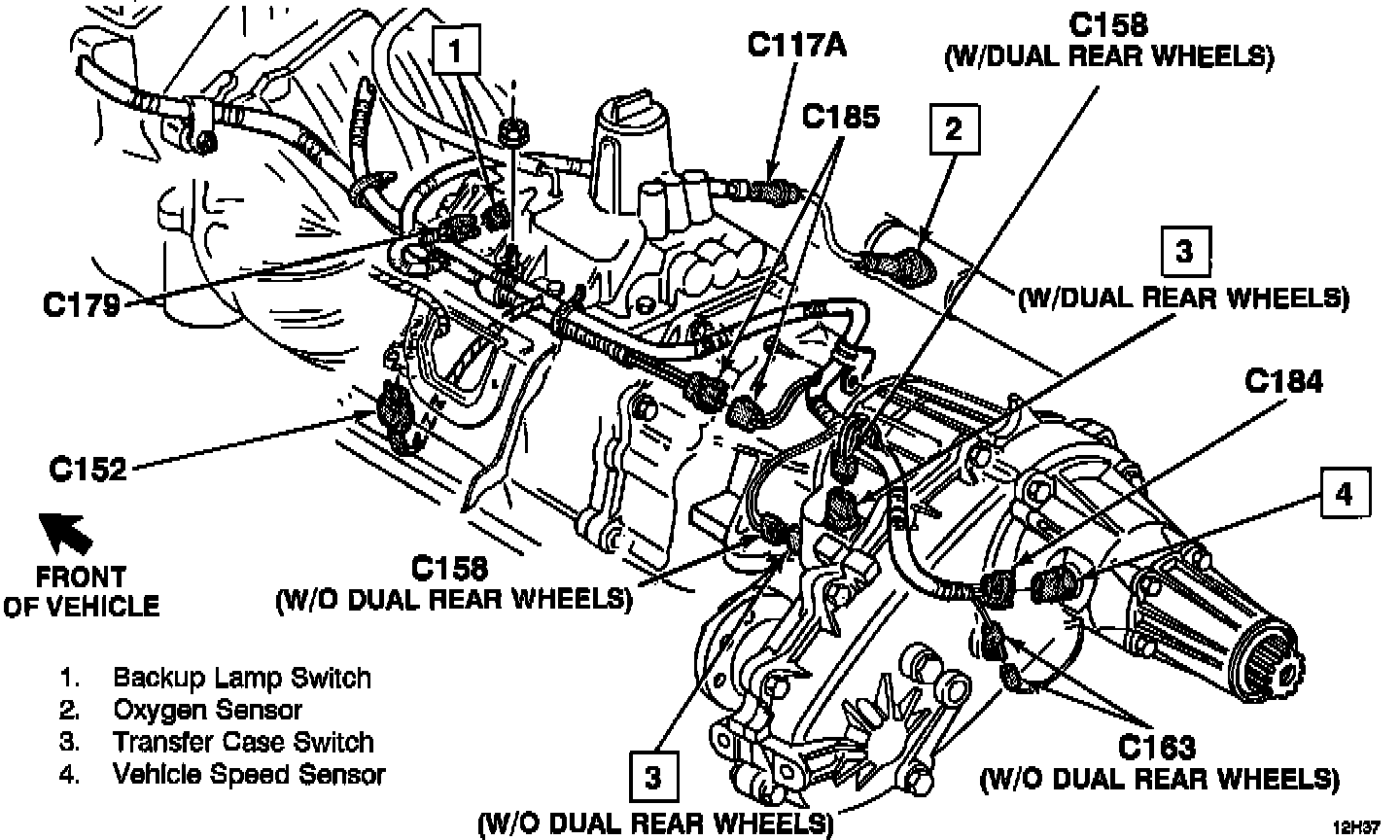

Transmission Wiring - MT1 Transmission:
RH exhaust pipe
LH Side Of Engine:

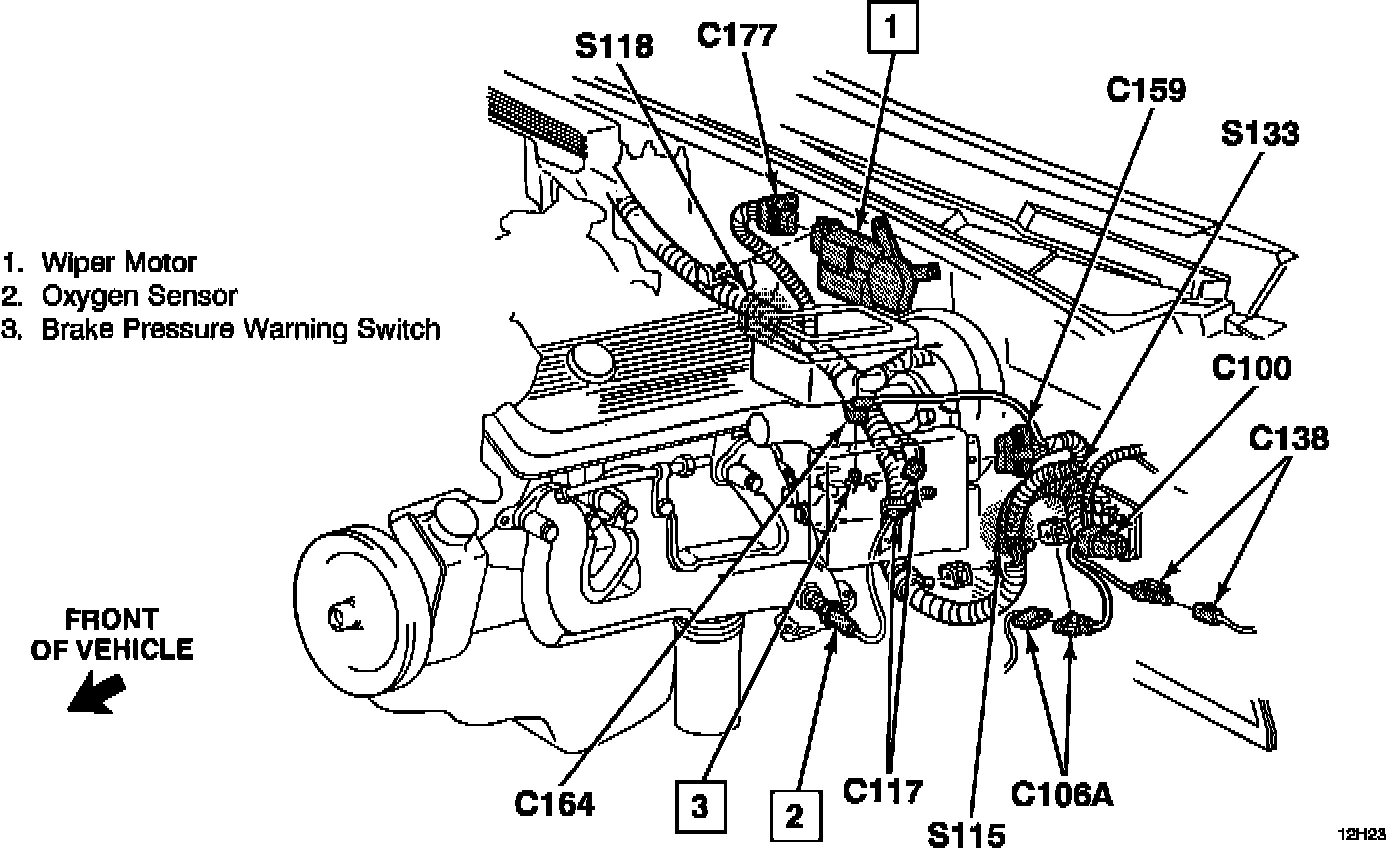

LH Cowl Wiring - Gasoline Engines:
LH exhaust manifold
