Cruise Control Module: Removal

  1. Remove negative battery cable.
  2. Remove nut (11), washer (10) and spacer (8). See Fig 1.
  3. Remove cable retainer (7). Disconnect cable from stud (6). See Fig 1.
  4. Remove cable from engine bracket. See Figure.
  5. Disconnect electrical connectors (5). Remove screws (1) from bracket (12). Remove nut (4) and washer (3). See Fig 1.
  6. Remove module (2). See Fig 1.

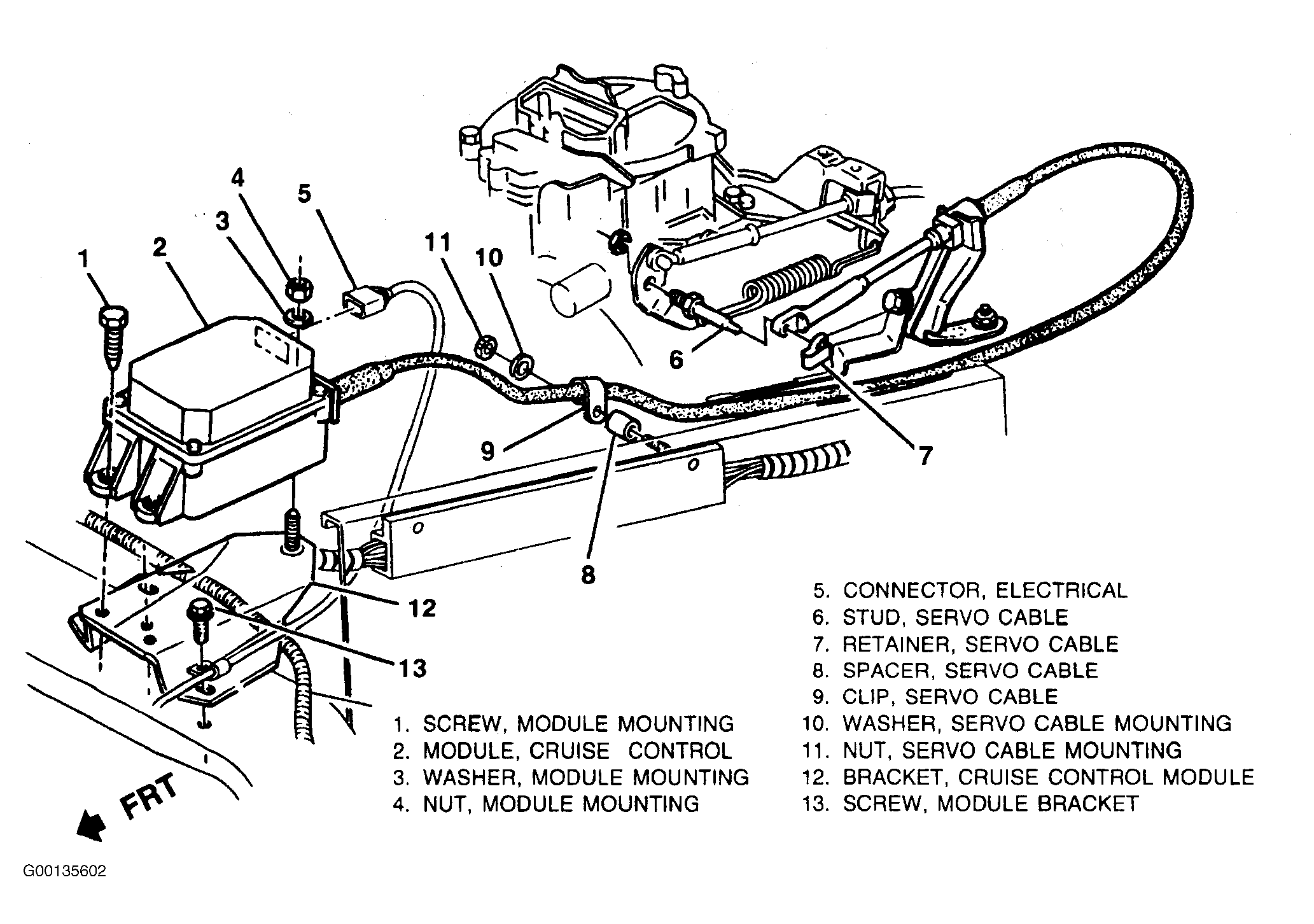

Fig 1: Removing Cruise Control Module
G00135602Courtesy of GENERAL MOTORS CORP.
