Test C: Both Power Mirrors Do Not Operate

NOTE: If both power mirrors do not operate, see Fig 1.

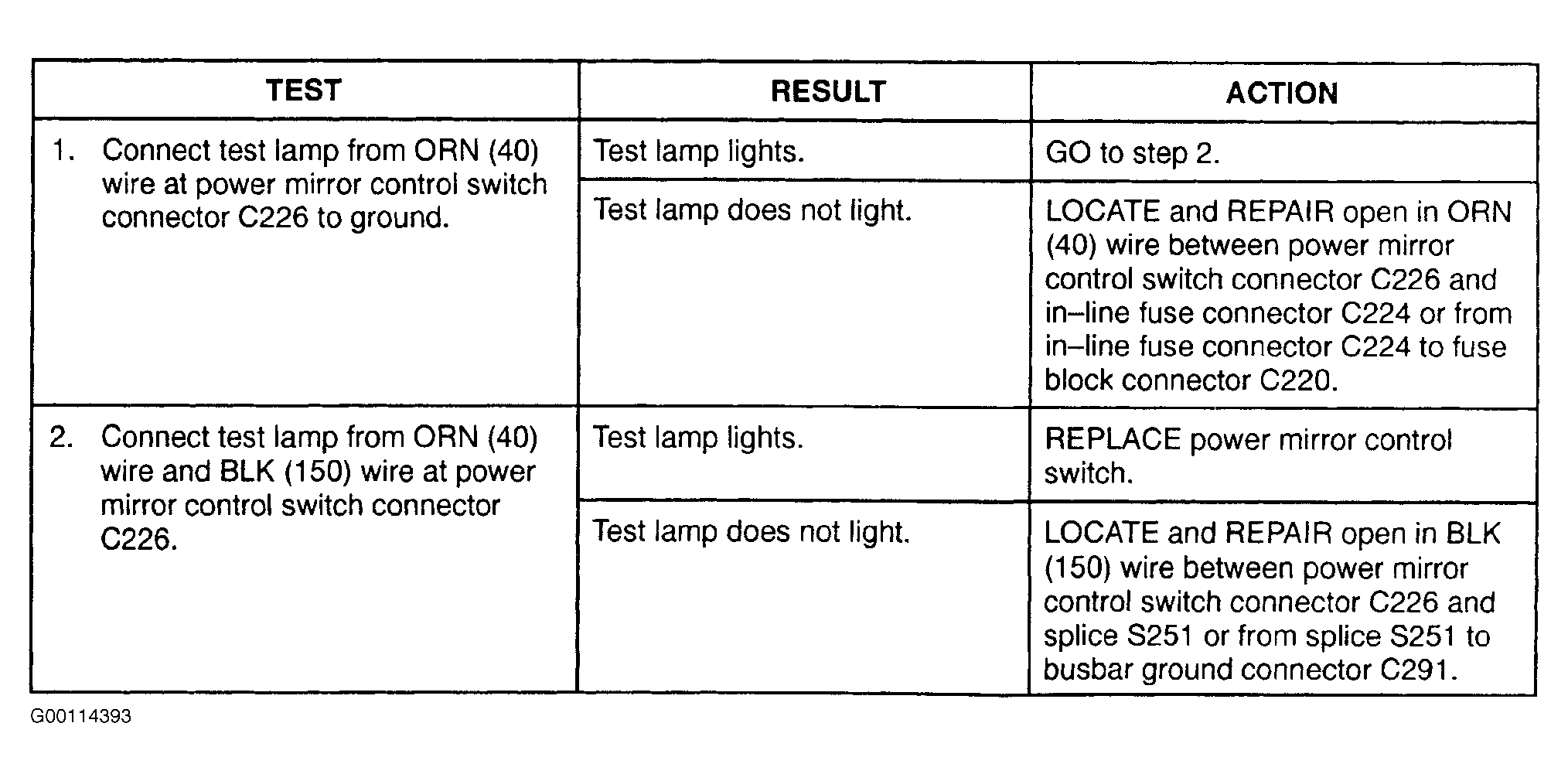

Fig 1: Test C: Both Power Mirrors Do Not Operate
G00114393Courtesy of GENERAL MOTORS CORP.
