Wiring Diagrams

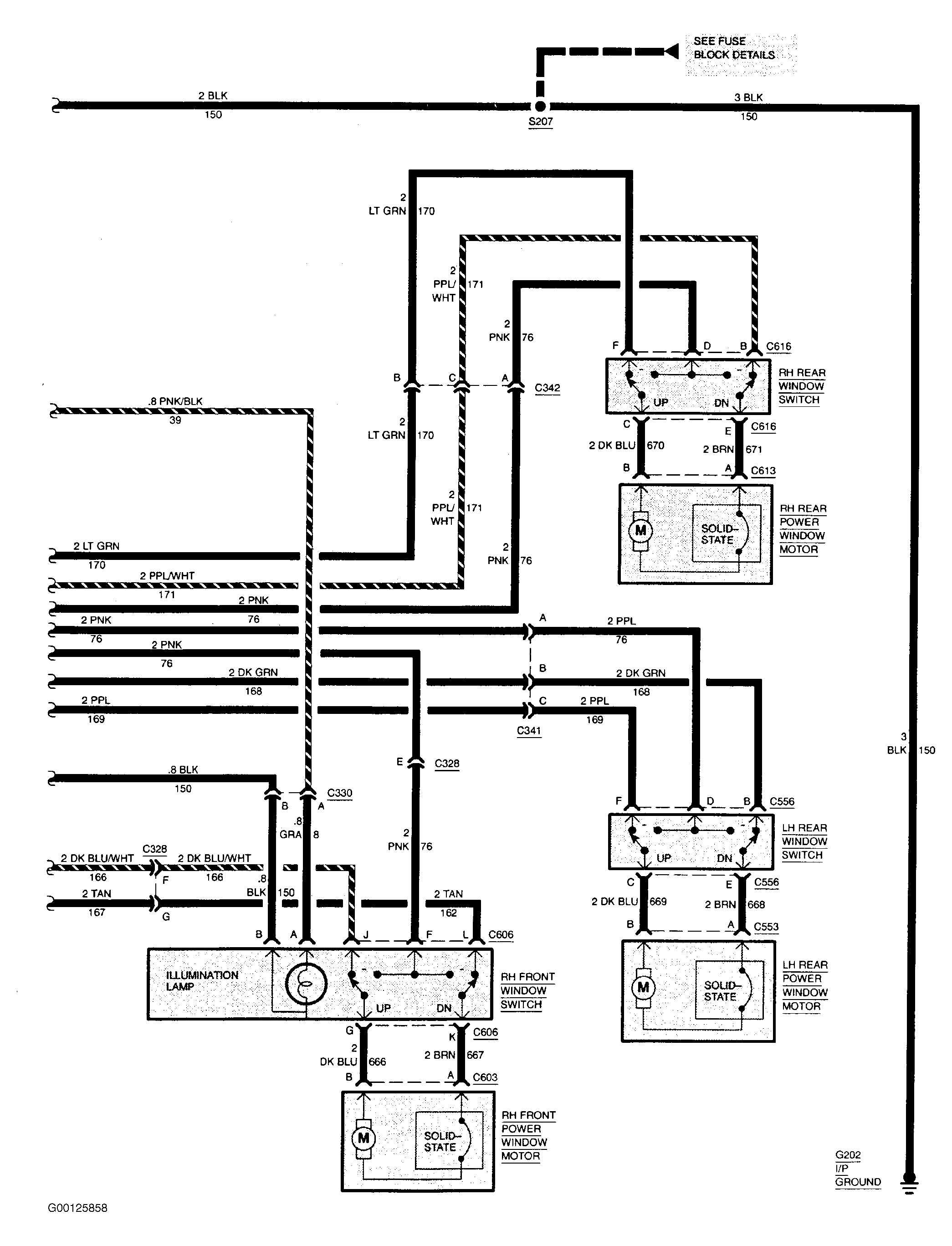

Fig 1: Extended Cab & 2-Door Pickup Power Window Wiring Diagram (1993)

Courtesy of GENERAL MOTORS CORP.

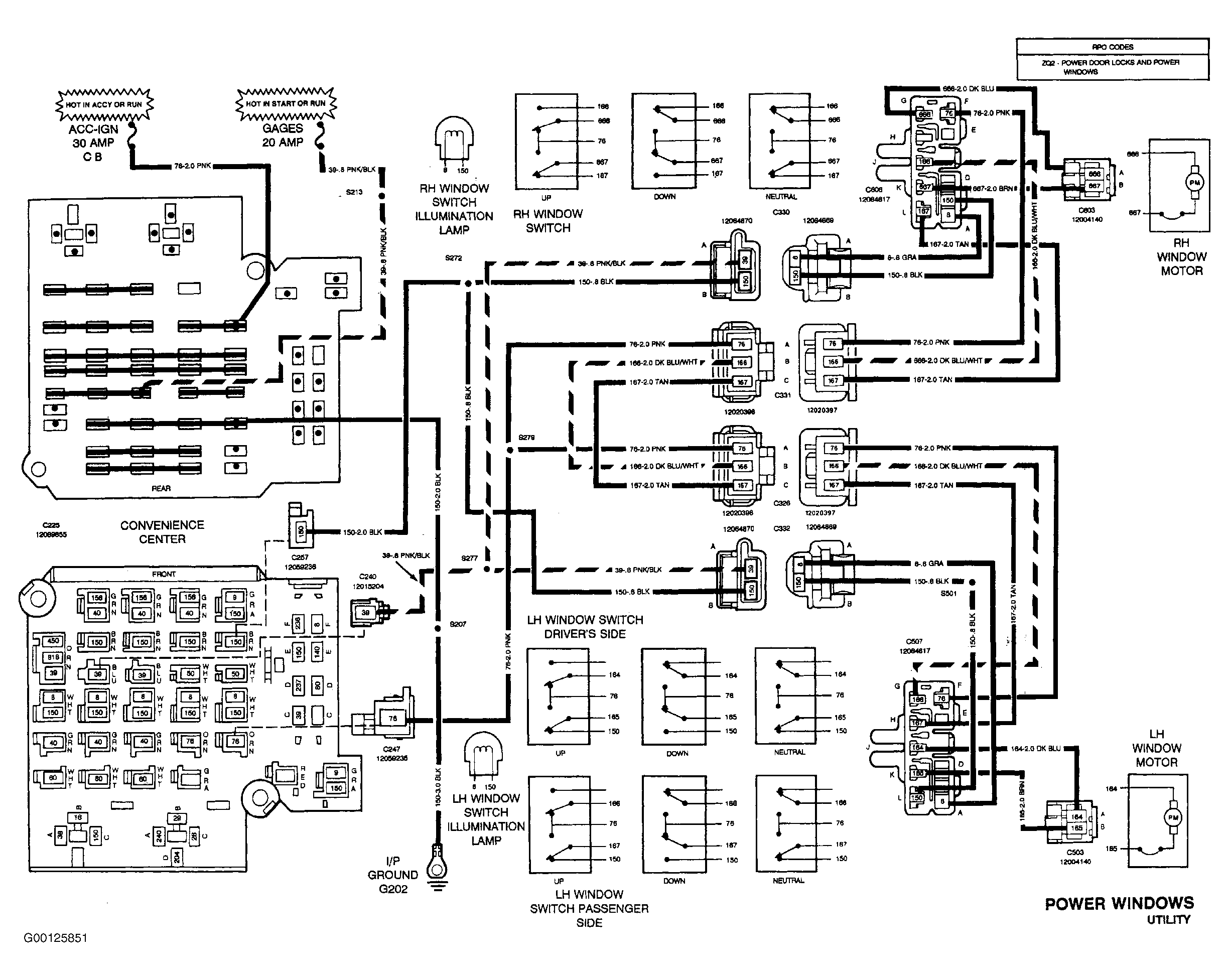

Fig 2: Utility Power Window Wiring Diagram (1993)

Courtesy of GENERAL MOTORS CORP.

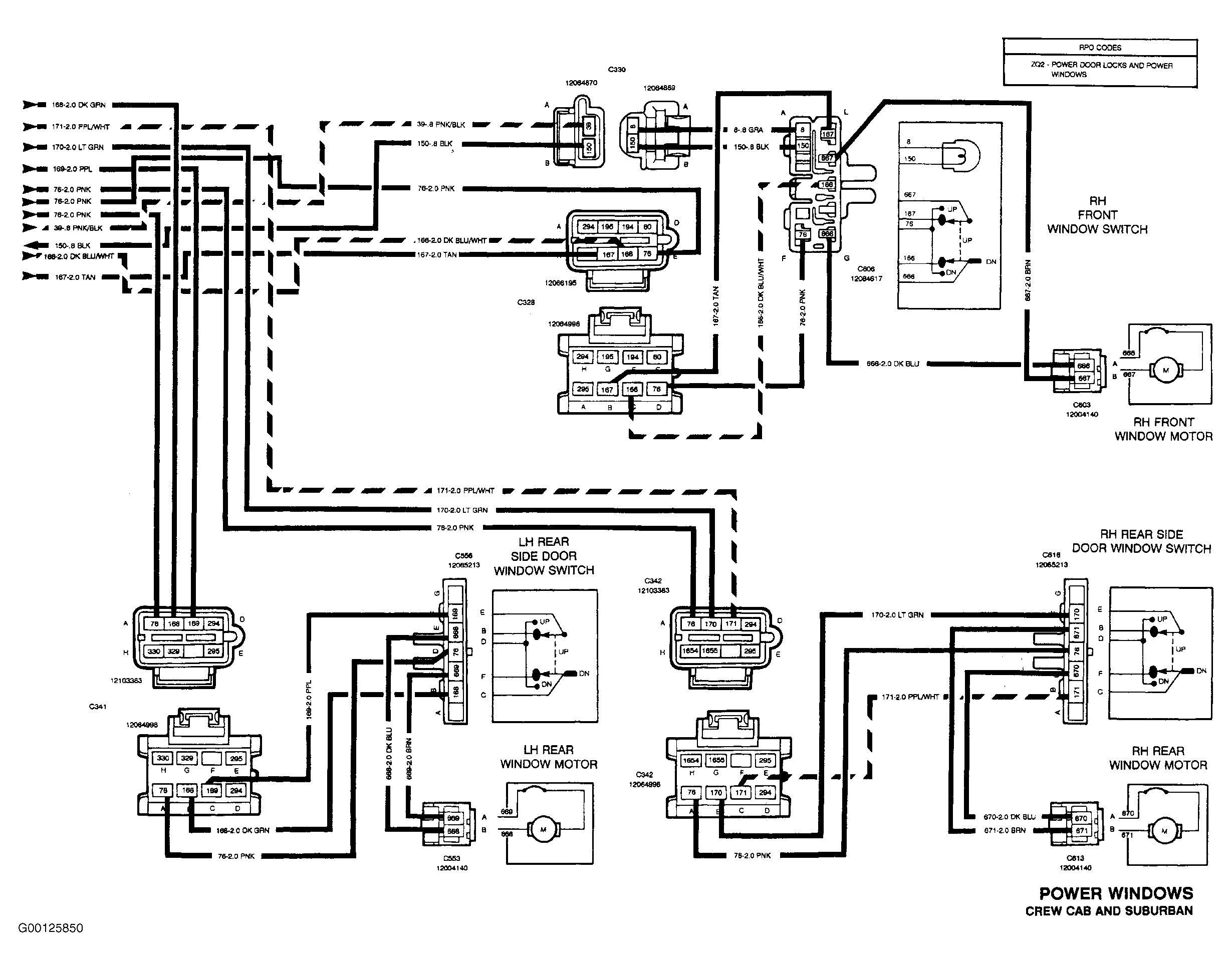

Fig 3: Crew Cab & Suburban Power Window Wiring Diagram (1993, 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

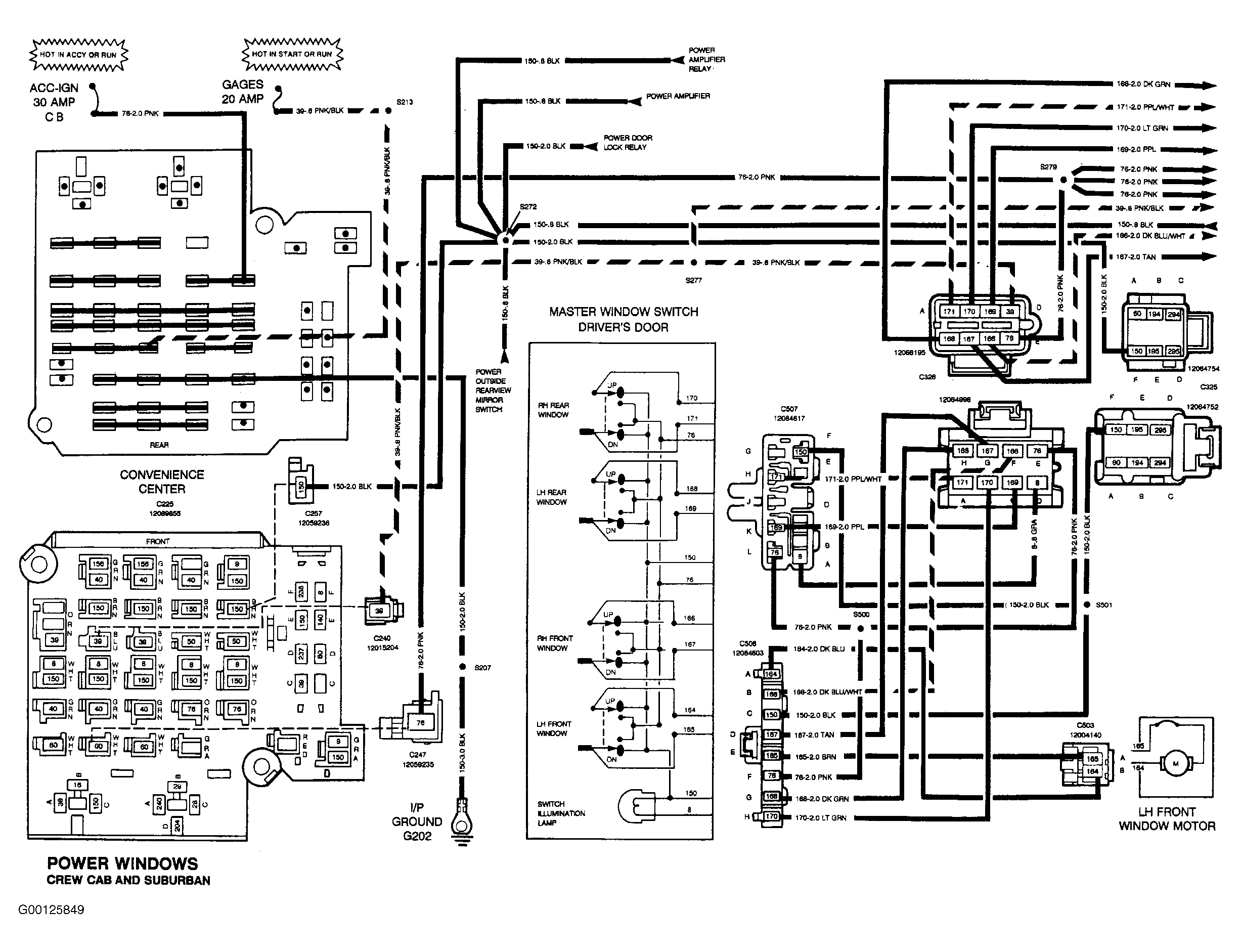

Fig 4: Crew Cab & Suburban Power Window Wiring Diagram (1993, 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

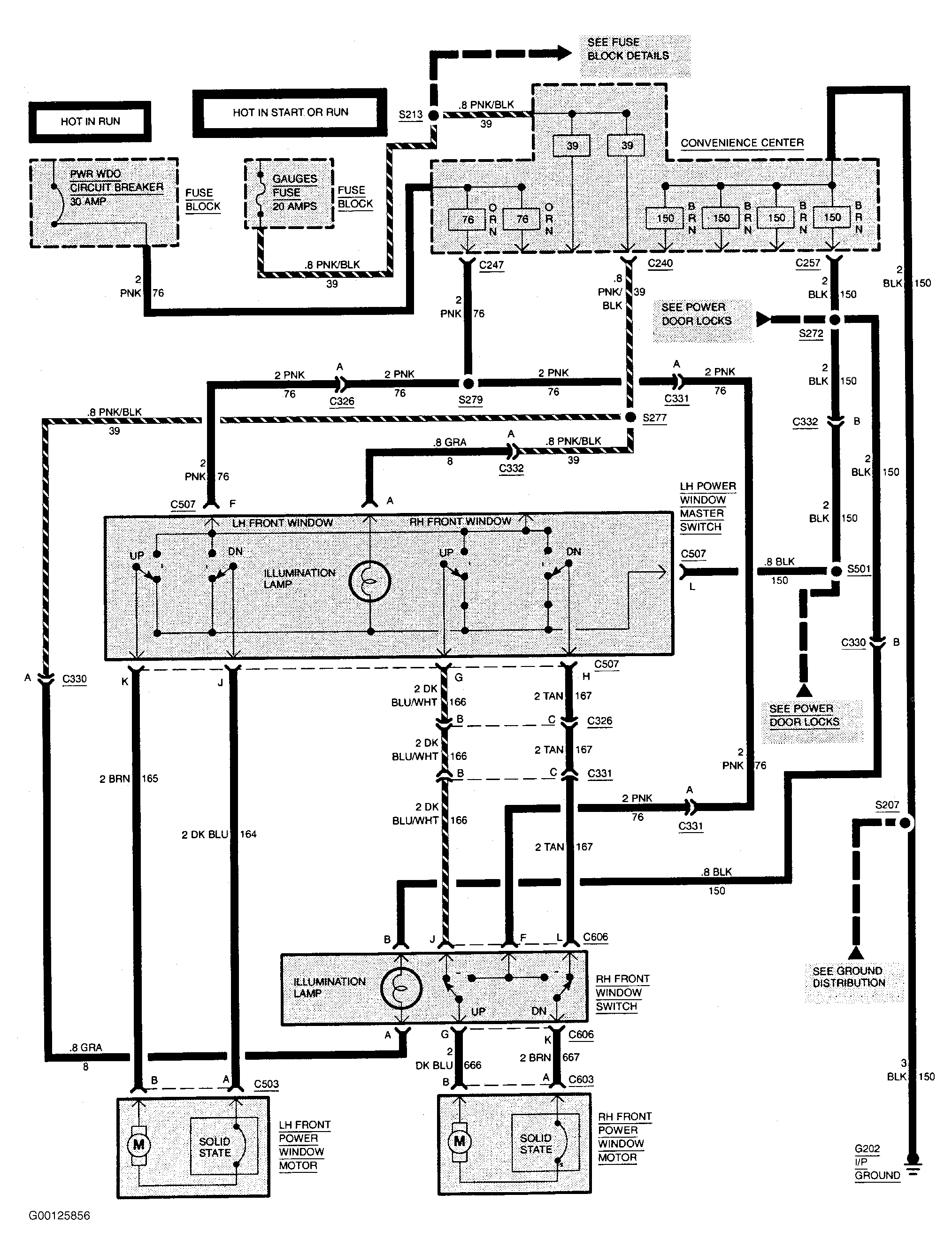

Fig 5: 2-Door Pickup Power Window Wiring Diagram (1994)

Courtesy of GENERAL MOTORS CORP.

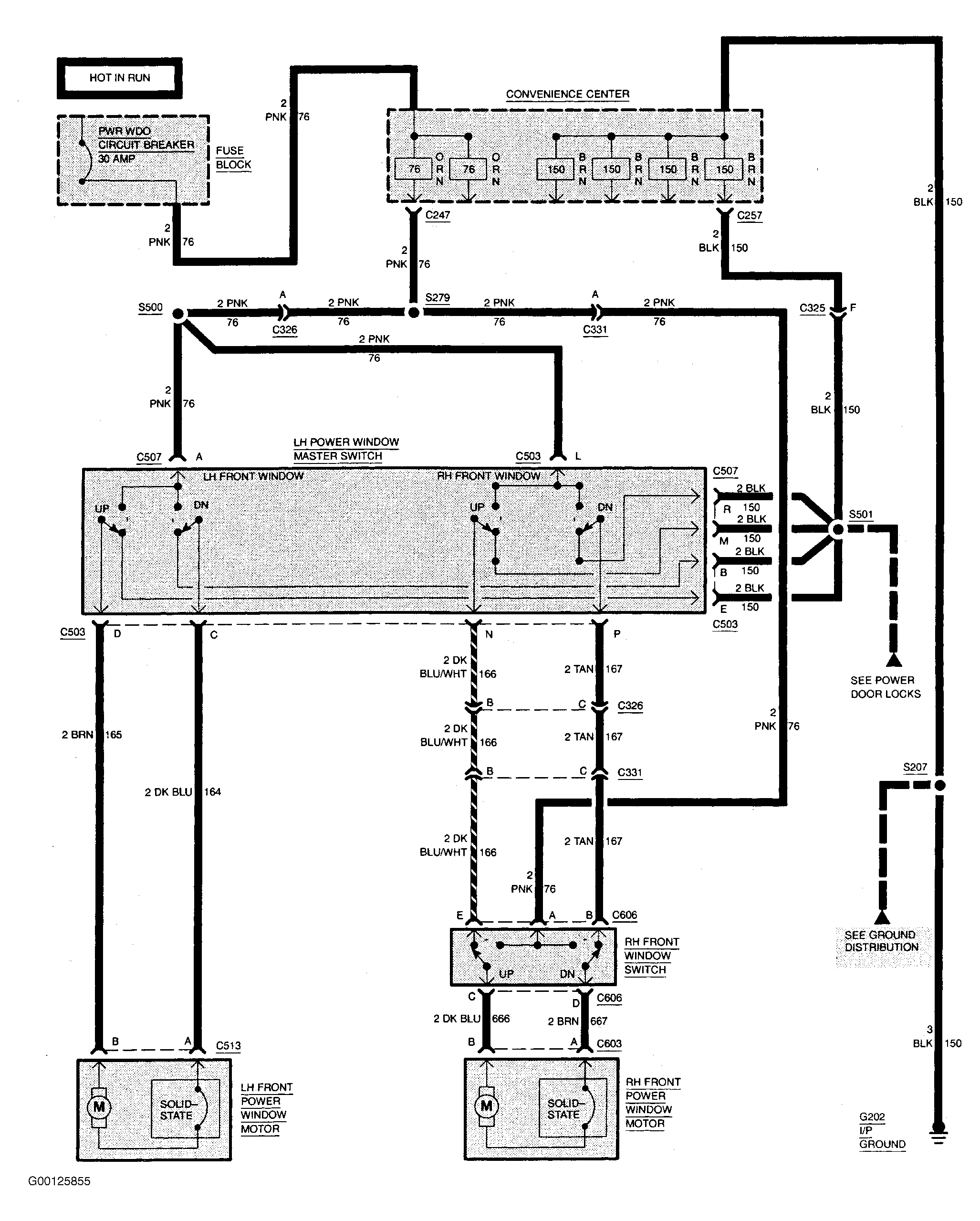

Fig 6: Utility Power Window Wiring Diagram (1994)

Courtesy of GENERAL MOTORS CORP.

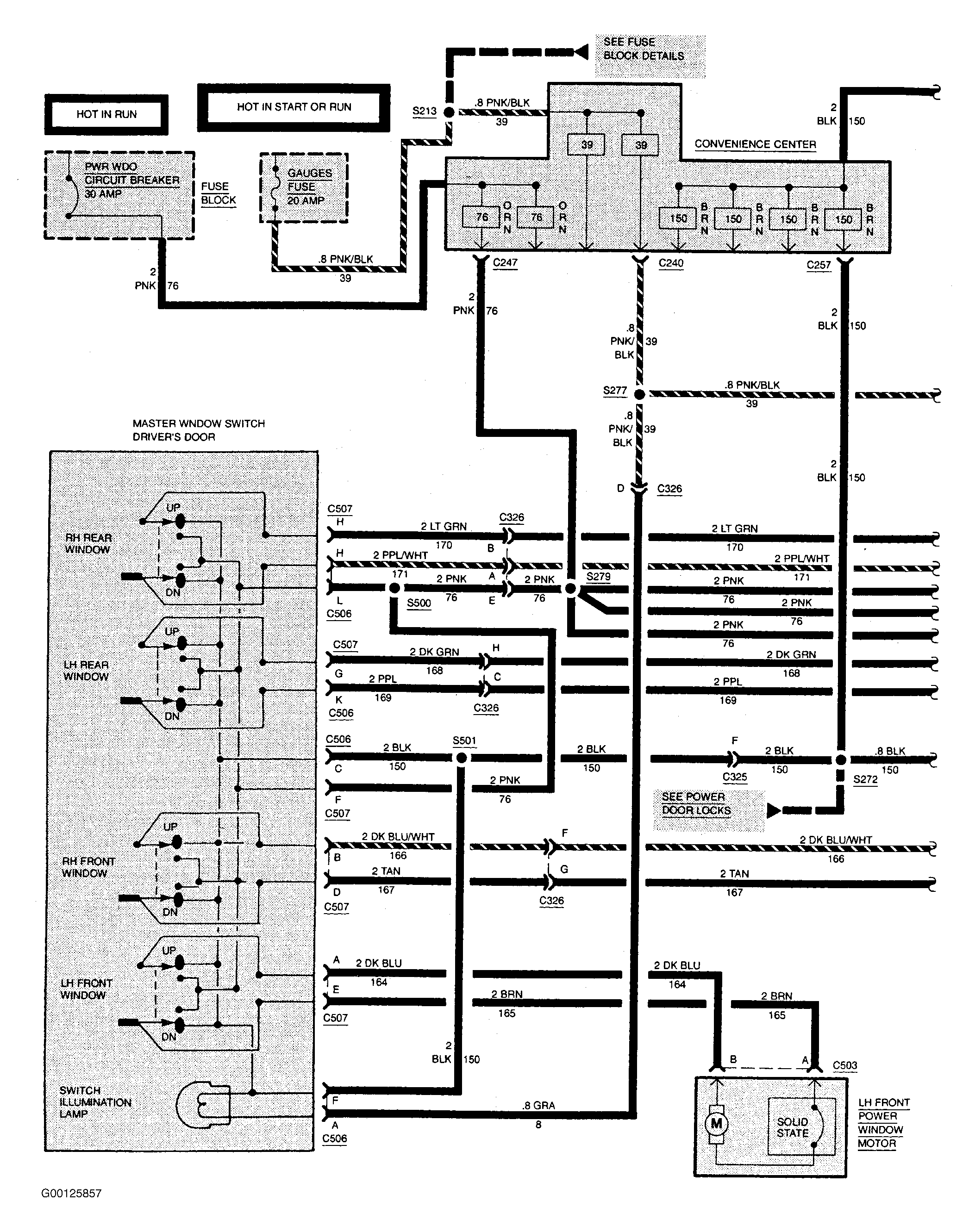

Fig 7: Crew Cab & Suburban Power Window Wiring Diagram (1994, 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Crew Cab & Suburban Power Window Wiring Diagram (1994, 2 Of 2)

Courtesy of GENERAL MOTORS CORP.
