With 4L80E Automatic Transmission

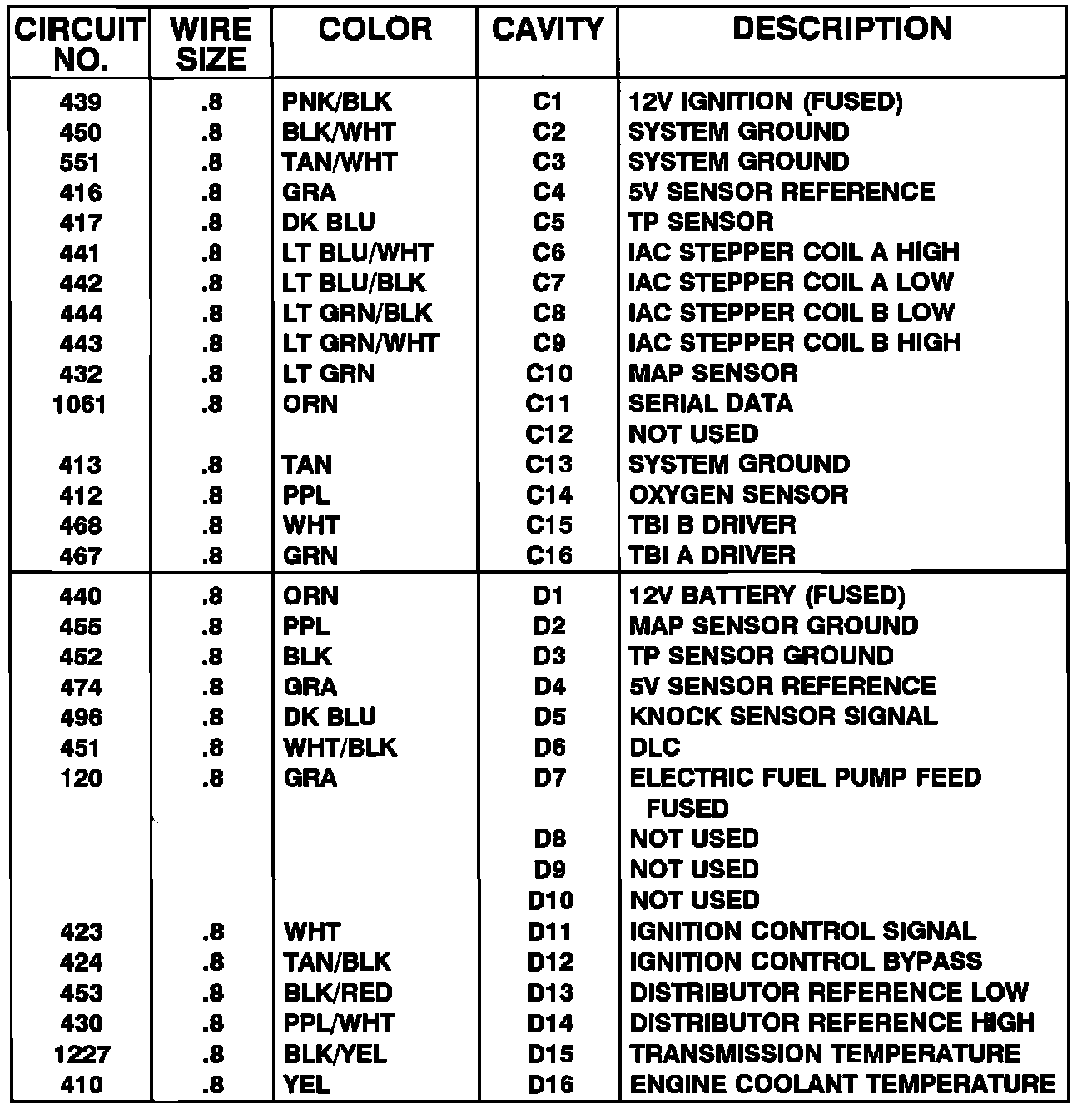

Powertrain Control Module Pinouts - Gasoline Engines W/HD 4-SPD Automatic Overdrive Transmission:

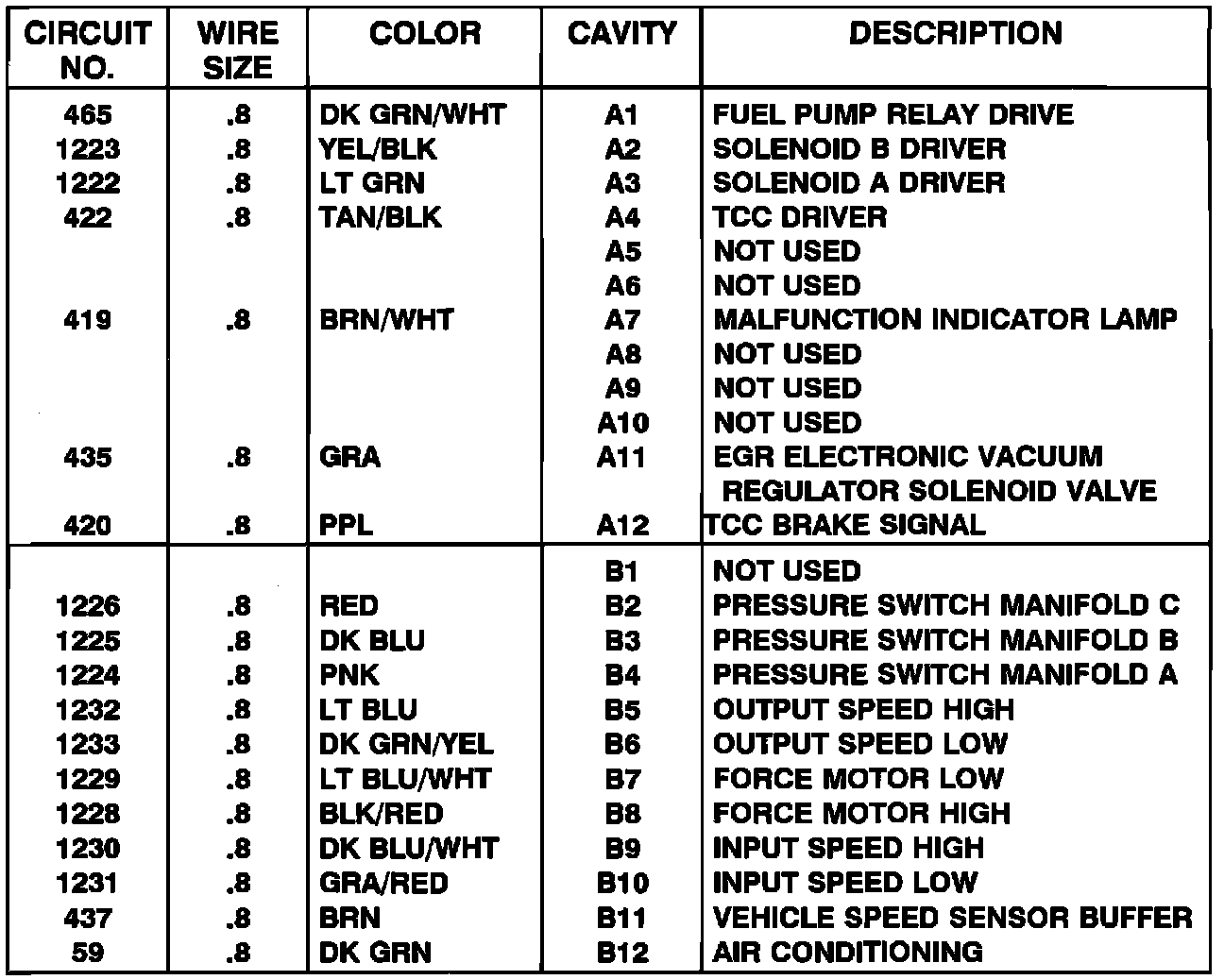

Powertrain Control Module Pinouts - Gasoline Engines W/HD 4-SPD Automatic Overdrive Transmission:
