With Manual Transmission

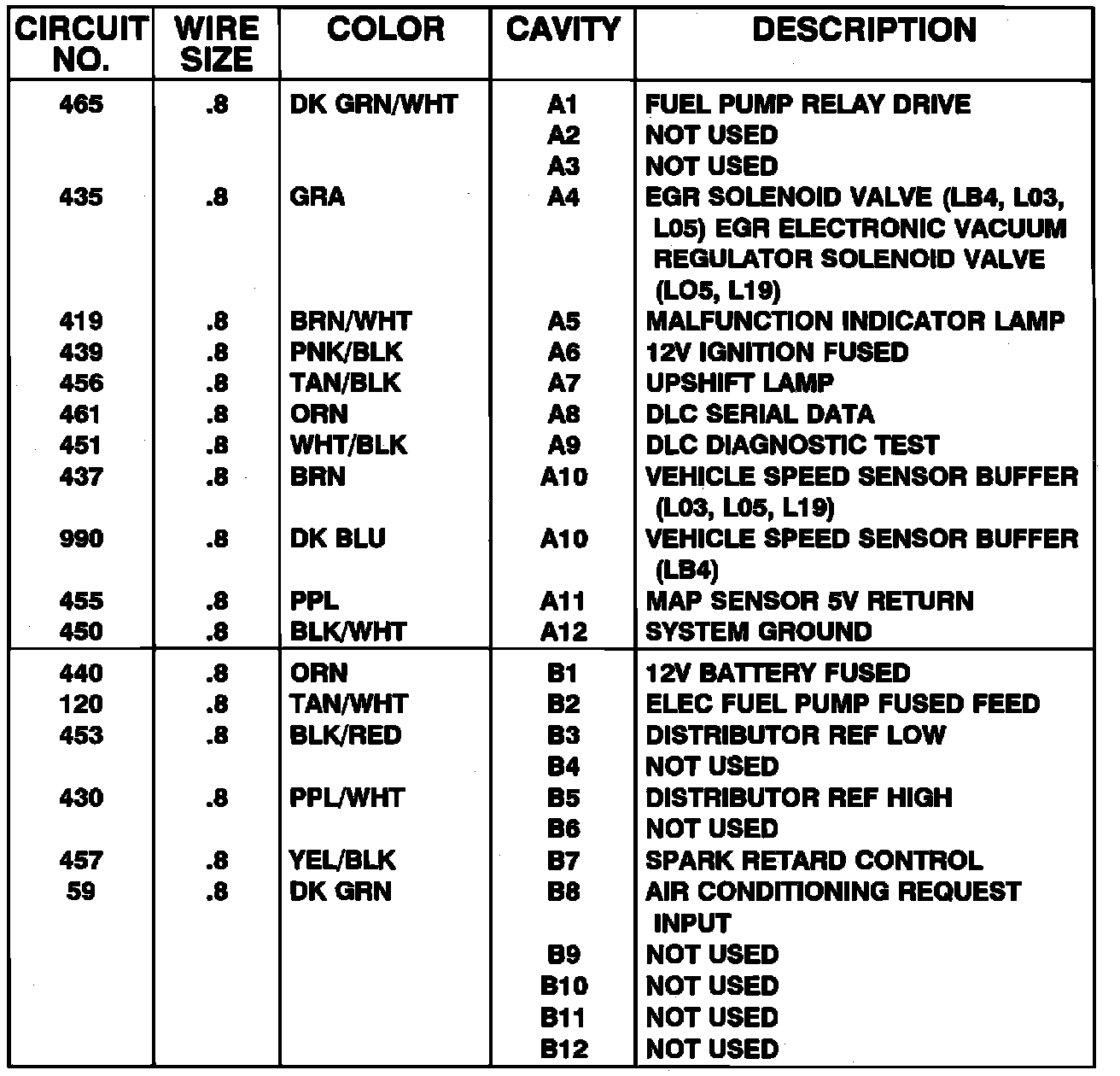

Engine Control Module Pinouts - Gasoline Engines:

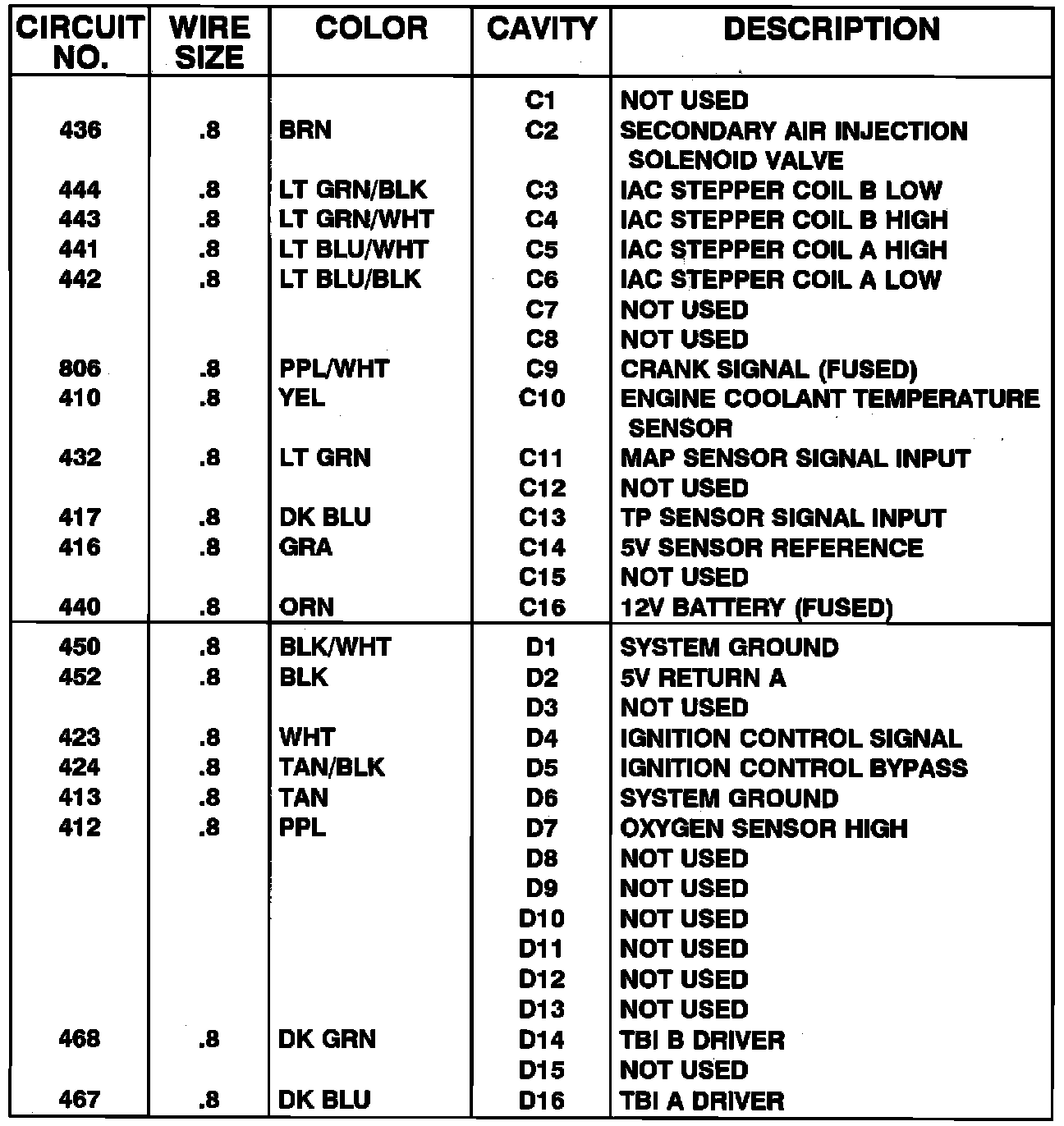

Engine Control Module Pinouts - Gasoline Engines:
