Control Module, A/T

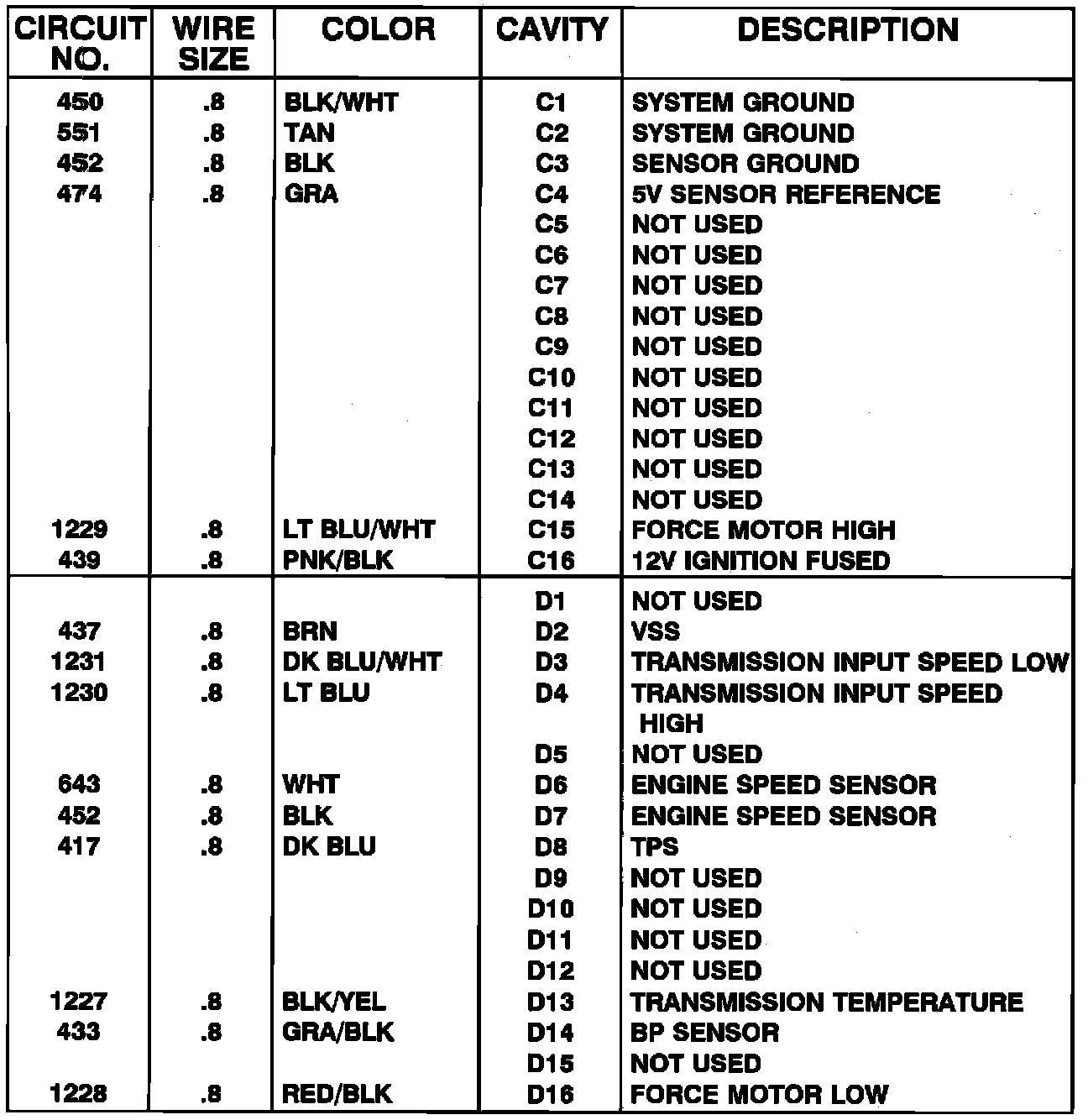

Transmission Control Module Pinouts - Diesel Engines W/HD 4-SPD Automatic Overdrive Transmission:

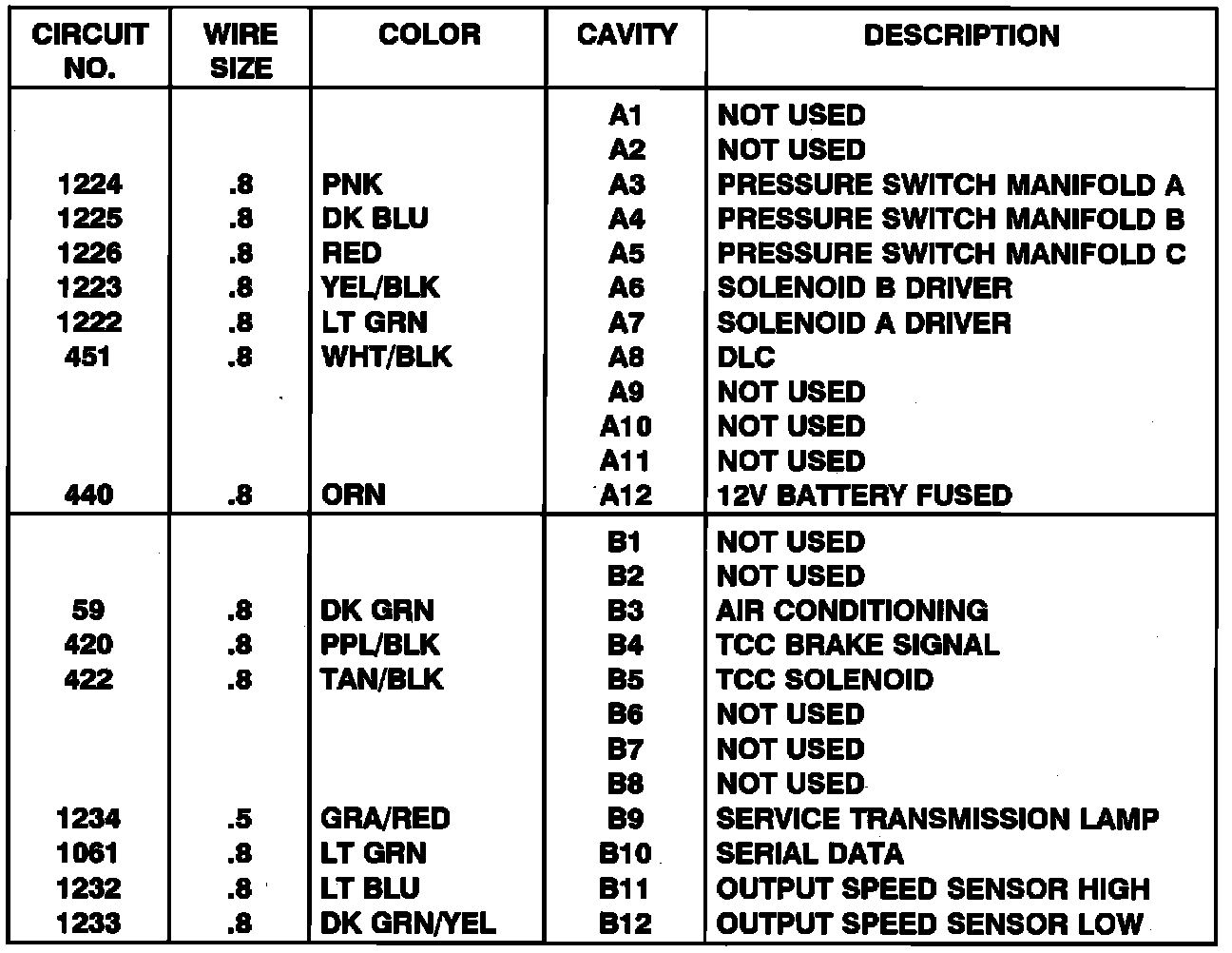

Transmission Control Module Pinouts - Diesel Engines W/HD 4-SPD Automatic Overdrive Transmission:
