Engine Control Module

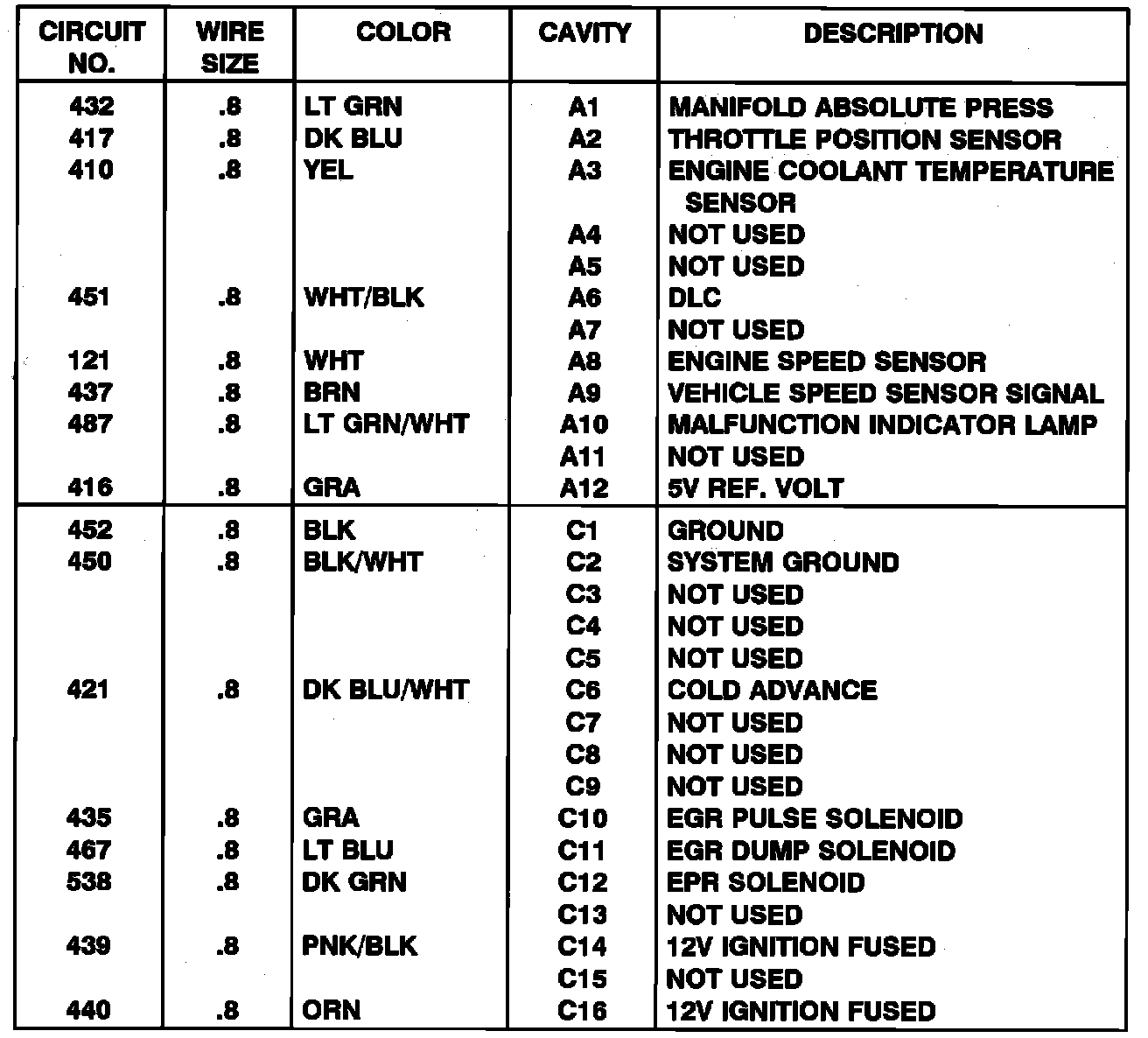

Engine Control Module Pinouts - Diesel Engines:

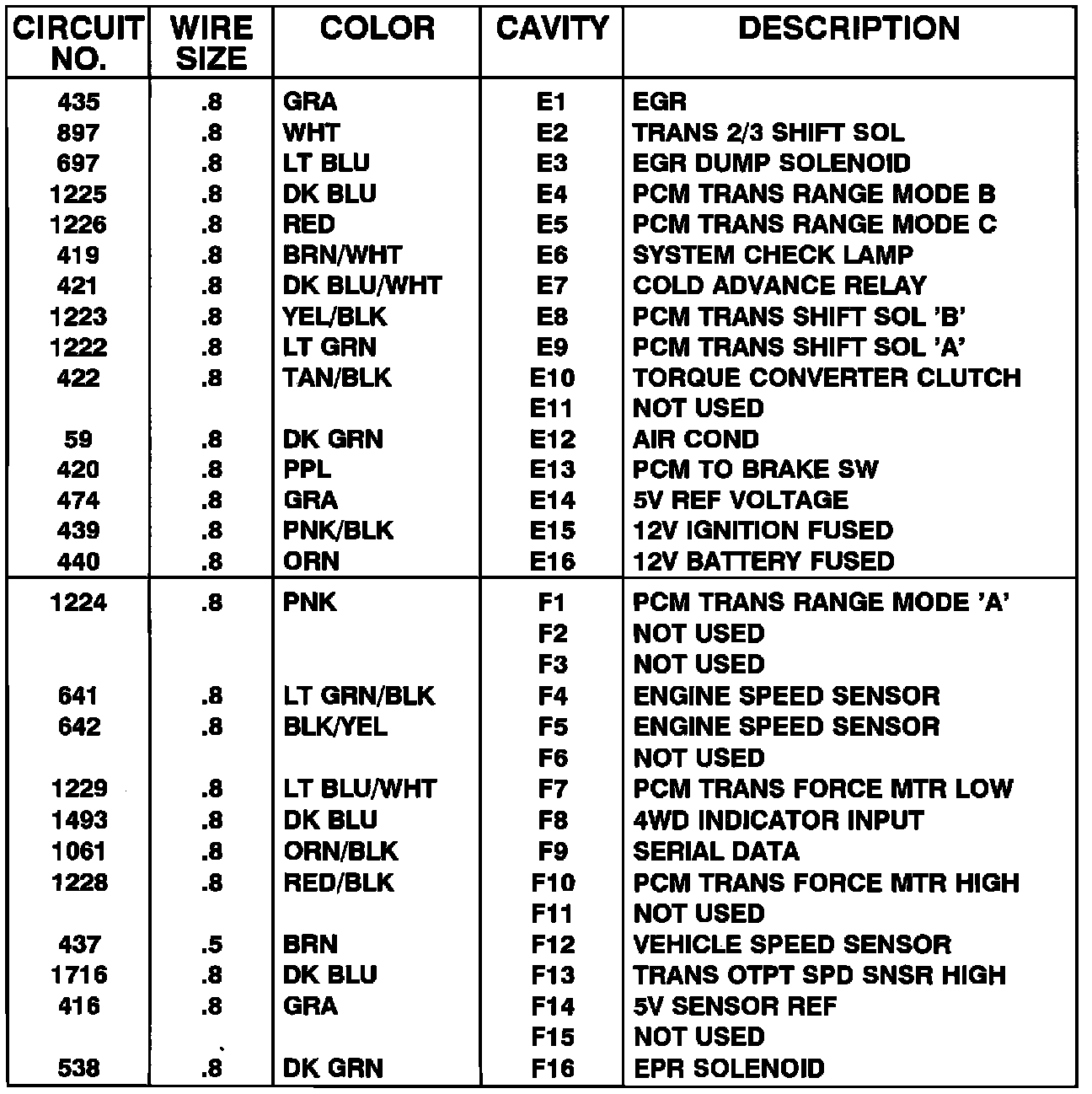

Powertrain Control Module Pinouts - Diesel Engines W/4-SPD Automatic Overdrive Transmission:

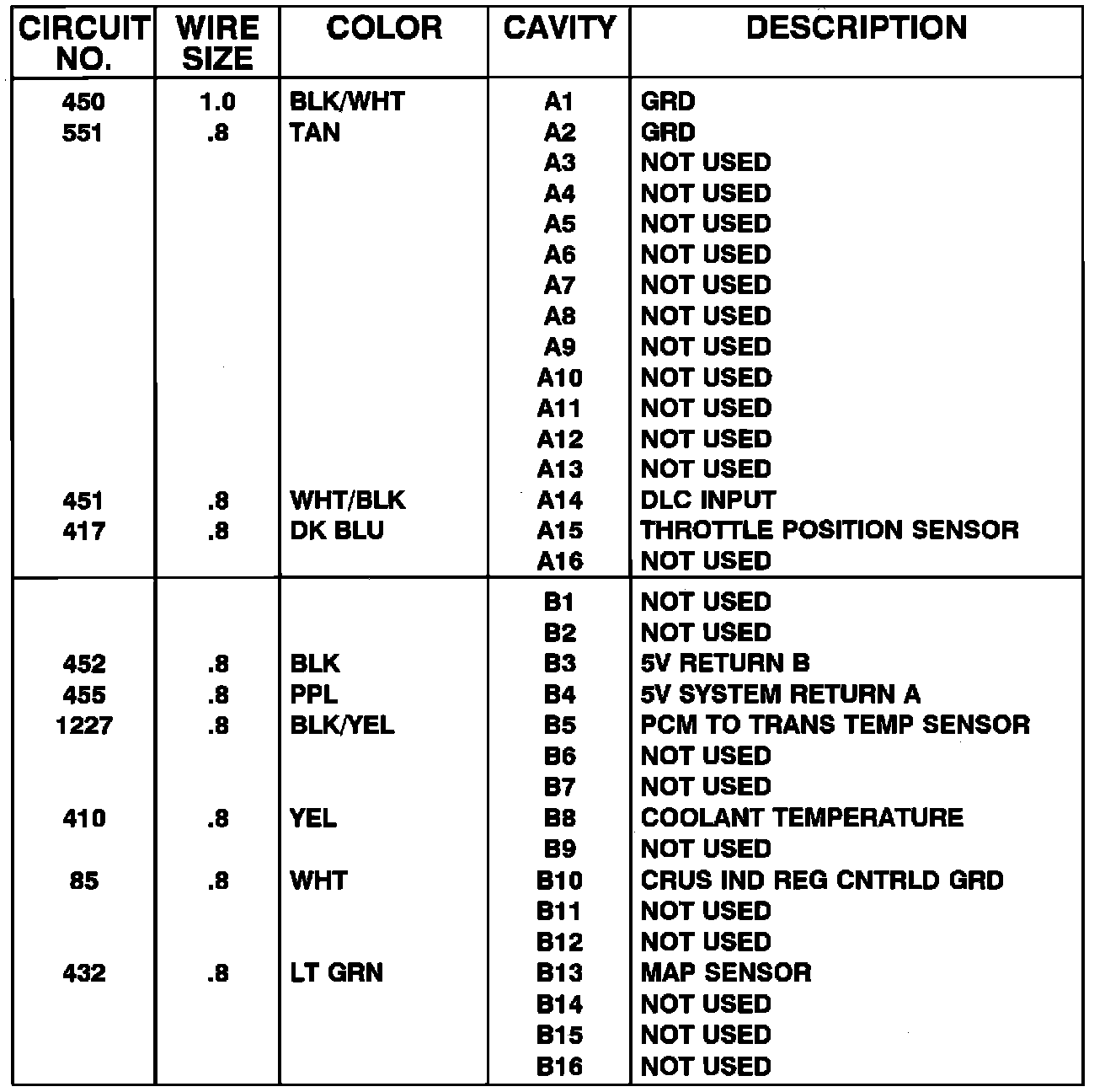

Powertrain Control Module Pinouts - Diesel Engines W/4-SPD Automatic Overdrive Transmission:
