Inputs

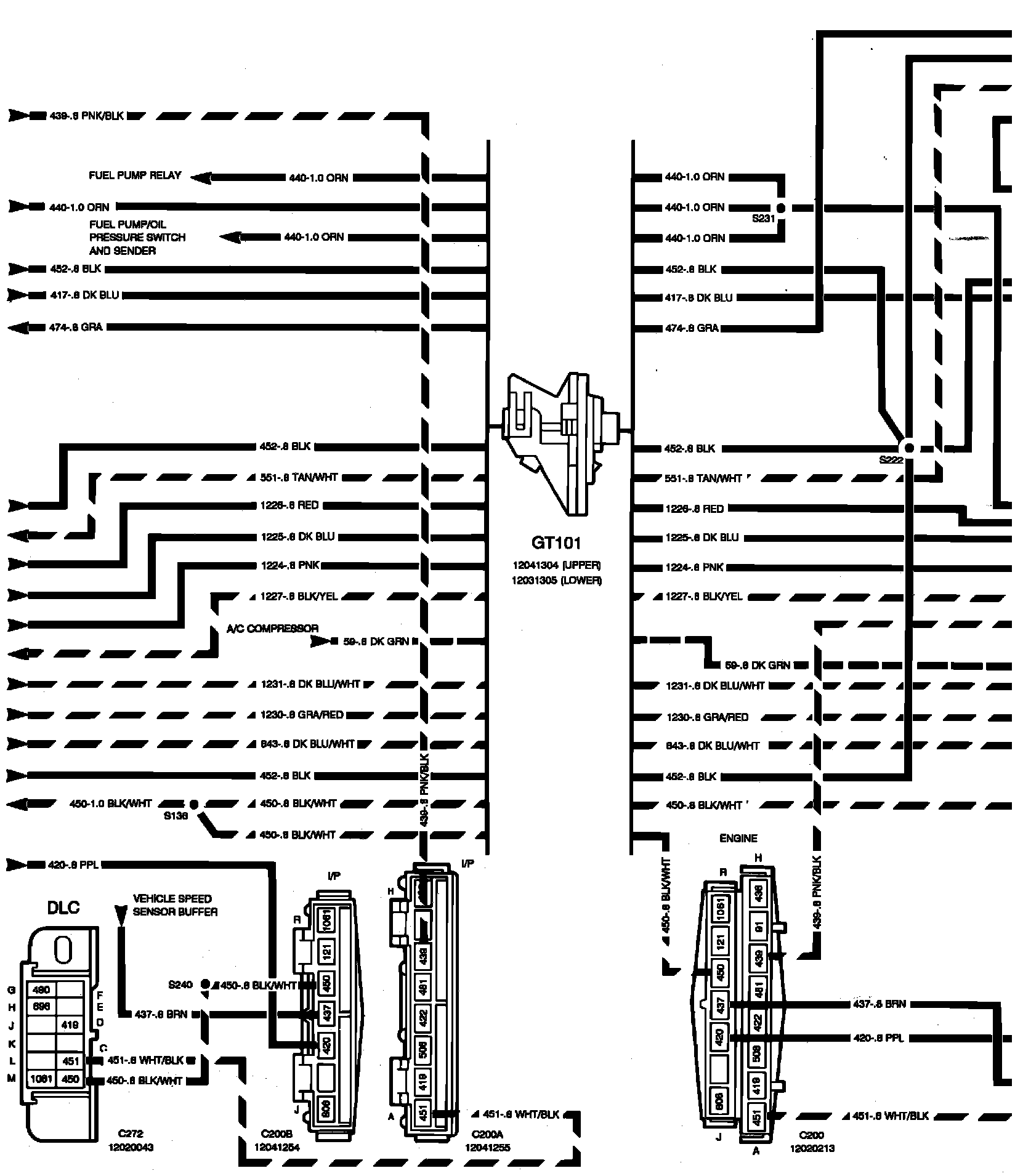

g}�%Transmission Control Module Inputs - Diesel Engines W/HD 4-SPD Automatic Overdrive Transmission:

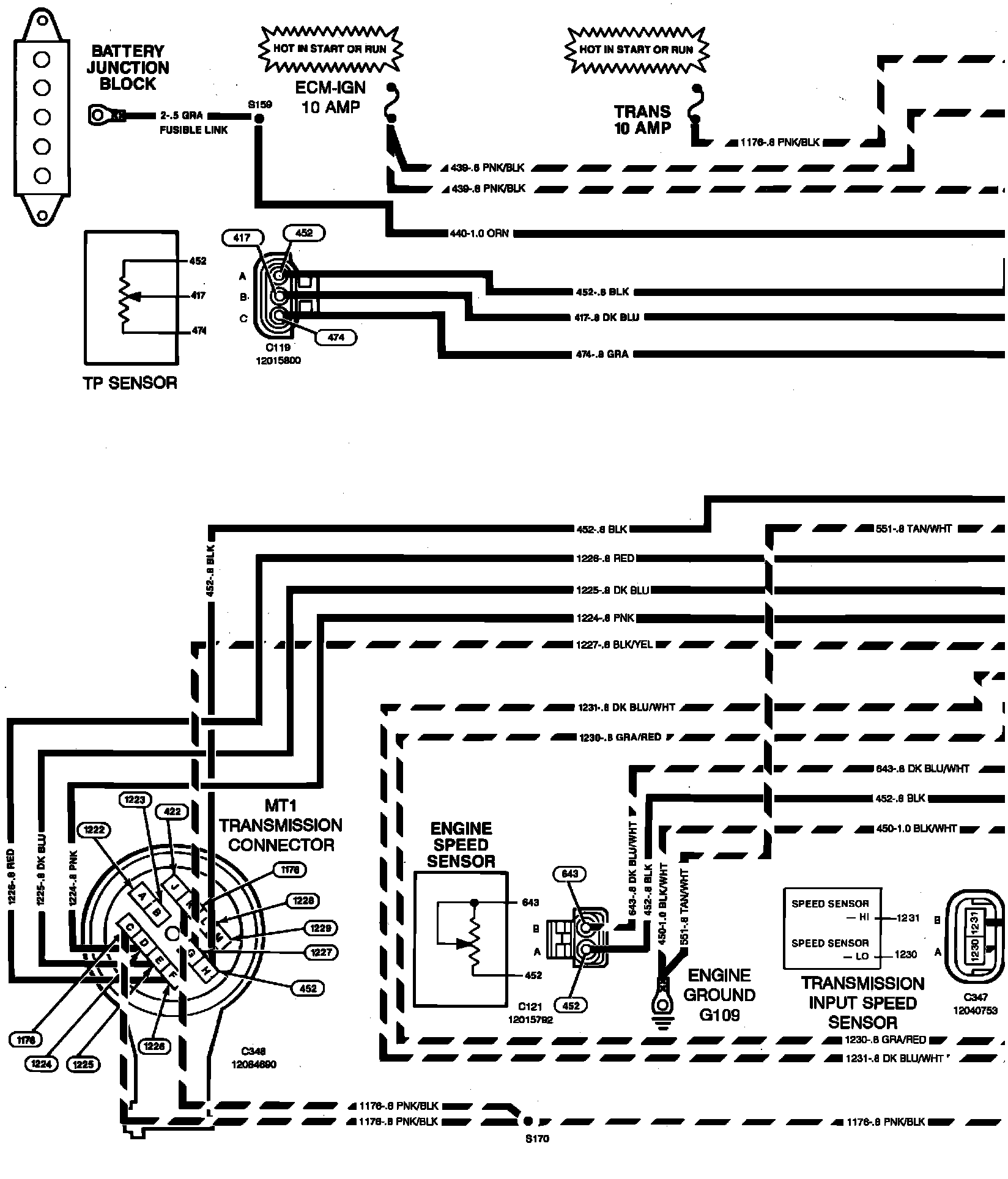

��%Transmission Control Module Inputs - Diesel Engines W/HD 4-SPD Automatic Overdrive Transmission:
