Diagnostic Aids

An open in ignition feed circuit or the EGR control circuit will cause DTC 44 to set.

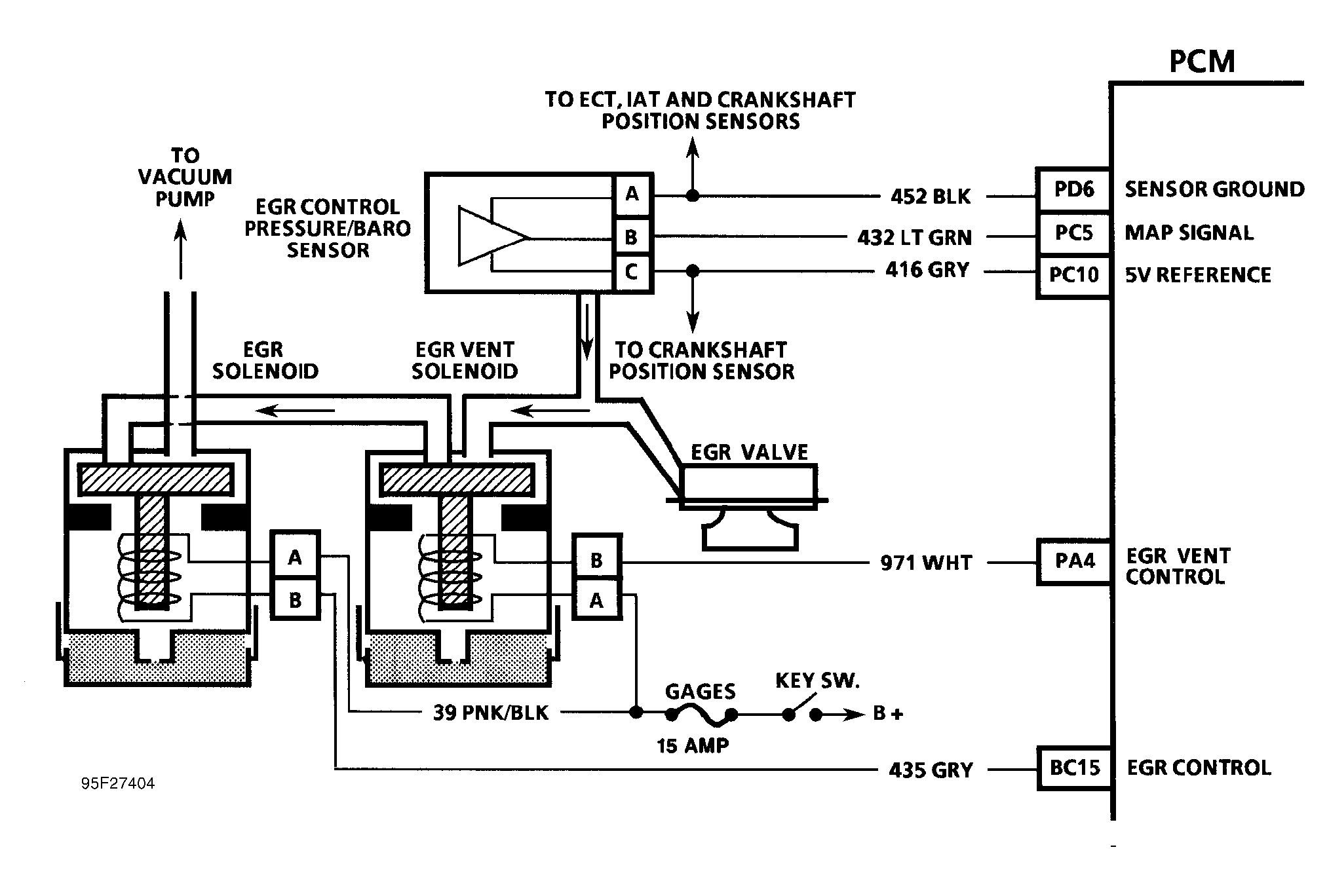

Fig 1: DTC 44 Schematic ("G" Series) EGR Pulse Width Error

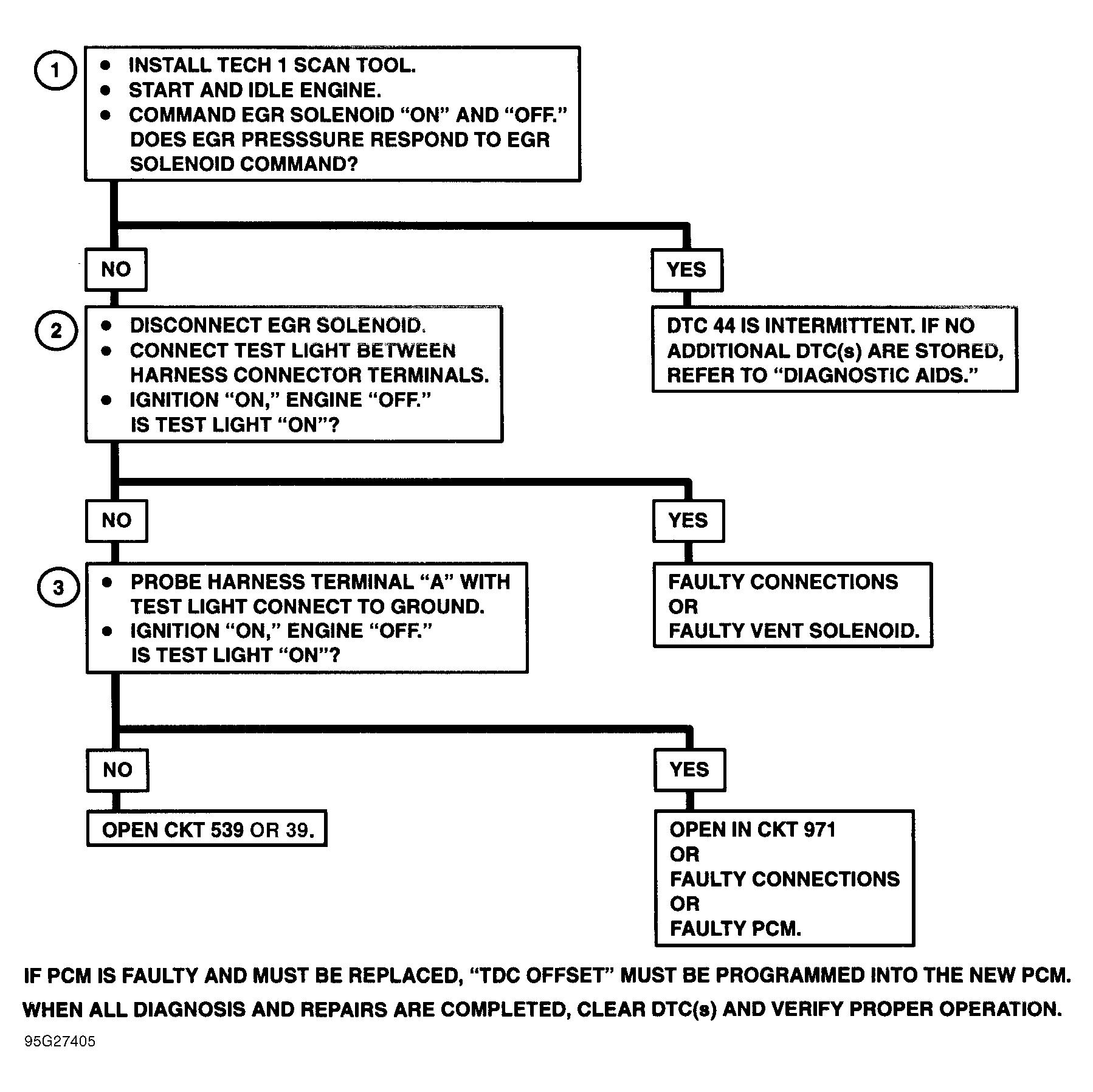

Fig 2: DTC 44 Flow Chart ("G" Series) EGR Pulse Width Error
