Hold-In Windings

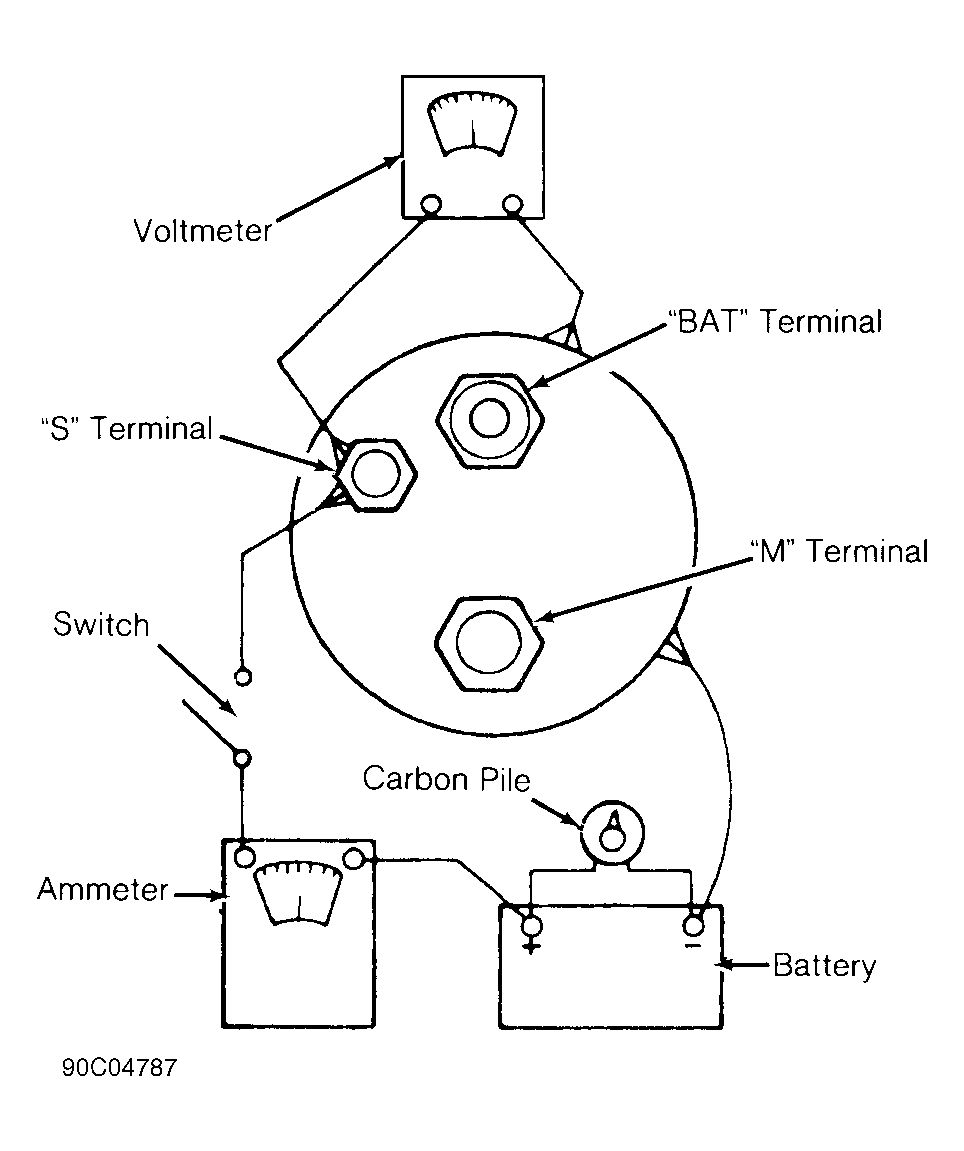

- Connect an ammeter, voltmeter, carbon pile and battery into starter circuit. See Fig 1. Using carbon pile, decrease battery voltage to 10 volts.
- Refer to SOLENOID HOLD-IN WINDING SPECIFICATIONS table for correct amperage reading. A higher reading indicates windings are shorted or grounded; a lower reading indicates excessive resistance.
SOLENOID HOLD-IN WINDING SPECIFICATIONS
| Part No. | Amps | Volts |
|---|---|---|
| 1114520 | 10-20 | 10 |
| 1114578 | 10-20 | 10 |
| 1114579 | 10-20 | 10 |
| 10456454 | 12-14 | 10 |
