Scan Tool Does Not Communicate With Comp on UART Data Line

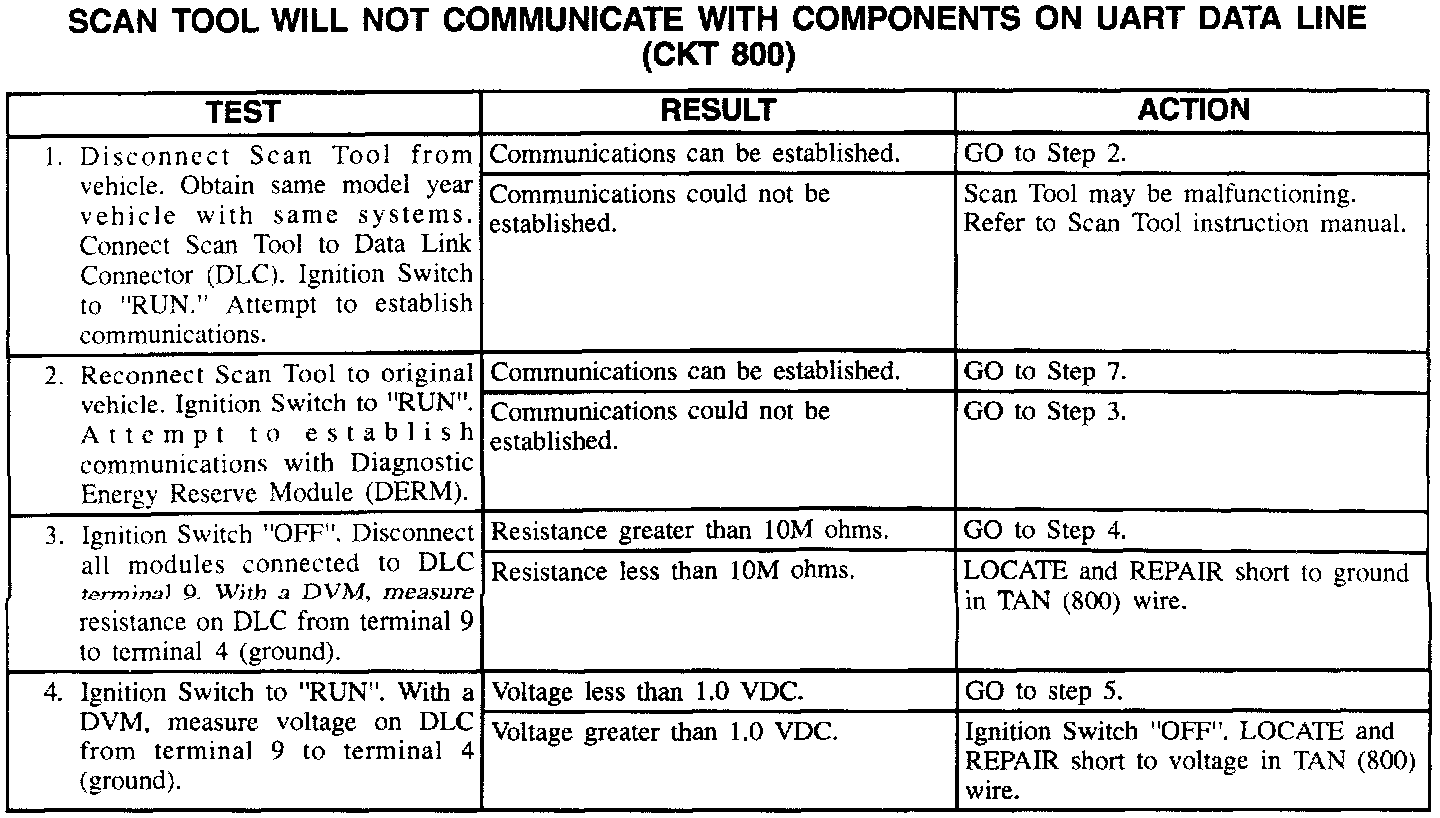

Scan Tool Will Not Communicate With Components On UART Data Line:

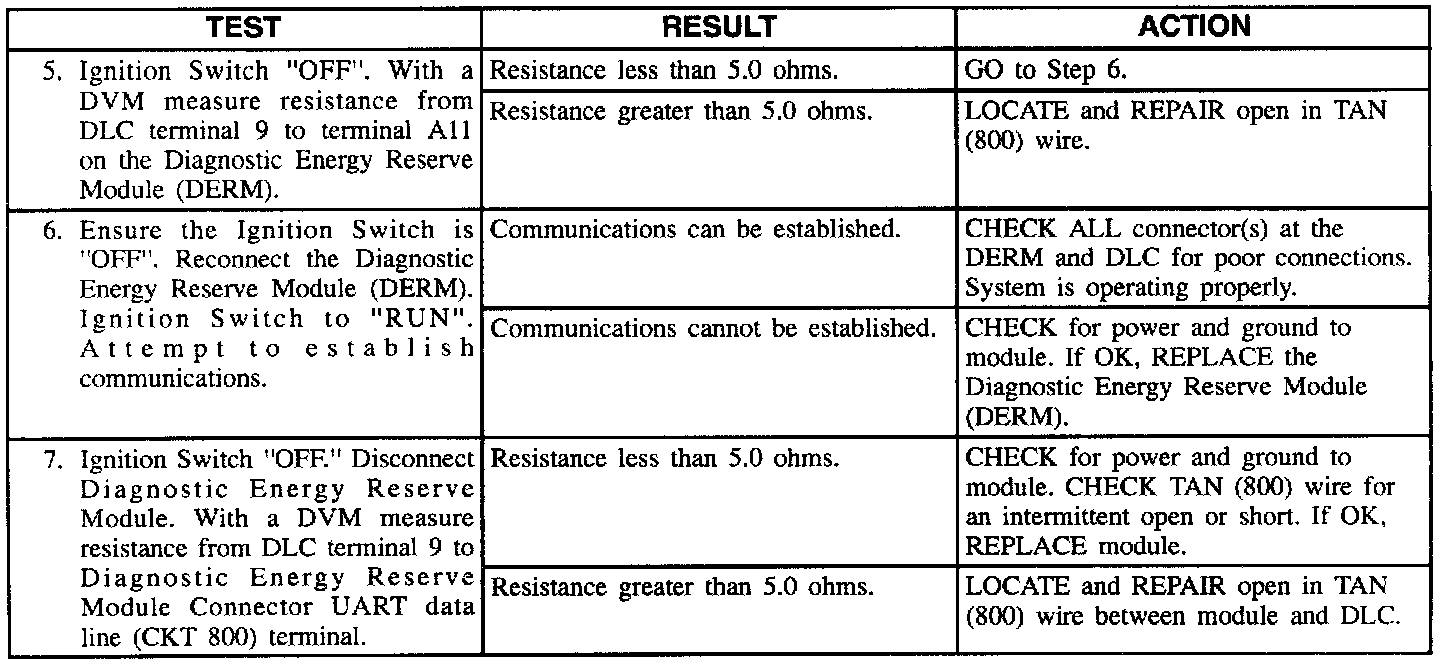

Scan Tool Will Not Communicate With Components On UART Data Line (Part 2 Of 2):
