Transfer Case Select Switch

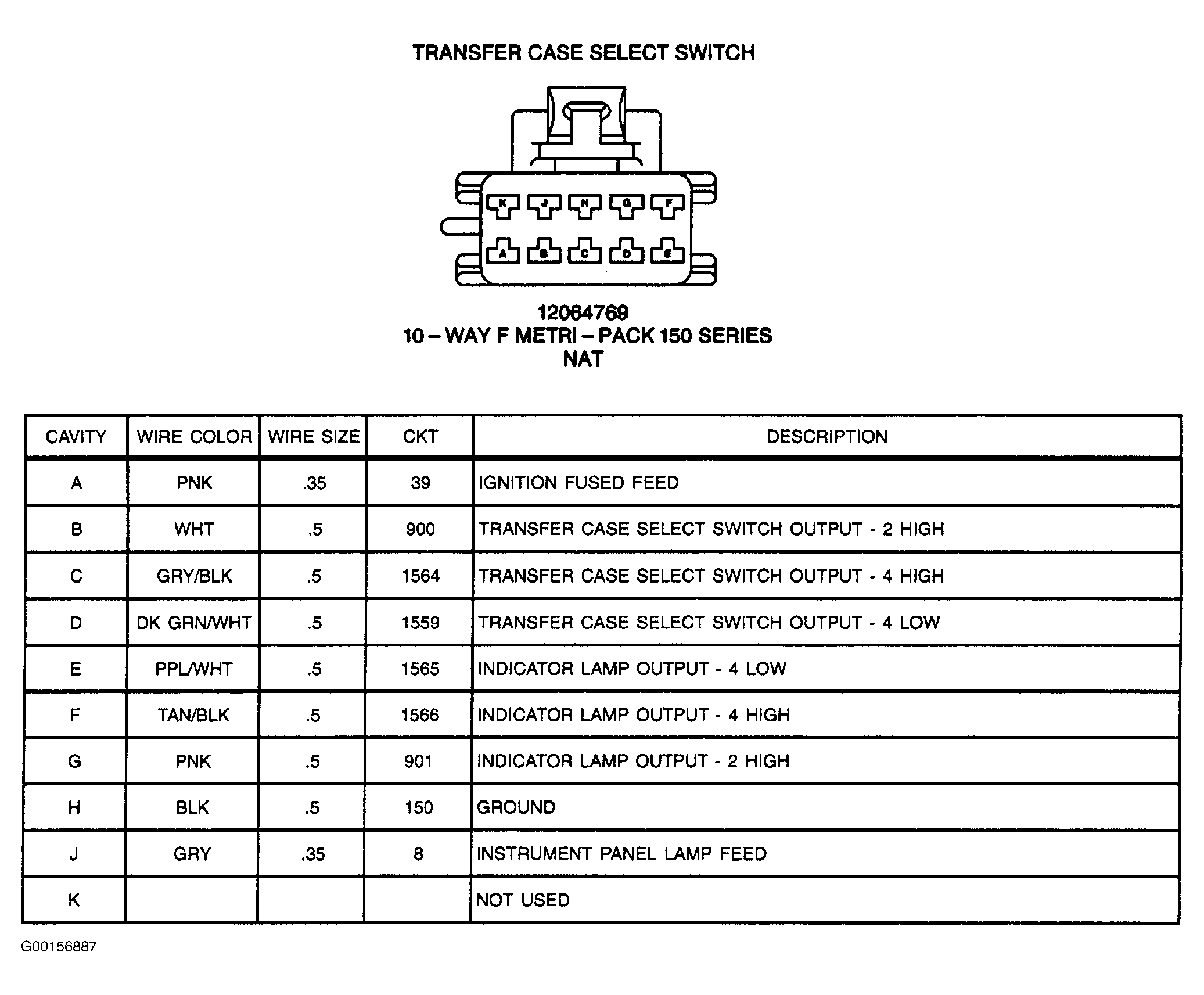

Fig 1: Transfer Case Select Switch - 10-Pin Connector, Natural
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
