Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Battery Junction Block | On left rear of engine compartment. |
| Diode, A/C Compressor Clutch | At A/C compressor. |

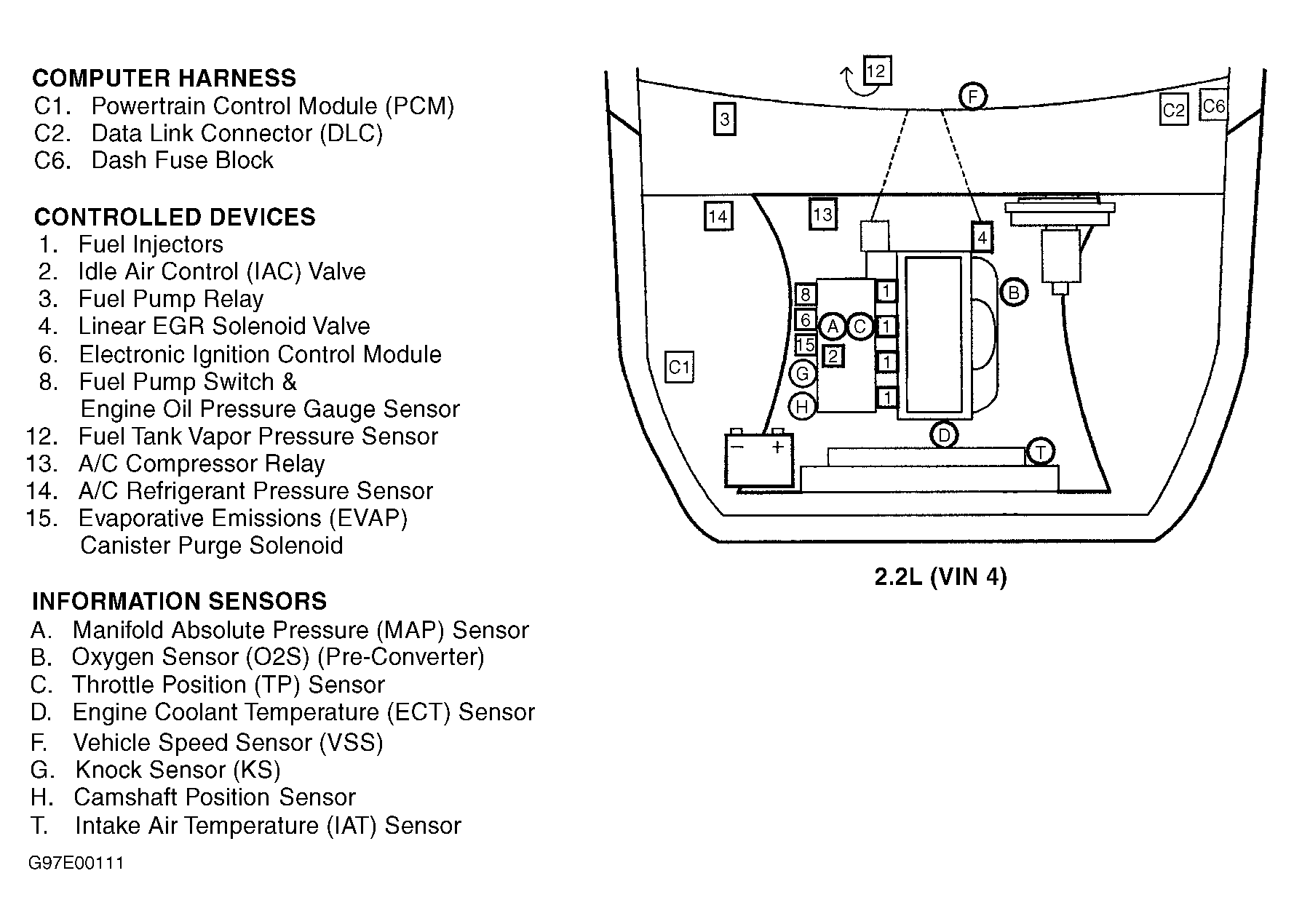

| Dash Fuse Block (2.2L VIN 4) | On left side of dash. See Figure. |

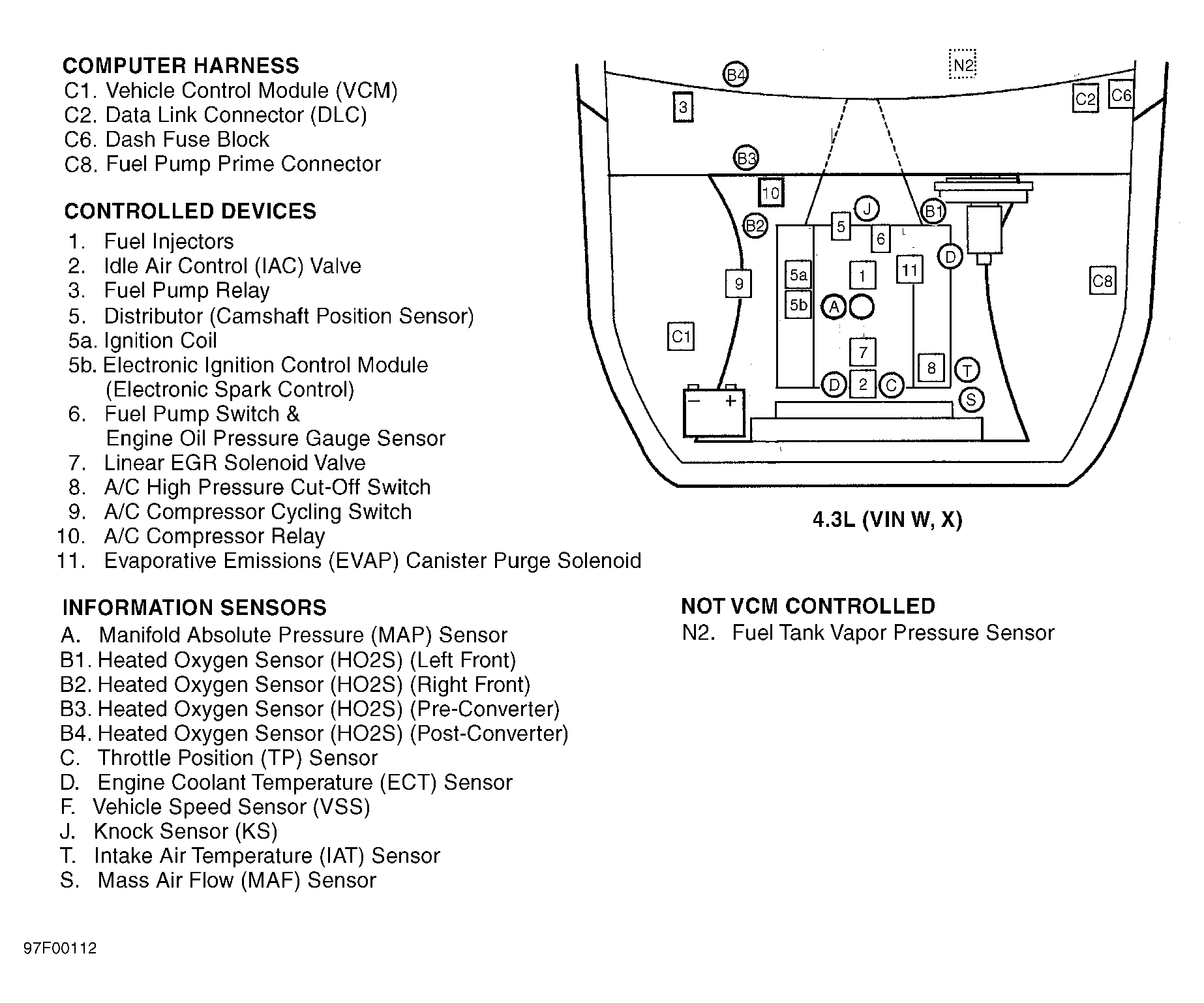

| Dash Fuse Block (4.3L VIN W, X) | On left side of dash. See Figure. |
| Power Distribution Center | In I/P below and in front of radio. |
| Relay Center | Behind glove box. |
