VCM Connectors: C1

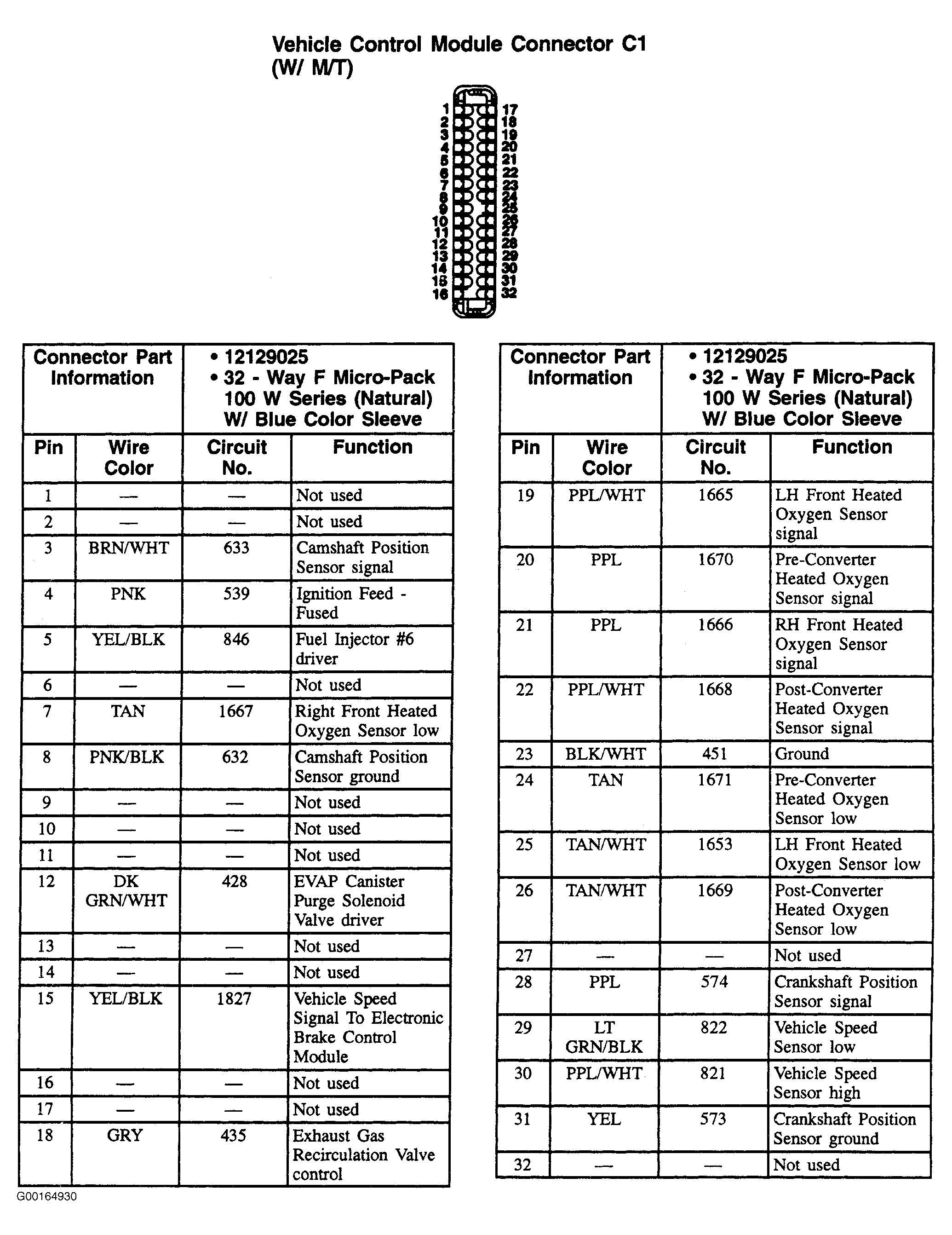

Fig 1: VCM 32-Pin Connector C1 (Blue) - With M/T
G00164930Courtesy of GENERAL MOTORS CORP.

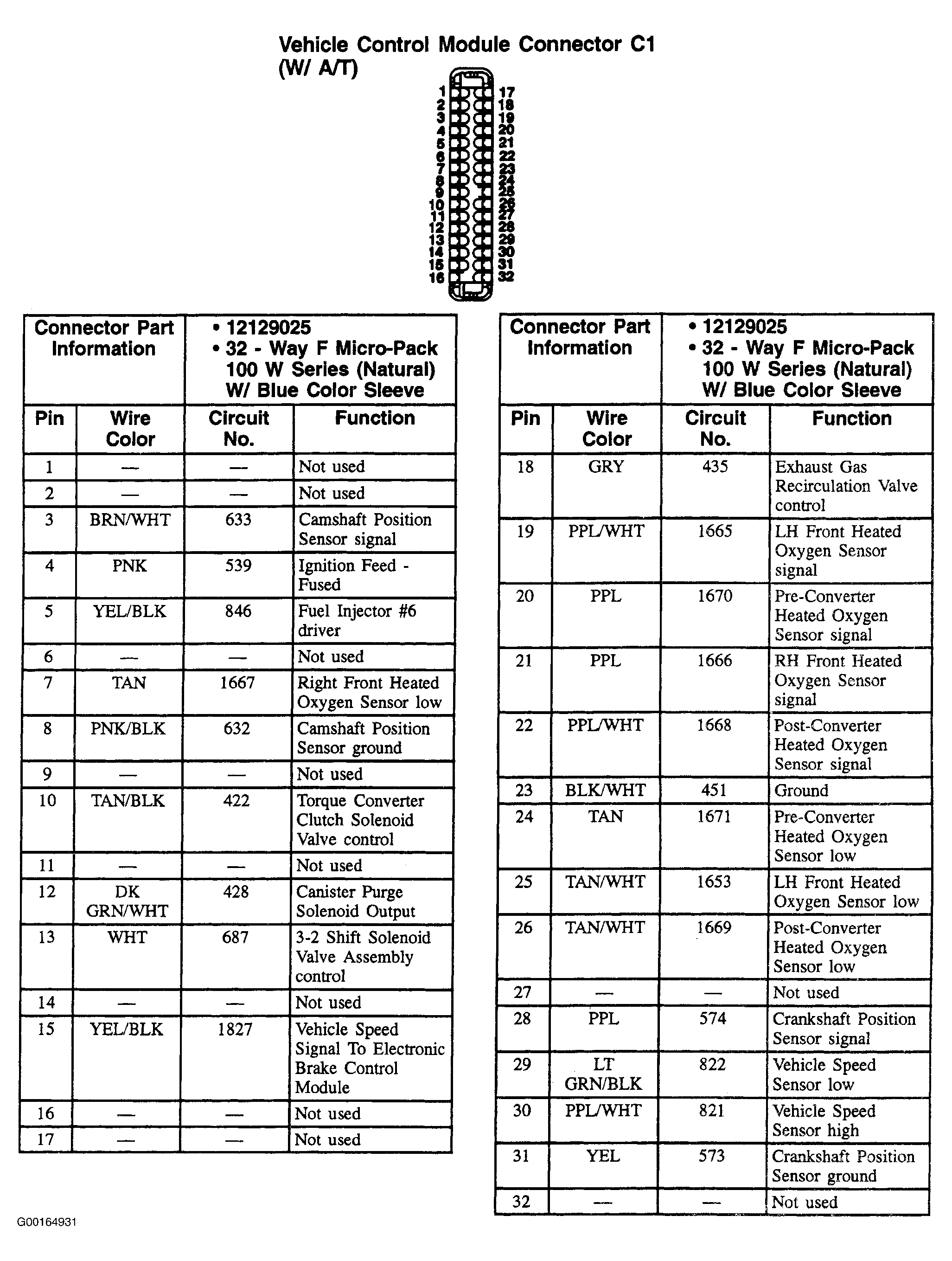

Fig 2: VCM 32-Pin Connector C1 (Blue) - With A/T
G00164931Courtesy of GENERAL MOTORS CORP.
