VCM Connectors: C2

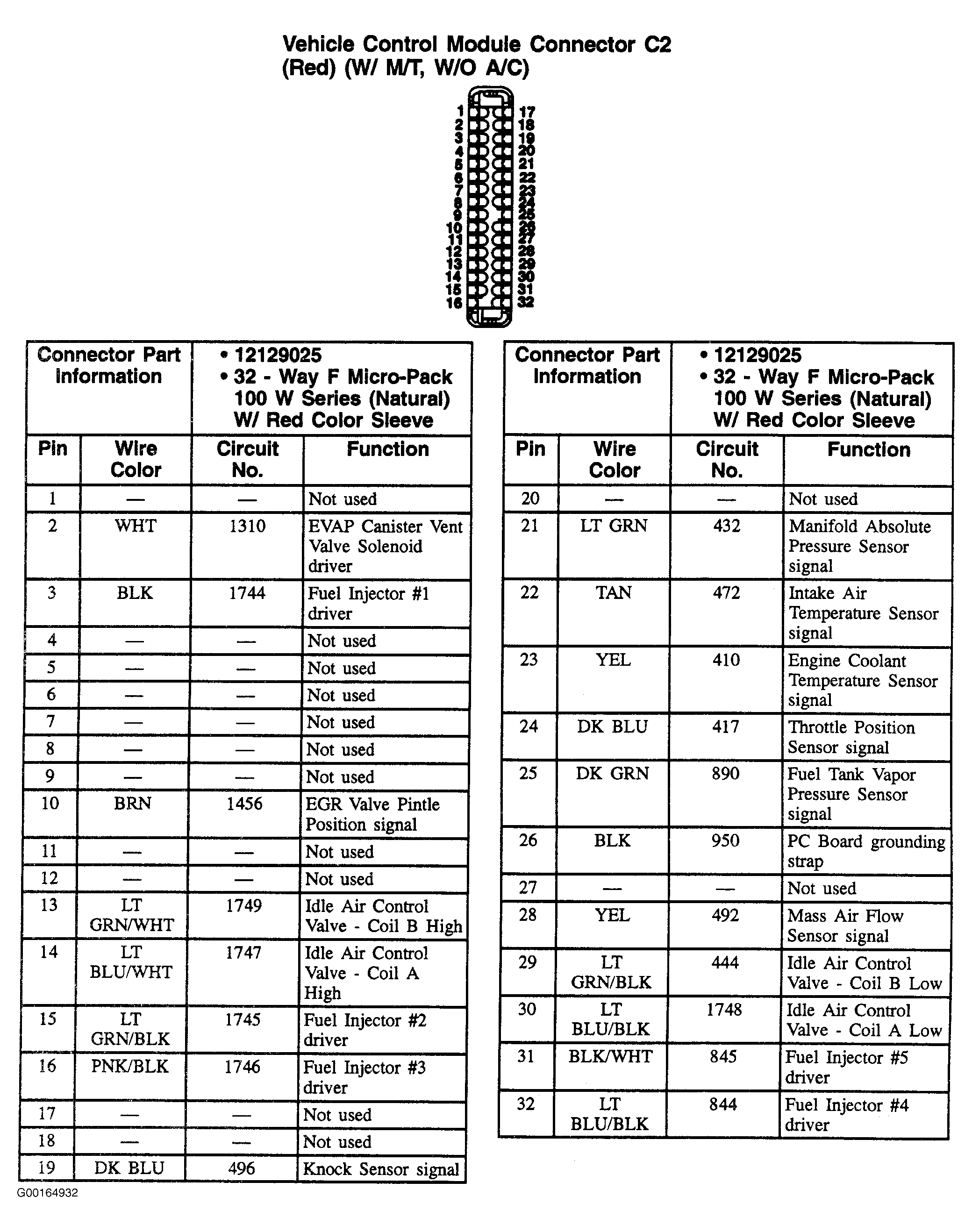

Fig 1: VCM 32-Pin Connector C2 (Red) - With M/T, Without A/C
G00164932Courtesy of GENERAL MOTORS CORP.

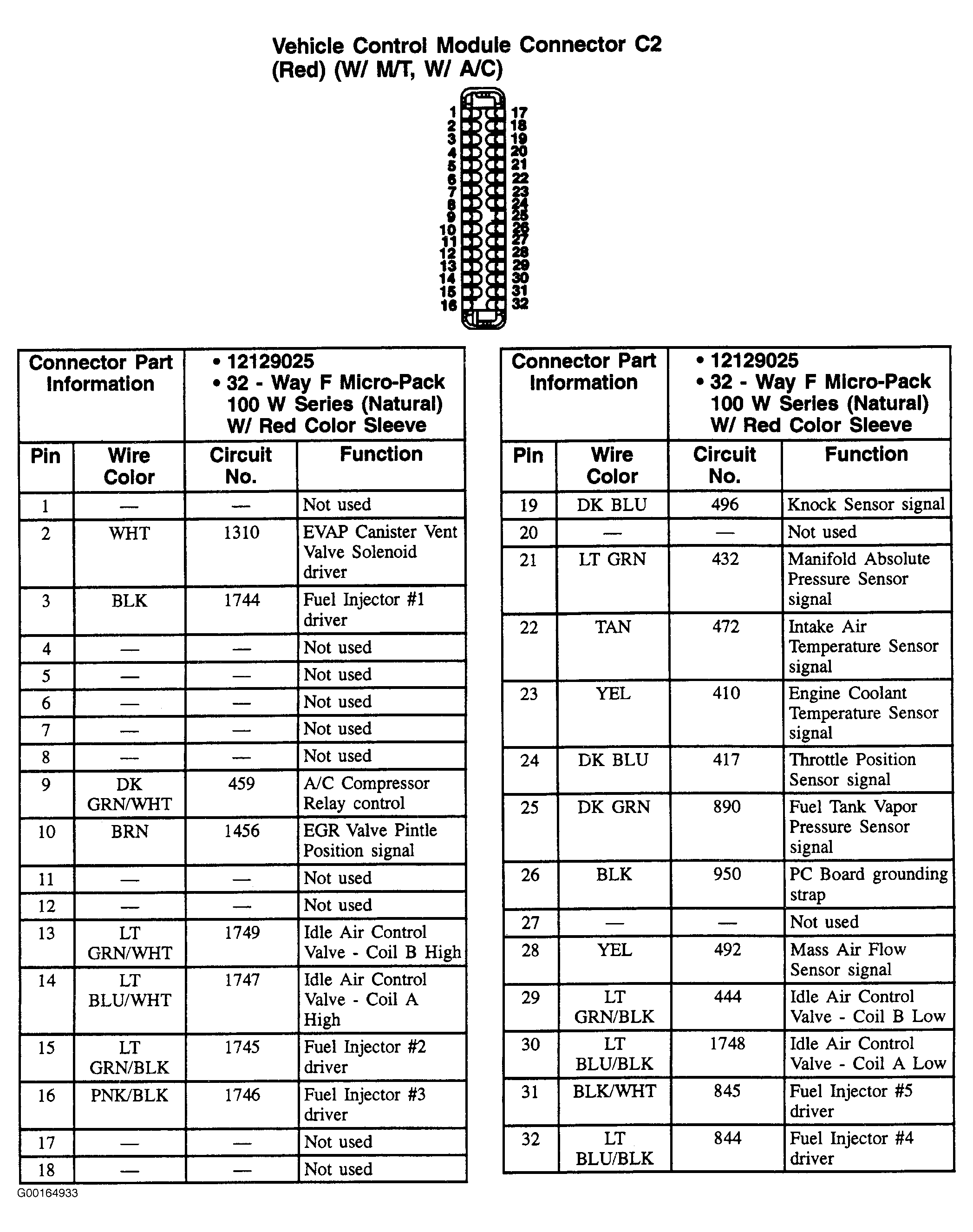

Fig 2: VCM 32-Pin Connector C2 (Red) - With M/T, With A/C
G00164933Courtesy of GENERAL MOTORS CORP.

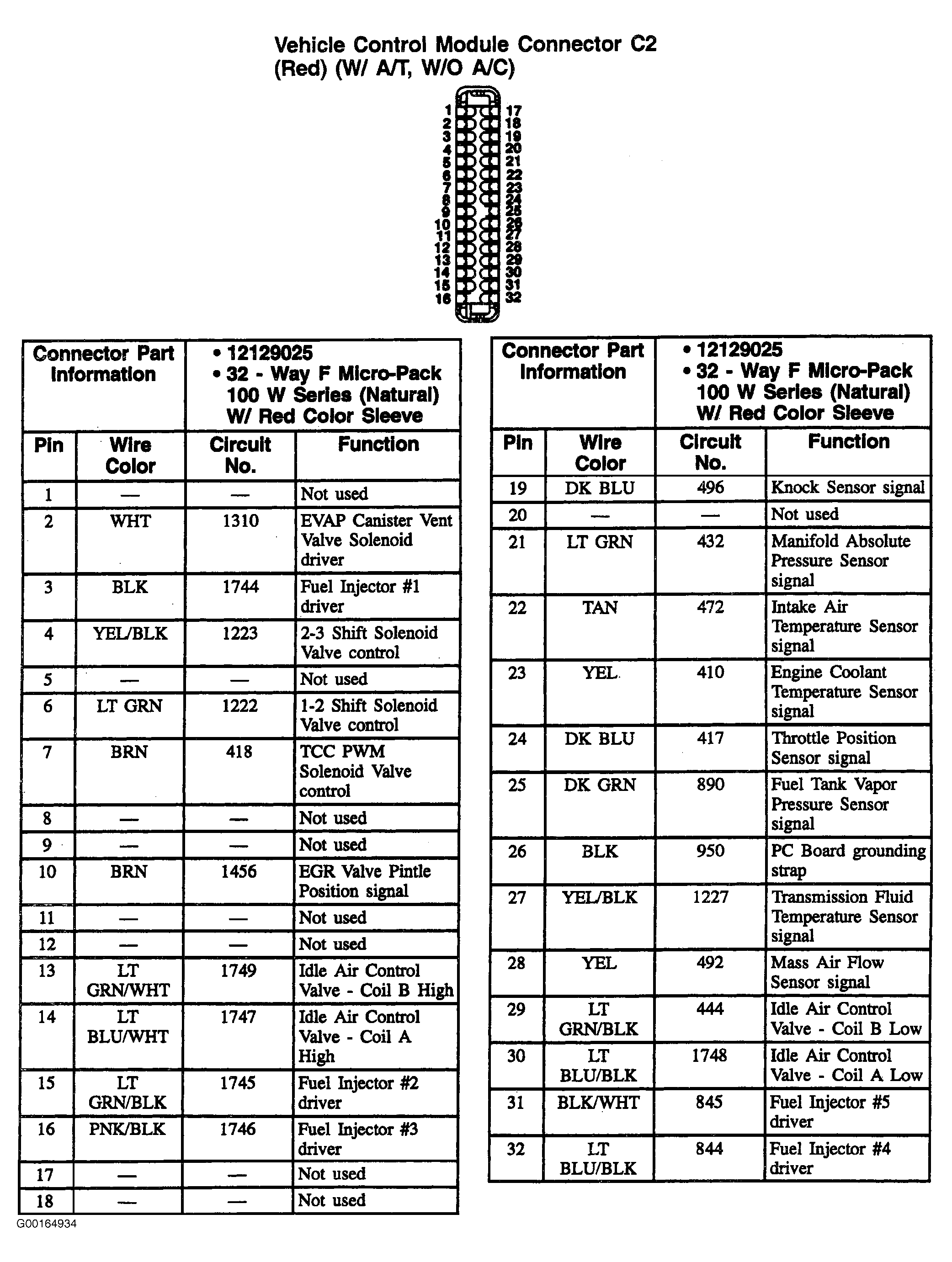

Fig 3: VCM 32-Pin Connector C2 (Red) - With A/T, Without A/C
G00164934Courtesy of GENERAL MOTORS CORP.

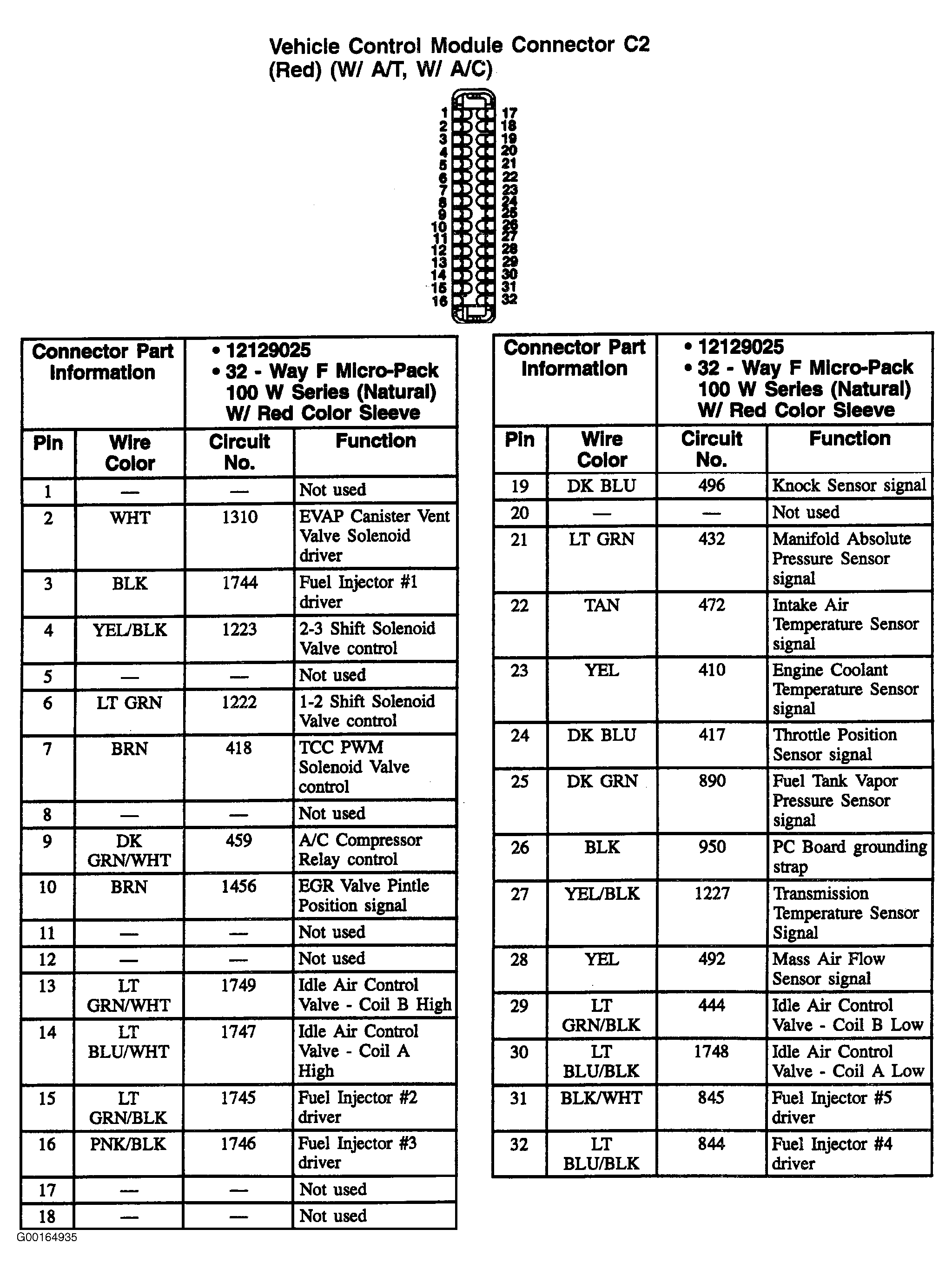

Fig 4: VCM 32-Pin Connector C2 (Red) - With A/T, With A/C
G00164935Courtesy of GENERAL MOTORS CORP.
