VCM Connectors: C5

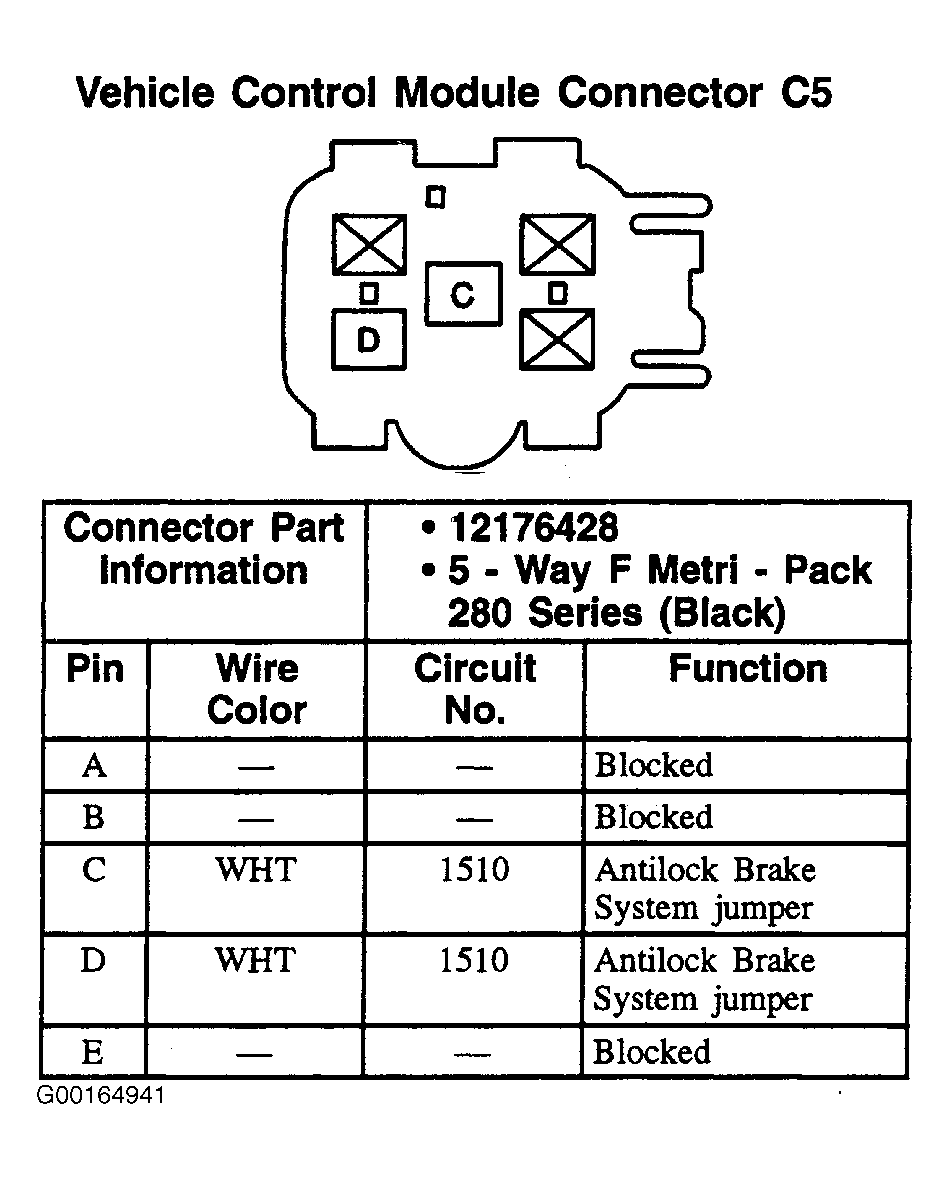

Fig 1: VCM 32-Pin Connector C5 (Black)

G00164941

Courtesy of GENERAL MOTORS CORP.
