VCM Harness Connector

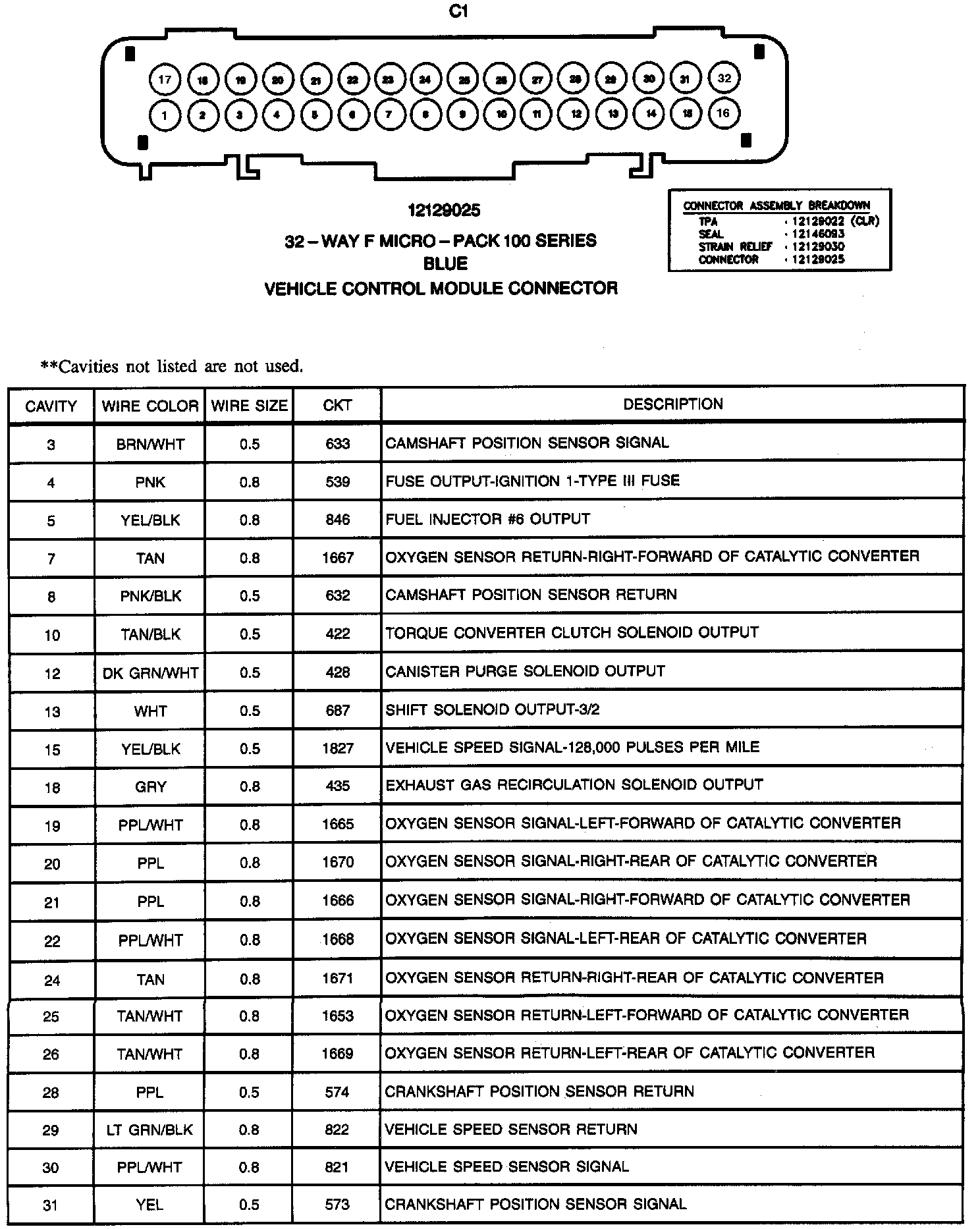

C1: Vehicle Control Module Connector:

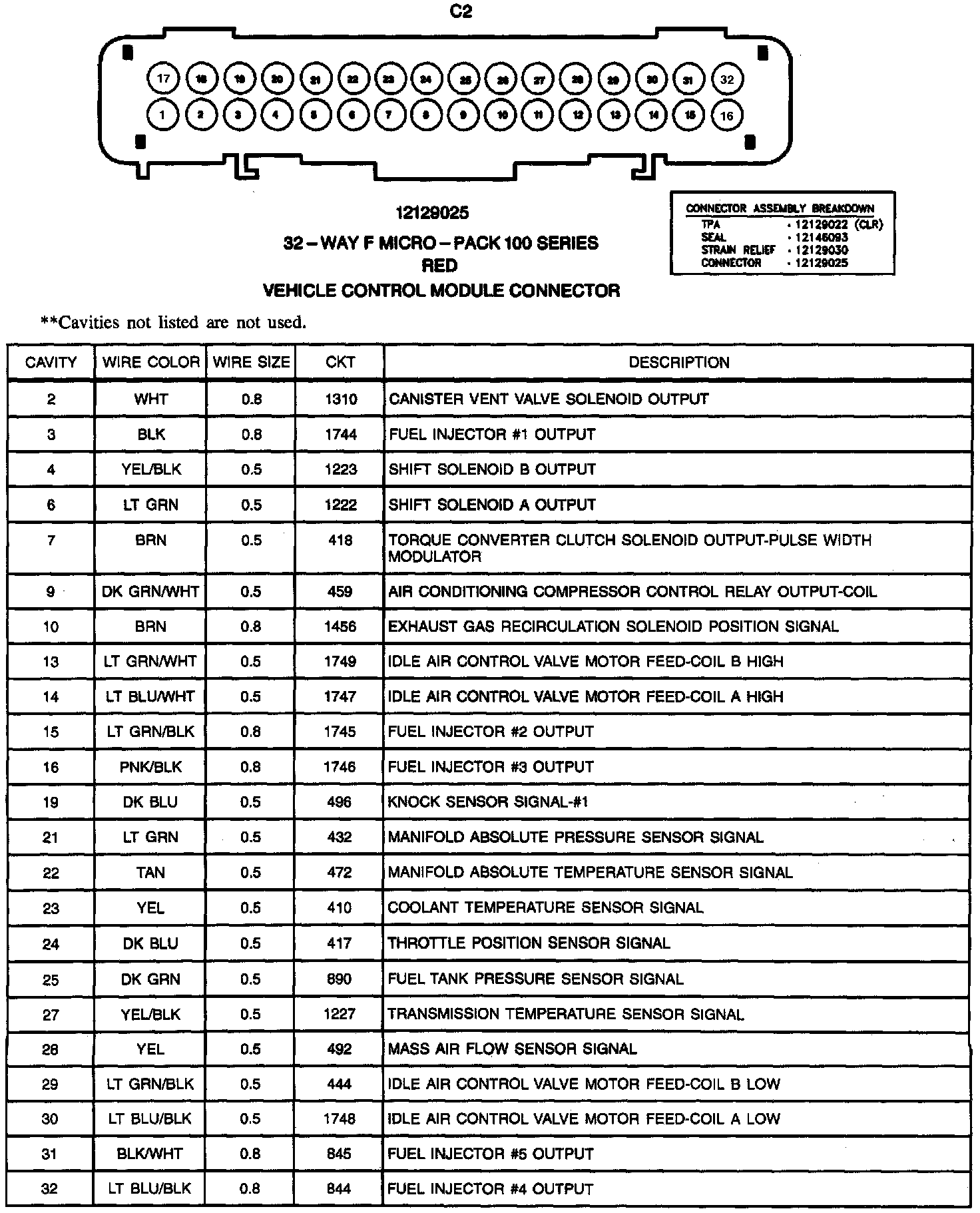

C2: Vehicle Control Module Connector:

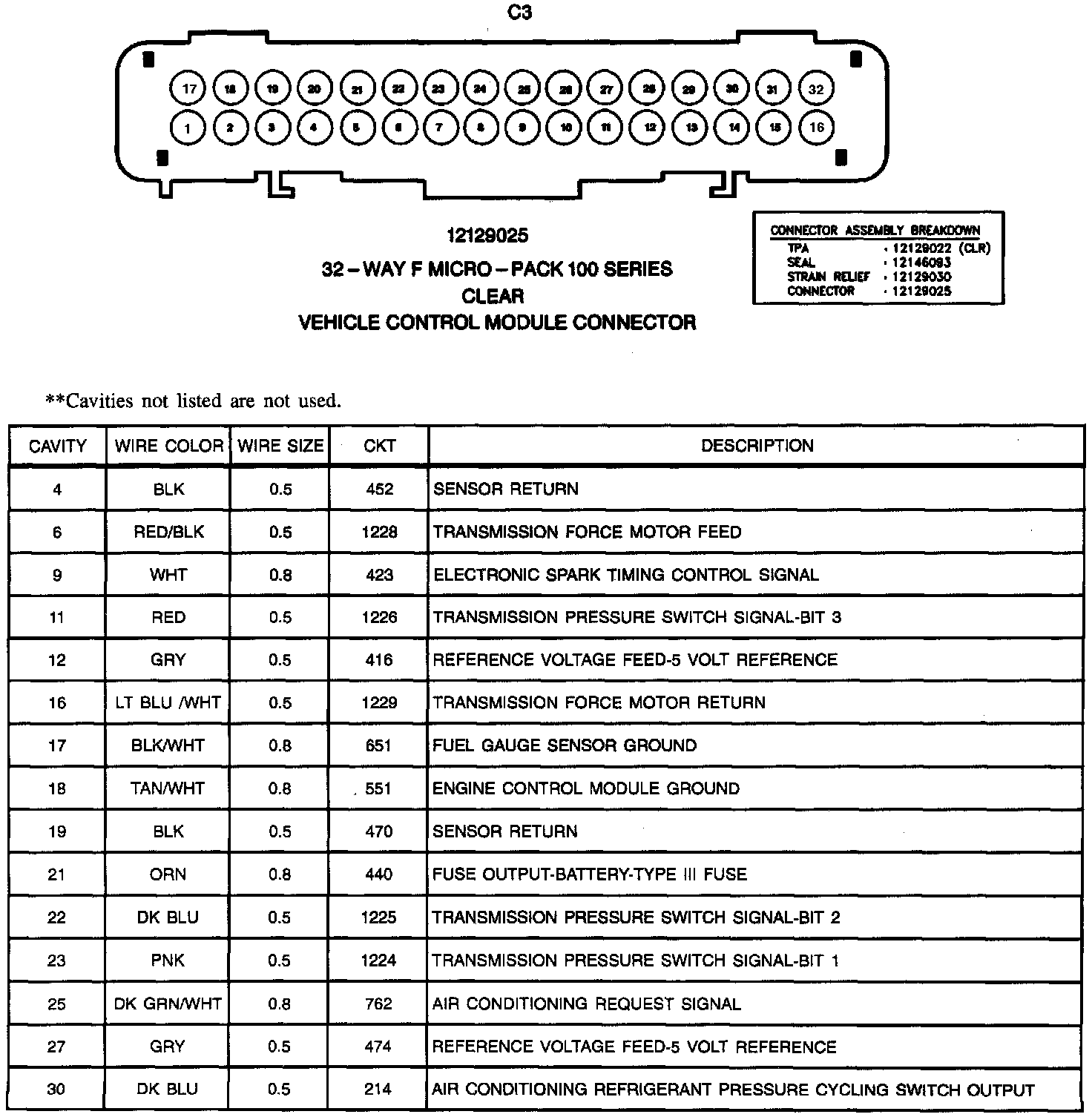

C3: Vehicle Control Module Connector:

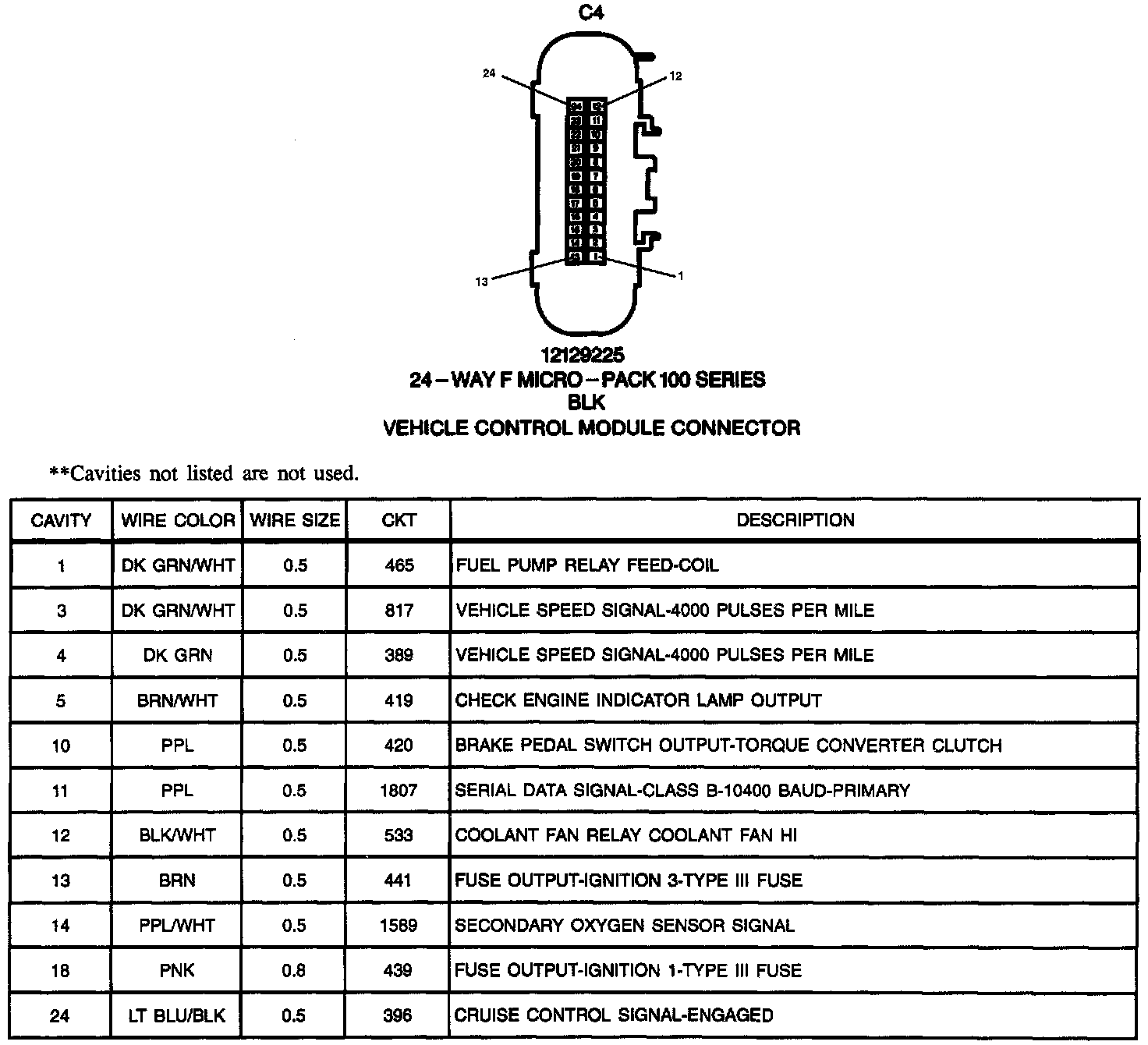

C4: Vehicle Control Module Connector:




C5: Vehicle Control Module (VCM) Connector C5:
