Connector Identification

Fig 1: Identifying Door Lock/Unlock Relay Terminals

Courtesy of GENERAL MOTORS CORP.

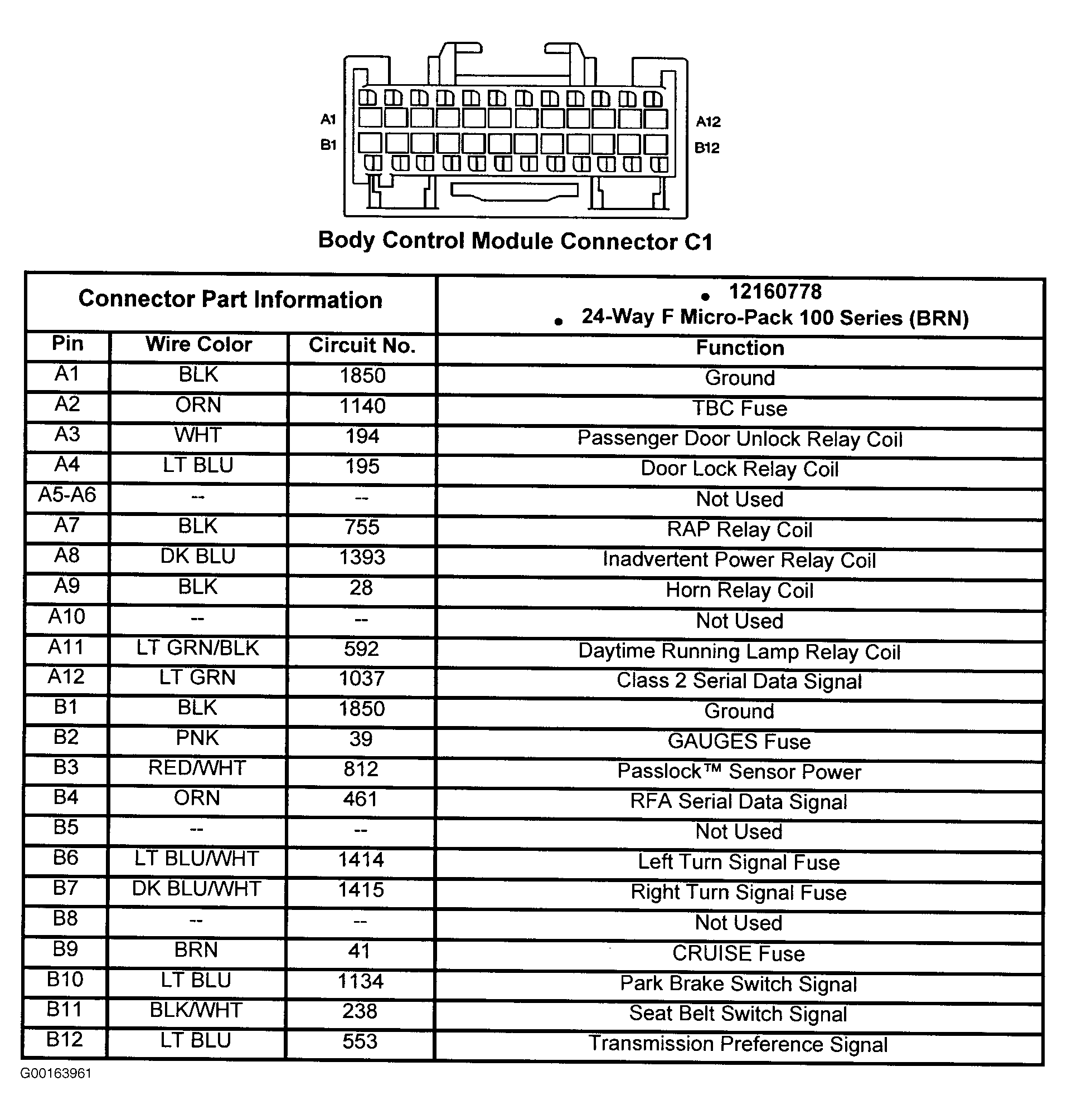

Fig 2: Identifying BCM Connector C1 Terminals

Courtesy of GENERAL MOTORS CORP.

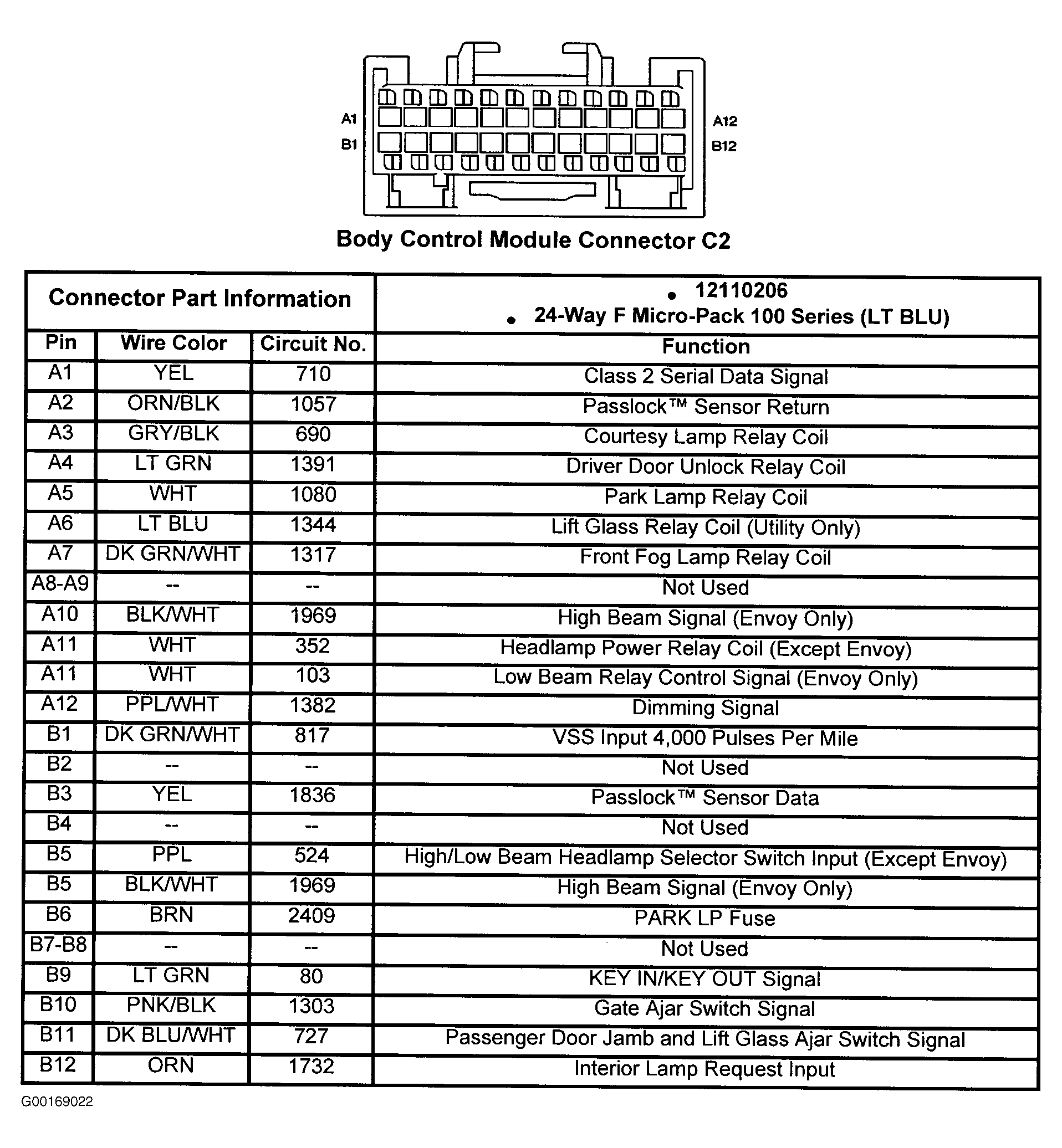

Fig 3: Identifying BCM Connector C2 Terminals

Courtesy of GENERAL MOTORS CORP.

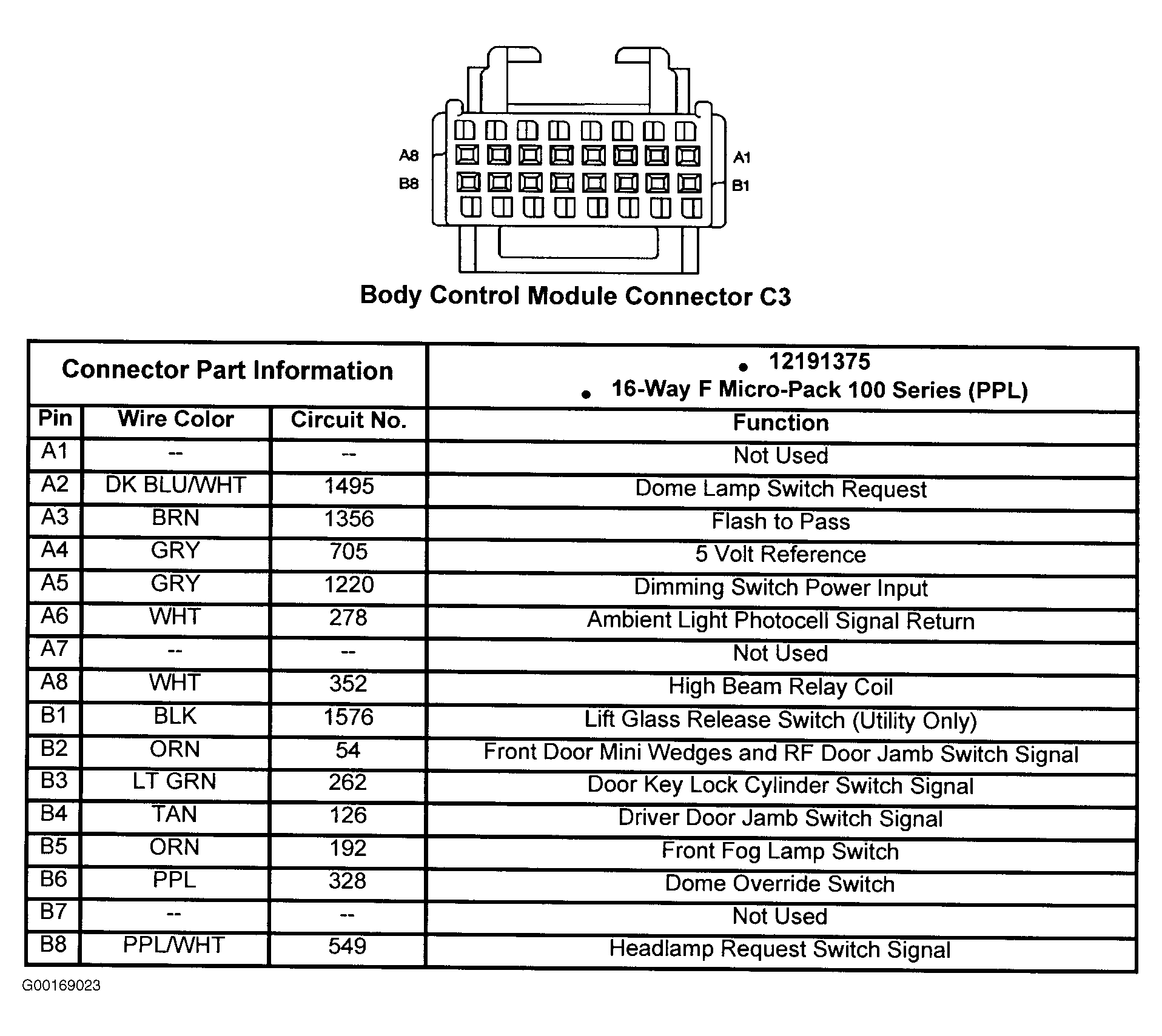

Fig 4: Identifying BCM Connector C3 Terminals

Courtesy of GENERAL MOTORS CORP.

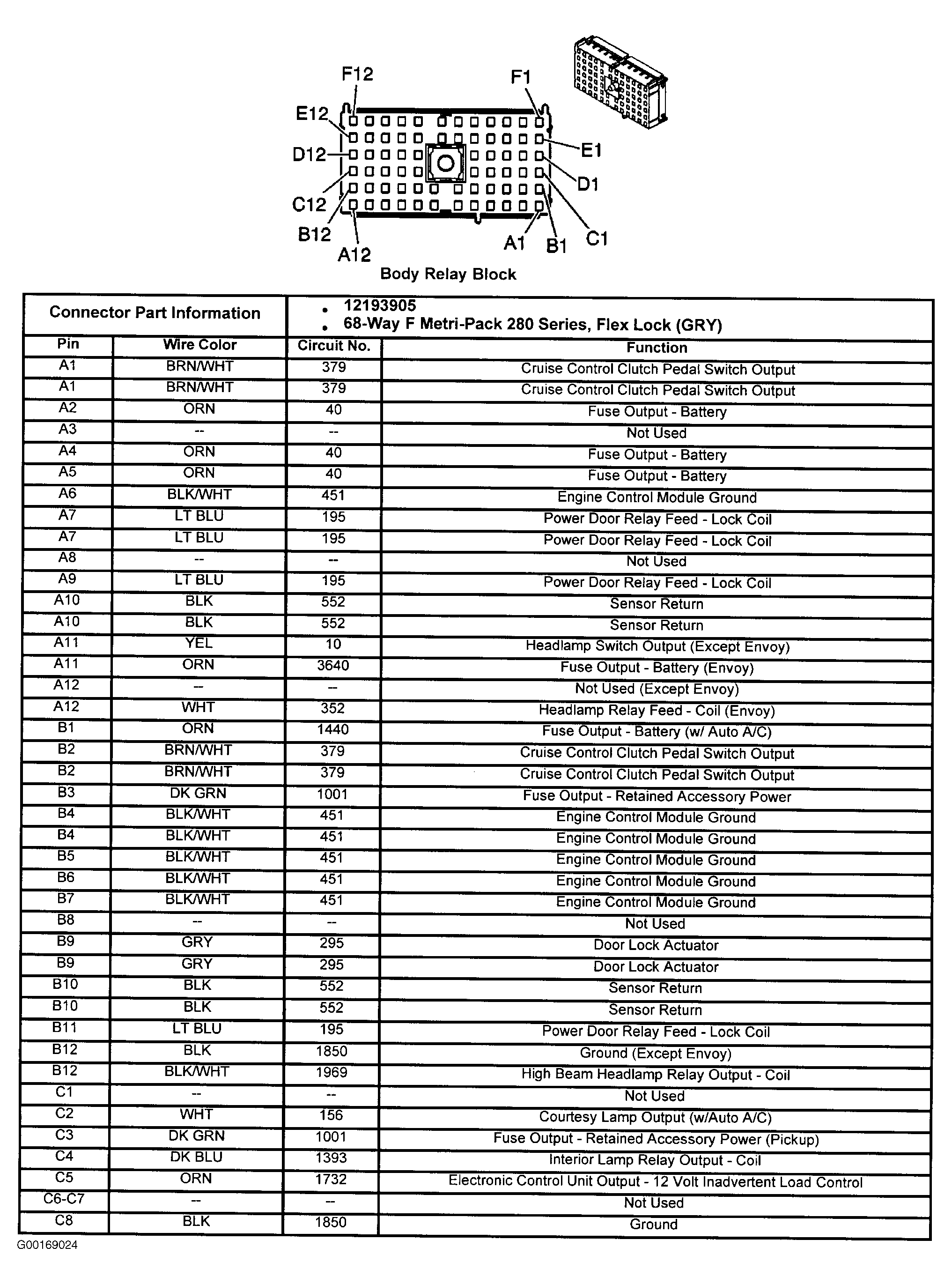

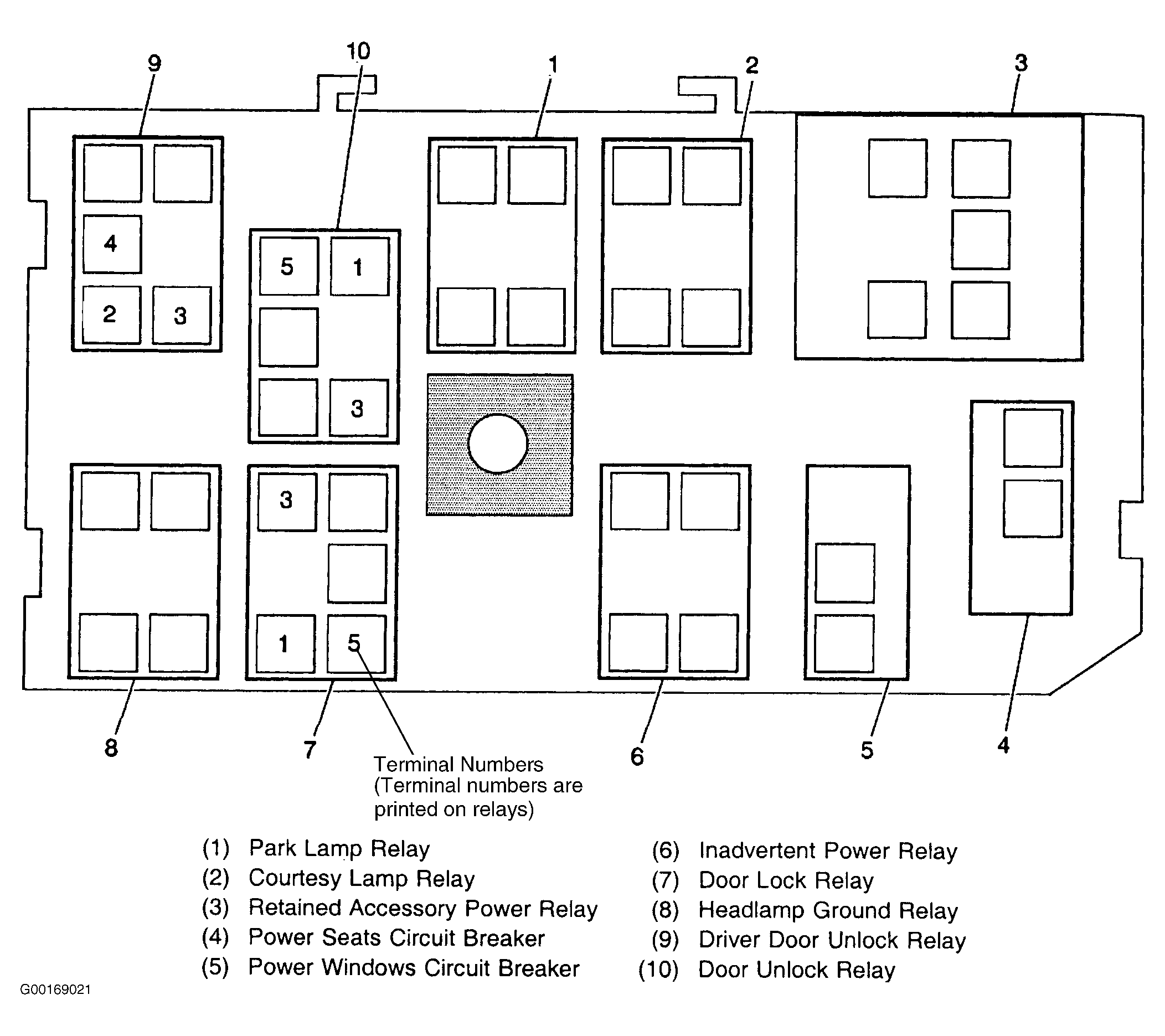

Fig 5: Identifying Body Relay Block Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

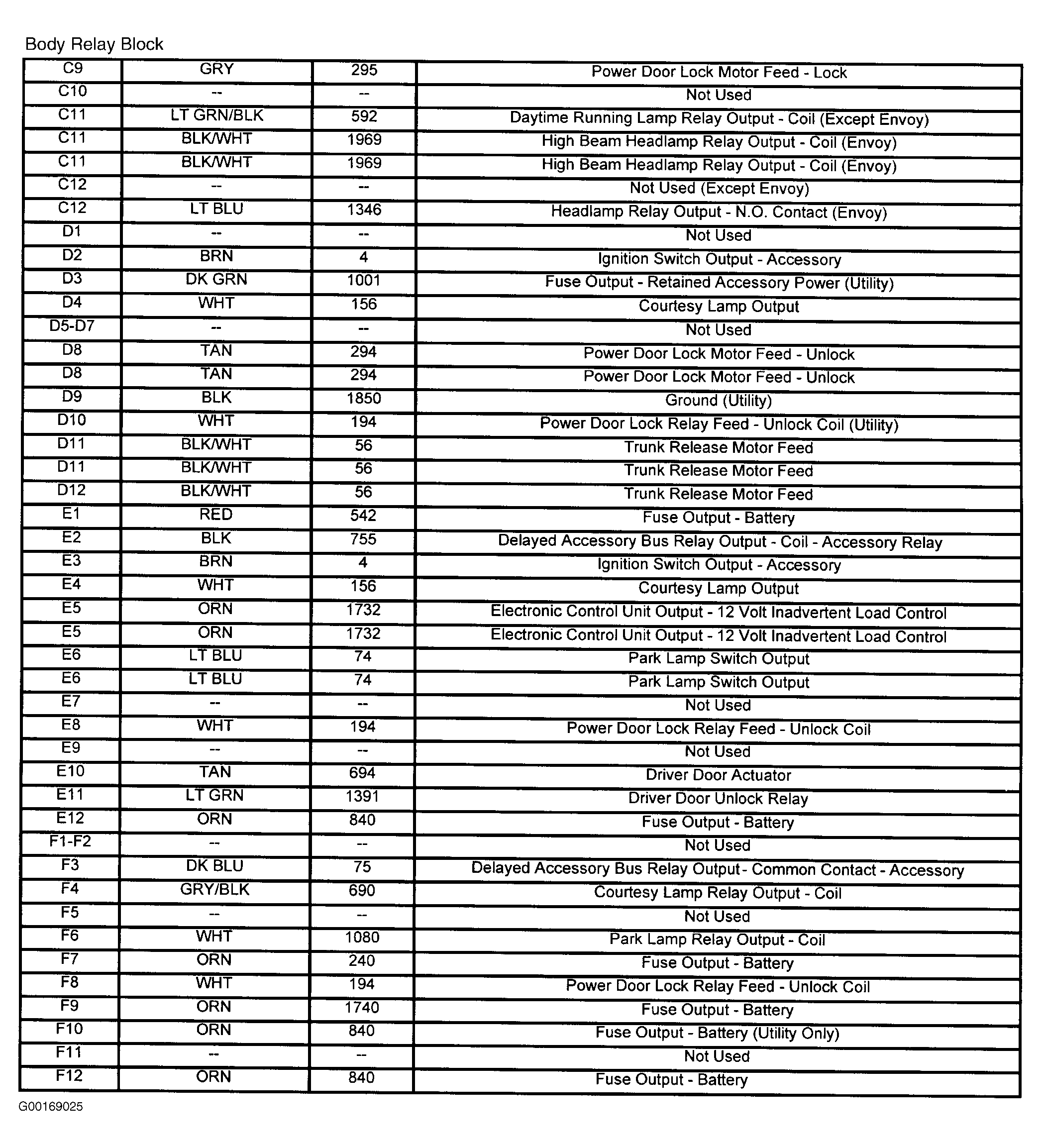

Fig 6: Identifying Body Relay Block Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

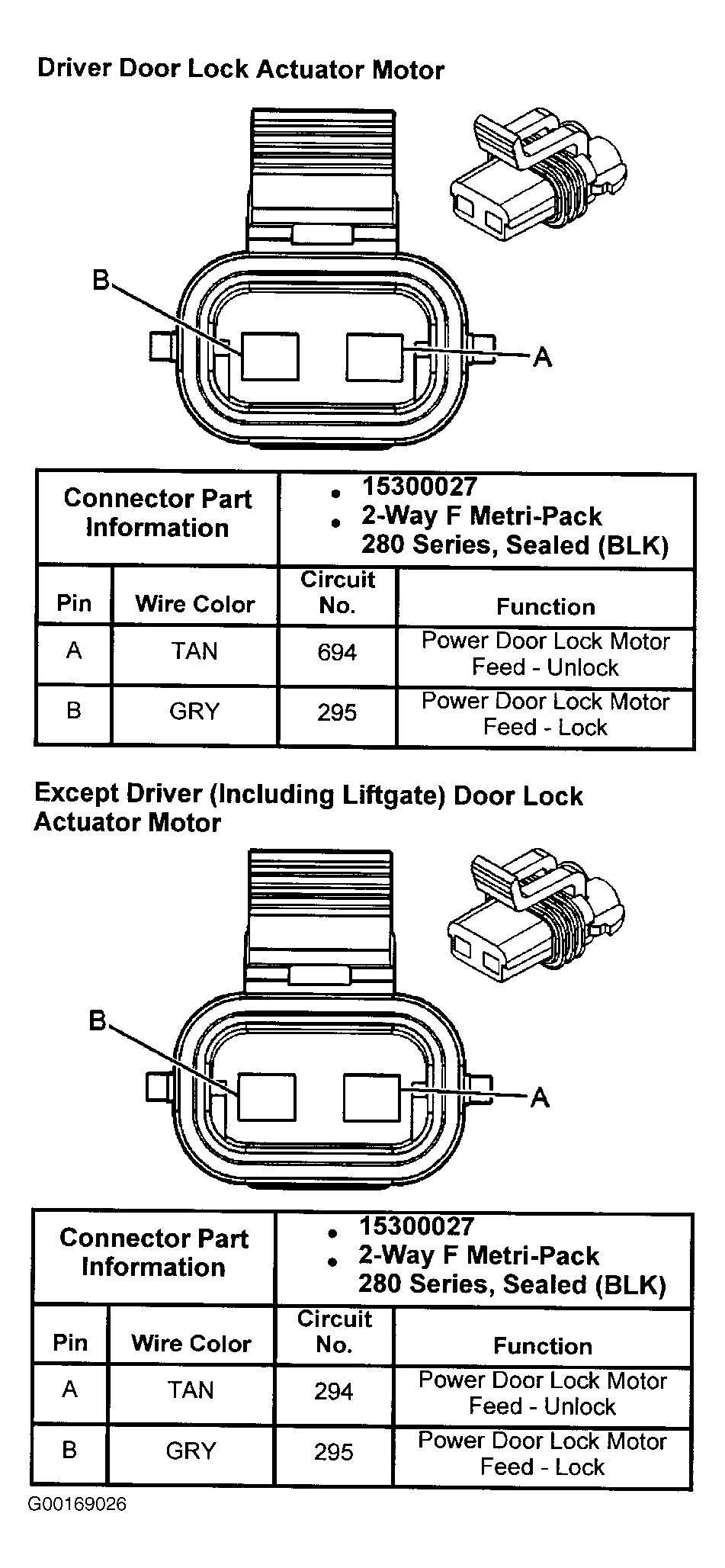

Fig 7: Identifying Door Lock Actuator Terminals

Courtesy of GENERAL MOTORS CORP.

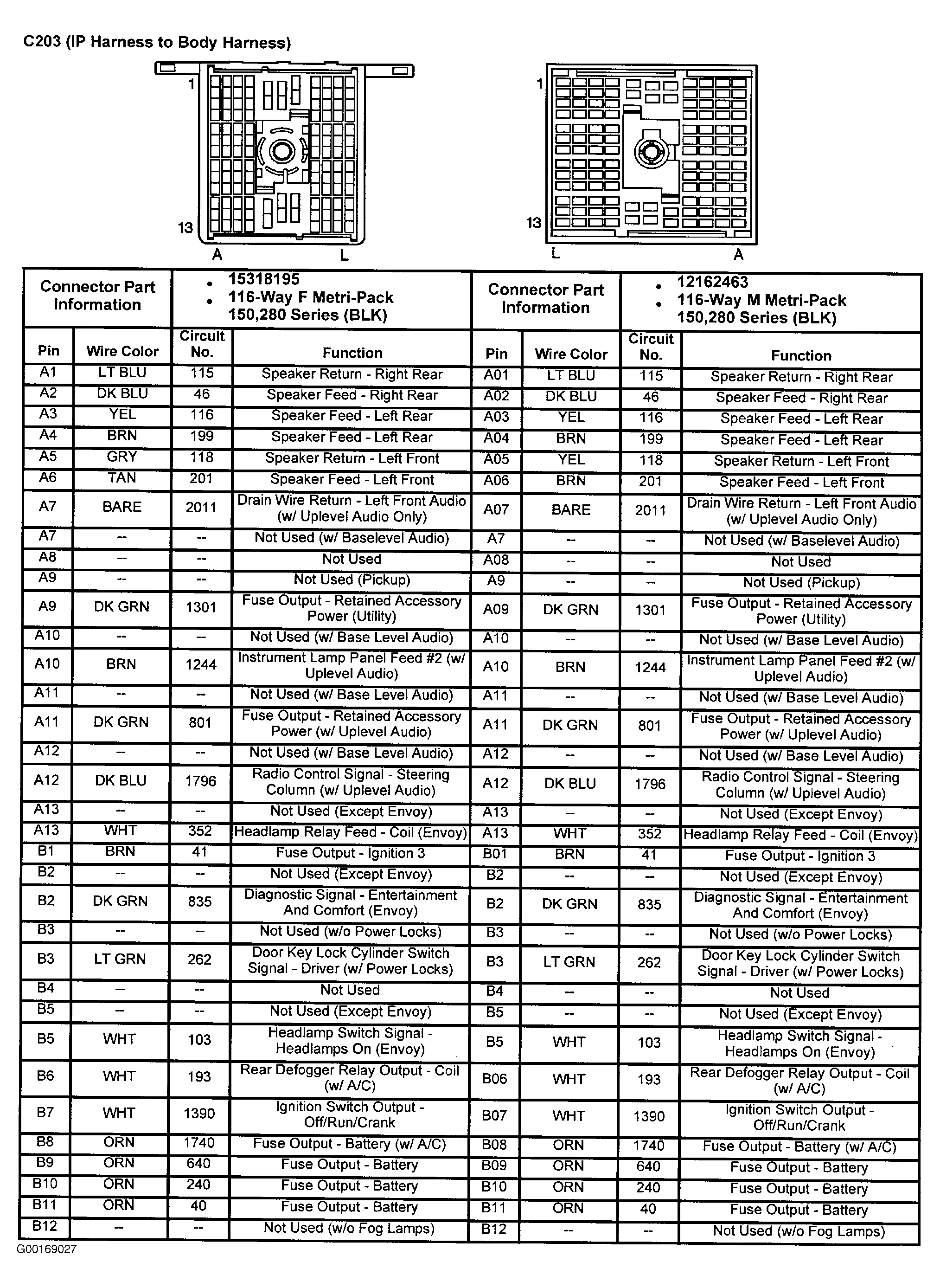

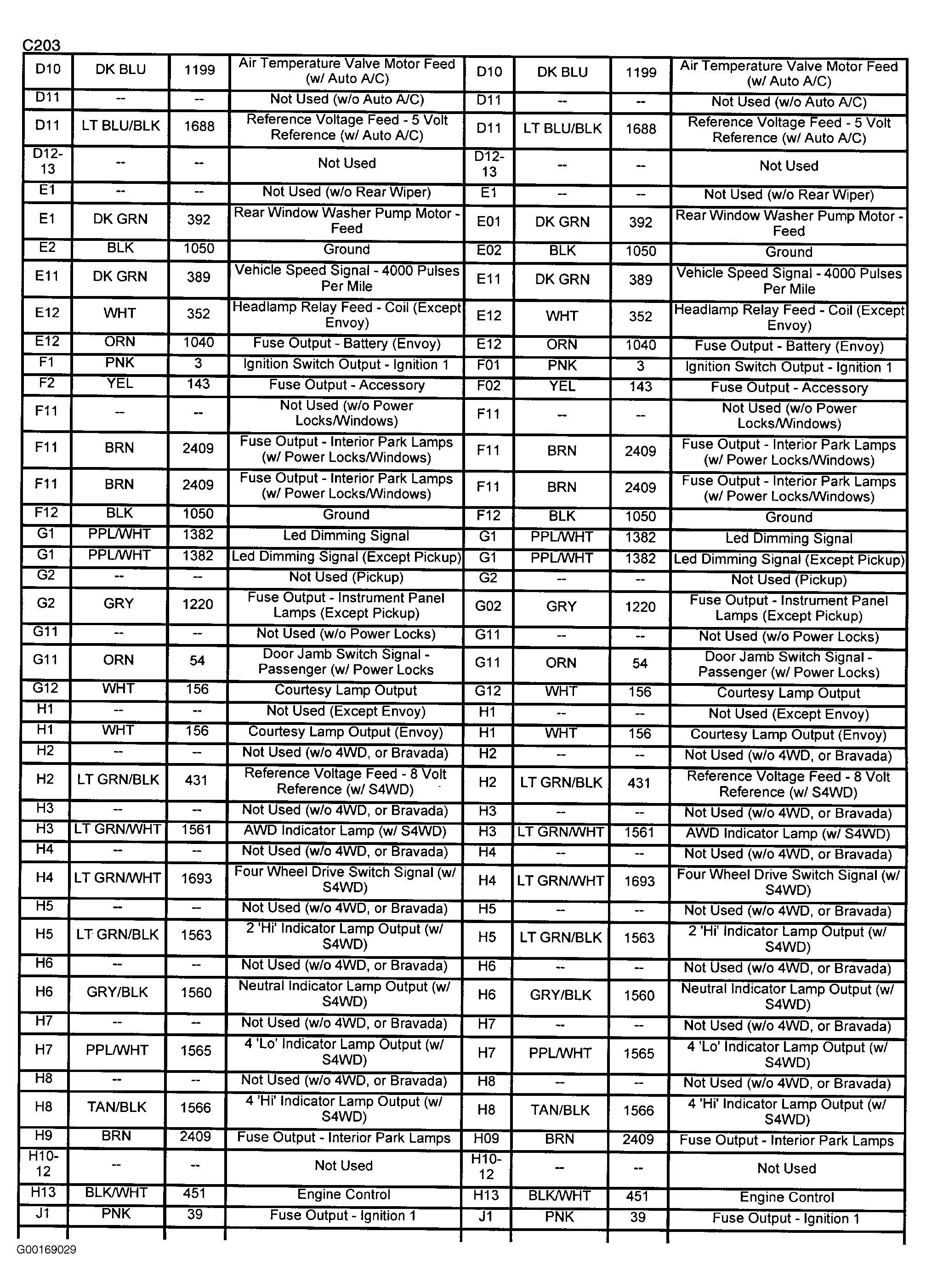

Fig 8: Identifying C203 Terminals (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

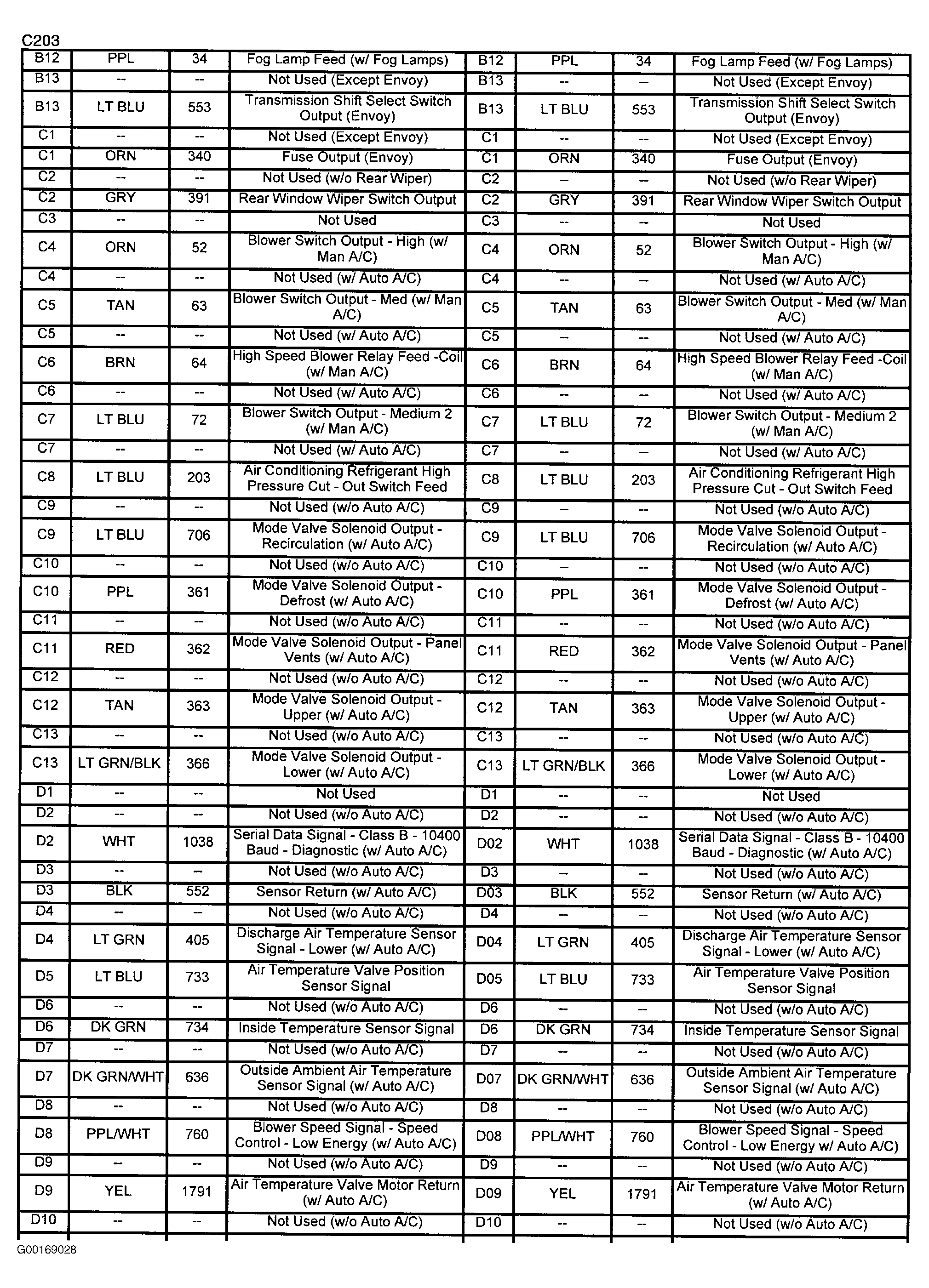

Fig 9: Identifying C203 Terminals (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying C203 Terminals (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

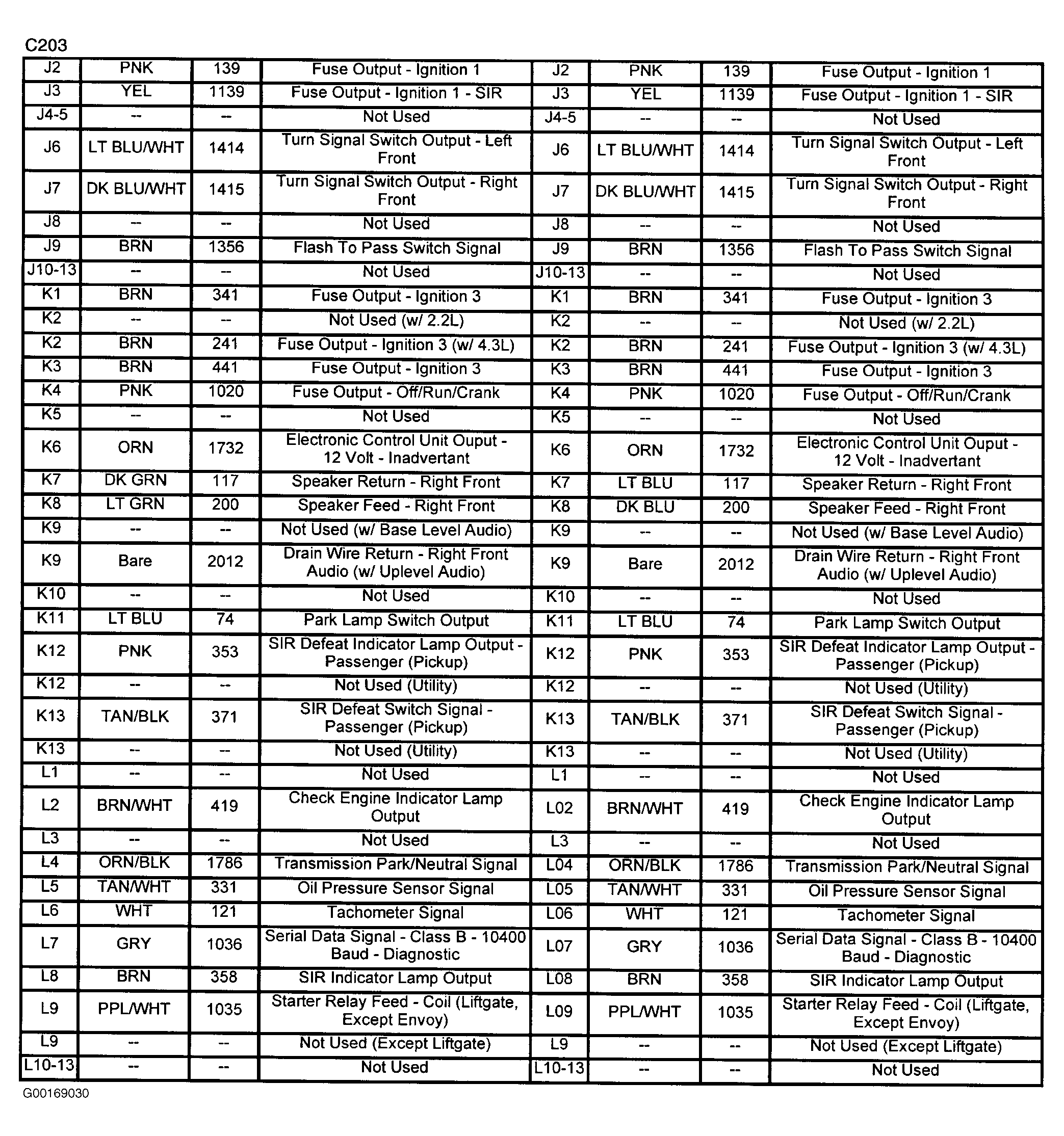

Fig 11: Identifying C203 Terminals (4 Of 4)

Courtesy of GENERAL MOTORS CORP.

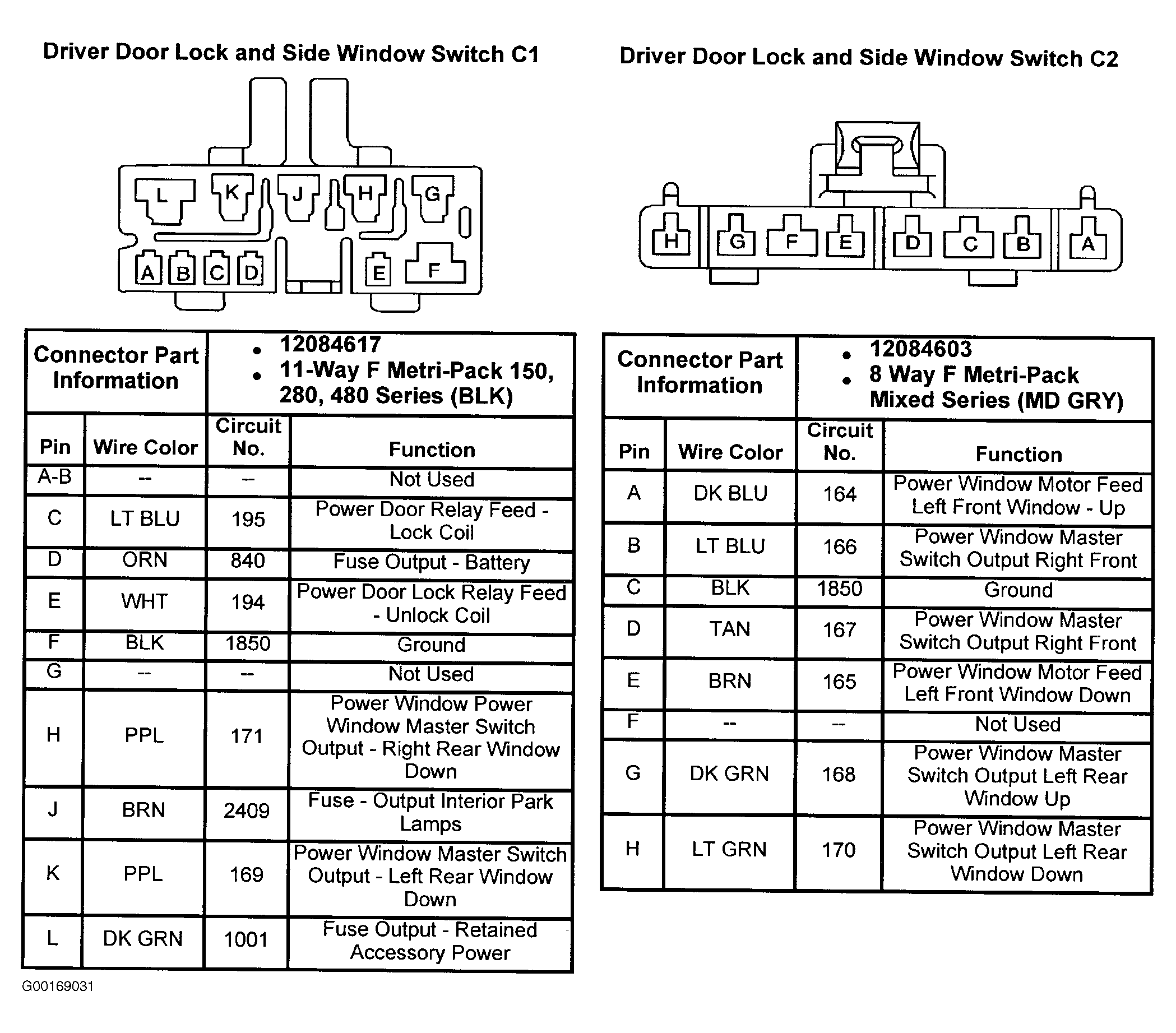

Fig 12: Identifying Driver Door Lock/Window Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

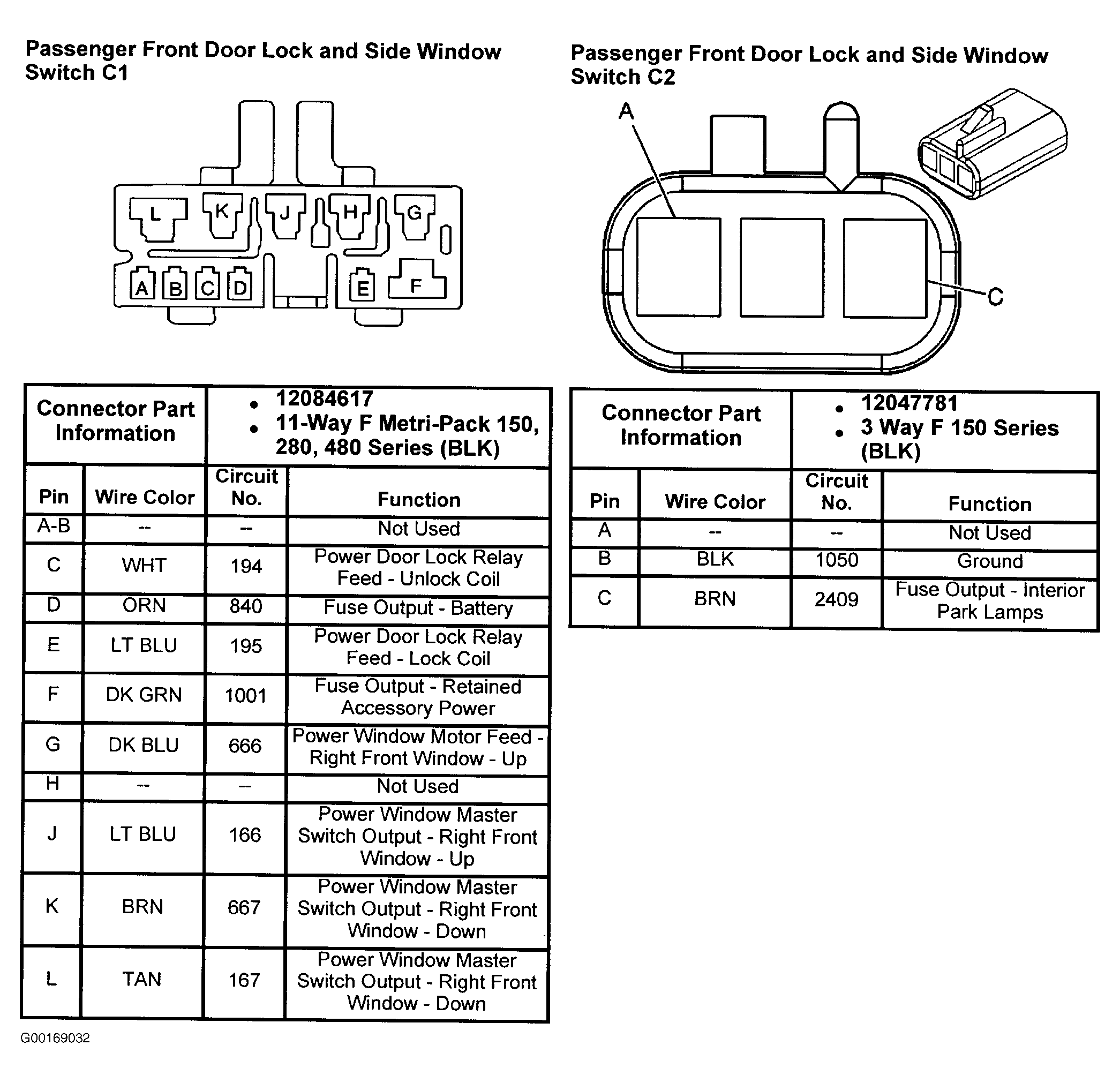

Fig 13: Identifying Passenger Door Lock/Window Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

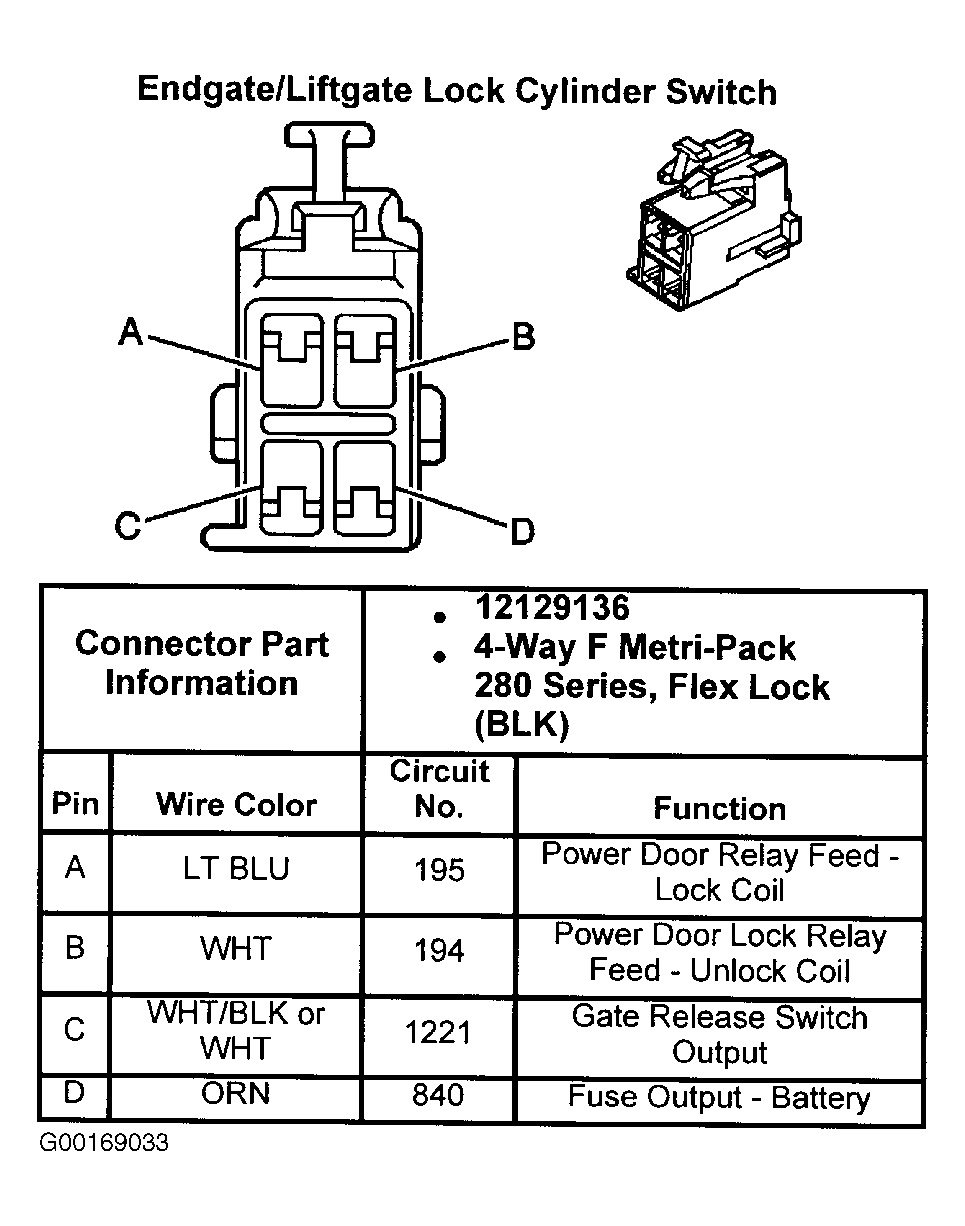

Fig 14: Identifying Endgate/Liftgate Lock Cylinder Switch Terminals

Courtesy of GENERAL MOTORS CORP.
