Remote Control Door Lock Receiver (Base): Removal

Remove Daytime Running Lights (DRL) module from behind lower left side of instrument panel. See Fig 1 .

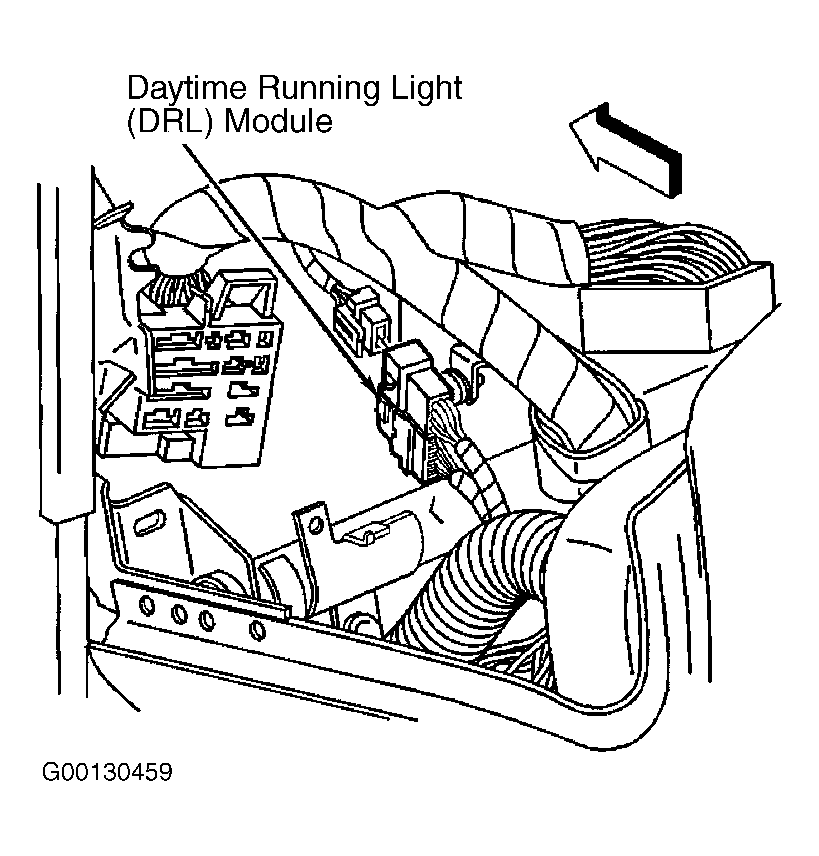

Fig 1: Locating Daytime Running Light Module
Courtesy of GENERAL MOTORS CORP.
Disconnect electrical connector.
Remove remote control door lock receiver retainer. See Fig 2 .
Remove remote control door lock receiver.

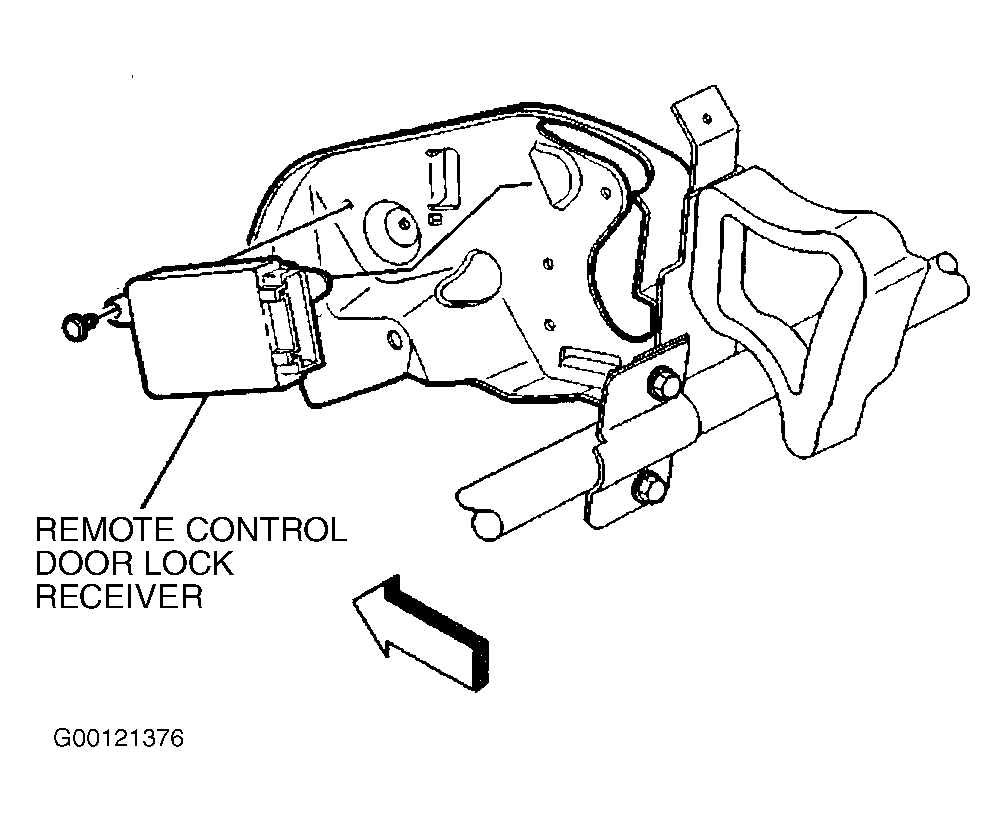

Fig 2: Removing Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.
