Engine Controls Schematics

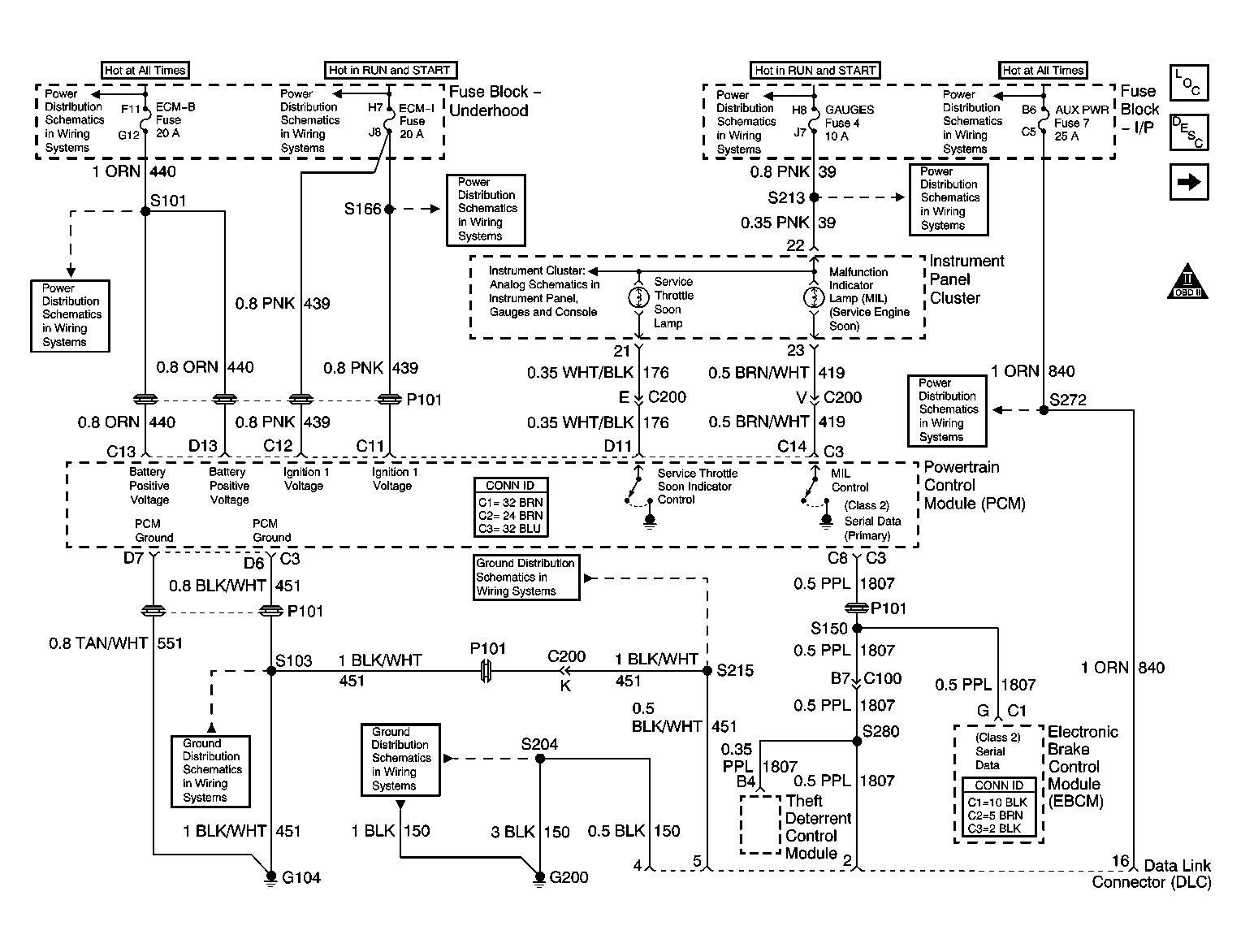

Fig 1: PCM Power, Grounding, DLC, MIL & Service Throttle Indicators

Courtesy of GENERAL MOTORS CORP.

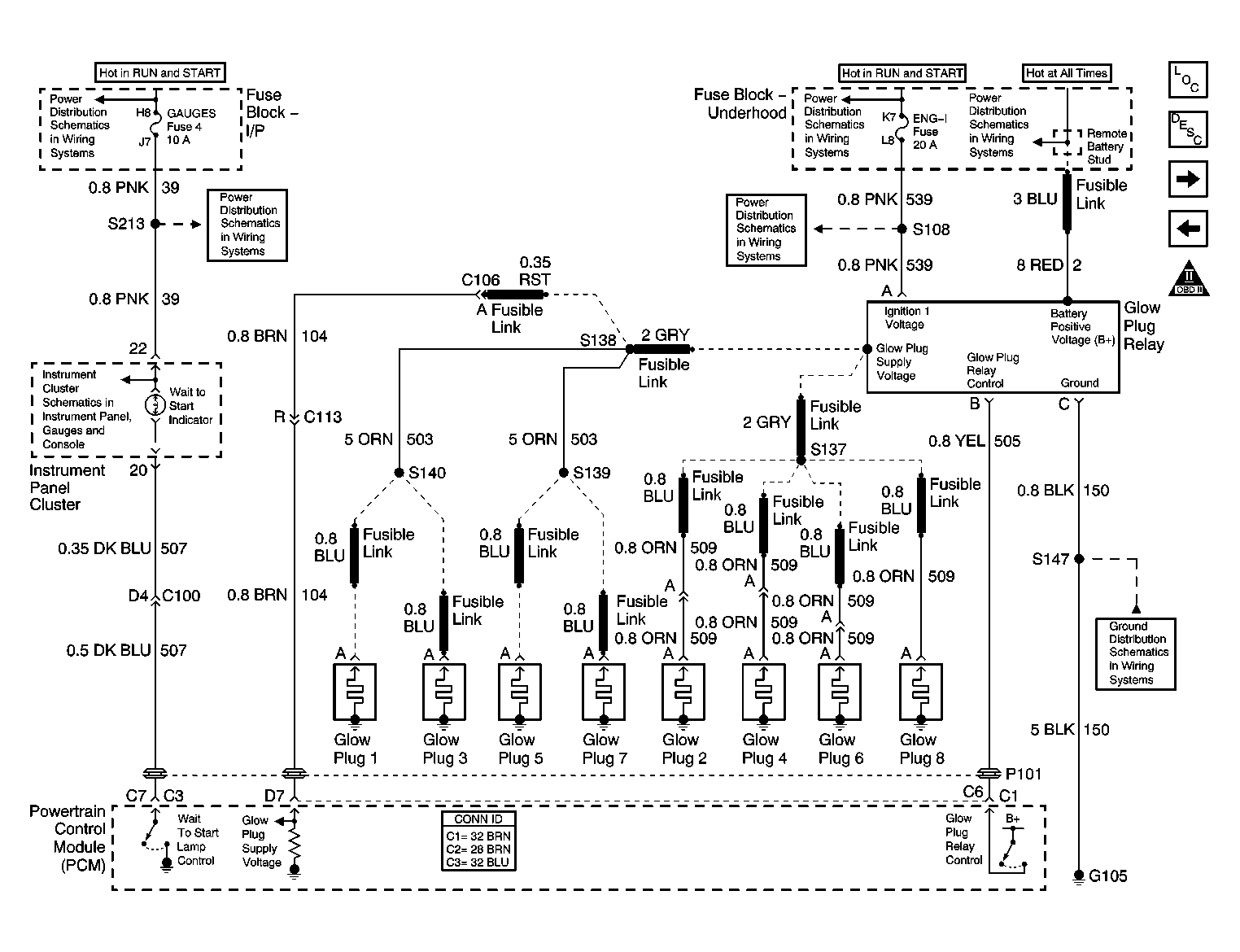

Fig 2: Glow Plug Control Circuit

Courtesy of GENERAL MOTORS CORP.

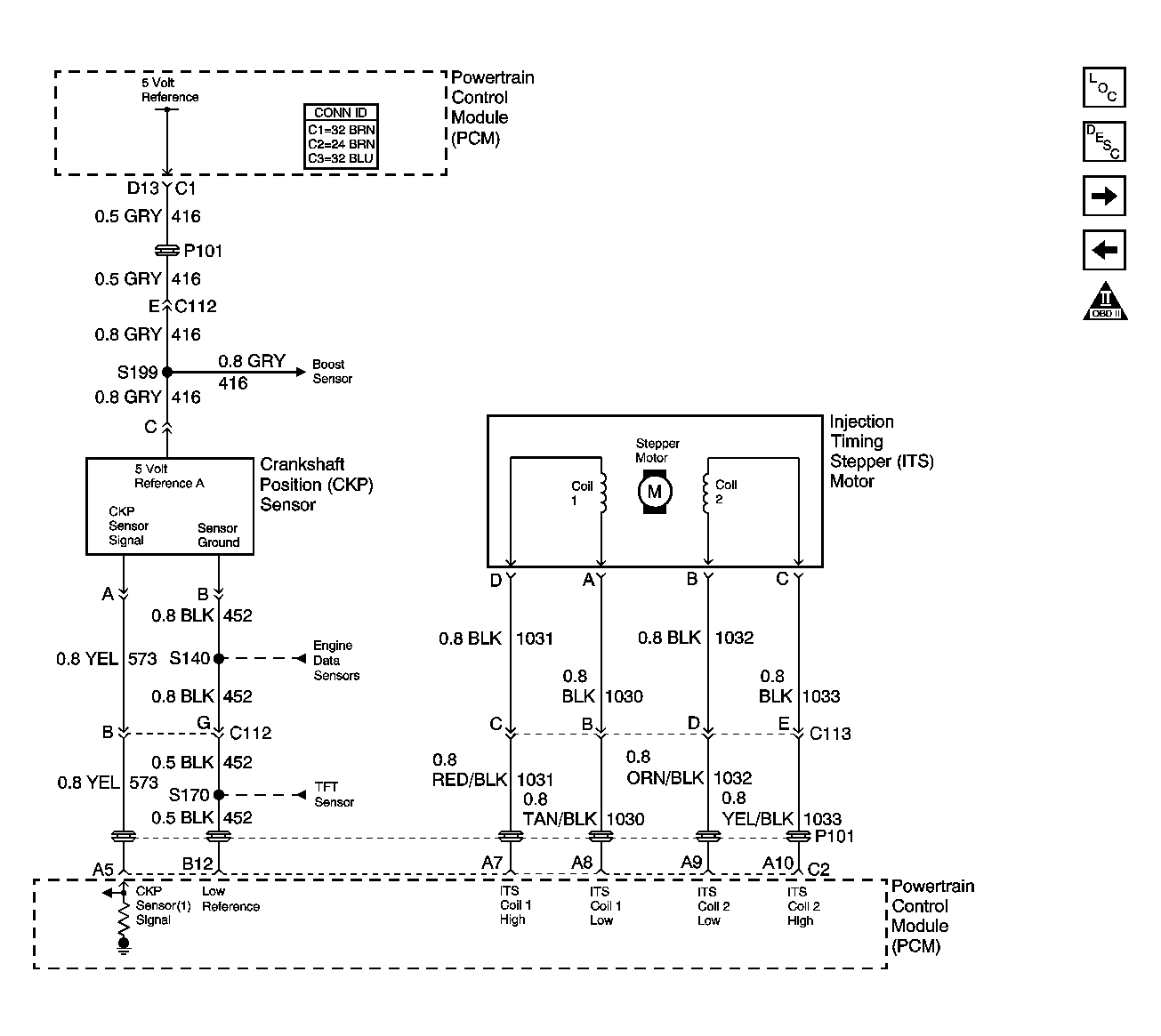

Fig 3: CKP & Injection Timing Stepper Motor

Courtesy of GENERAL MOTORS CORP.

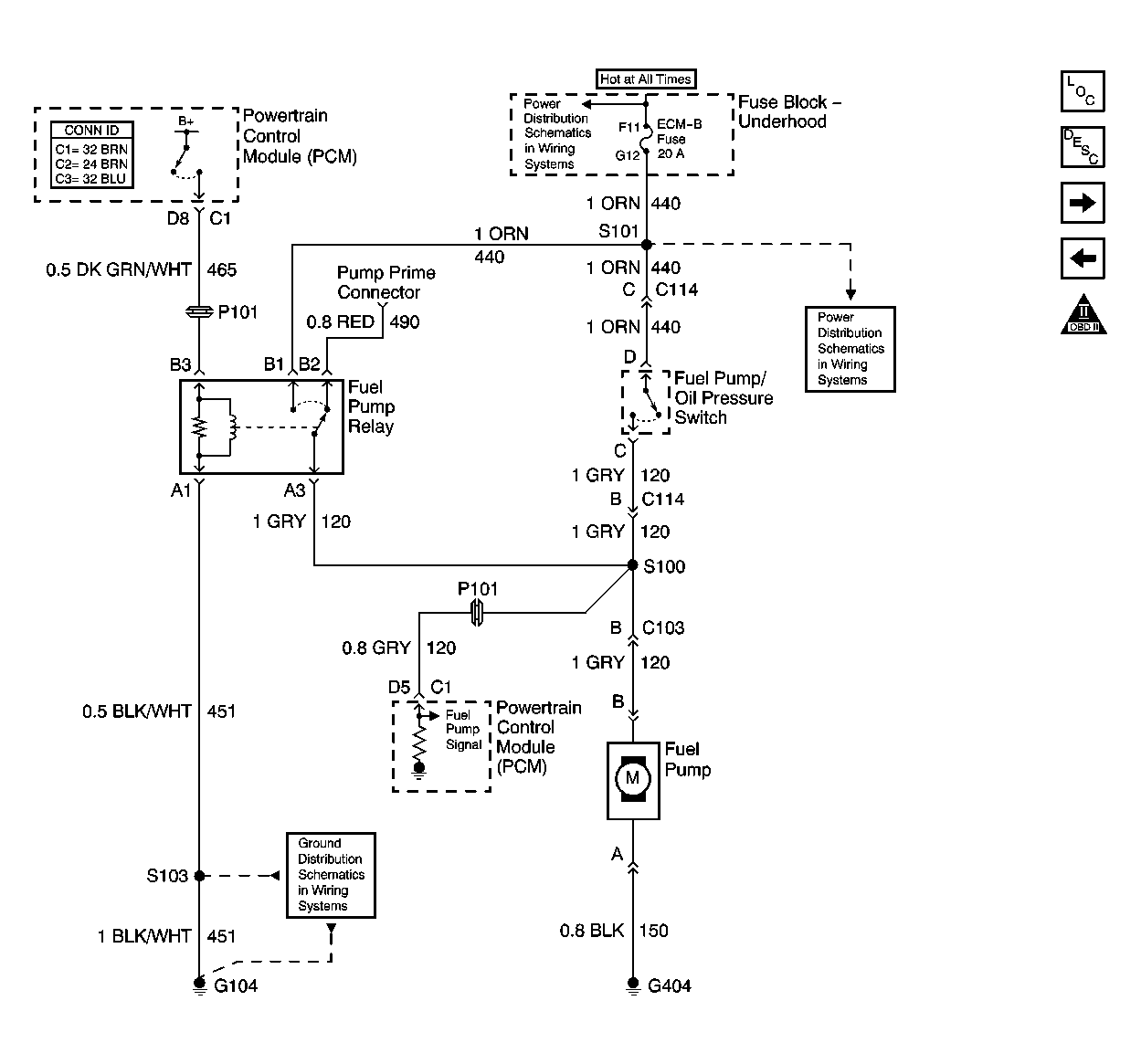

Fig 4: Fuel Pump Controls, Single Tank

Courtesy of GENERAL MOTORS CORP.

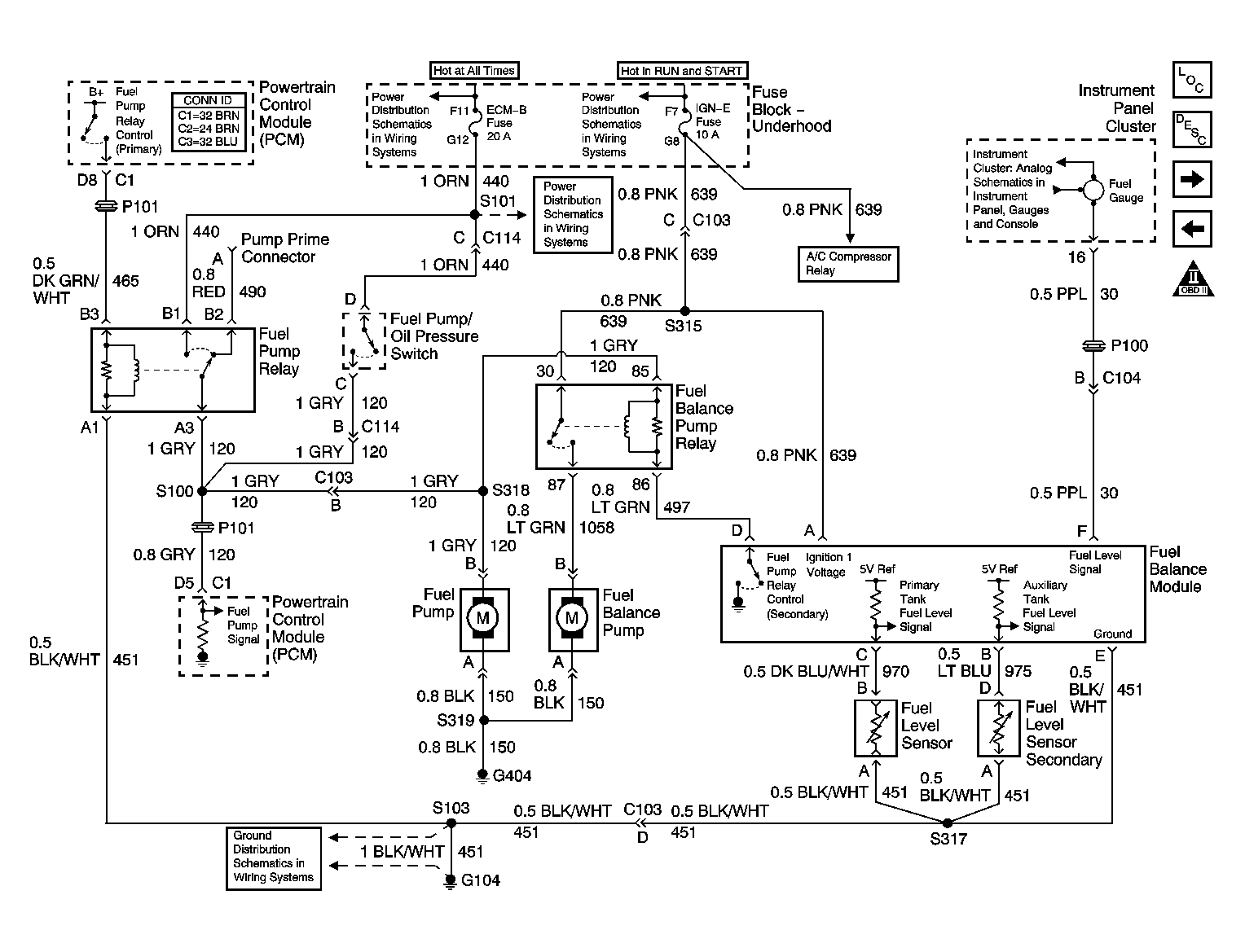

Fig 5: Fuel Pump Controls, Dual Tanks

Courtesy of GENERAL MOTORS CORP.

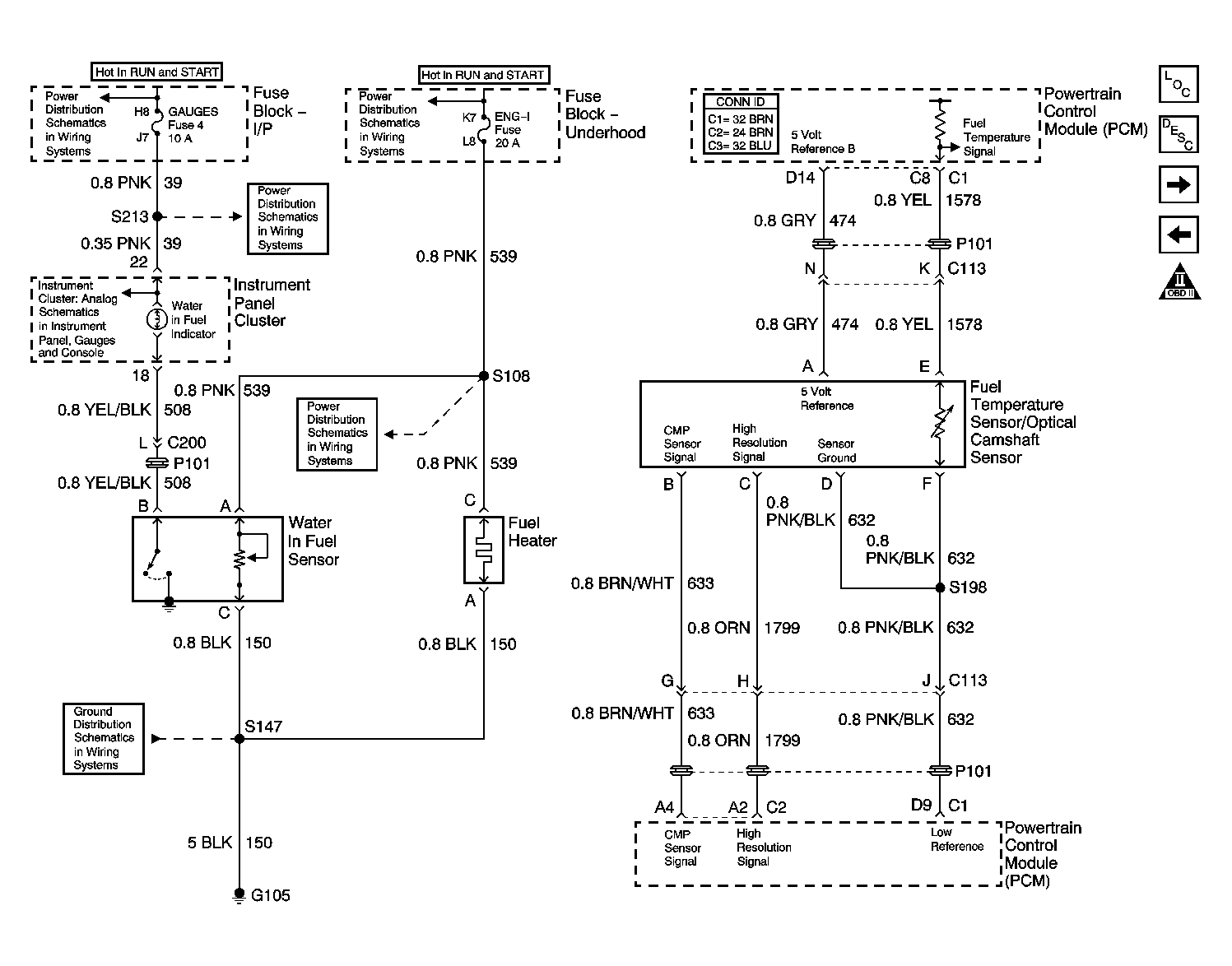

Fig 6: Fuel Heater, Water-in-Fuel Sensor & Fuel Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

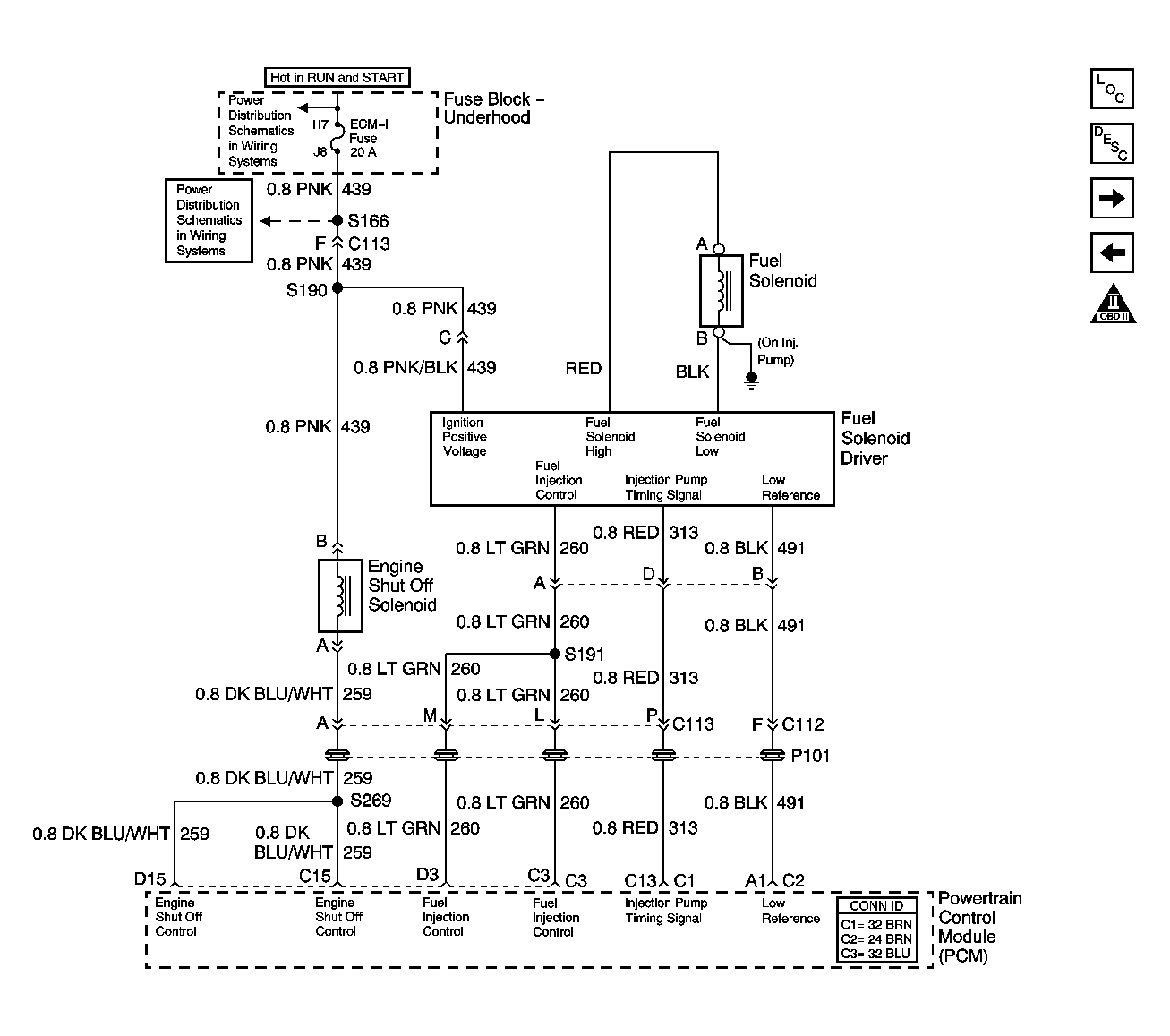

Fig 7: Fuel Solenoid Driver & Engine Shut Off Solenoid

Courtesy of GENERAL MOTORS CORP.

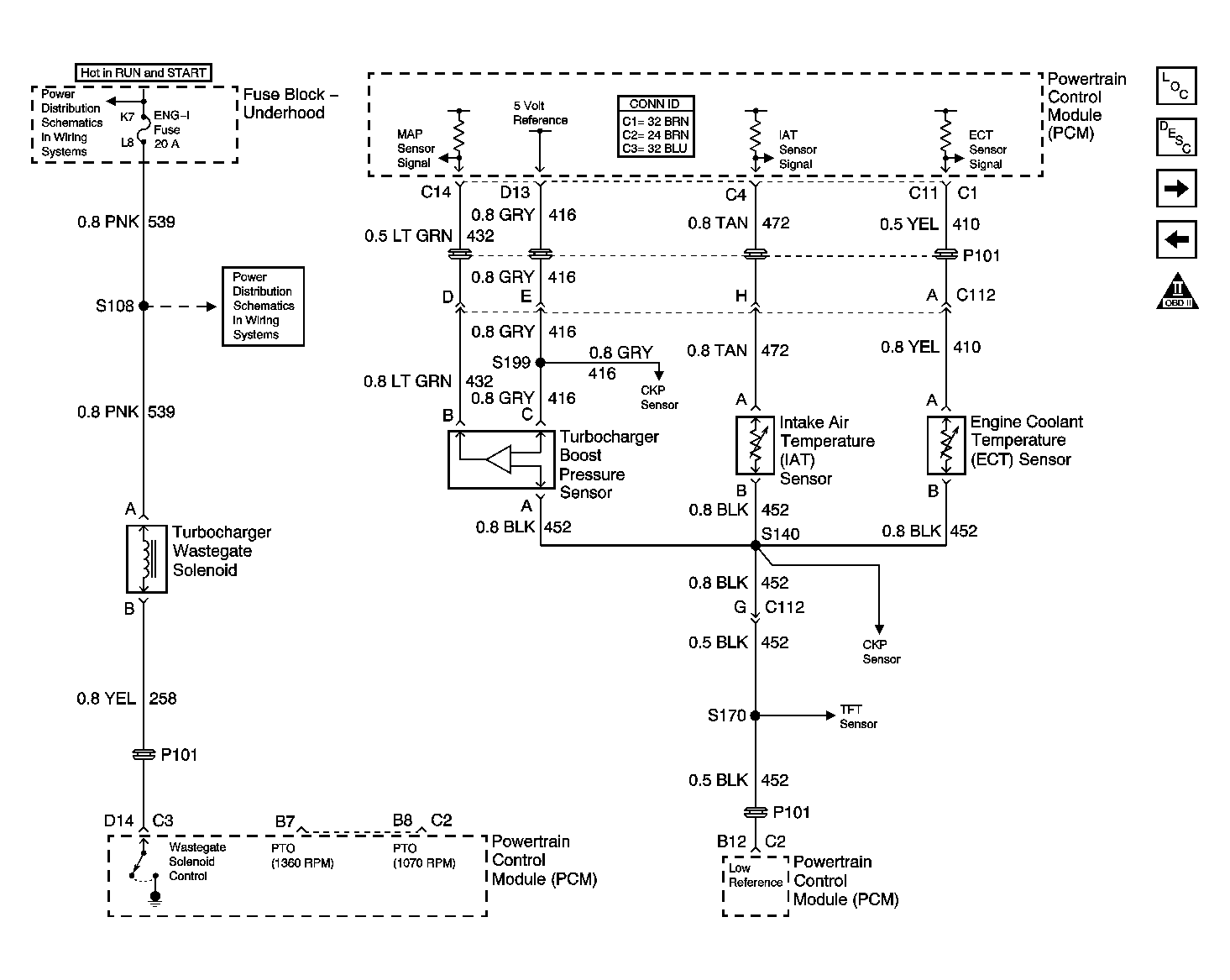

Fig 8: Wastegate Solenoid, Boost Sensor, IAT Sensor, ECT Sensor & PTO

Courtesy of GENERAL MOTORS CORP.

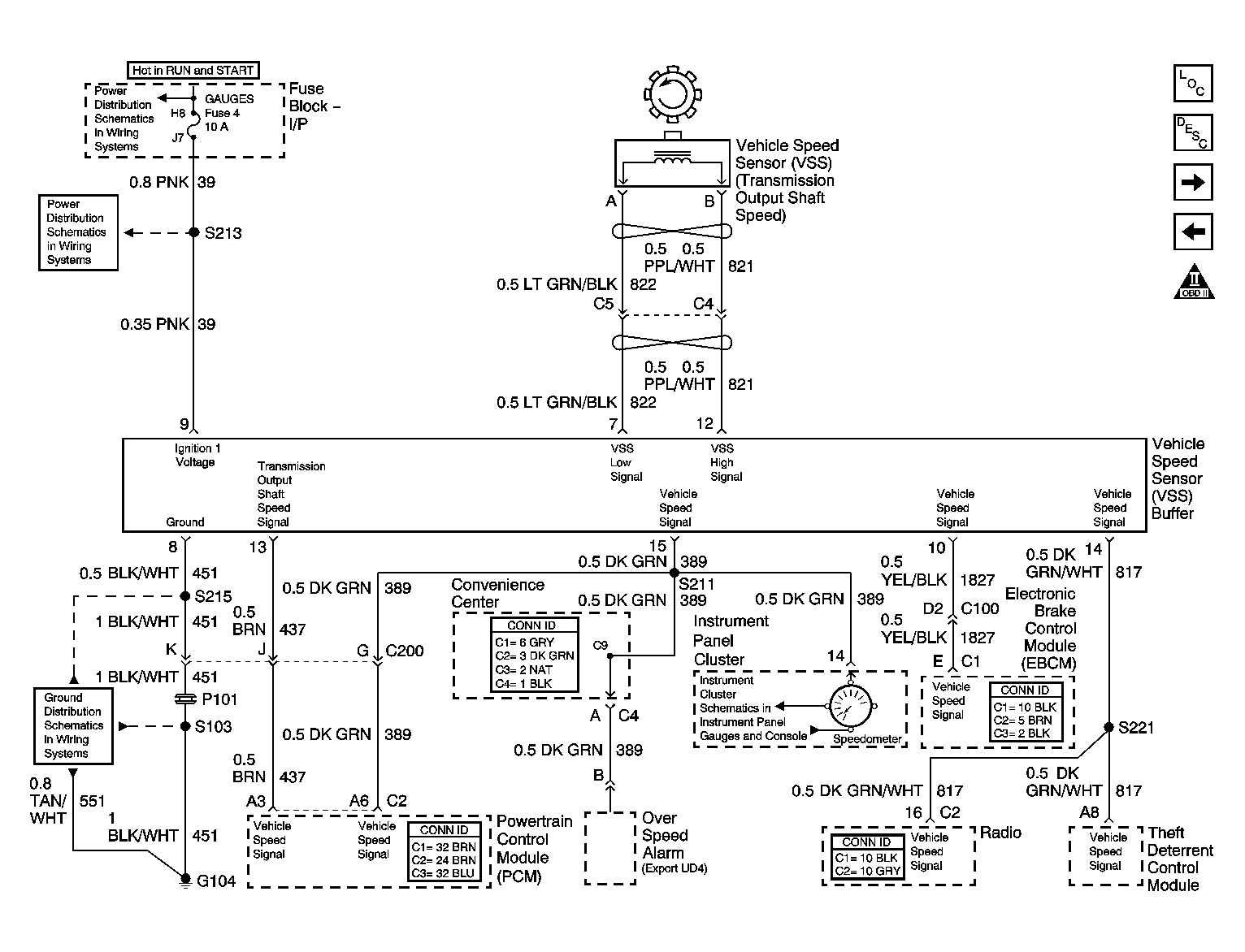

Fig 9: VSS Circuit

Courtesy of GENERAL MOTORS CORP.

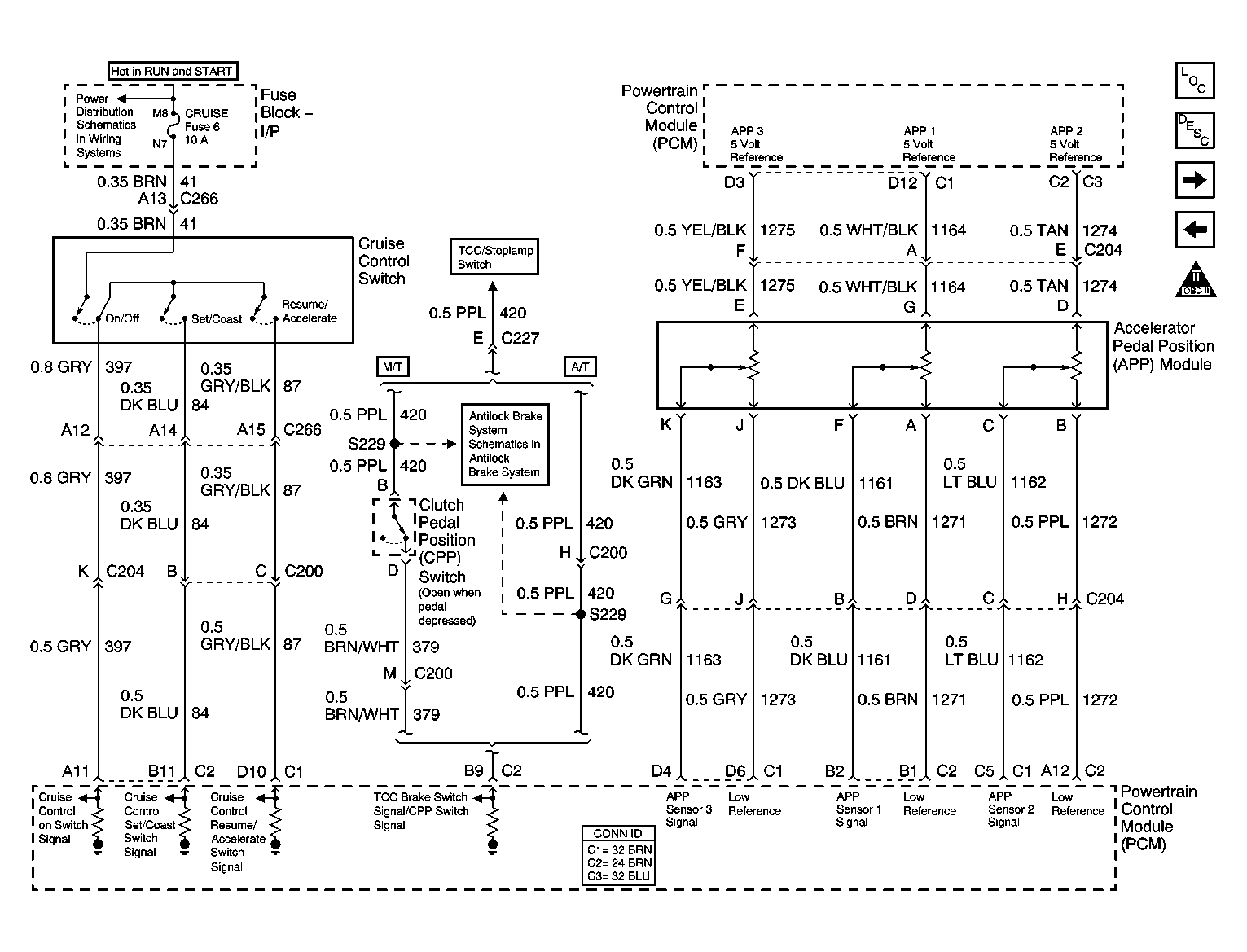

Fig 10: Accelerator Pedal Position, Clutch Pedal Position Switch & Cruise Control Switch Inputs

Courtesy of GENERAL MOTORS CORP.

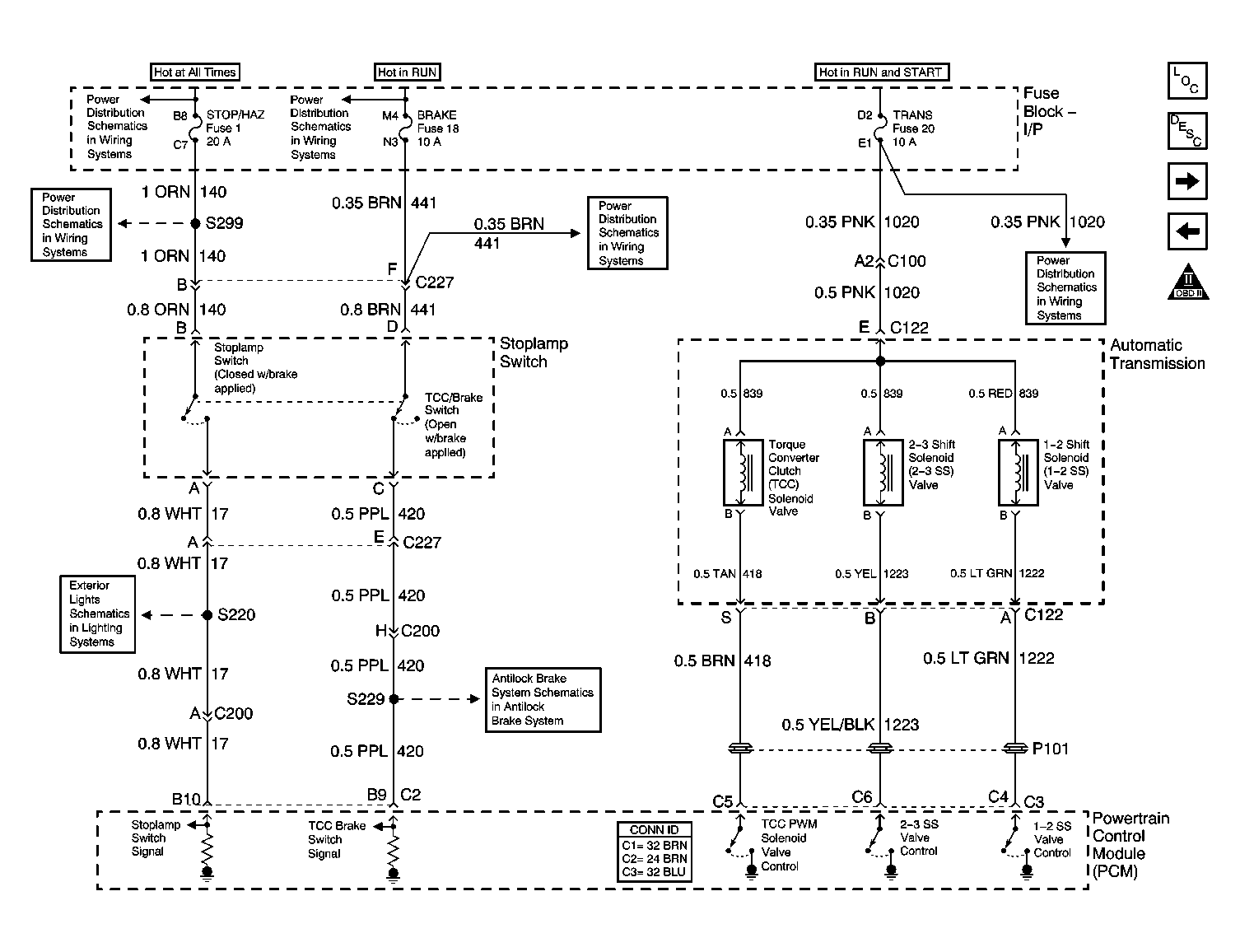

Fig 11: A/T TCC/Stop Lamps Switch & Shift Solenoids

Courtesy of GENERAL MOTORS CORP.

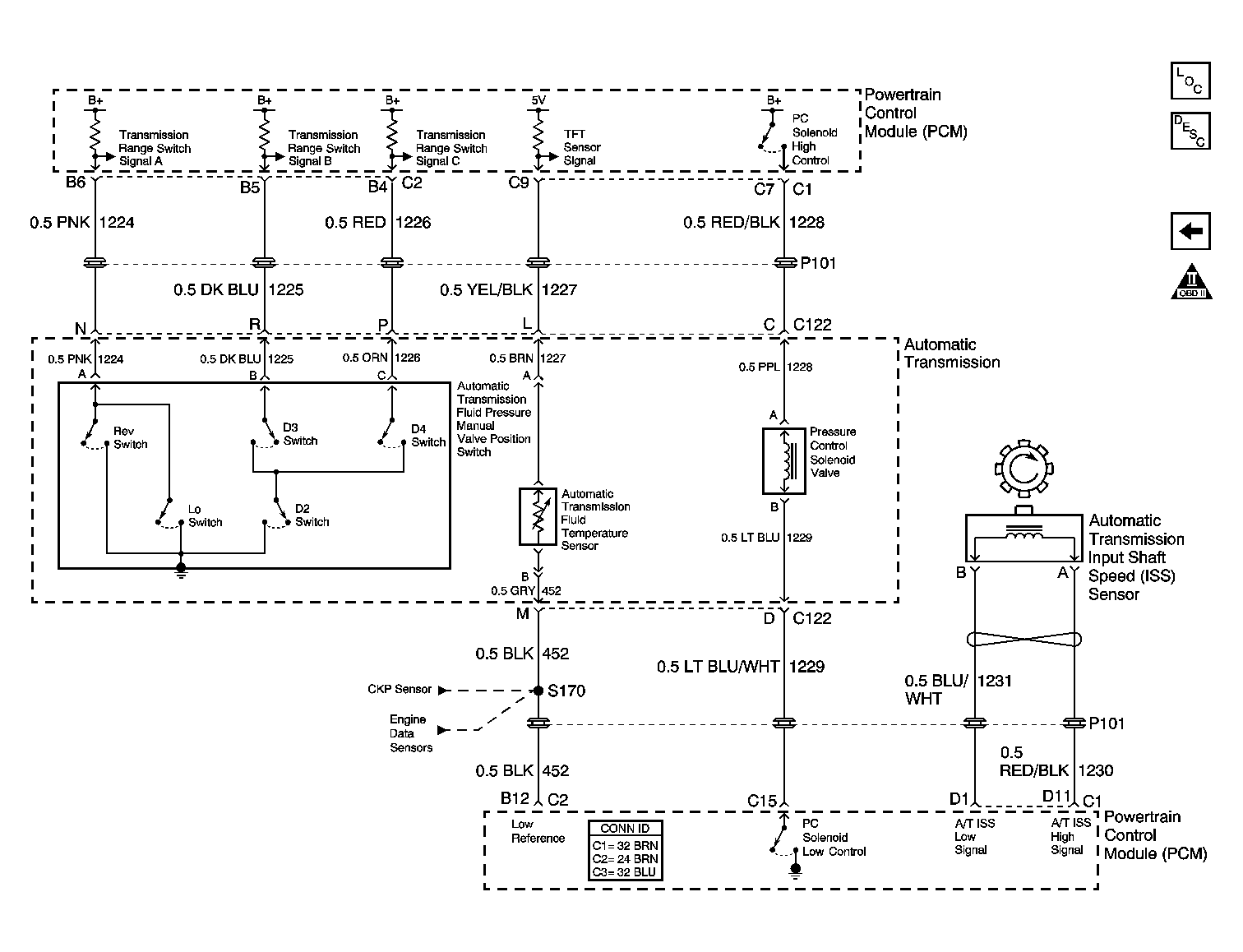

Fig 12: A/T Internal Switches, TFT, PC Solenoid Valve & Input Shaft Speed Sensor

Courtesy of GENERAL MOTORS CORP.
