Installation Procedure
- Route the switch wiring harness through the opening in the side of the seat cushion.
- Install the switch wiring harness to the vehicle wiring harness.

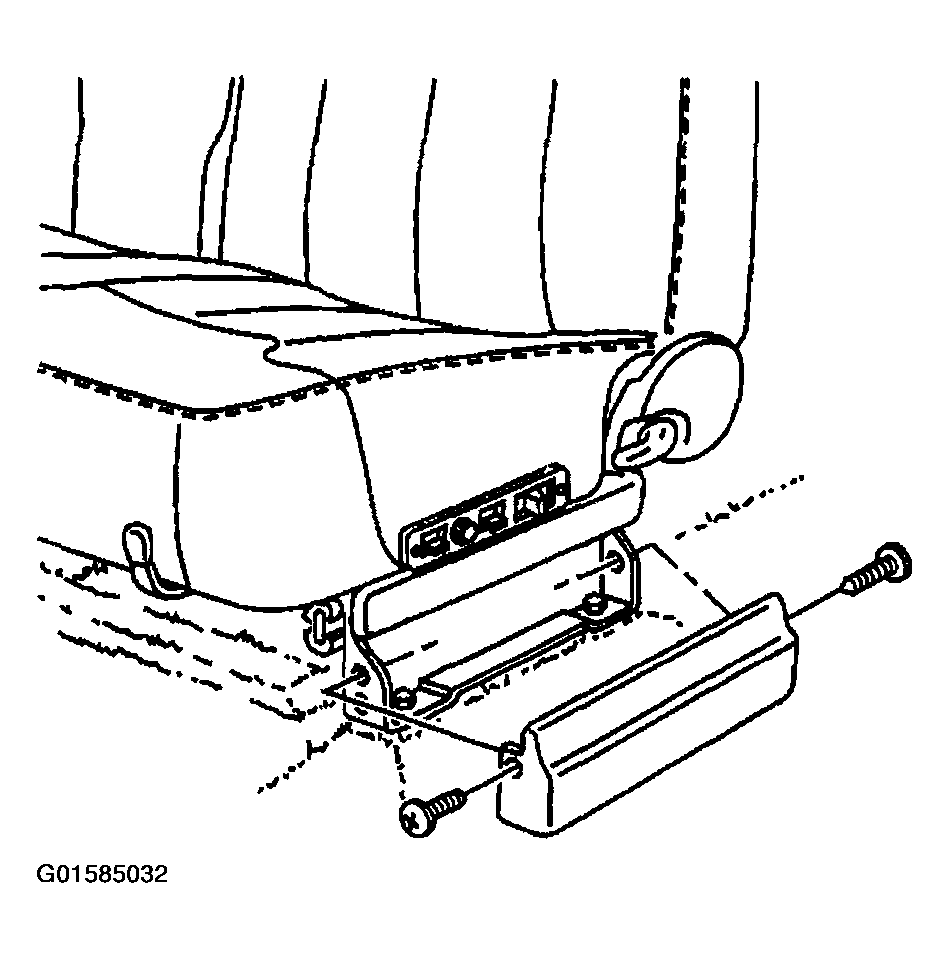

- Position the switch in the seat cushion opening and install the screws.
- Install the seat assembly in the vehicle. Refer to Seat Replacement - Split Bench or Seat Replacement - Split Bench or Seat Replacement - Front Bucket (Base) .
