Theft Deterrent Control Module Connector End View

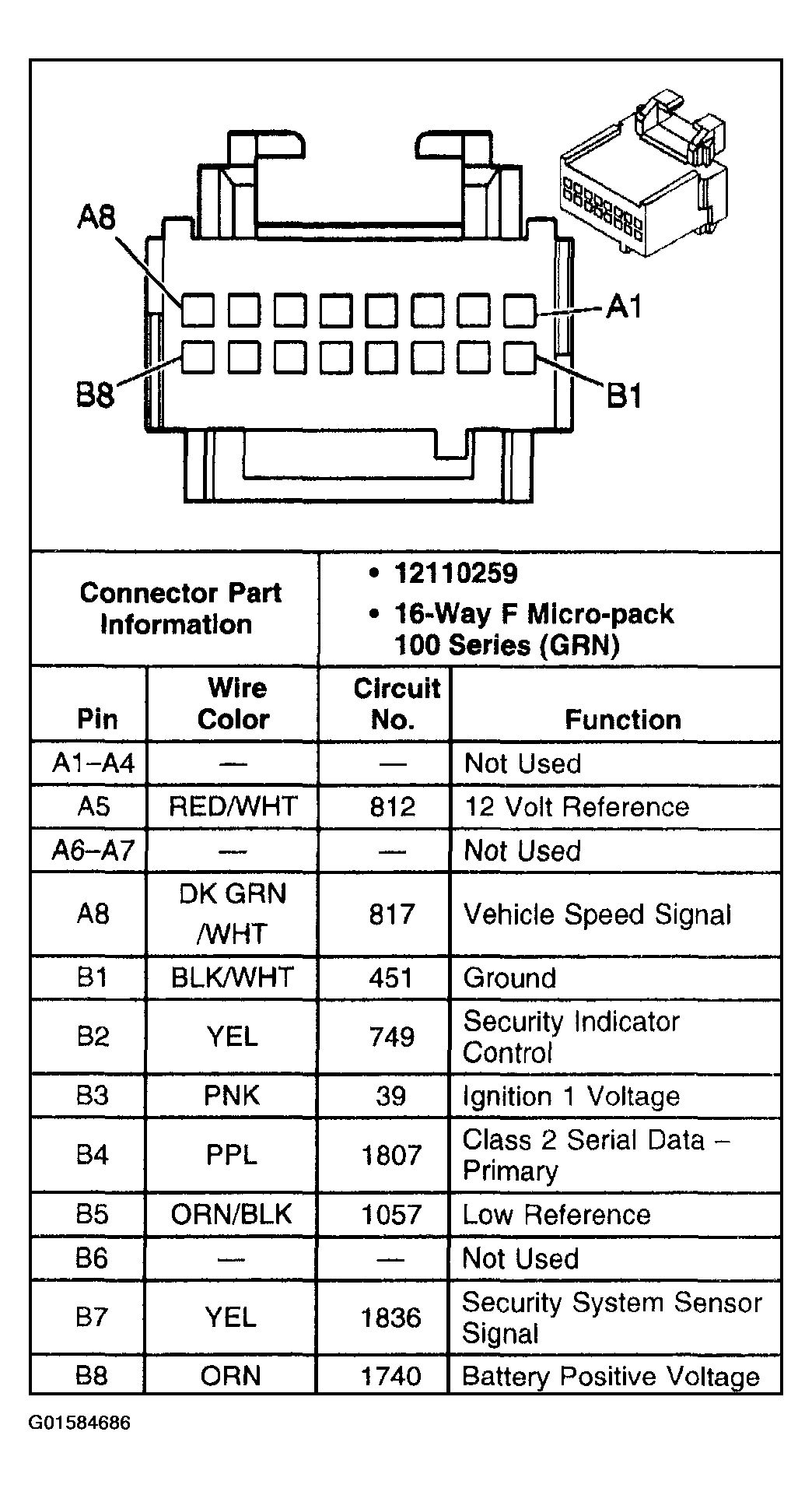

Fig 1: Theft Deterrent Control Module Connector End View
G01584686Courtesy of GENERAL MOTORS CORP.
