Windshield Wiper Motor Module Connector End View

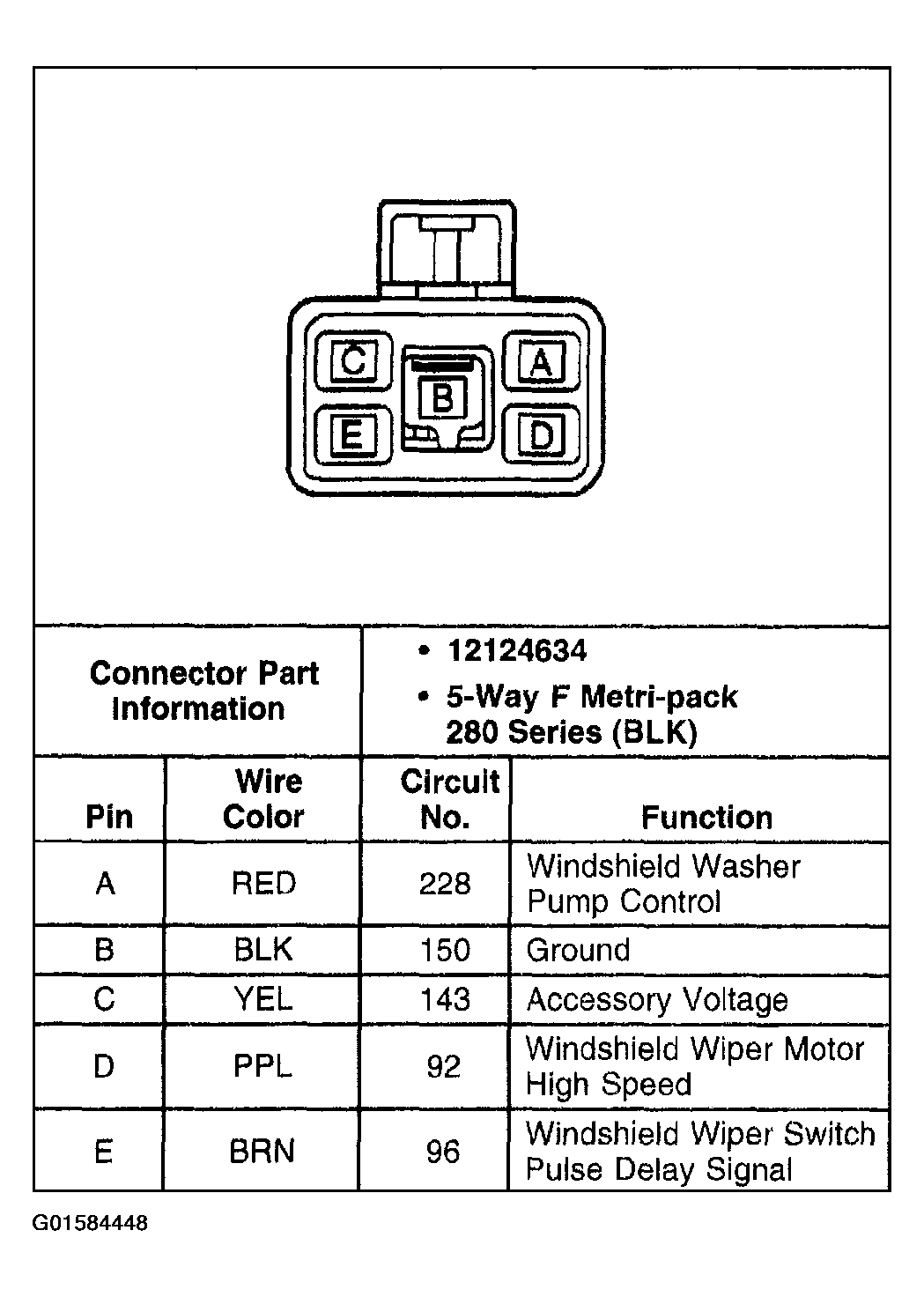

Fig 1: Windshield Wiper Motor Module Connector End View
G01584448Courtesy of GENERAL MOTORS CORP.
