Test Description

The number below refers to the step number on the diagnostic table.

  1. 2. The injection pump is being replaced in this step.

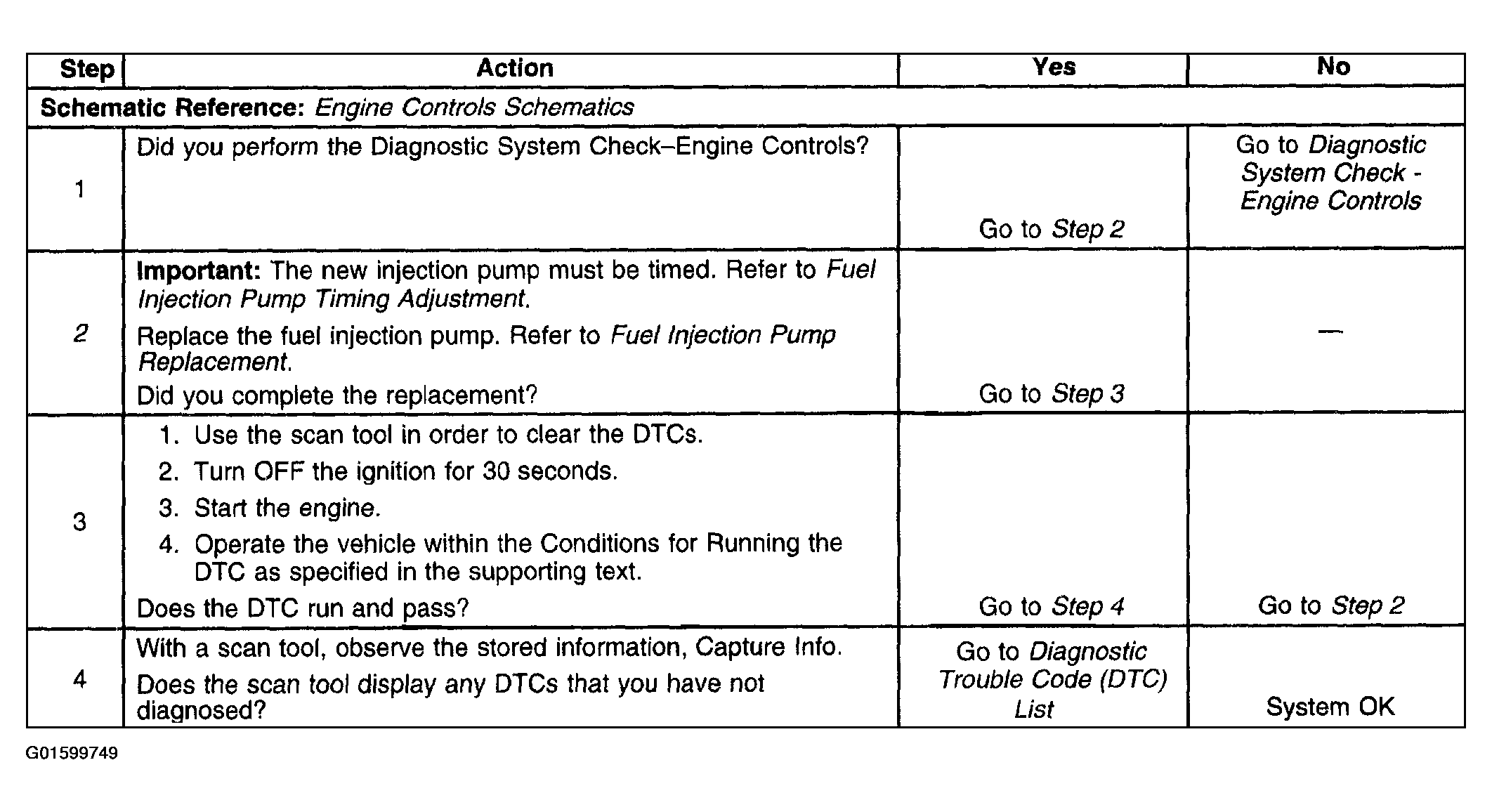

Fig 1: DTC P0219
G01599749Courtesy of GENERAL MOTORS CORP.
