Installation Procedure
- Install the drag link to the adjuster sleeve.

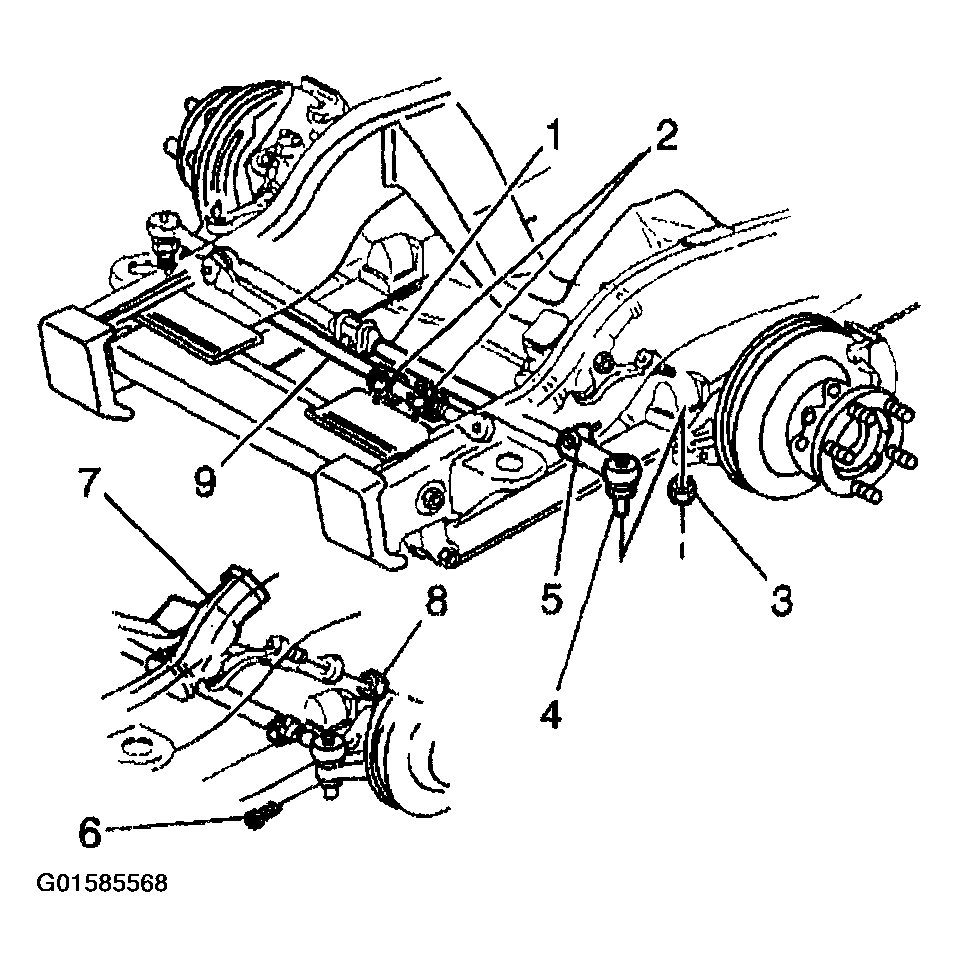

- Install the drag link ball stud to the tie rod (1).NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the nut to the drag link ball stud.
Tighten
Tighten the nut to 104 N.m (77 lb ft).
- Tighten the adjuster sleeve retaining nuts.
Tighten
Tighten the adjuster sleeve nuts to 104 N.m (77 lb ft).
- Lower the vehicle.
