Removal Procedure

  1. Remove the bolts (2) that retain the instrument panel center support bracket to the steering column bracket (1).
  2. Remove the bolt (3) that retains the reinforcement to the instrument panel center support bracket.
  3. Disconnect the electrical connector from the remote control door lock receiver.
  4. Remove the instrument panel center support bracket (4).

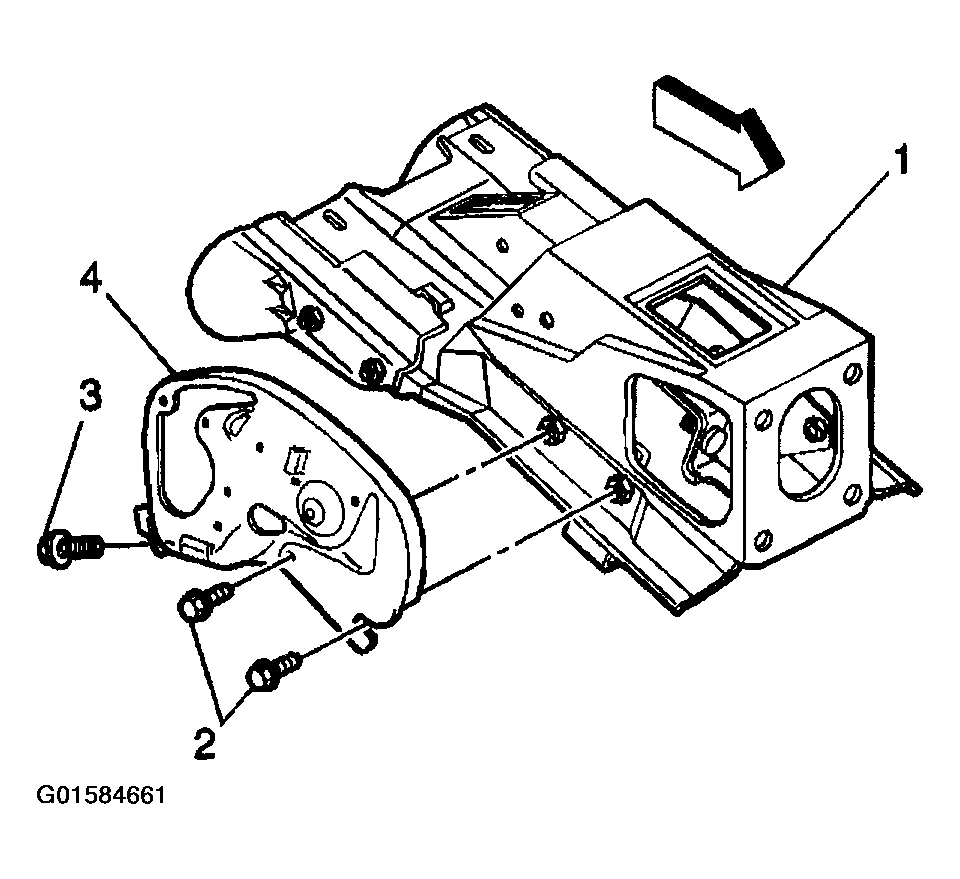

    Fig 1: Steering Column Bracket, Instrument Panel Center Support Bracket & Bolts
    G01584661Courtesy of GENERAL MOTORS CORP.
  5. Remove the remote control door lock receiver retainer (3).
  6. Remove the remote control door lock receiver (2) from the instrument panel center support bracket.

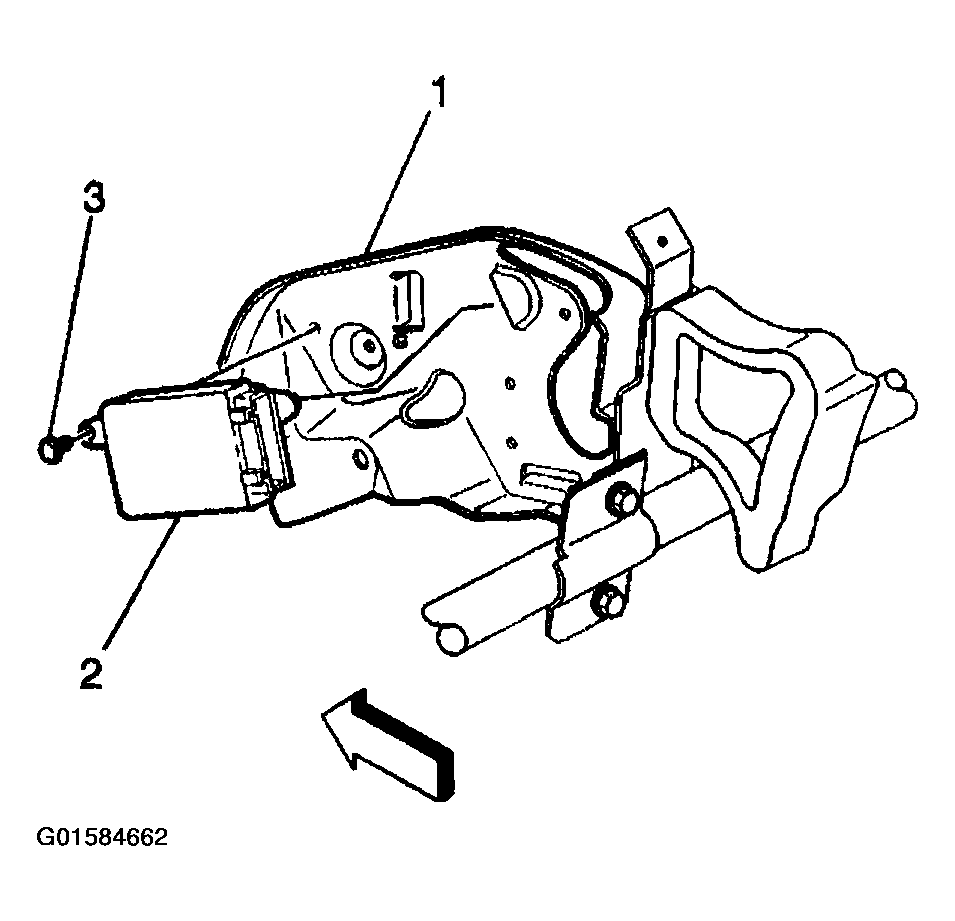

    Fig 2: Remote Control Door Lock Receiver & Retainer
    G01584662Courtesy of GENERAL MOTORS CORP.
