Power Seat Systems Component Views

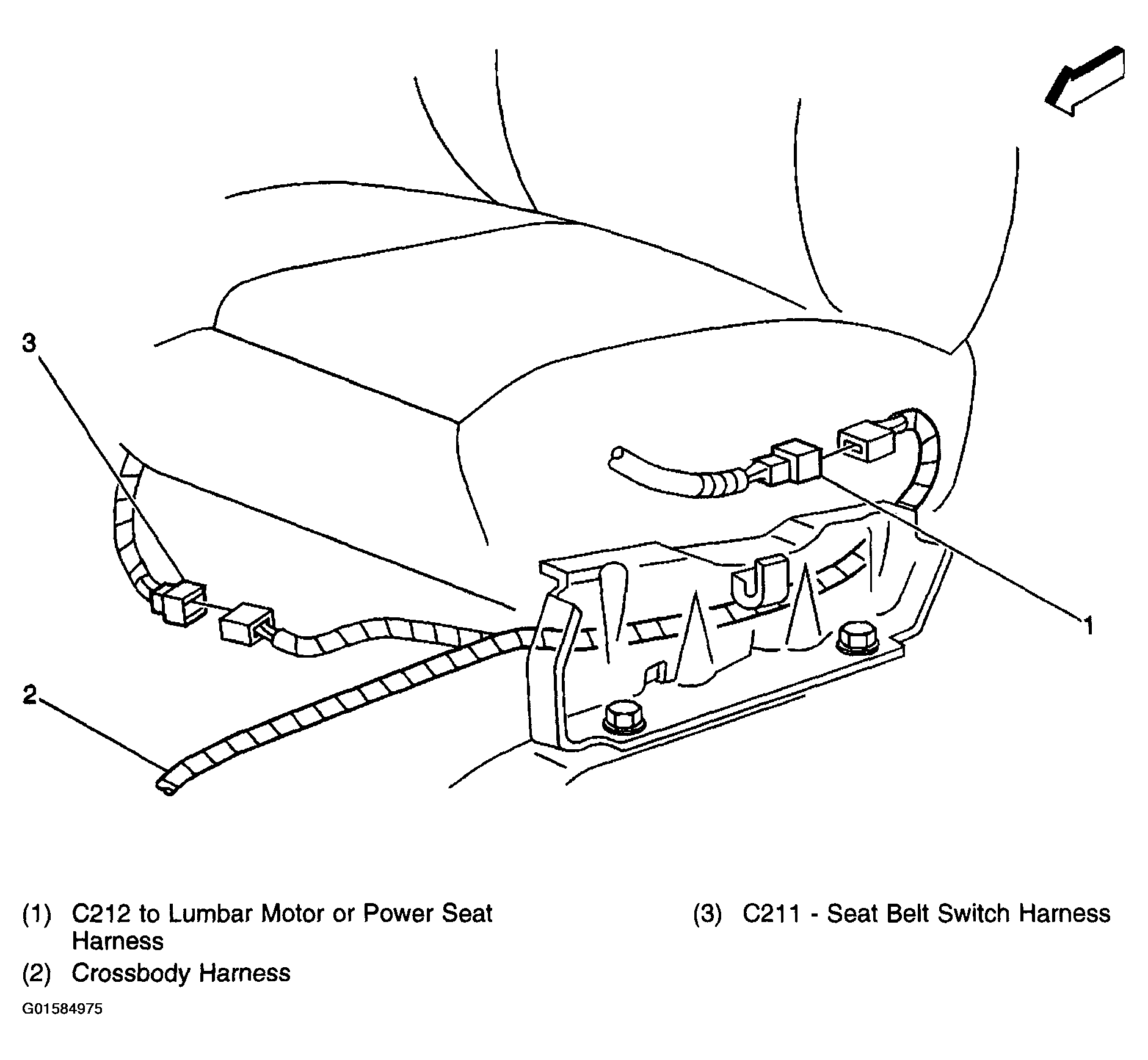

Fig 1: C211 & C212
G01584975Courtesy of GENERAL MOTORS CORP.

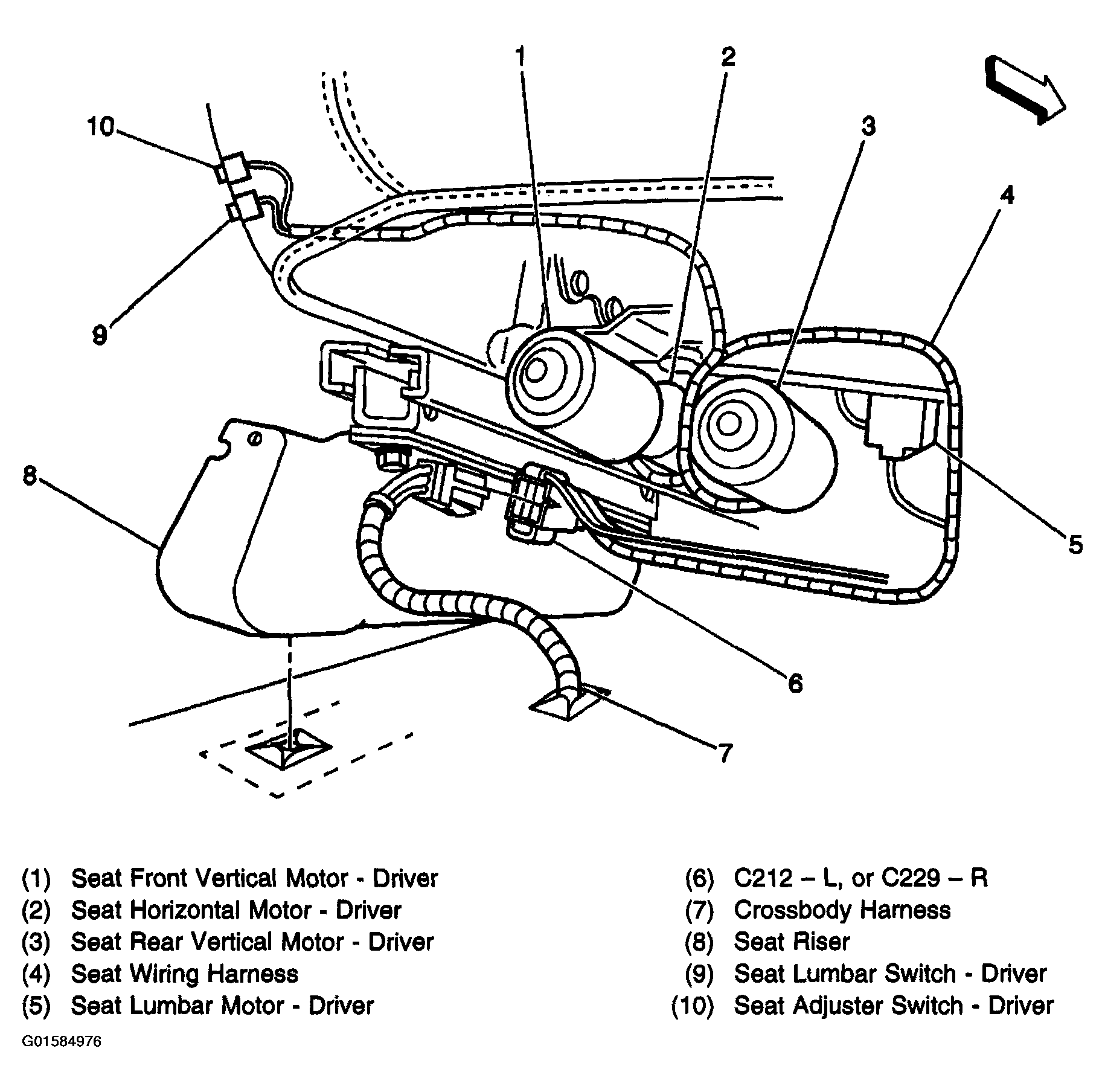

Fig 2: Power Seat Components
G01584976Courtesy of GENERAL MOTORS CORP.

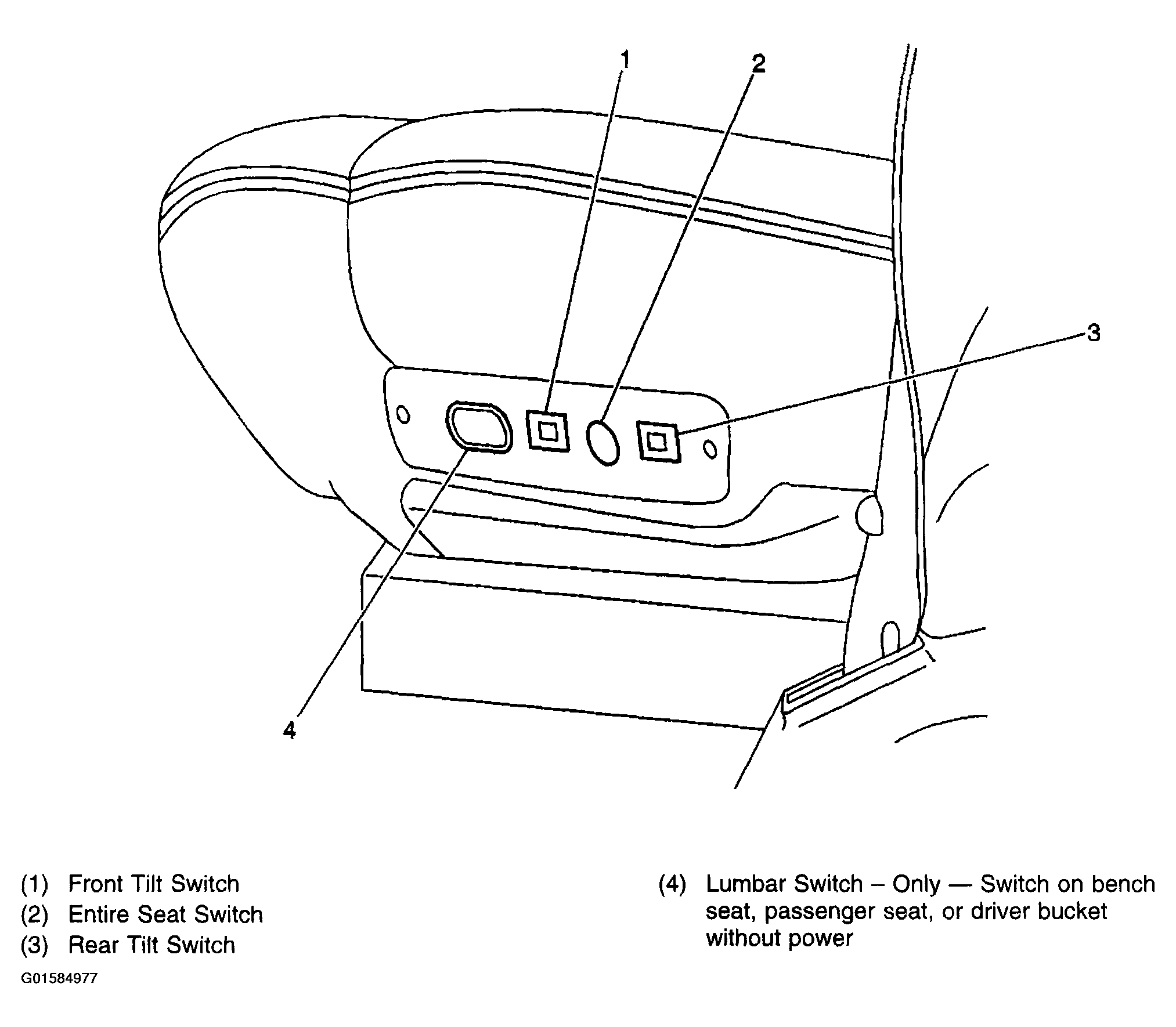

Fig 3: Power Seat Switches - Driver Bucket Shown
G01584977Courtesy of GENERAL MOTORS CORP.
