Removal Procedure

Important:  After installation, calibrate the new EBCM to the tire size that is appropriate to the vehicle. Refer to Diagnostic System Check - ABS .

1. Remove the 4 T-25 Torx® screws (1) that fasten the EBCM to the BPMV.

   Important:  Do not use a tool to pry the EBCM or the BPMV.

2. Partially remove the EBCM (2) from the BPMV (3) enough to access the electrical connectors. Removal may require a light amount of force.
3. Disconnect the electrical connectors from EBCM.
4. Fully remove the EBCM (2) from the BPMV (3).

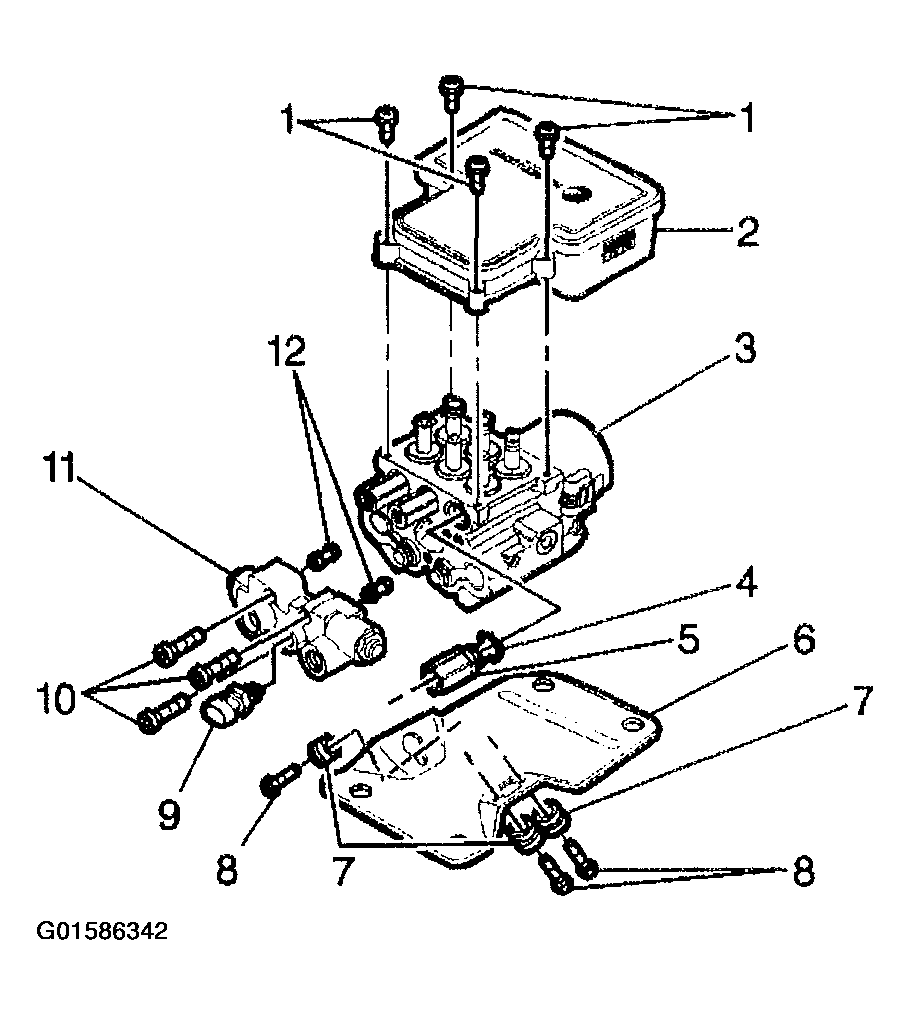

   Fig 1: EBCM, BPMV & Components

   Courtesy of GENERAL MOTORS CORP.
