Electrical Center Identification Views

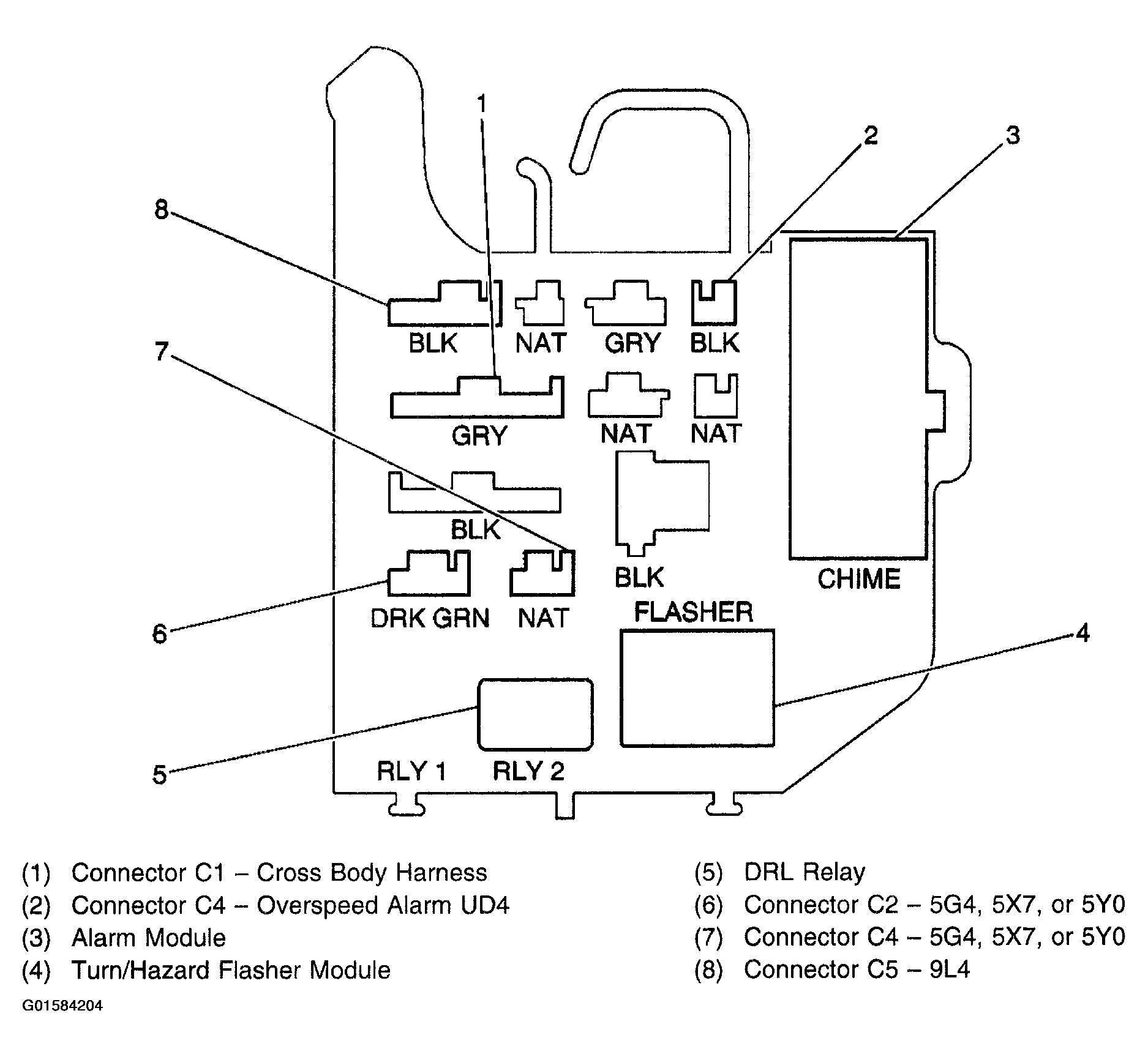

Fig 1: Convenience Center

Courtesy of GENERAL MOTORS CORP.

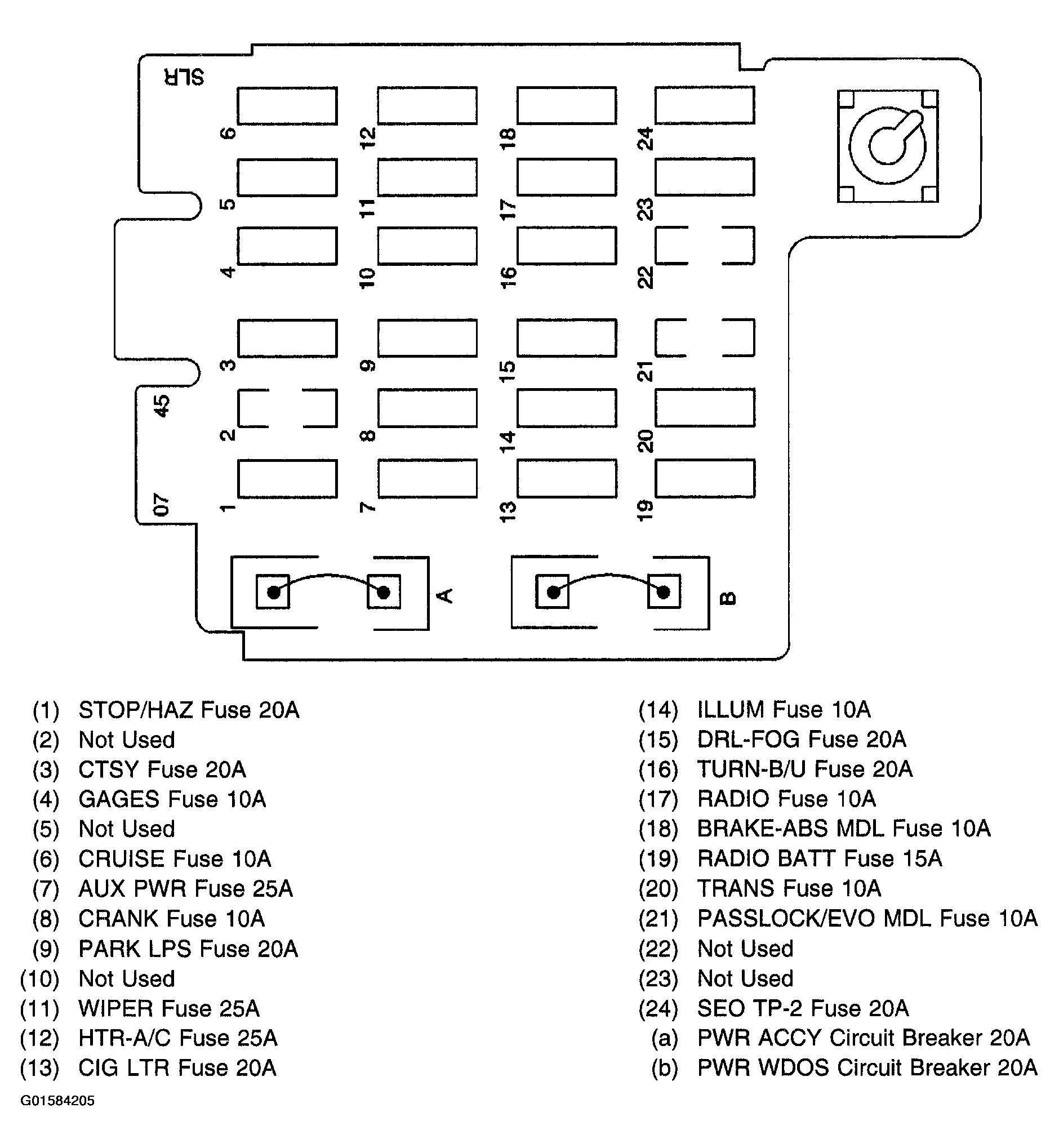

Fig 2: IP Fuse Block

Courtesy of GENERAL MOTORS CORP.

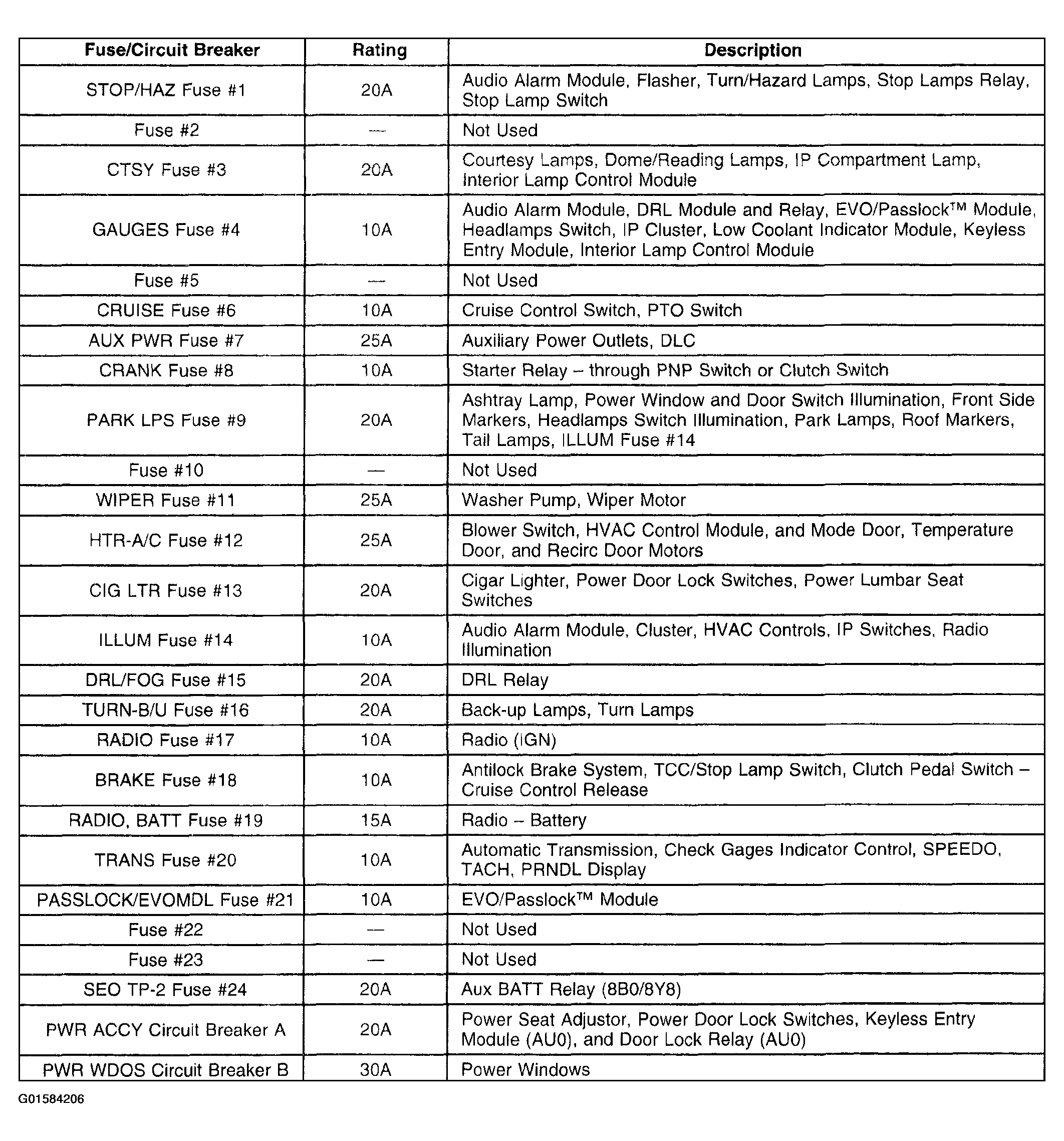

Fig 3: Fuse Applications-IP Fuse Block

Courtesy of GENERAL MOTORS CORP.

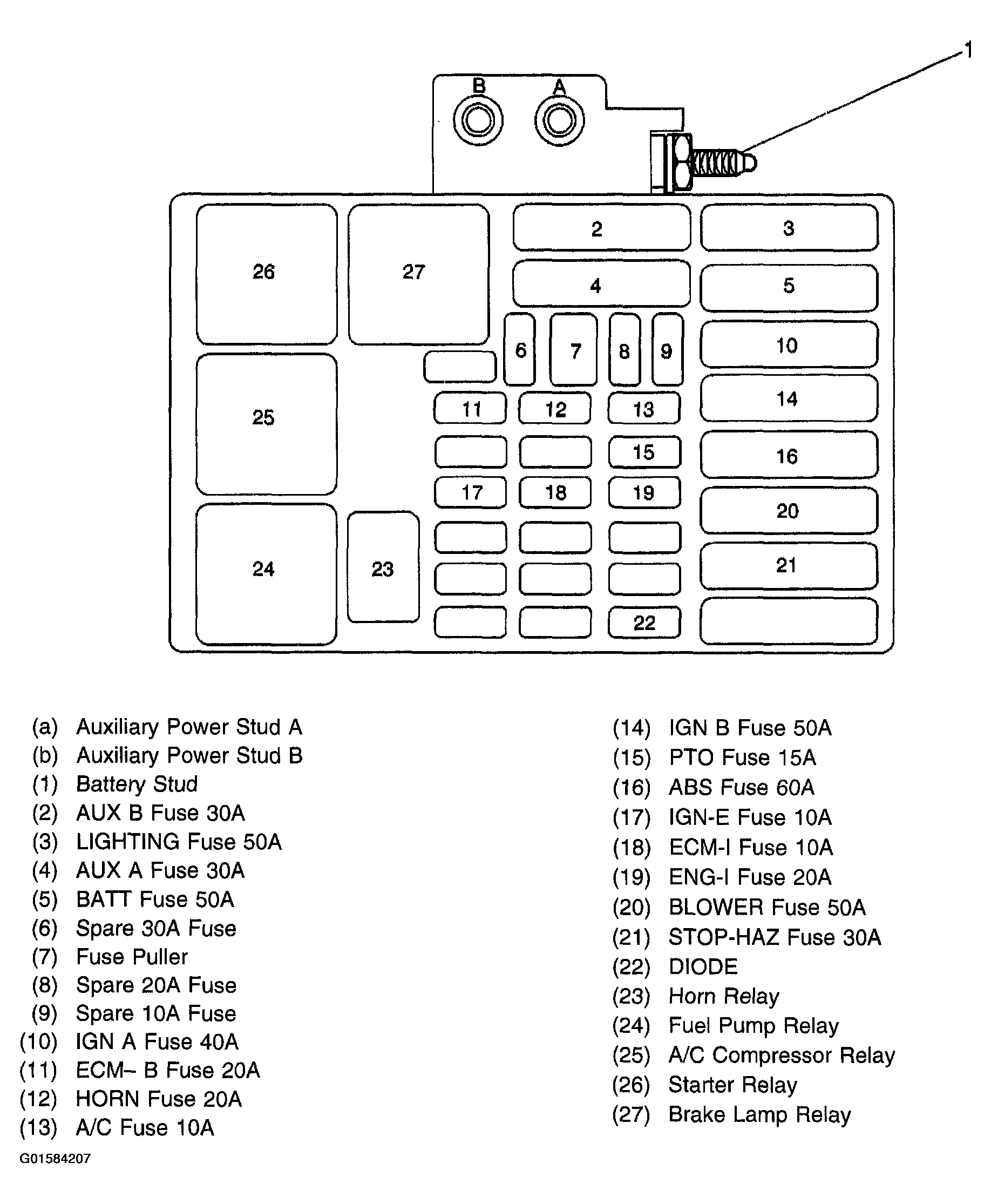

Fig 4: Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

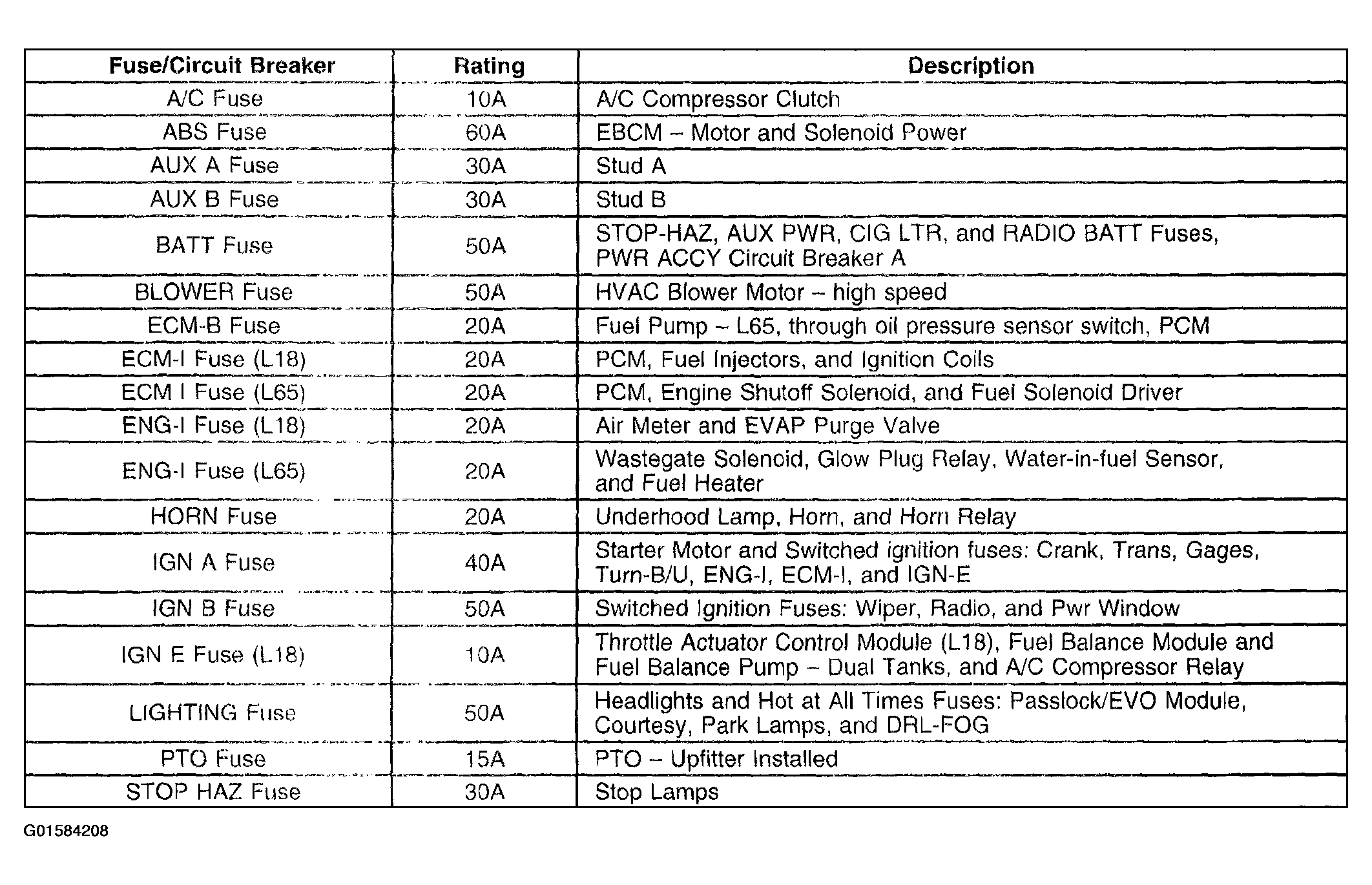

Fig 5: Fuse Applications-Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.
