Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the backup lamp bulb to the lamp socket.
  2. Install the backup lamp bulb socket to the backup lamp housing by turning clockwise.
  3. Lower the vehicle.

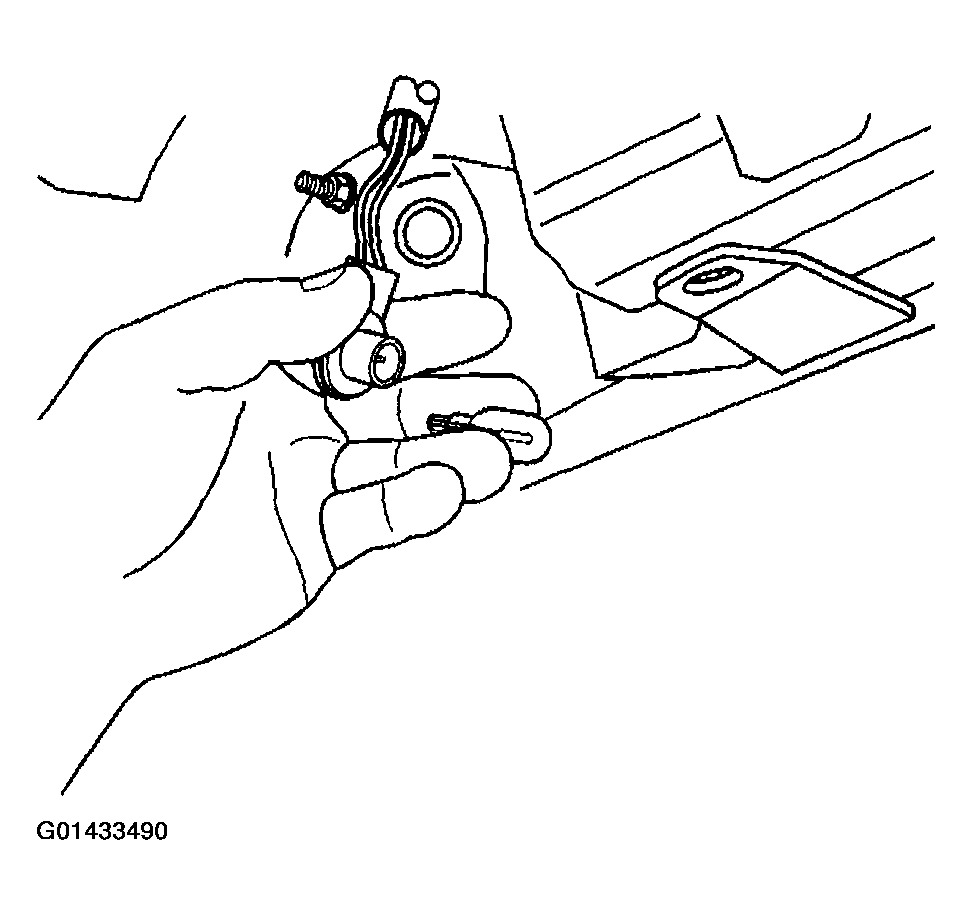

    Fig 1: Installing Backup Lamp Bulb To Lamp Socket
    G01433490Courtesy of GENERAL MOTORS CORP.
