Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Secure the compact disc player (2) to the vehicle with the 3 bolts (1).
  2. Connect the electrical connector (3).
  3. Install the passenger side front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
  4. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

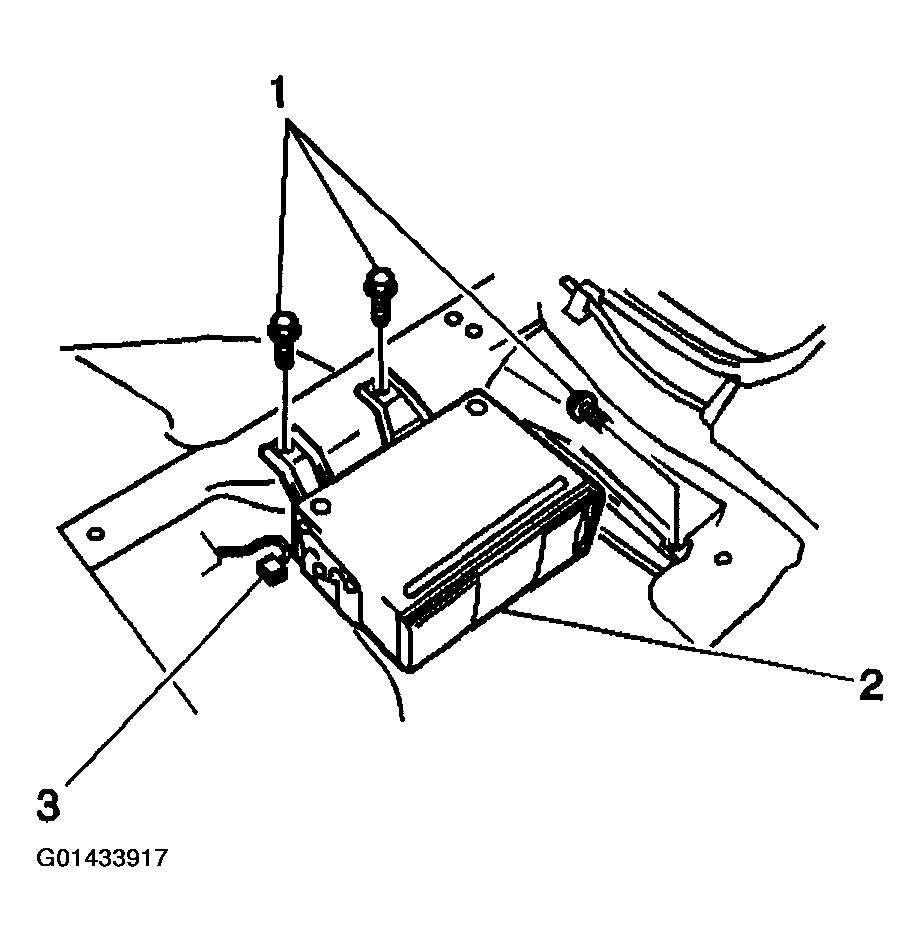

    Fig 1: Installing Compact Disc Player To Vehicle
    G01433917Courtesy of GENERAL MOTORS CORP.
