Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

Install the cruise control servo (1) and bracket to the vehicle. Secure the servo and bracket with the 2 bolts (2).
Tighten

Tighten the cruise control servo mounting bolts to 6.0 N.m (52 lb in).
Connect the cruise control servo electrical connector (3).

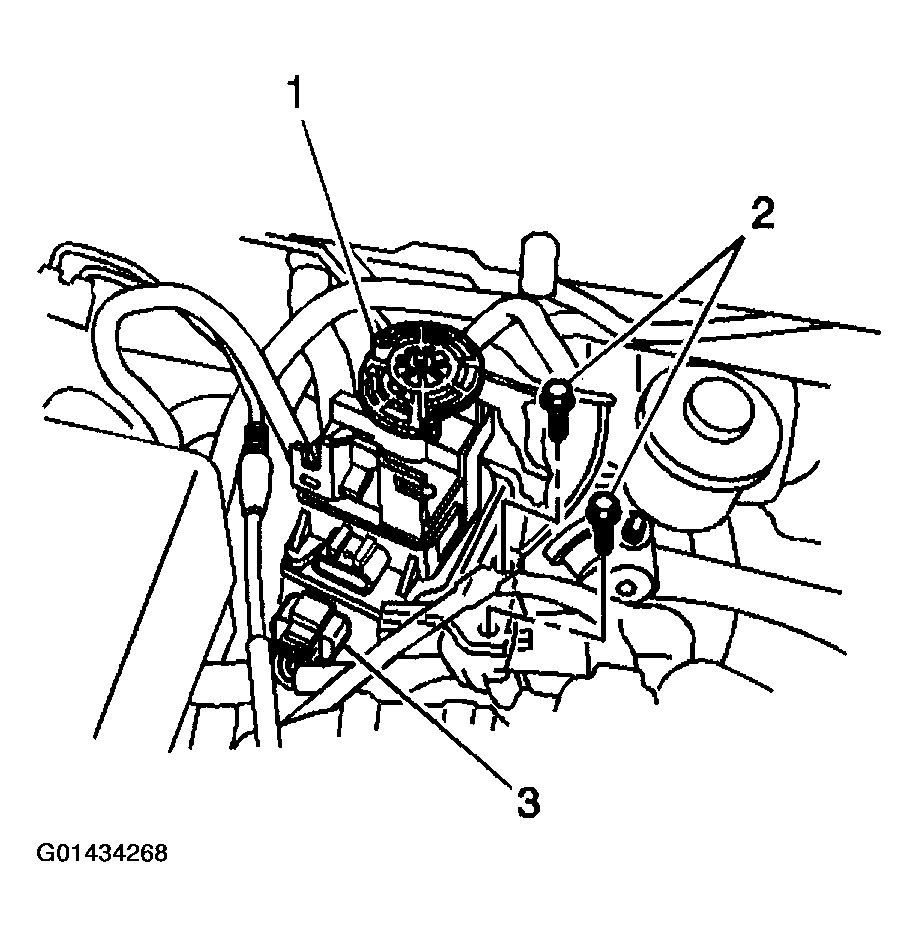

Fig 1: Installing Cruise Control Servo And Bracket To Vehicle
Courtesy of GENERAL MOTORS CORP.
Install the cruise control servo cable (4) to the servo lever (1) and bracket. Secure the cruise control cable servo cable bracket with the one screw (5).
Install the accelerator control cable (3) to the servo lever (1) and bracket.
Adjust the cable adjusting locknuts (2) to allow slight freedom of movement between the accelerator control cable (3) and the servo lever (1).
Secure the accelerator cable locknuts (2).
Tighten

Tighten the accelerator cable adjusting locknuts to 8 N.m (71 lb in).

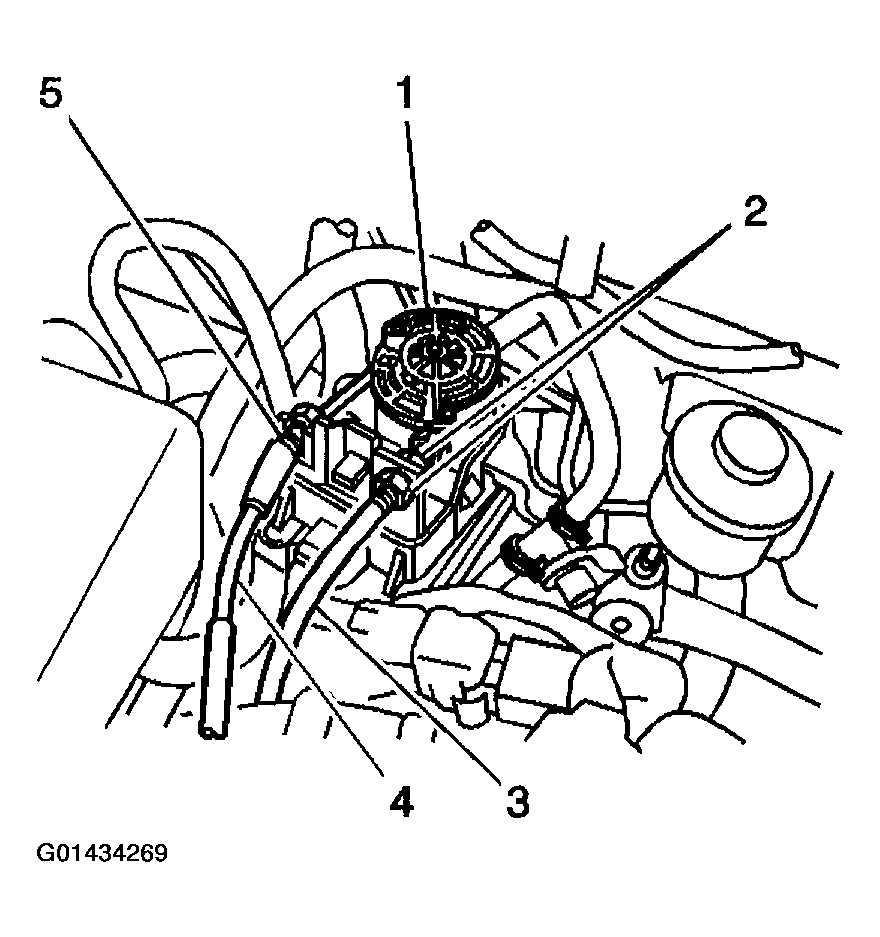

Fig 2: Installing Cruise Control Servo Cables To Servo Lever And Bracket
Courtesy of GENERAL MOTORS CORP.
Install the cruise control servo cover (1) make sure the tabs (2) snap in place.

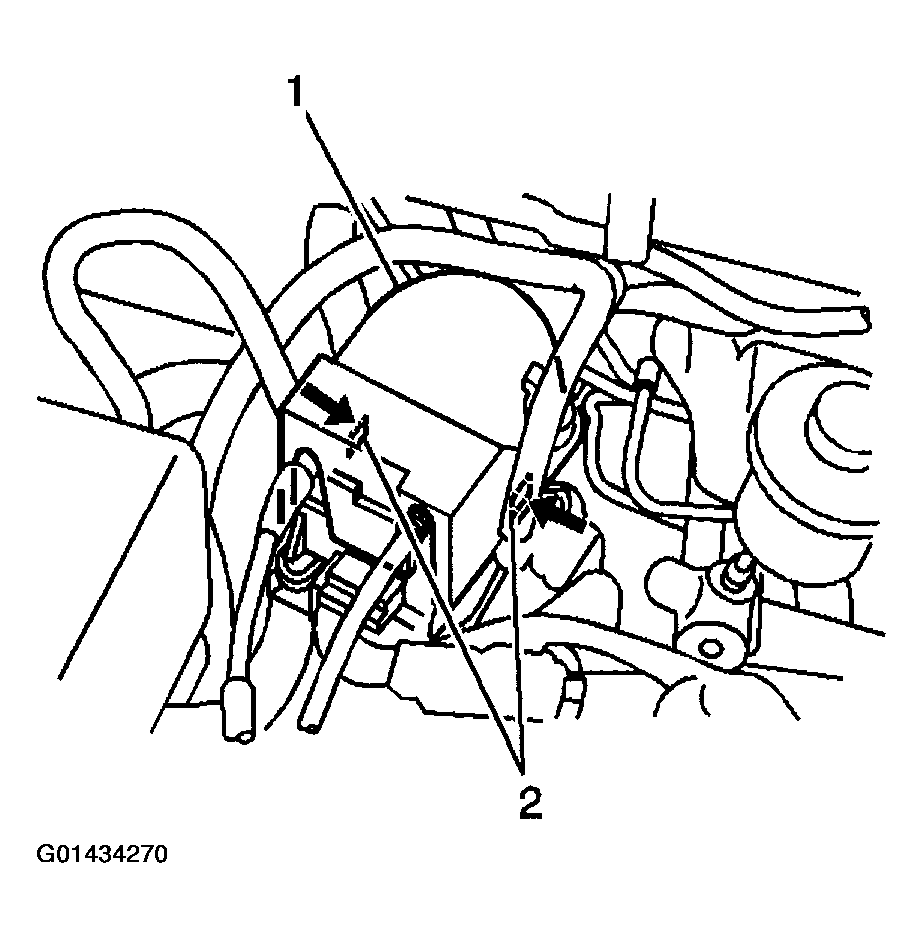

Fig 3: Installing Cruise Control Servo Cover
