Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the dome lamp to the headliner.
  2. Connect the electrical connector to the dome lamp.
  3. Position the retaining tab above the headliner and move rearward 15 mm (1/2 in).
  4. Install the dome lamp lens. Refer to DOME AND READING LAMP BULB REPLACEMENT   in Lighting Systems.

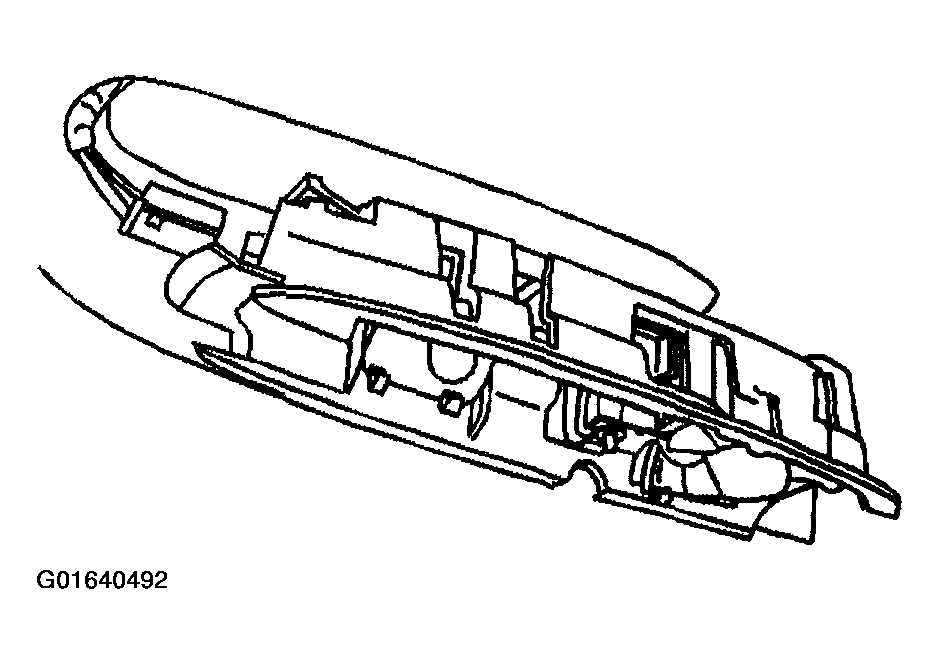

    Fig 1: Installing Dome Lamp To Headliner
    G01640492Courtesy of GENERAL MOTORS CORP.
