Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the antenna bracket to the roof panel.
  2. Seat the antenna bracket retaining clip to the roof panel.
    NOTE: Refer to Fastener Notice   in Cautions and Notices.
  3. Install the retaining screw to the antenna bracket.

    Tighten

    Tighten the screw to 2.5 N.m (22 lb in).

  4. Install the headliner. Refer to INTERIOR TRIM  or INTERIOR TRIM
  5. Install the navigation antenna. Refer to NAVIGATION ANTENNA REPLACEMENT

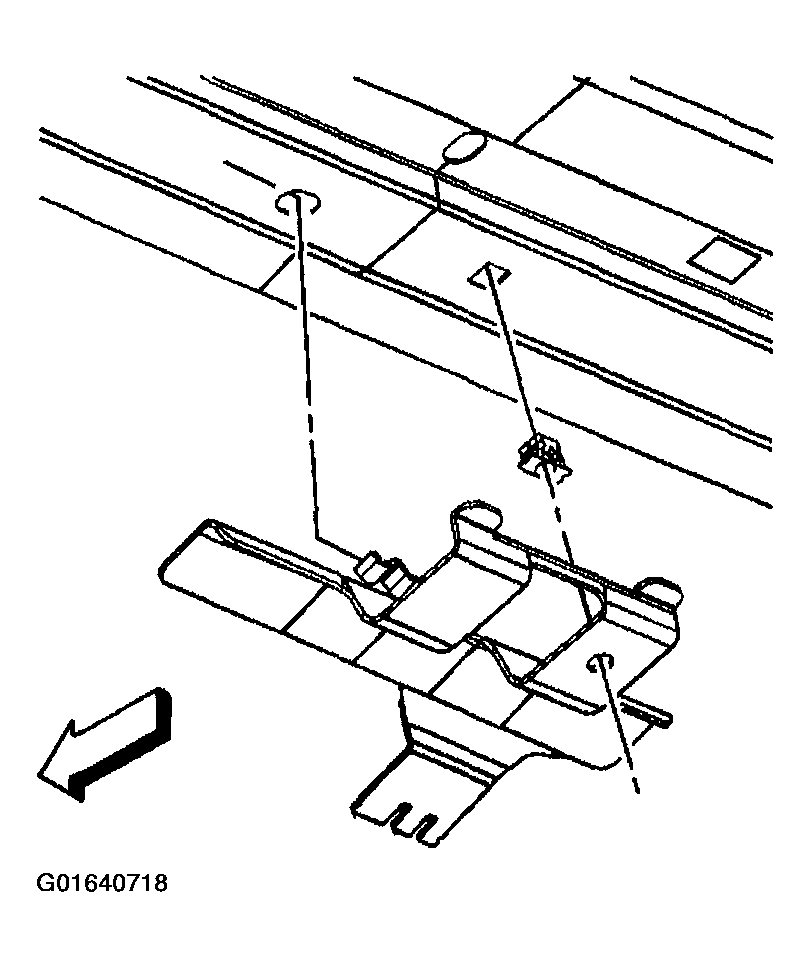

    Fig 1: Positioning Antenna Bracket To Roof Panel
    G01640718Courtesy of GENERAL MOTORS CORP.
