Power Seats Schematics

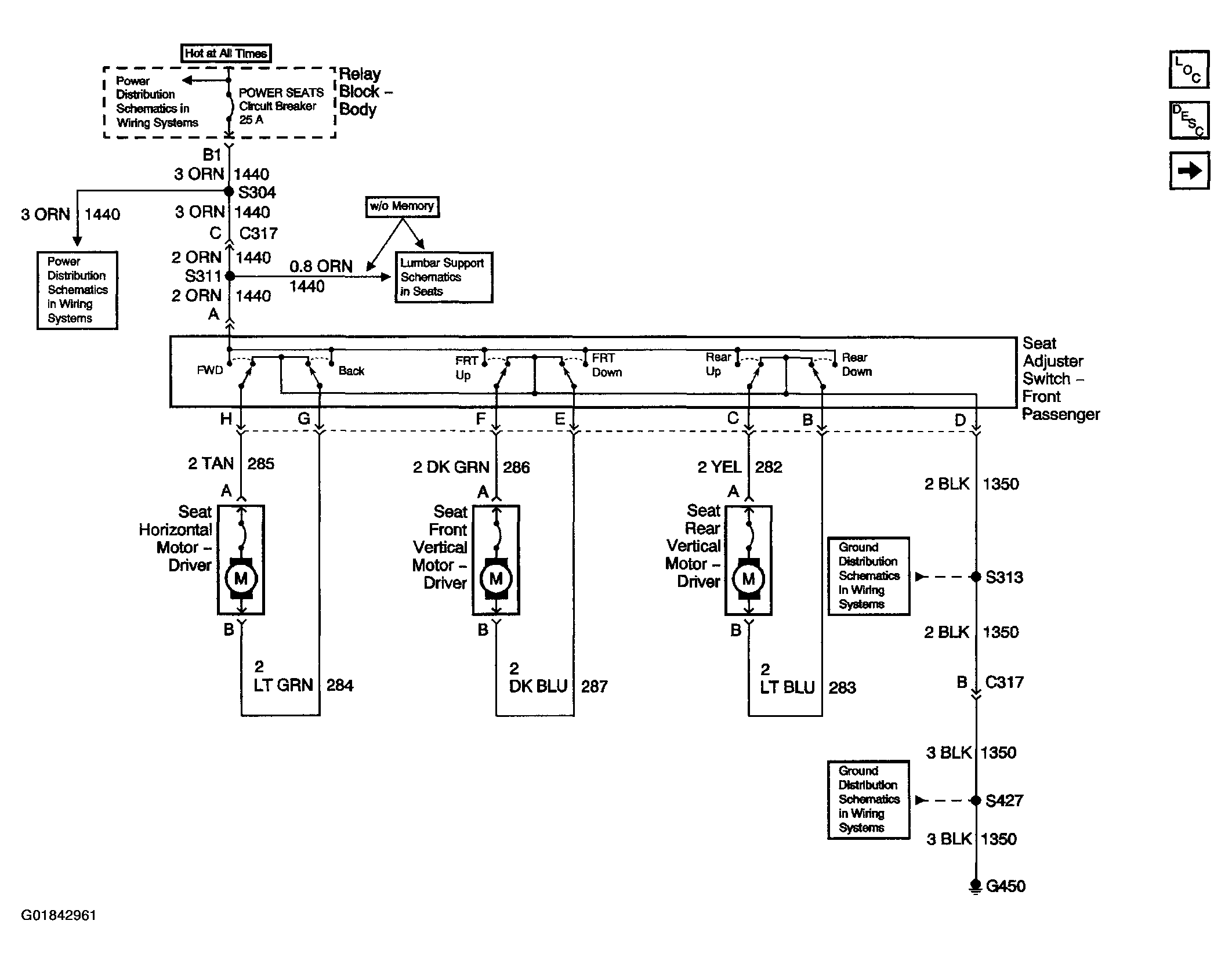

Fig 1: Power Seats Schematics (6-Way Left Power Seat)

Courtesy of GENERAL MOTORS CORP.

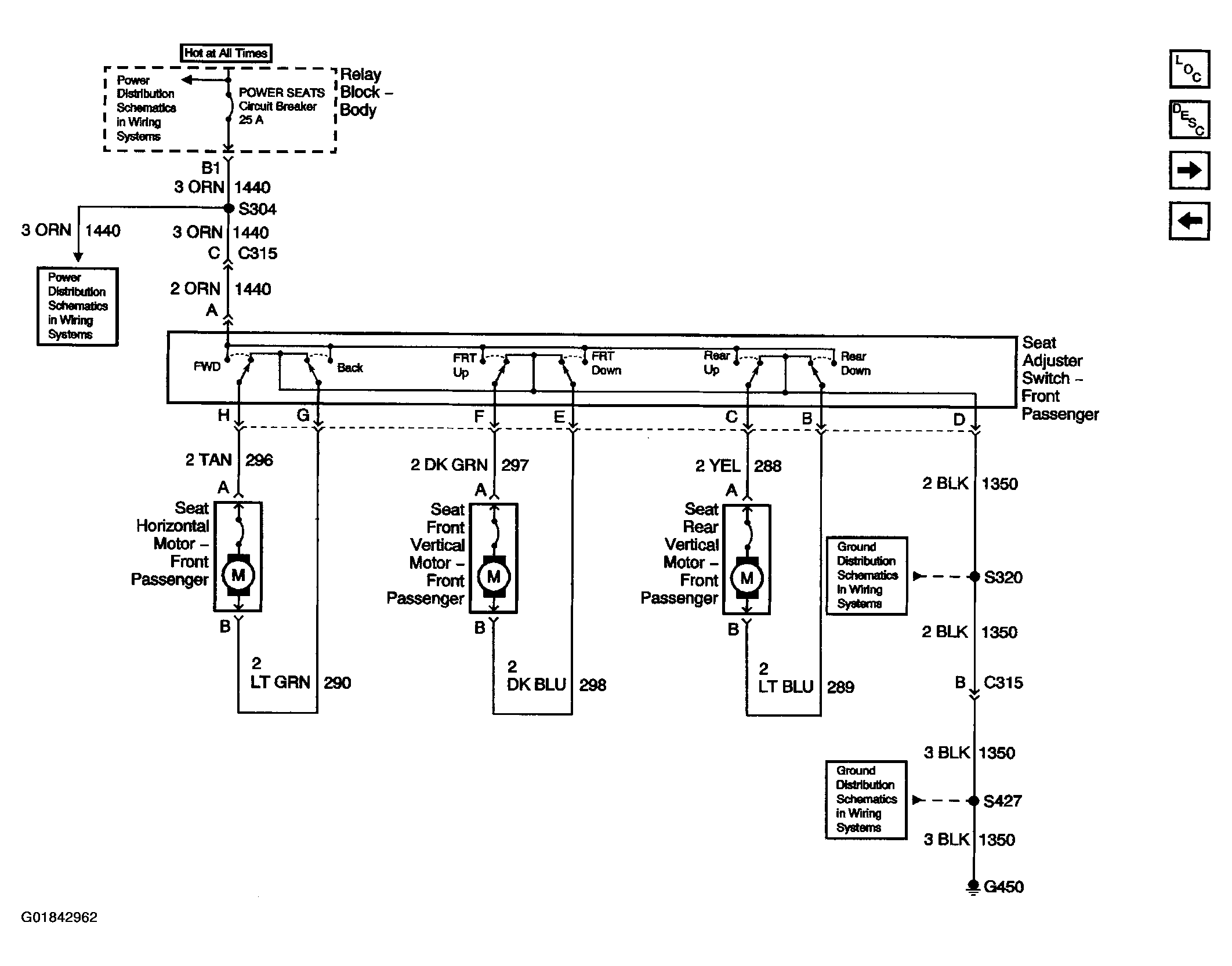

Fig 2: Power Seats Schematics (6-Way Right Power Seat)

Courtesy of GENERAL MOTORS CORP.

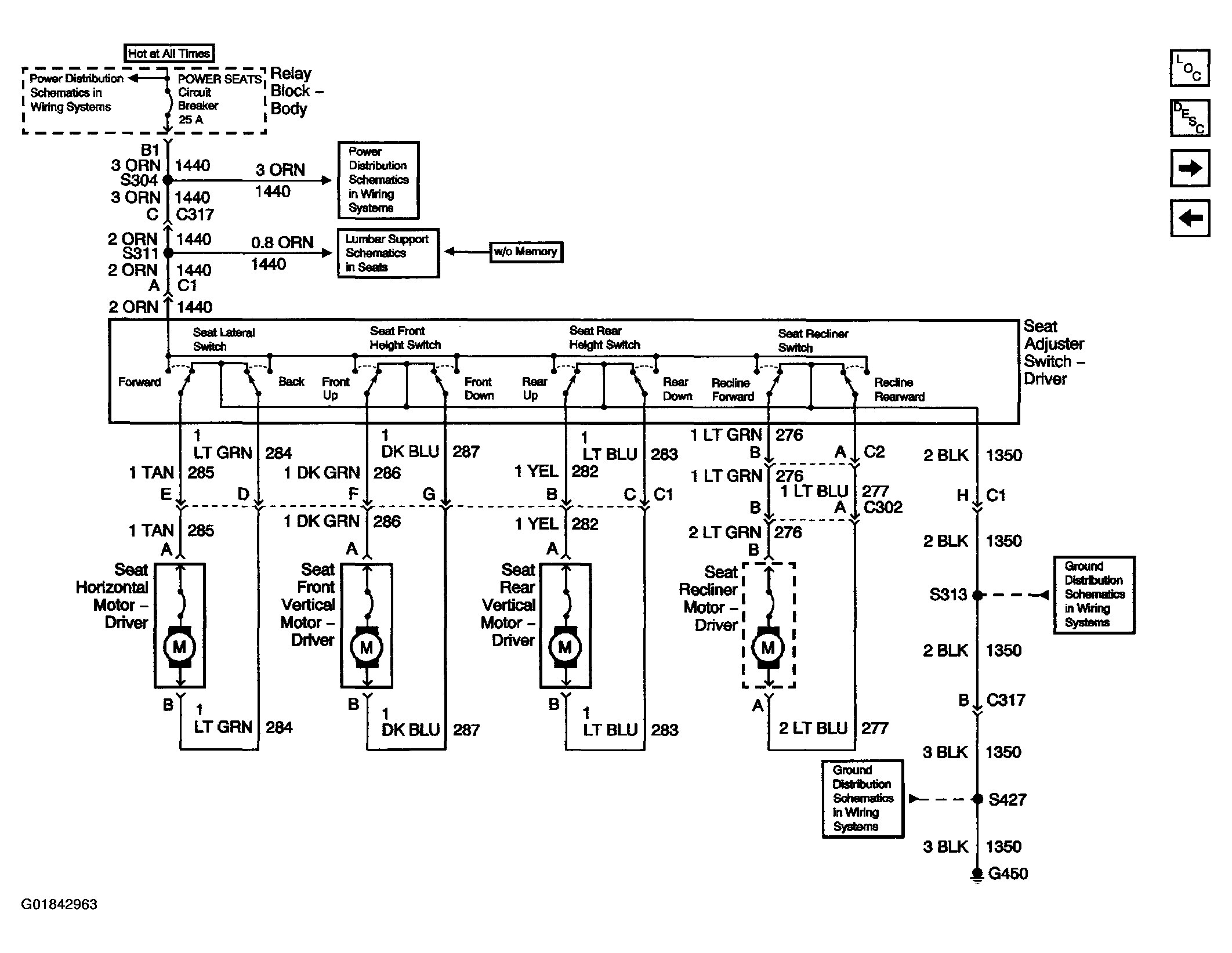

Fig 3: Power Seats Schematics (8-Way Left Power Seat)

Courtesy of GENERAL MOTORS CORP.

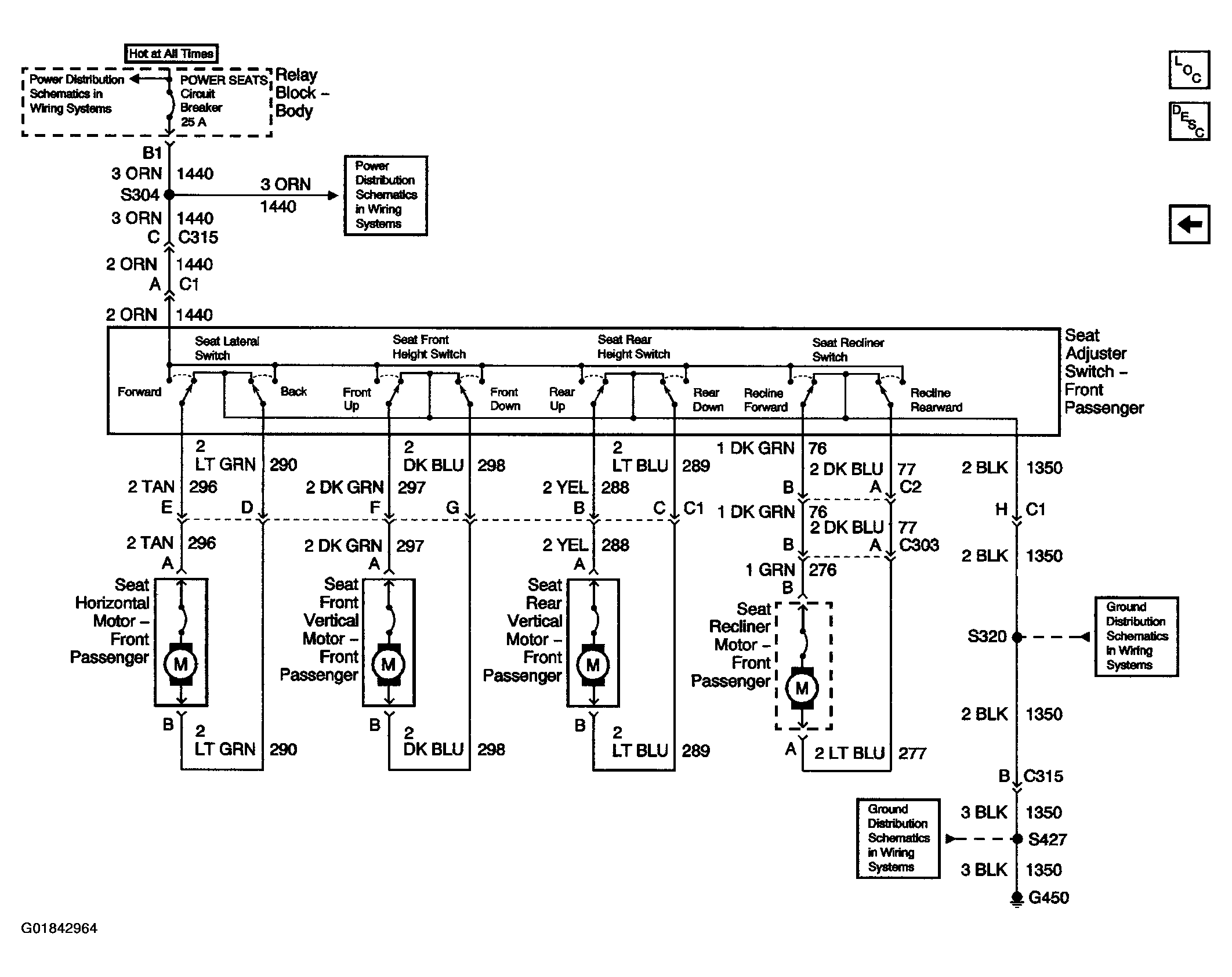

Fig 4: Power Seats Schematics (8-Way Right Power Seat)

Courtesy of GENERAL MOTORS CORP.
